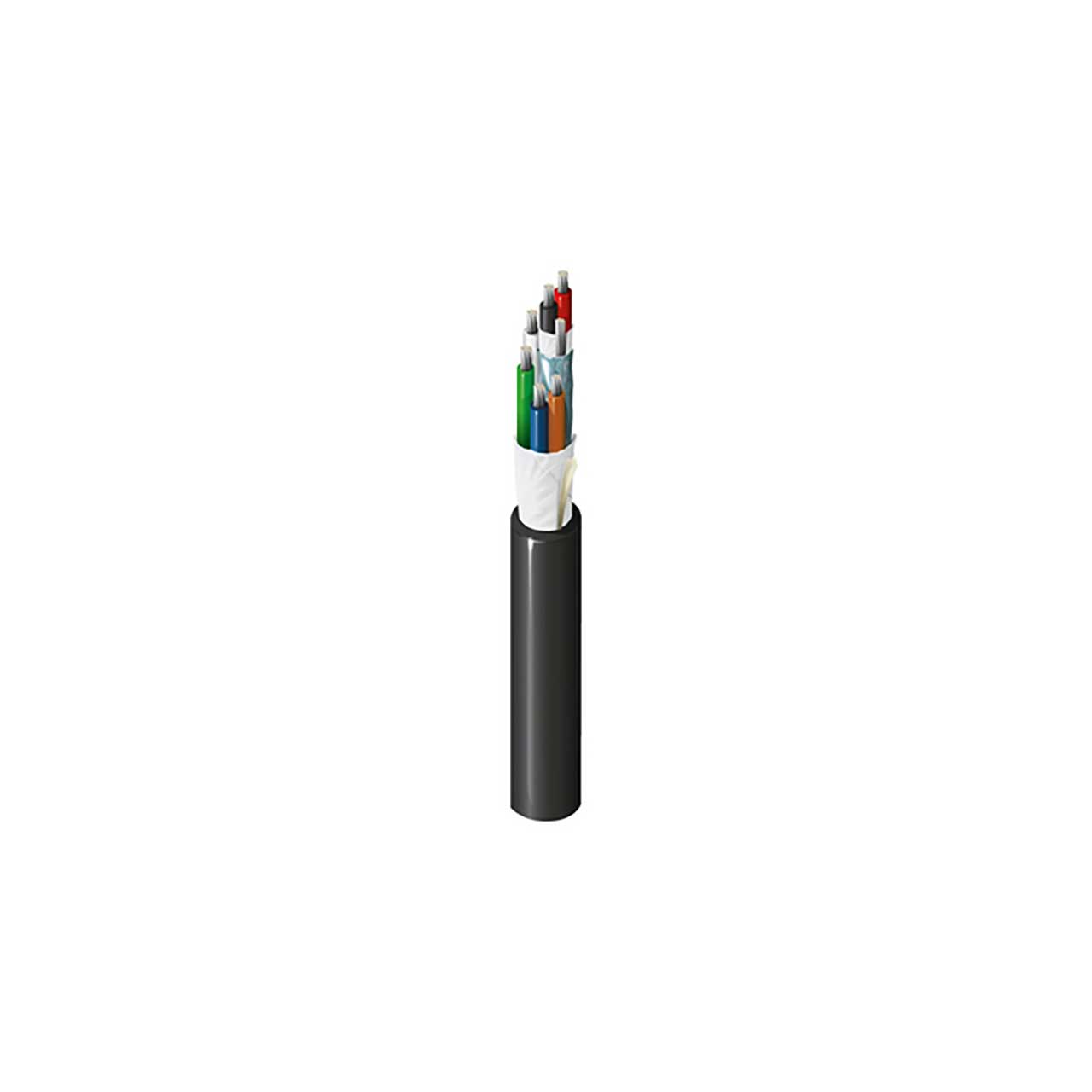

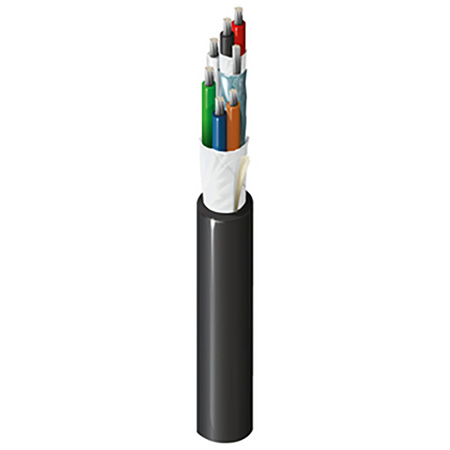

Belden 5504G1 22AWG Paired-CM Security & Sound Cable - Black - 1000 Foot/Reel

Name: Belden 5504G1 22AWG Paired-CM Security & Sound Cable - Black - 1000 Foot/Reel
Brand: Belden
SKU: BL-5504G1-1000BK
Price: 399.00 USD
Availability: PreSale

ITEM #: BL-5504G1-1000BK MFG #: 5504G1 0101000

Belden

List Price:

$493.20

Our Price:

$399.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

5504G1 0101000 - Overview

Belden 5504G1 is a Security & Sound Cable Rated-CM with 1-22 AWG stranded tinned copper pair with PVC insulation and Beldfoil® shield, 4-22 AWG stranded tinned copper pair with PVC insulation, overall waterblocking tape and PVC jacket with ripcord.

Suitable for Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct applications.

Specifications:
- Type: Sound, Security and Alarm
- Number of Conductors: 6 Conductor
- Cable Length: 1000 ft
- Wire Gauge: 22 AWG
- Jacket Color: Black
- Nominal Conductor DCR: 16.4 Ohm/1000ft
- Nominal Conductor DCR Conductor Resistance: 16.4 Ohm/1000ft
- Nom. Capacitance Conductor to Conductor: 44.5 pF/ft
- Nom. Capacitance Conductor to Other Conductor to Shield: 80.1 pF/ft
- Nominal Inductance: 0.18 µH/ft
- Max. Recommended Current [A]: 2.2 Amps per Conductor at 25°C
- UL Voltage Rating: 300 V RMS
- Operating Temp Range: -20°C To +105°C
- Bulk Cable Weight: 31.5 lbs/1000ft
- Max. Pull Tension: 54.6 lbs
- Min Bend Radius/Minor Axis: 2.75 in
- NEC Articles: Article 800
- NEC/(UL) Compliance: CM
- CEC/C(UL) Compliance: CM
- CPR Euroclass: Eca
- C(UL) Flammability: FT1
- UL Flammability: UL1685 UL Loading
- IEC Flammability: IEC 60332-1-2
- UL voltage rating: 300 V RMS
Item Includes:
- 1x Belden 5504G1 22AWG Paired-CM Security & Sound Cable - Black - 1000 Foot/Reel
