Belden 6340FT 1-18 AWG Thermostat and Control Cable - 1000 Foot/Crate Reel Put-up - Brown

ITEM #: BL-6340FTC1000BN MFG #: 6340FT 0011000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$1,064.50

Our Price:

$859.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    6340FT 0011000 - Overview

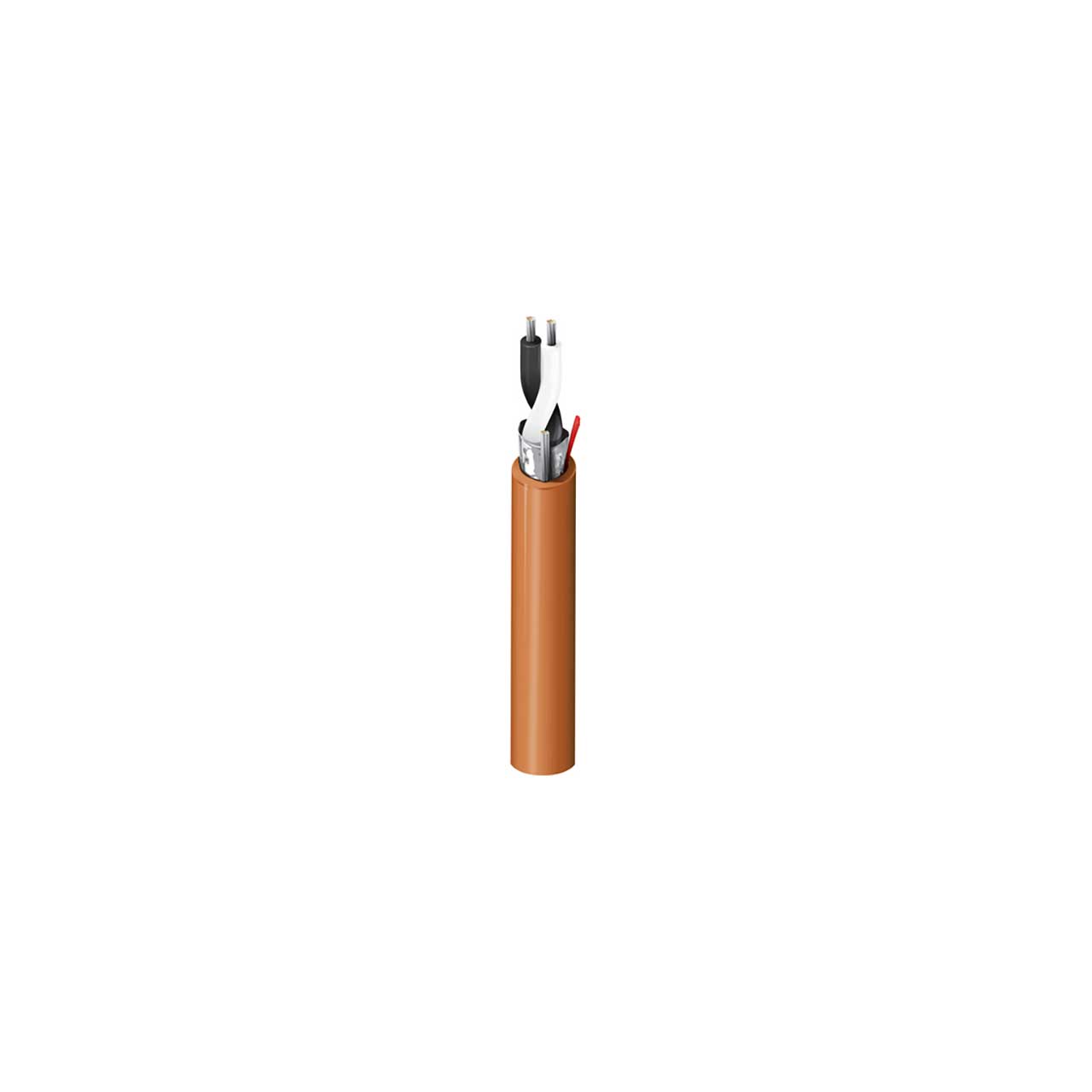

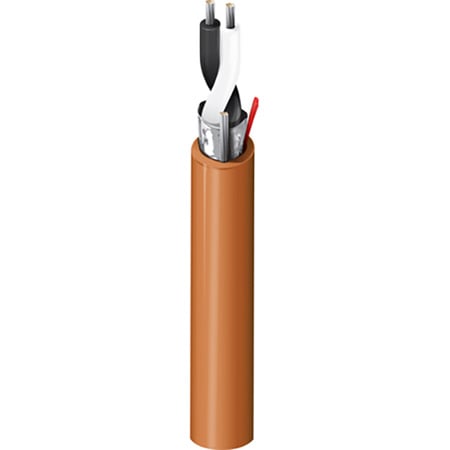

    Belden 6340FT Thermostat & Control Cable, Plenum-CMP, 1-18 AWG stranded tinned copper pair with foam FEP insulation, Beldfoil® shield, Flamarrest® jacket.

    • Specifications:

      • AWG: 18
      • Stranding: 7x26
      • Material: TC - Tinned Copper
      • No. of Pairs: 1
      • Material: FEP - Fluorinated Ethylene Propylene (Foam)
      • Nom. Capacitance Conductor to Conductor: 16.9 pF/ft
      • Nominal Inductance: 0.21 µH/ft
      • UL Temp Rating: 75° C
      • Operating Temp Range: -20° C To +75° C
      • Bulk Cable Weight: 26 lbs/1000ft
      • Max Recommended Pulling Tension: 67 lbs
      • Min Bend Radius/Minor Axis: 2.3 in
      • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
      • EU CE Mark: Yes
      • EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
