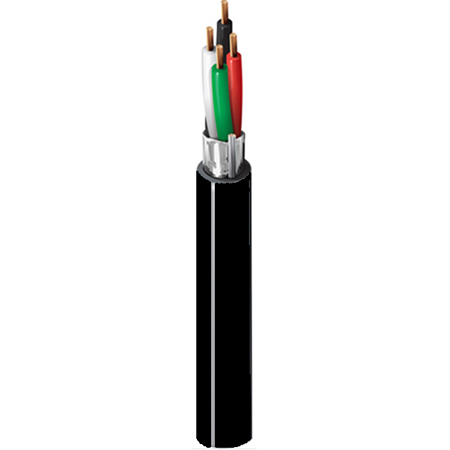

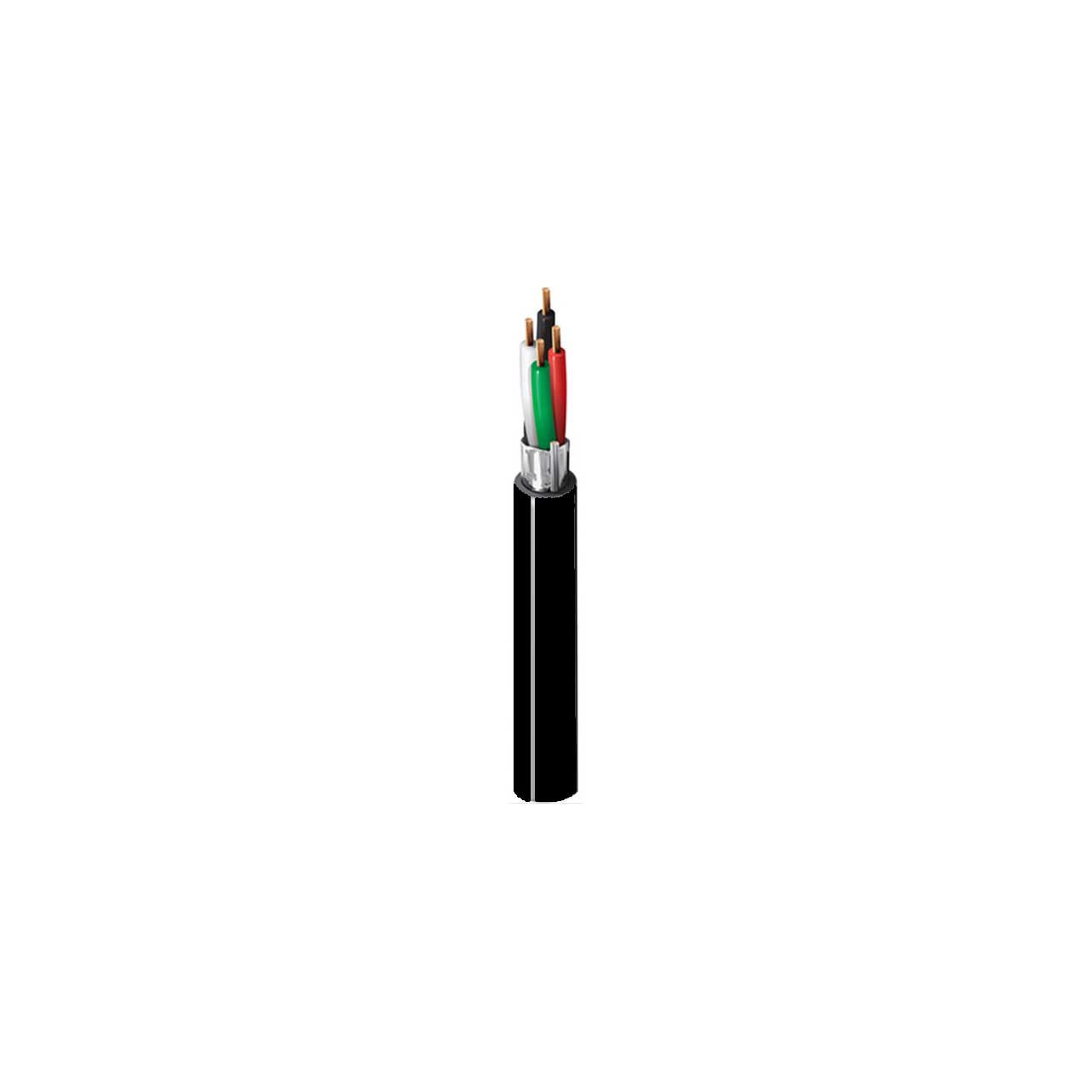

Belden 6502FE 4-22AWG Plenum-CNP Security & Alarm Cable - Black - 1000 Foot

6502FE-1000BK - Overview

• Specifications:

  • Conductor
  • Element: Conductor(s)
  • Number of Element: 4
  • AWG: 22
  • Stranding: 7x30
  • Material: BC - Bare Copper

    Insulation
  • Element: Conductor(s)
  • Material: PVC - Polyvinyl Chloride
  • Thickness: 0.009"
  • Color Code: Black, Red, White, Green

    Outer Shield Material
  • Shield Type: Tape
  • Material: Bi-Laminate (Alum+Poly)
  • Coverage: 100%
  • Drainwire Type: 24 AWG (7x32) TC

    Outer Jacket Material
  • Material: PVC - Polyvinyl Chloride
  • Thickness: 0.015"
  • Nom Diameter: 0.147"
  • Ripcord: Yes
  • Cable Diameter (Nominal): 0.147"

    Electrical
  • Element: Conductors
  • Nom. Conductor DCR: 16.2Ω/1000'
  • Nom Capacitance Cond-to-Cond.: 33 pF/ft
  • Nom Capacity: 59 pF/ft
  • Max Current: 2.2 Amps per Conductor at 25°C
  • UL Voltage Rating: 300V
  • Operating Temperature: 32° to 158°F (0° to 75°C)

    Bend Radius
  • Stationary Min: 1.5"
  • Installation Min: 4.6"
  • Max. Pull Tension: 42Lbs
  • Bulk Cable Weight: 17Lbs/1000'

    Standards and Compliance
  • Environmental Suitability: Indoor
  • Flammability / Fire Resistance: NFPA 262 Plenum Flame Test (UL910), FT6, IEC 60332-1-2
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5502FE
