Belden 7930A DataTuff 4 Pair 24AWG/Bare Copper Ethernet Cat5e Cable - PO Insulation/PVC/CMX-Outdoor CMR - Black - 1000Ft

ITEM #: BL-7930A-1000 MFG #: 7930A 0101000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

List Price:

$1,671.50

Our Price:

$1,408.23

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

7930A 0101000 - Overview

Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels. Our top-of-line 1200 Series cable provides headroom beyond the TIA-568-C.2 Category 5e standard and is offered with Bonded-Pair technology to make your installation as robust as possible

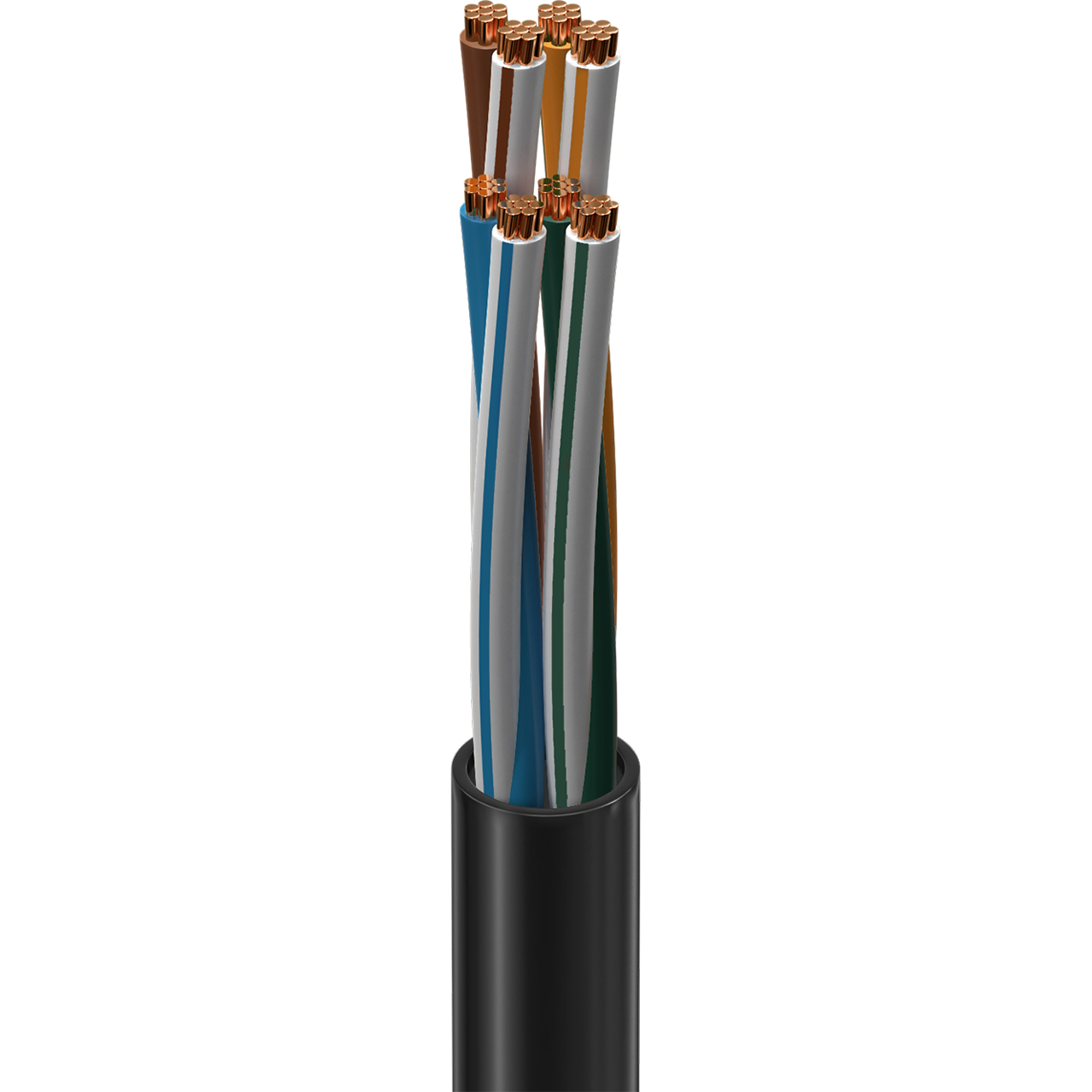

Belden 7930A is a DataTuff Industrial Ethernet Cat 5e Cable with 4 Pair 24AWG (7x32) Bare Copper, PO Insulation, PVC Outer Jacket, and CMX-Outdoor CMR.

Suitable Applications:
- Outdoor
- Harsh environment
- IIoT
- Factory or process automation
- IP cameras and devices
- Data communication, etc.

  • Features:

    • Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
    • Superior Electrical Performance: Exceeds Category 5e performance
    • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
    • Stable Electricals: 1200 Cable's design features matched conductors on all four pairs providing for extremely stable electrical performance
    • No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design


  • Specifications:

    • Size: 24 AWG
    • Stranding: 7x32
    • Material: Bare Copper
    • No. of Pairs: 4
    • No. of Elements: 4
    • Insulation: PO - Polyolefin
    • Outer Jacket: Polyvinyl Chloride
    • Overall Cable Diameter (Nominal): 0.24 in (6.1 mm)
    • Max. Conductor DCR: 93.8 Ohm/km (28.6 Ohm/1000ft)
    • Max. Capacitance Unbalance: 330 pF/ft
    • Max. Delay: 510 ns/100m
    • Max. Delay Skew: 45 ns/100m
    • Nom. Velocity of Prop.: 69%
    • Typical Delay Skew: 12 ns/ft
    • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
    • UL Temperature: 60°C
    • Operating Temperature: -40°F - 167°F (-40°C - 75°C)
    • Installation Temperature: -13°F - 167°F (-25°C - 75°C)
    • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
    • Bend Radius: 0.960" (24.4mm) Stationary Min
    • Max. Pull Tension: 25lbs (11kg)
    • Bulk Cable Weight: 26lbs/1000ft
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
    • Flammability/Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
    • CPR Compliance: CPR Euroclass: Eca
    • NEC/UL Compliance: Article 800, CMR, CMX-Outdoor
    • CEC/C (UL) Compliance: CMR
    • ICEA Compliance: S-90-661
    • NEMA Compliance: NEMA WC-63.1
    • Data Category: Category 5e
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
    • Third Party Performance Verification: Category 5e Patch


  • Item Includes:

    • 1x Belden 7930A DataTuff 4 Pair 24AWG/Bare Copper Ethernet Cat5e Cable - PO Insulation/PVC/CMX-Outdoor CMR - Black - 1000Ft


  • GTIN:

    0612825191575
