Belden 8132 2-Pair 28 AWG Computer EIA RS-232/485 Control Cable - Chrome - 1000 Foot

Name: Belden 8132 2-Pair 28 AWG Computer EIA RS-232/485 Control Cable - Chrome - 1000 Foot
Brand: Belden
SKU: BL-8132-1000-CE
Price: 2670.00 USD
Availability: PreSale

ITEM #: BL-8132-1000-CE MFG #: 8132 0601000

Belden

List Price:

$3,158.00

Our Price:

$2,670.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

8132 0601000 - Overview

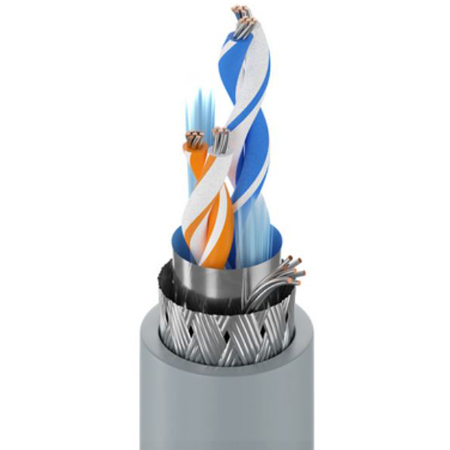

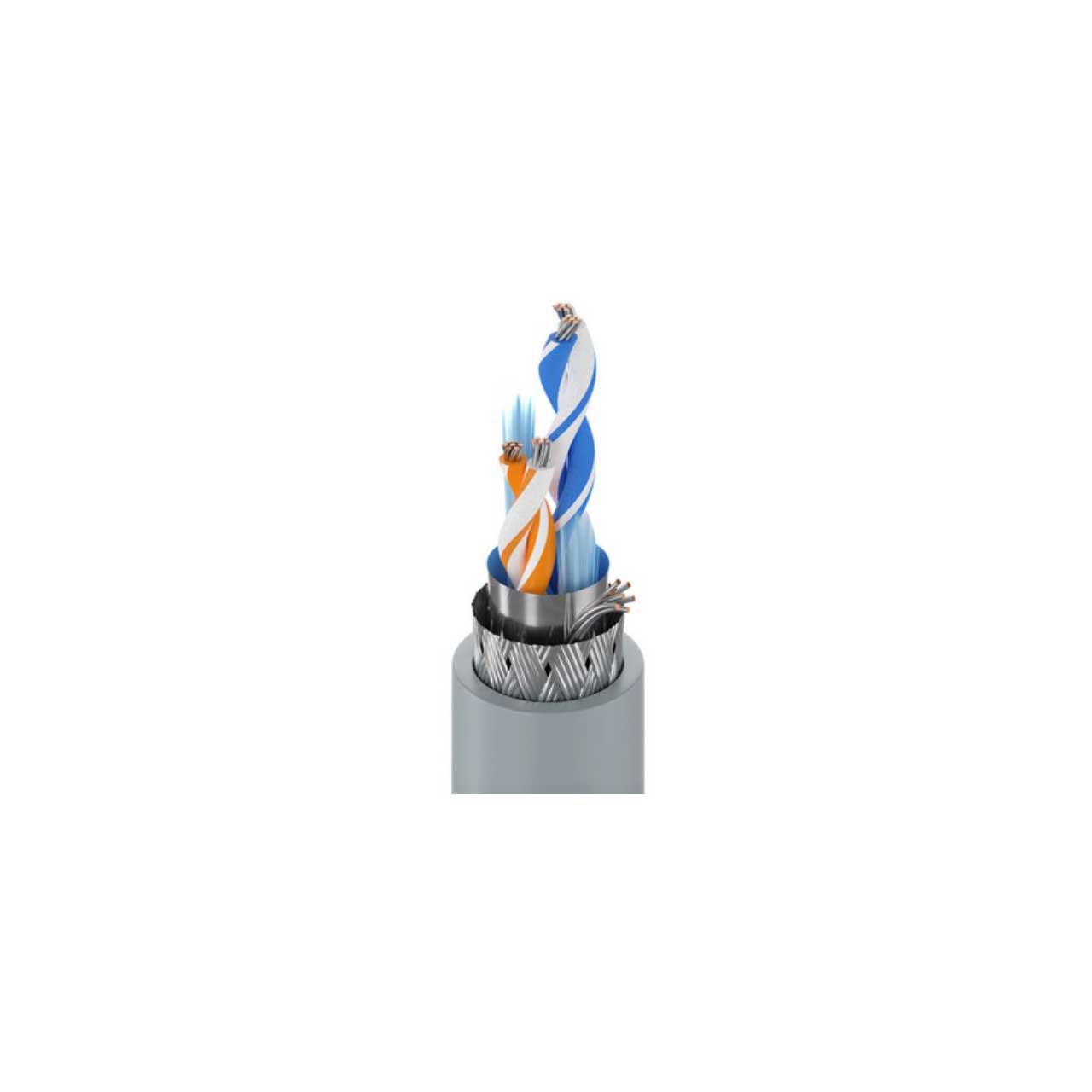

Computer EIA RS-232/485 Cable, 2-Pair, 28 AWG stranded (7x36) tinned copper conductors, Datalene insulation, overall Beldfoilr (100% coverage) + tinned copper braid shield (65% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.

Suitable applications include: RS-232 extended distance applications; RS-485 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, .); line
level audio; panel wirin

Specifications:
- Element Pair(s): 2.
- Size: 28 AWG.
- Stranding: 7x36.
- Material: TC - Tinned Copper.
- Material: PE - Polyethylene (Foam).
- Nom. Thickness: 0.015 in (0.38 mm).
- Nom. Insulation Diameter: 0.044 in (1.1 mm).
- Color Code: Western Electric Standard.
- OUTER SHIELD - Shield Type:Braid:
- Material: Tinned Copper (TC).
- Coverage:65%.
- OUTER JACKET - Material: PVC - Polyvinyl Chloride.
- Nom. Thickness: 0.035 in (0.89 mm).
- Nom. Diameter: 0.220 in (5.59 mm).
- Overall Cable Diameter (Nominal): 0.220 in (5.59 mm).
- Nom. Conductor DCR: 65 Ohm/1000ft.
- Nom. Capacitance Cond-to-Cond: 11 pF/ft (36 pF/m).
- Nom. Capacitance Cond-to-Other (Conds + Shield): 20 pF/ft (66 pF/m).
- Nom. Characteristic Impedence: 120 Ohm.
- Nom. Velocity of Prop: 78%.
- Max Current: 1 Amp per Conductor at 25§C
- UL Voltage Rating:30 V (UL AWM 2919).
- UL Temperature: 80°C.
- Operating:-30°C to +80°C.
- BEND RADIUS - Stationary Min: 2.2 in (56 mm).
- Installation Min: 2.2 in (56 mm).
- Max. Pull Tension: 40 lbs (18 kg).
- Bulk Cable Weight: 26 lbs/1000ft.
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor.
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2.
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca.
- NEC / UL Compliance: Article 725, CL2.
- AWM Compliance: AWM 2919.
