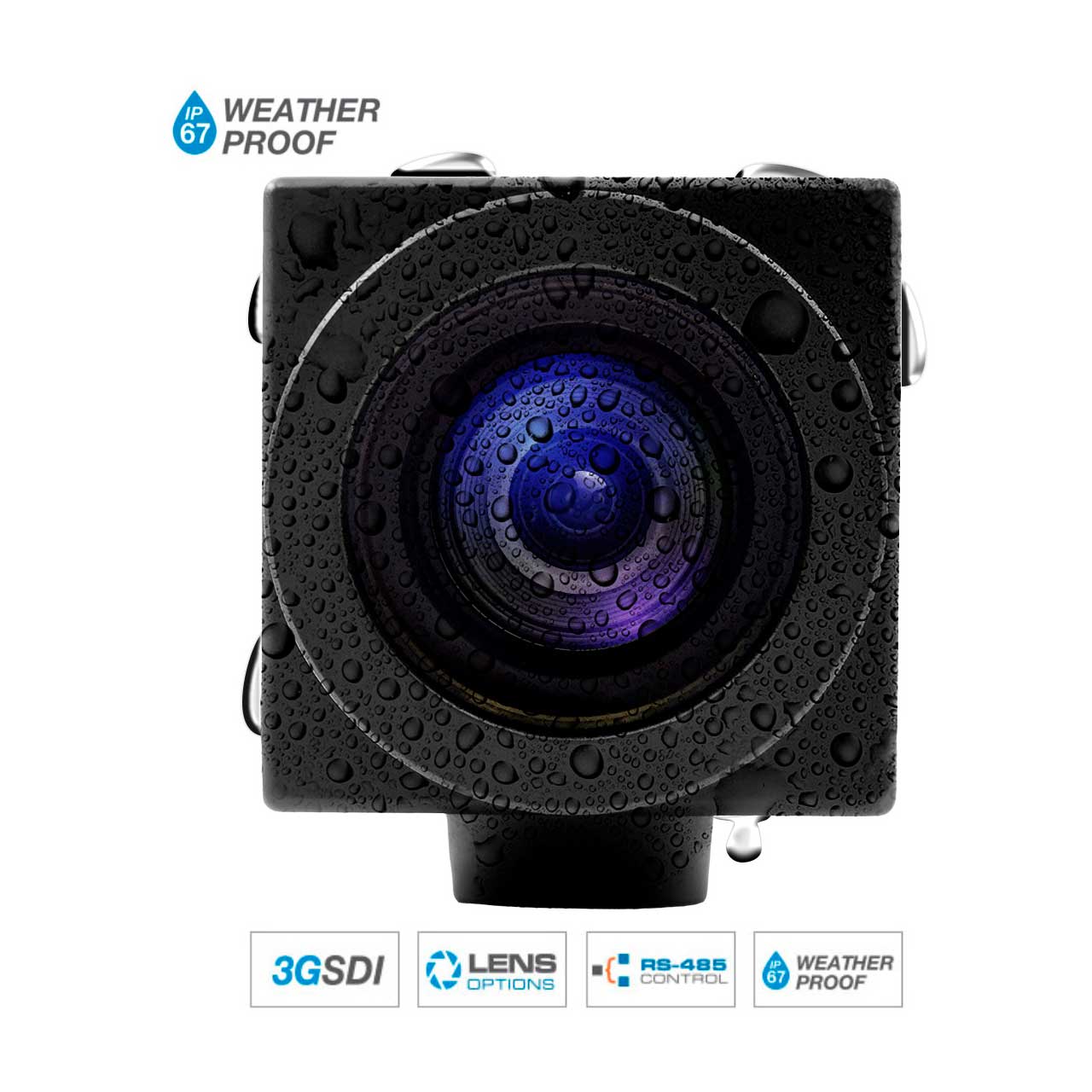

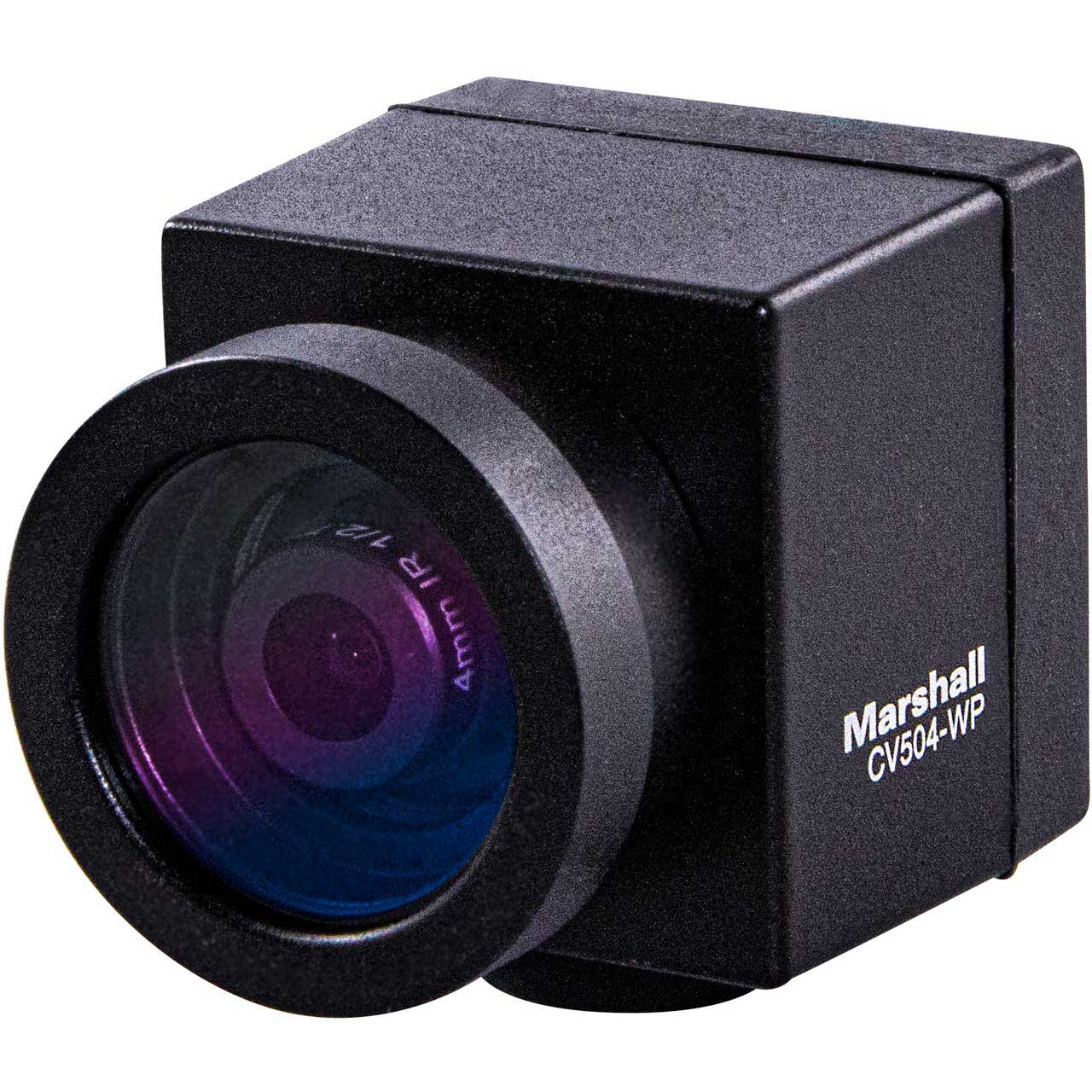

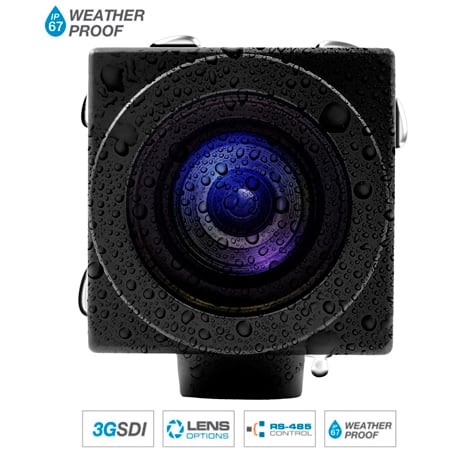

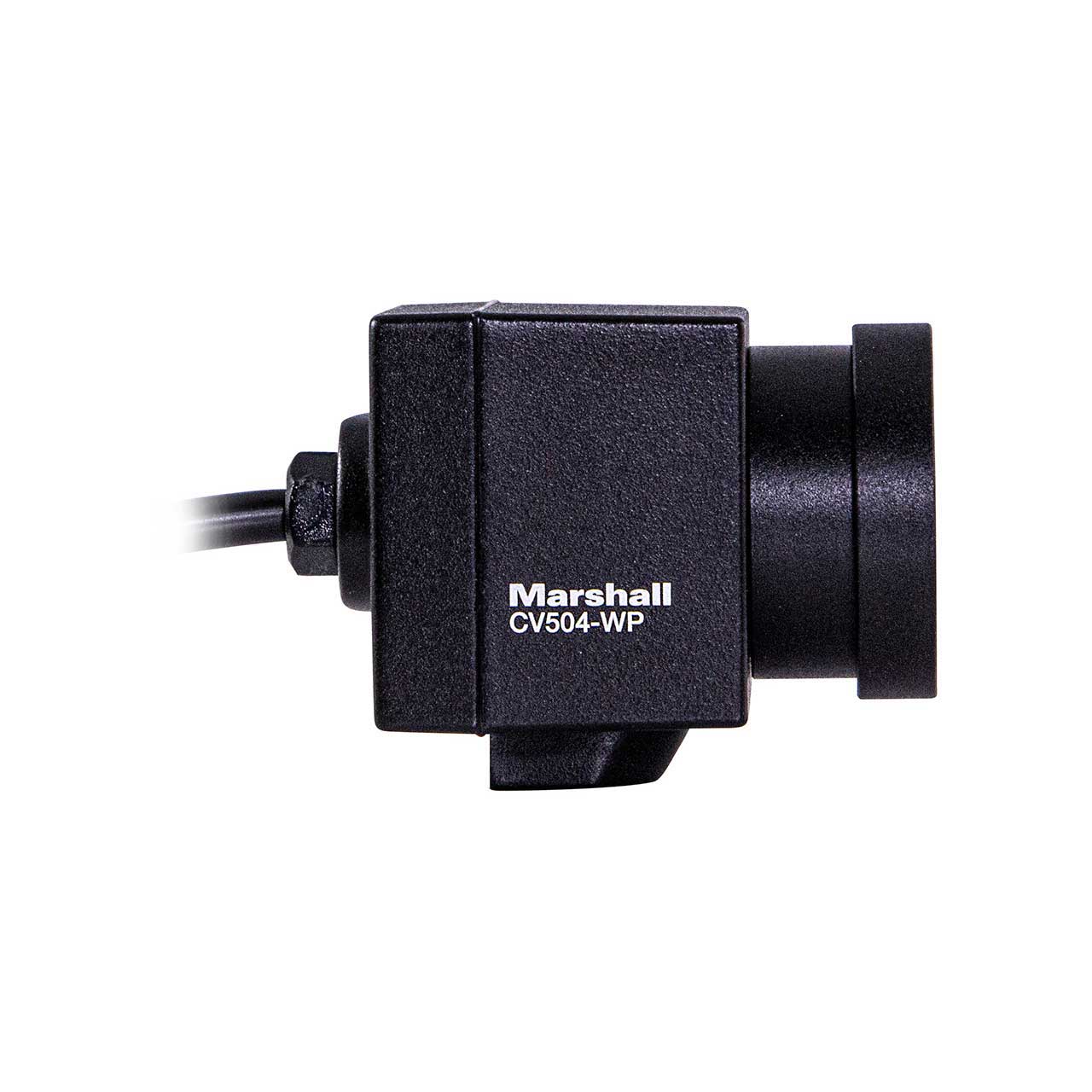

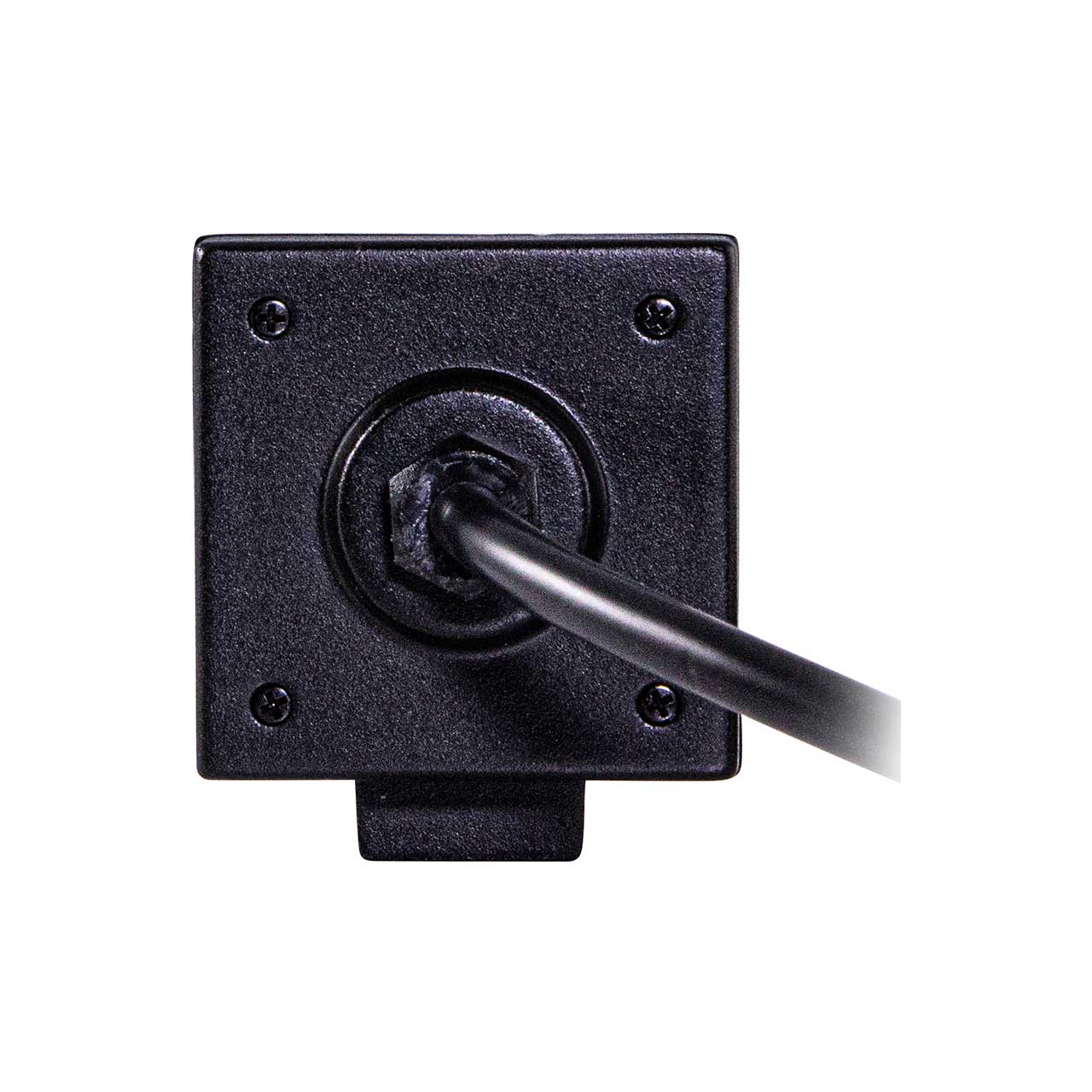

Marshall CV504-WP All-Weather 2.2 Megapixel 3G-SDI Micro POV Camera with Sony Image Sensor and M12 4.0mm Prime Lens

ITEM #: MAR-CV504-WP MFG #: CV504-WP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$593.99

Our Price:

$534.59

Availability: In Stock
iAvailability Description Popup


    CV504-WP - Overview

    The CV504-WP delivers exceptional 10 bit 4:2:2 video performance from a durable aluminum alloy body through weatherproof breakout cable and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.

    New Sony 1/2.8" (6.46mm) Solid-Sate Image Sensors
    The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.

    Interchangeable M12 Lenses
    Marshall CV504 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.

    Durable, Flexible, Powerful
    The durable all-weather CV504-WP body is chiseled from one block of aluminum alloy with 10-foot (3m) breakout cable. CV504-WP operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.

    Broadcast Performance
    Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

    Applications:
    The Micro CV504-WP is suitable for use in outdoor 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

    • Features:

      • 2.2 Megapixel Sony sensor with square pixel array and larger pixels
      • Interchangeable M12 lens mount, comes with 4.0mm - 85° H.AOV lens

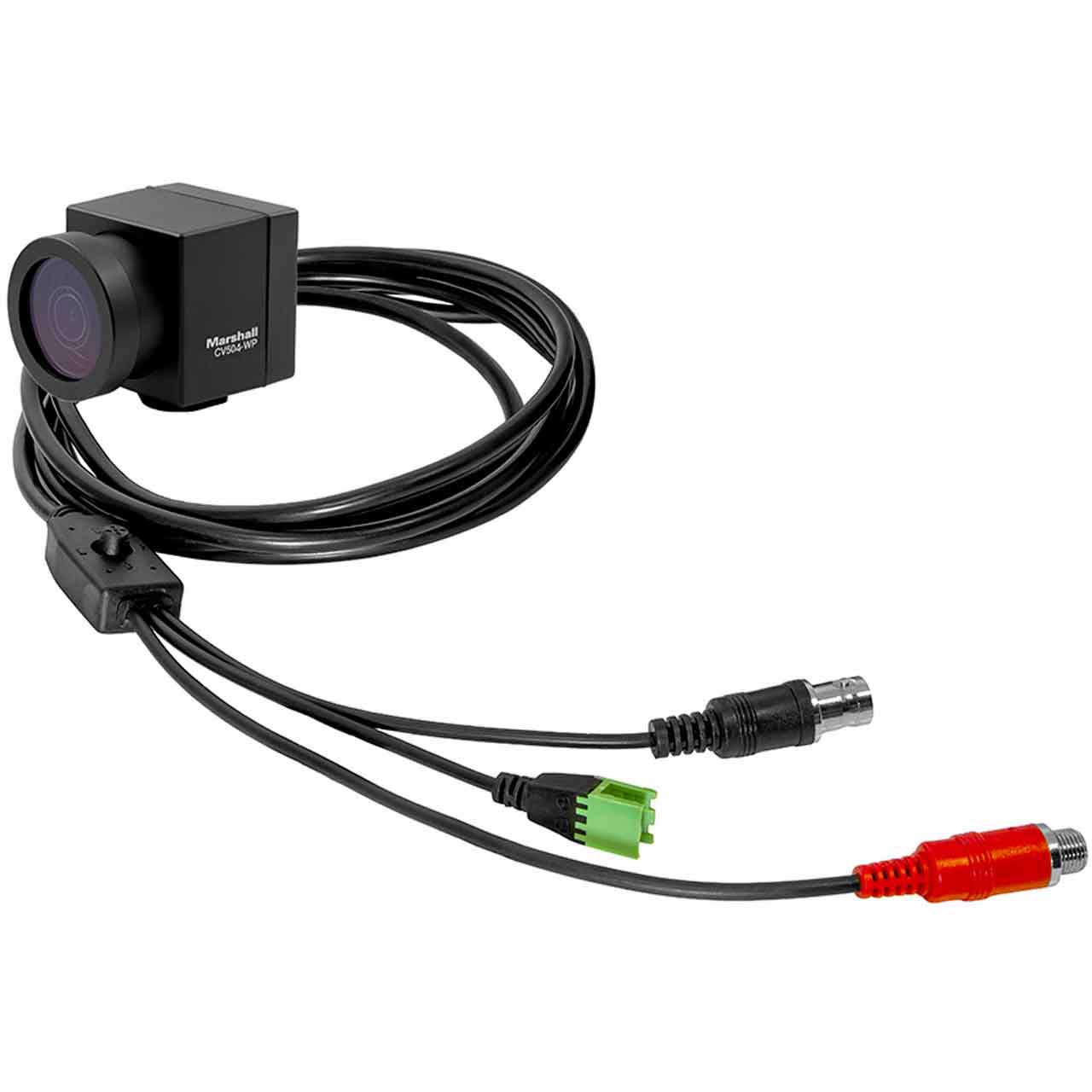

      • 10-foot (3 meter) weatherproof IP67 breakout cable to BNC, RS485, power
      • 3GSDI (10bit, 4:2:2, BT.709) reliability with remote adjust & match capability
      • 1920x1080p, 1920x1080i & 1280x720p resolutions available
      • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
      • Remote adjust & match via CV-RCP-V2, Camera Control Software and 3rd party sources
      • such as Cyanview, Skaarhoj and more
      • Power Draw: 2.64W (max 6W) with 7~15V flexibility

    • Specifications:

      • Sensor
      • Image Sensor: Sony 1/2.8" IMX CMOS Solid-state Image Sensor with Square Pixel Array
      • Color: 10bit, 4.2.2, ITU BT.709
      • Pixel Size: 2.9 µm x 2.9 µm
      • Effective Pixel: 1920 (H) x 1080 (V) - 16:9 HD ratio
      • Min. Illumination: 0.01Lux (Day), 0.005Lux (Night)

        Optics
      • Lens: Interchangeable M12, 4mm (85° H.AOV)

        Functions
      • Back Light Compensation: WDR, BLC, HLM
      • Exposure: Auto / Manual / AGC Fix / Shutter Fix
      • White Balance: ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push
      • Day & Night: System Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism
      • Electronic Shutter: 1/30~1/10000
      • Privacy: Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom, DIS (Digital Image stabilizer), NegArt, Freeze

        Video Outputs
      • HDSDI SMPTE 292M(1.485Gbps): 1920x1080p @ 23.976, 24, 25, 29.97, 30. 1920x1080i @ 50, 59.94, 60. 1280x720p @ 50, 59.94, 60
      • 3GSDI SMPTE 424M(2.97Gbps): 1920x1080p @ 50, 59.94, 60fps, 800mVp-p, 75Ω, unbalanced generator (single-ended)

        Audio Input
      • MIC Input: TRS Stereo, Mic/Line Level input with 2.5V Mic bias, 48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400~115200bps

        Control Interface
      • Visca over RS485: SONY-VISCA protocol, Camera ID#, Baudrate 2400~115200

        General
      • Operation Temperature: -10°C ~ 50°C
      • Power Input: 12V DC (7V to 15VDC)
      • Power consumption: Max 6W = 2.64W

    • Item Includes:

      • 1x 4.0mm - 85° H.AOV lens
      • 1x 10-foot (3 meter) weatherproof IP67 breakout cable to BNC, RS485, power
