Belden 83030 High Temp Pastic Lead Wire - 16 Straight SPC - TFE Ins - AWM 1180 300V 200C Type EE - Brown - 1000 Foot

Name: Belden 83030 High Temp Pastic Lead Wire - 16 Straight SPC - TFE Ins - AWM 1180 300V 200C Type EE - Brown - 1000 Foot
Brand: Belden
SKU: BL-83030-1000BN
Price: 2431.00 USD
Availability: PreSale

ITEM #: BL-83030-1000BN MFG #: 83030 0011000

Belden

List Price:

$2,909.70

Our Price:

$2,431.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

83030 0011000 - Overview

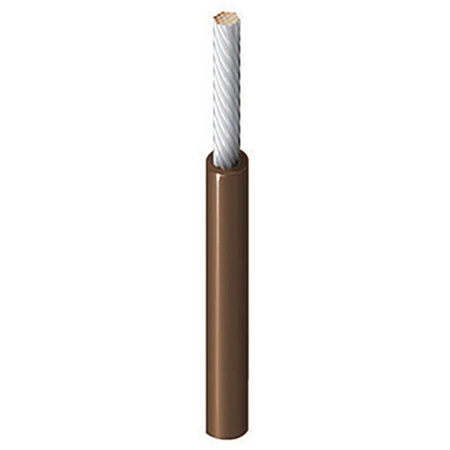

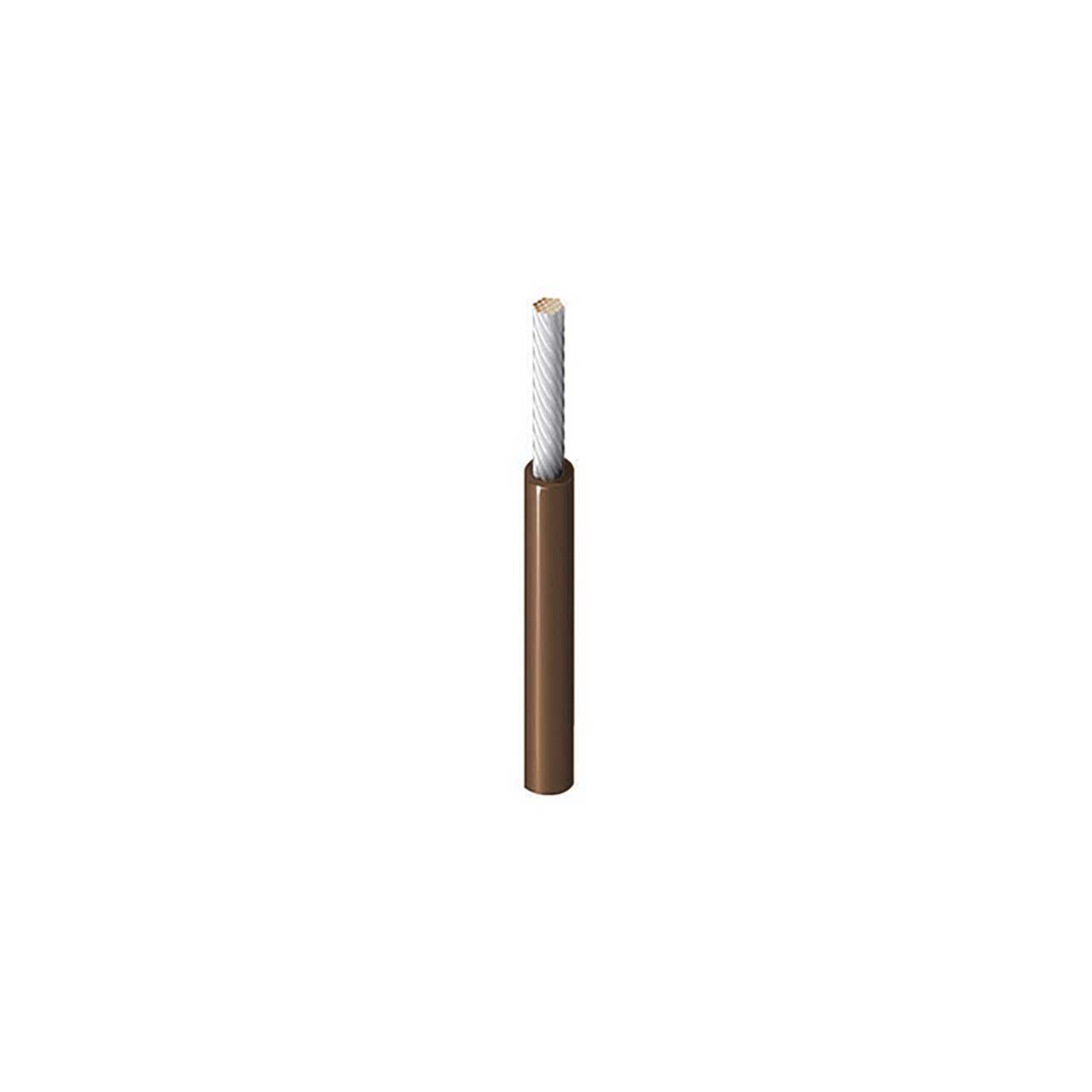

Belden 83030 is a High temp plastic lead wire with16AWG (19x29) Silver Plated Copper, TFE Insulation. AWM 1180 300V 200C TYPE EE MIL-W-16878/5 1000V 200C.

Specifications:
- AWG: 16
- Stranding: 19x29
- Material: Silvered Copper
- Conductor Count: 1
- UL Temp Rating: 200°C
- Operating Temp Range: -70°C To +200°C
- UL AWM Style: 1180
- Military Specification: NEMA HP3, MIL-W-16878/5 (Except For Stranding)
- UL Flammability: VW-1
- UL voltage rating: 300 V RMS (UL AWM Style 1180)
