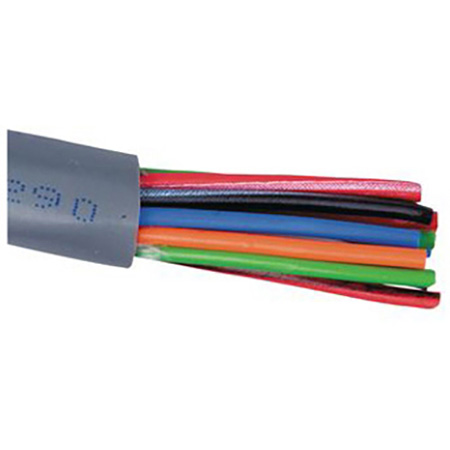

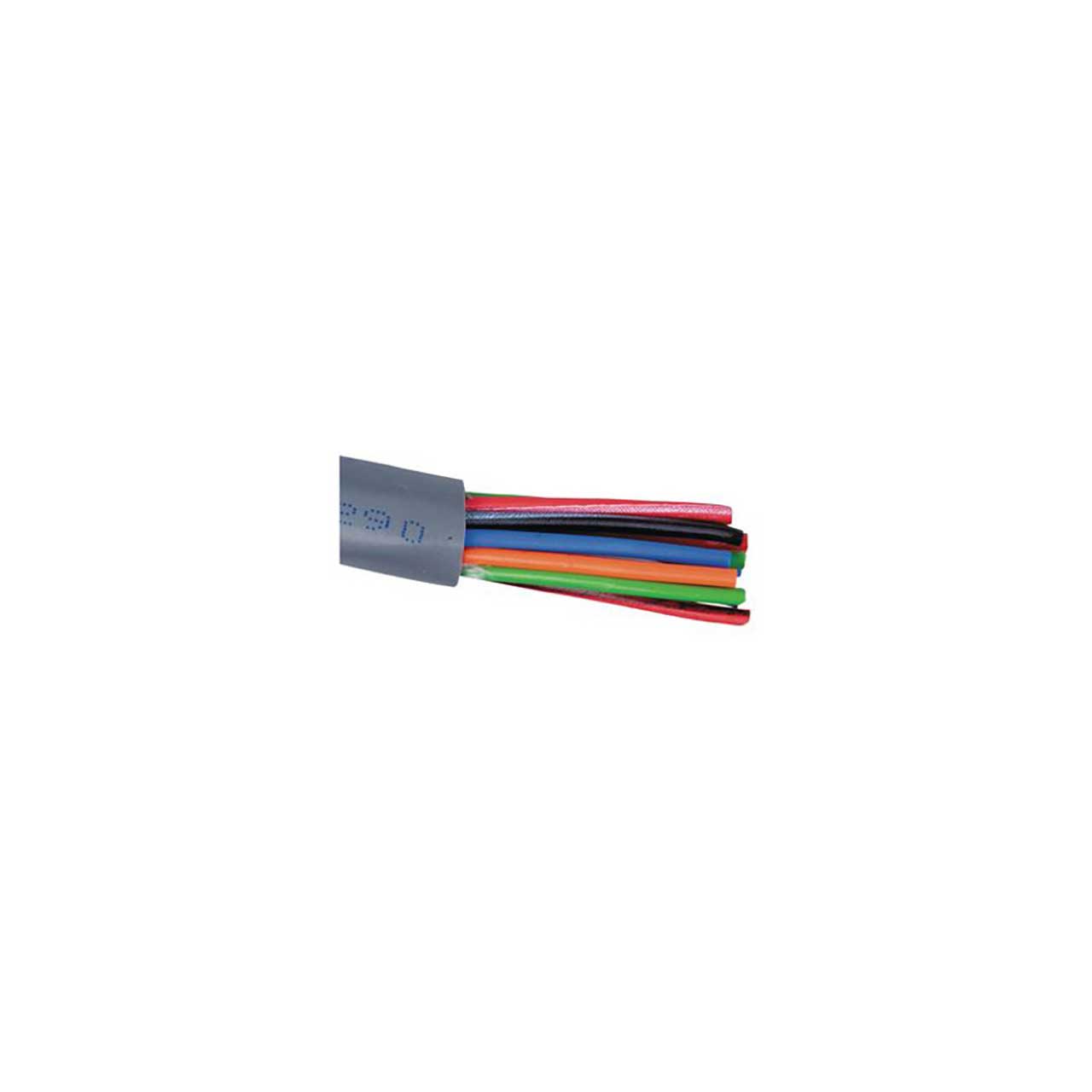

Belden 8458 Chrome 15-Conductor - Audio Control and Instrumentation Cable - 100 Feet

8458 0601000 - Overview

• Specifications:

  • Mechanical Characteristics (Overall)
  • AWG: 15 Conductors, 22 AWG, 7x30 Stranding, Tinned Copper
  • Insulation Material/Thickness: Polyvinyl Chloride/0.011 Inch
  • Outer Jacket Material/Thickness: Polyvinyl Chloride/0.040 Inch
  • Operating Temperature Range: -20°C To +80°C
  • UL Temperature Rating: 80°C (UL AWM Style 2576)
  • Bulk Cable Weight: 64 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 135 lbs.
  • Min. Bend Radius/Minor Axis: 3.250 in.
  • Applicable Specifications and Agency Compliance (Overall)
  • Applicable Standards & Environmental Programs
  • NEC/(UL) Specification: CMG
  • CEC/C(UL) Specification: CMG
  • AWM Specification: UL Style 2576 (150 V 80°C)
  • CSA Specification: FT4
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU CE Mark: Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • UL Flame Test: UL1685 FT4 Loading
  • CSA Flame Test: FT4
  • Plenum (Y/N): No


• GTIN:

  0612825208044
