Belden 9451 CMR/Riser Rated Single Pair Analog Audio Cable 22 AWG - TC - Shielded - Black - Per Foot

ITEM #: BL-9451 MFG #: BL-9451 PER FOOT

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with Minimum Order Banner

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$0.46

Our Price:

$0.40

Availability: In Stock
iAvailability Description Popup


    BL-9451 PER FOOT - Overview

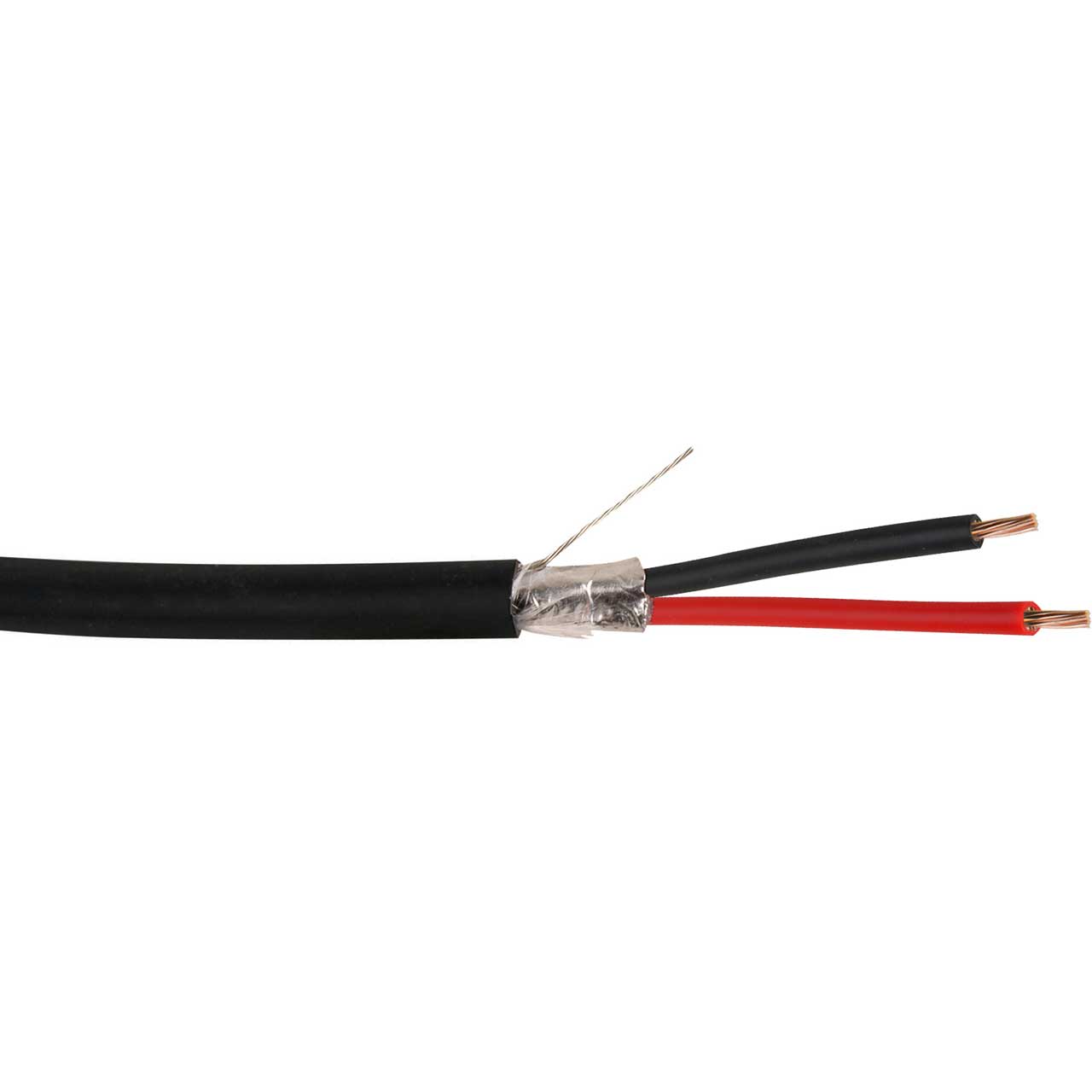

    Belden 9451 is a Single Pair, 22AWG stranded (7x30) audio cable with a tinned copper pair, polypropylene insulation, Beldfoil® shield, drain, CMR/riser rated in a PVC jacket.

    9451 is a fantastic, cost-effective alternative for single pair analog audio needs. Its Indoor Riser Rated so it's perfect for installation in vertical riser spaces, in the walls and between the floors of a building alongside of electrical conduits, water supply lines, and communications cabling.

    If you're making multiple cables the jacket and shield are bonded so both can be easily removed on automatic stripping equipment. The 22 AWG stranded (7x30) TC (Tinned Copper) drain wire, PVC jacket and Beldfoil Aluminum Foil-Polyester tape outer shield adds just the right amount of shielding from RF interference.

    Applications
    Telecomm Closets
    Backbone Cabling Systems
    Equipment Rooms
    Low Voltage analog Signals (4-20mA, 0-10V)
    Low Voltage Digital Control (24V)
    Line Level audio
    Computer Communication
    Panel Wiring

    • Features:

      • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
      • Rated for CMR/Riser and UL1666 Vertical Shaft, IEEE 1202 FT4, IEC 60332-1-2
      • Improved Performance: Shorting fold technique to maintain metal-to-metal contact

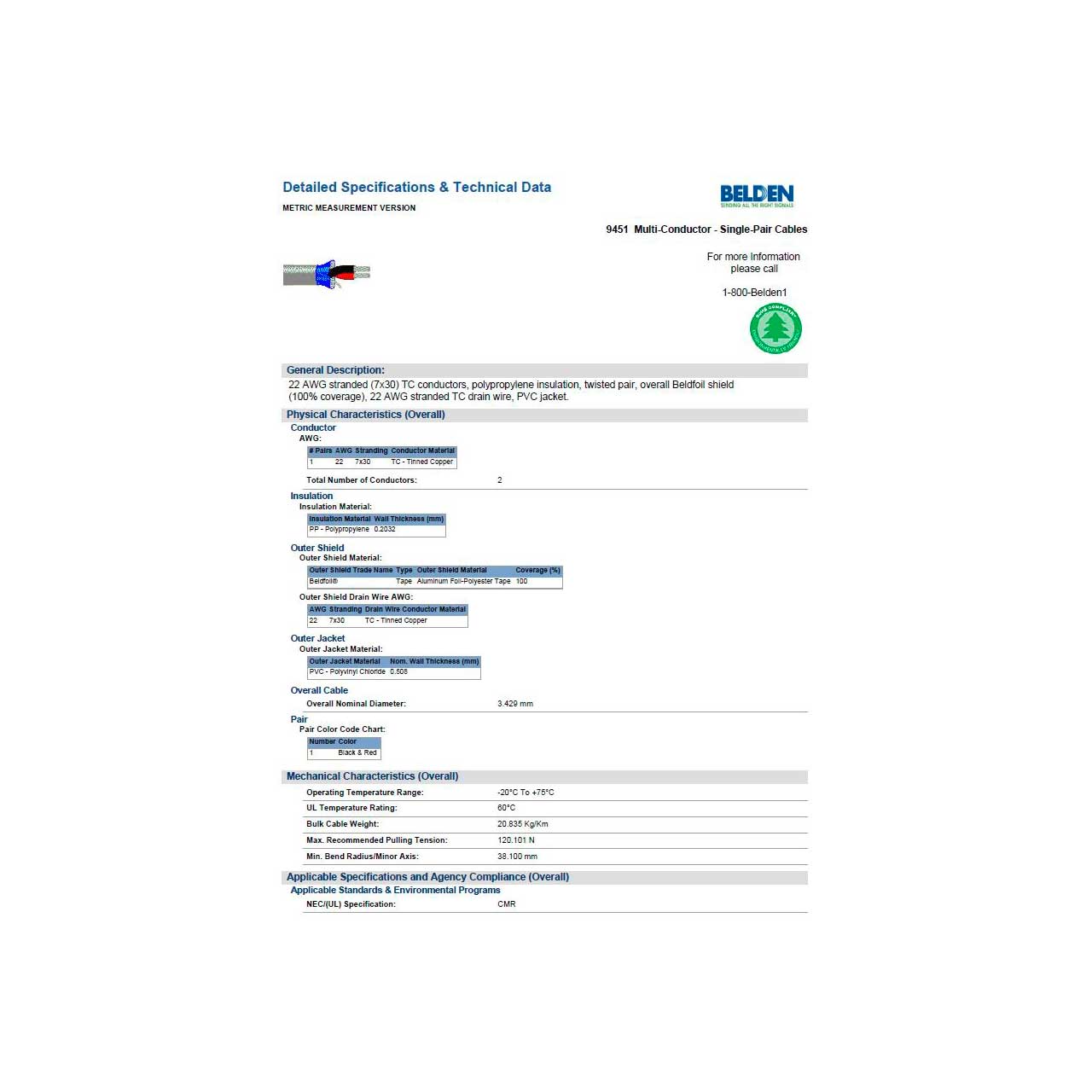

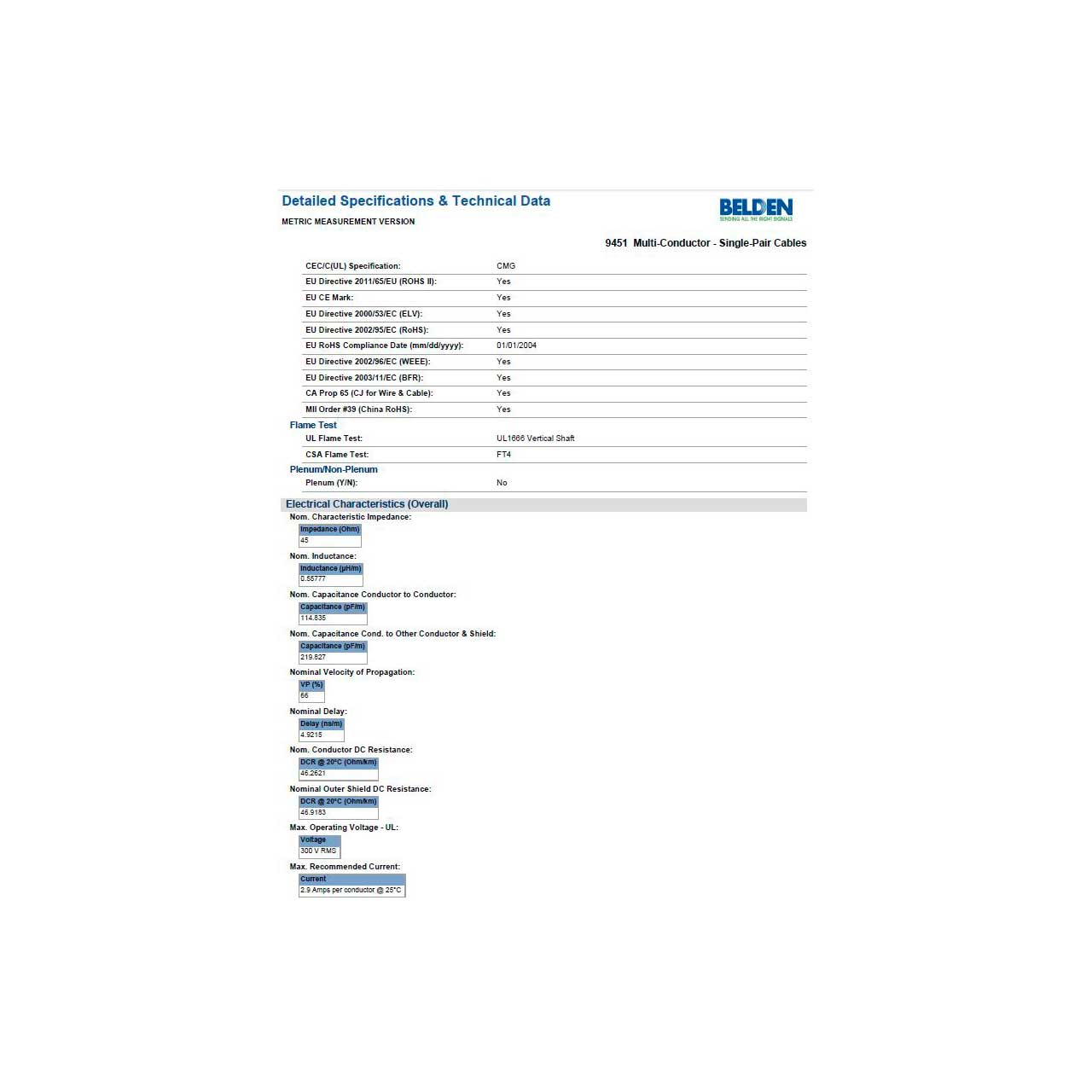

    • Specifications:

      • Number of Pairs: 1
      • Conductor Size AWG: 22
      • Conductor Stranding: 7x30
      • Conductor Material: TC - Tinned Copper
      • Insulation Material: PP - Polypropylene
      • Nom. Insulation Thickness: 0.009 in (0.23 mm)
      • Nom. Insulation Diameter: 0.046 in (1.2 mm)
      • Color Code: Black & Red
      • Outer Shield Type: Tape
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Trade Name: Beldfoil 100% Coverage
      • Drainwire Type: 22 AWG (7x30) TC
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.020 in (0.51 mm)
      • Outer Jacket Nom. Diameter: 0.135 in (3.43 mm)
      • Overall Cable Diameter (Nominal): 0.135 in (3.43 mm)
      • UL Voltage Rating: 300 V (CMR)
      • UL Temperature: 60°C
      • Operating Temperature: -20°C to +75°C
      • Bend Radius Stationary and Installation Min: 1.4 in (36 mm)
      • NEC / UL Compliance: Article 800, CMR
      • Flammability / Reaction to Fire: UL1666 Vertical Shaft, IEEE 1202 FT4, IEC 60332-1-2
      • Sustainability: CA Prop 65
      • Environmental Suitability: Indoor - Riser, Indoor, Aerial - When supported by messenger wire
      • Plenum (Y/N): N
      • Plenum Number: 9451P

    • Item Includes:

      • 9451 Audio Cable 22 AWG - Shielded - Black - Per Foot

    • Warranty:

      • Limited 10 Year Warranty
