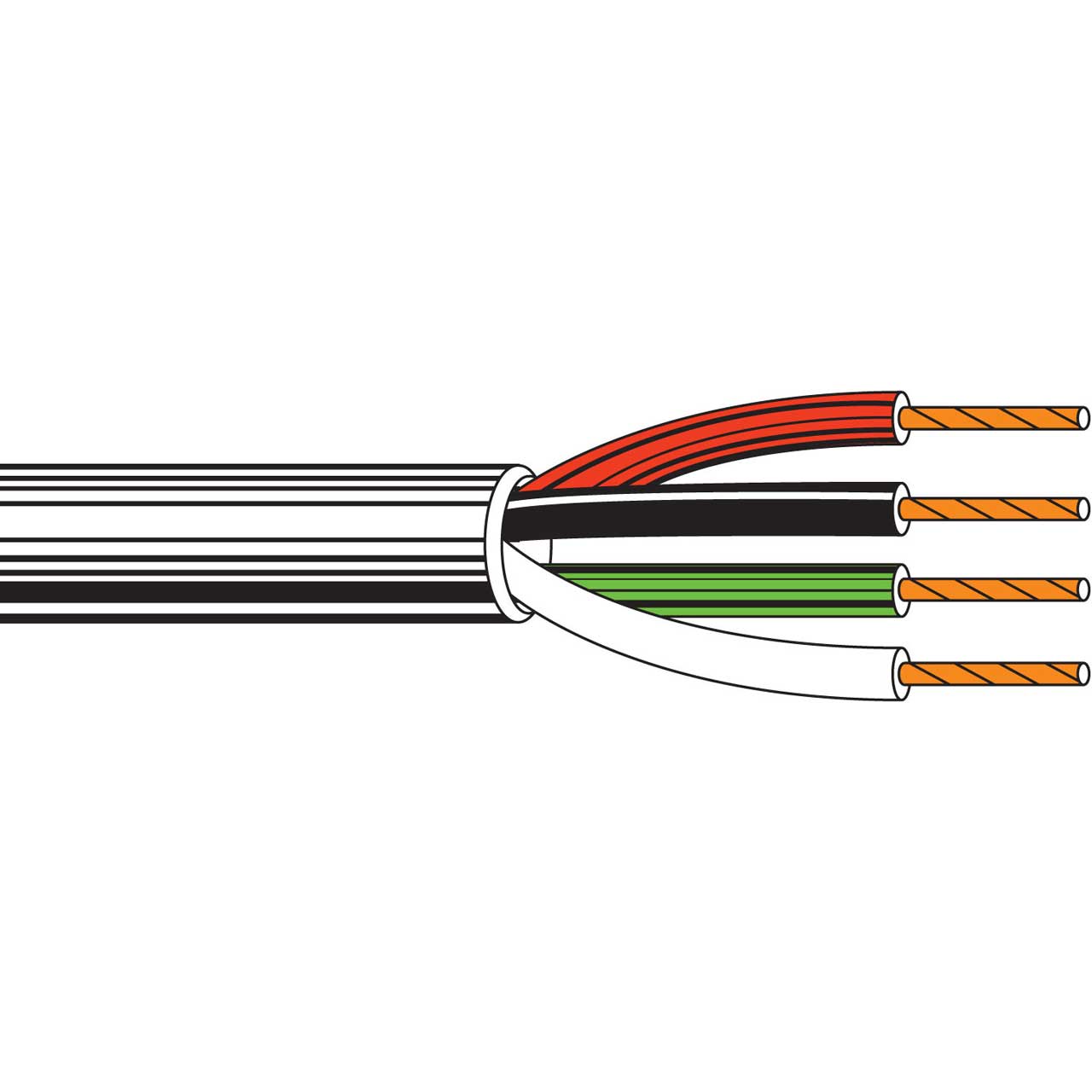

Belden 8489 Audio Control & Instrumentation Non paired 4 Conductor 18 AWG Cable - Chrome - 500 Foot/Unreel

8489 060U500 - Overview

• Specifications:

  • Conductors: 4
  • AWG: 18
  • Stranding: 19x30
  • Material: TC - Tinned Copper
  • Nom. Conductor DCR: 6.3 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 26 pF/ft
  • Max. Current: 4 Amps per Conductor at 25°C
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2598)
  • UL Rating Temp: 60°C (UL AWM 2598)
  • Operating Temp: -20°C to +60°C
  • Max. Pull Tension: 99 lbs
  • Bulk Cable Weight: 44 lbs/1000ft
  • Environmental Suitability: Indoor
  • Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2
  • NEC / UL Compliance: Article 725, Article 800, CMG, CL3
  • AWM Compliance: 2598
  • CEC / C(UL) Compliance: CMG
  • CPR Euroclass: Eca


• Item Includes:

  • 1x Belden 8489 Audio Control & Instrumentation Non paired 4 Conductor 18 AWG Cable - Chrome - 500 Foot/Unreel
