Belden 8760 Low Voltage 1-Pr Microphone & Electronic Multi-Pair Cable Str TC Shielded 18AWG Chrome - 1000 Ft/Unreel Box

ITEM #: BL-8760-U1000 MFG #: 8760-U1000

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,496.30

Our Price:

$1,225.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    8760-U1000 - Overview

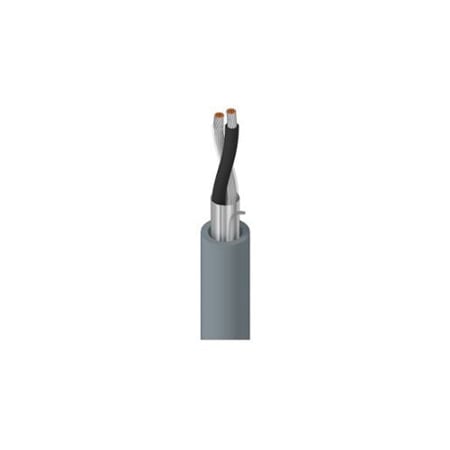

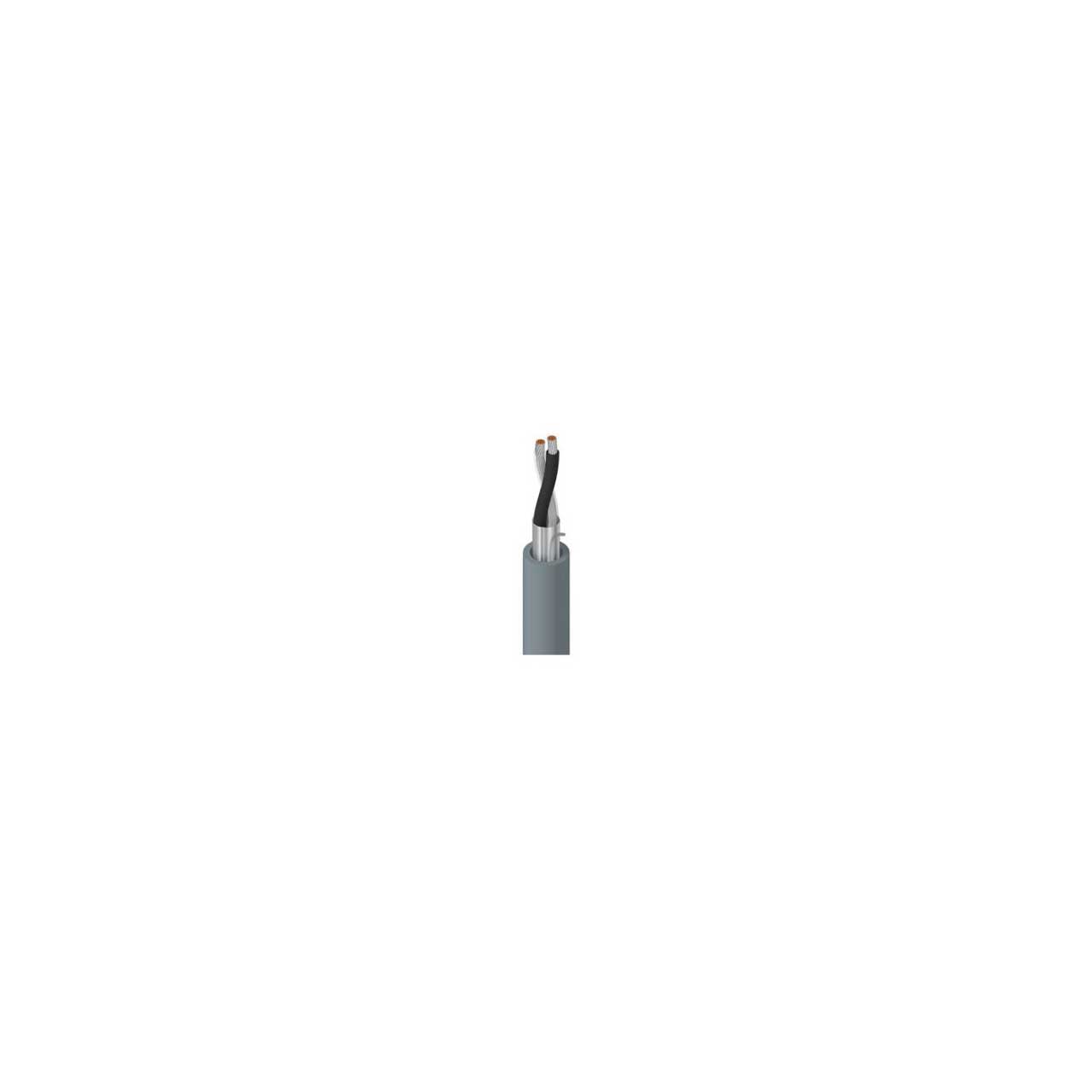

    Belden 8760 is a 2 Conductor, 18AWG (16x30) Electronic and Microphone Cable. It features Stranded Tinned Copper Conductors, PE Insulation with an Overall Beldfoil® Shield in a CM rated PVC Outer Jacket. Belden 8760 helps keep productivity high and downtime low! Belden Multi-Pair Cable is an electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation. This cable is packaged in Belden's unique UnReel Box.

    Reimagining Unreel Packaging for Enhanced Sustainability

    Unreel packaging has been in use by Belden for more than 40 years and has served the industry well in terms of portability and ease of use. Unreel consists of a coil of wire or cable that is wound using patented Reelex technology. The cable is then placed into a cardboard box and smoothly dispensed from the center of the coil via a tube for easy access. Until now, that tube (called a "payout tube") was made of plastic. Today, through the work of Belden packaging engineers, a new tube design, made with recycled paper pulp, is being implemented to replace the plastic component. This allows the entire package to be placed in the paper recycling stream!

    The shift towards a fully paper-based, recyclable generation of Unreel packaging is important, as there is a great deal of evidence pointing to plastic's harm on the environment. Everything from single-use plastic water bottles and grocery bags to food containers and packaging is finding its way to our oceans and piling up in landfills. Excessive use of plastic simply isn't sustainable for the planet. Therefore, it's important that we all do our part to reduce our use of plastic. Eliminating the plastic components in Unreel packaging is just one way that Belden can be part of the solution.


    Applications
    Broadcasting
    Instrumentation and control panel wiring
    Low voltage analog signals (4-20ma, 0-10v, ...)
    Low voltage digital control (24v, …)
    Line level audio
    Microphones
    Computer and Data communications
    Water meters, thermometers

    • Features:

      • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
      • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
      • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference

    • Specifications:

      • Conductor Number of Elements: 1
      • Total Number of Conductors: 2
      • Conductor AWG: 18
      • Conductor Stranding: 16x30
      • Conductor Material: TC - Tinned Copper
      • Insulation Element(s): Pair(s)
      • Insulation Material: PE - Polyethylene
      • Insulation Nom. Thickness: 0.018 in (0.46 mm)
      • Insulation Nom. Insulation Diameter: 0.082 in (2.1 mm)
      • Insulation Color Code: Black, Clear
      • Outer Shield Type: Tape
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Coverage: 100%
      • Outer Shield Drainwire Type: 20 AWG (7x28) TC
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.028 in (0.71 mm)
      • Outer Jacket Nom. Diameter: 0.222 in (5.64 mm)
      • Overall Cable Diameter (Nominal): 0.222 in (5.64 mm)
      • Plenum (Y/N): N
      • Plenum Numbers: BL-88760, BL-87760 or BL-82760
      • UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2092))
      • Max. Pull Tension: 54 lbs
      • Bulk Cable Weight: 25 lbs/1000ft
      • Environmental Suitability: Indoor
      • Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
      • NEC / UL Compliance: Article 800, CM
      • AWM Compliance: 2092
      • CEC / C(UL) Compliance: CM
      • CPR Euroclass: Eca

    • Item Includes:

      • Belden 8760 Multi-Pair Cable 18AWG - Chrome - 1000 Ft/Unreel Box

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825215110
