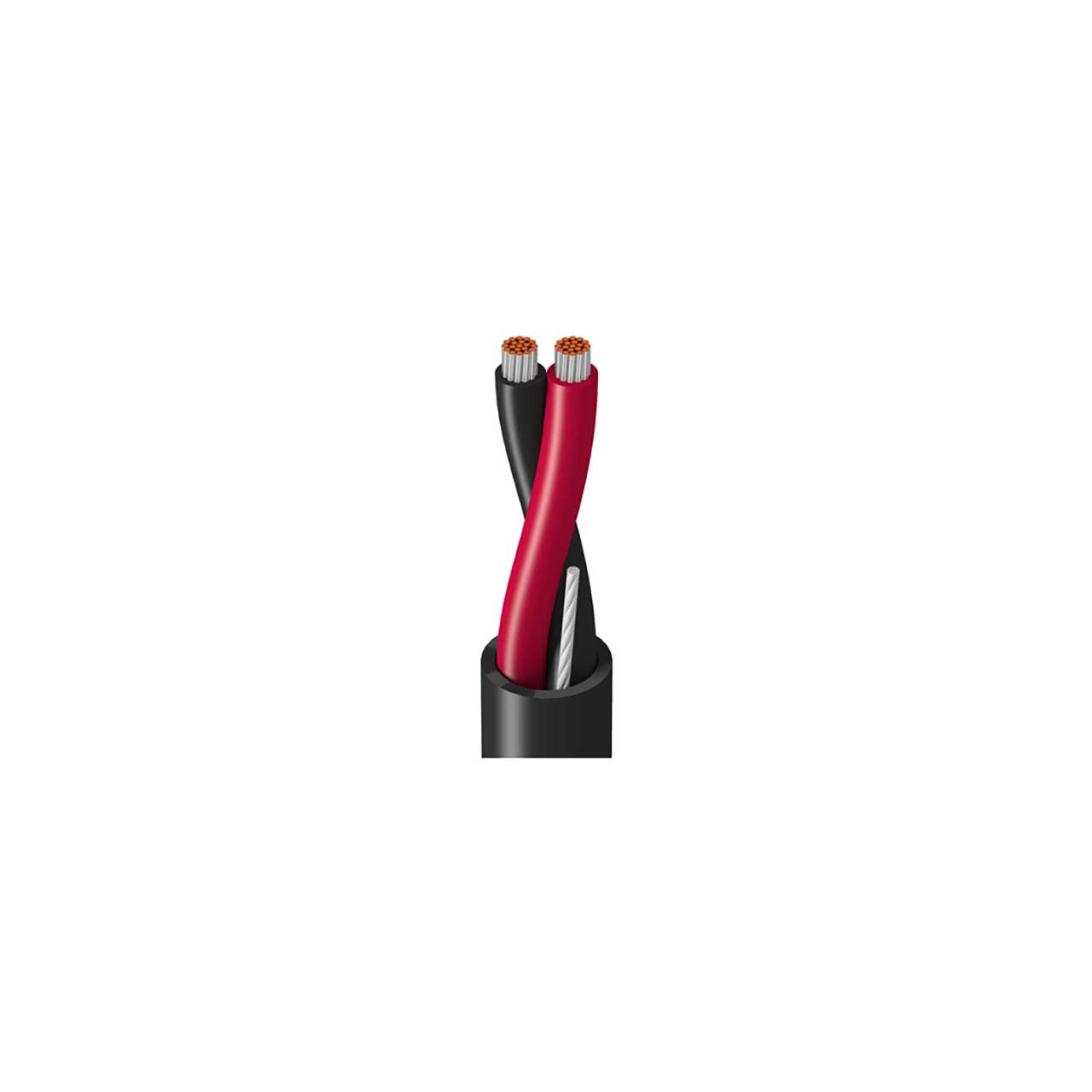

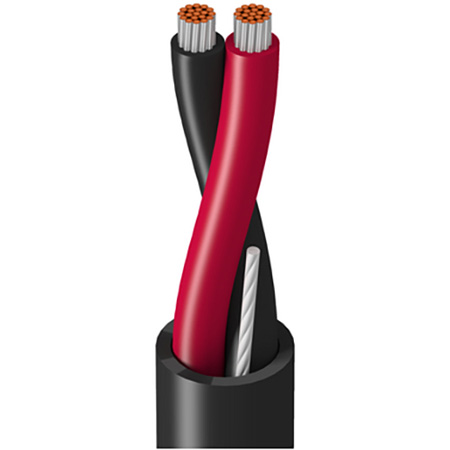

Belden 9410 Indoor/Outdoor UV Resistant High Performance Instrumentation PLT Cable-1 Pr-Str(7x24) 16AWG-Black-1000 Ft

ITEM #: BL-9410-0601000 MFG #: 9410 0601000

free ship

List Price:

$2,466.60

Our Price:

$2,081.92

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    9410 0601000 - Overview

    Belden 9410 is a 1 Pair, 16AWG (19x29), Tinned Copper, High Performance Instrumentation, 300v Power Limited Tray Cable (PLTC-ER). It features PVC Insulation with E2 Color Code in a PVC Outer Jacket, PLTC-ER.

    Combine noise protection with flexibility by choosing Type PLTC/ITC Cables. These cables are built for use in power-limited circuits for industrial control and energy management systems, as well as intercom, audio and alarm applications.

    Applications
    Instrumentation
    Sensors
    Valves
    Positioners
    4-20mA
    0-10V

    • Features:

      • Decrease Costs: Cables are rated for exposed runs without conduit
      • Protection in Harsh Environments: Cable jackets resist sunlight, moisture and vapor penetration
      • High Electrical Performance: Insulation options for excellent wet electrical performance, oil/chemical resistance and extreme-temperature operation
      • Superior Flex Life: Conductor options provide increased flexibility, greater flex life and corrosion resistance

    • Specifications:

      • Conductor Pairs: 1
      • Conductor AWG: 16
      • Conductor Stranding: 19x29
      • Conductor Material: TC - Tinned Copper
      • Insulation Element: Pair(s)
      • Insulation Material: PVC - Polyvinyl Chloride
      • Insulation Nom. Thickness: 0.0185 in (0.470 mm)
      • Insulation Nom. Insulation Diameter: 0.096 in (2.4 mm)
      • Insulation Color Code: Black & Red
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.037 in (0.94 mm)
      • Outer Jacket Nom. Diameter: 0.260 in (6.60 mm)
      • Outer Jacket Ripcord: Yes
      • Overall Cable Diameter (Nominal): 0.260 in (6.60 mm)
      • Nom. Conductor DCR: 4.2 Ohm/1000ft (14 Ohm/km)
      • Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m)
      • UL Voltage Rating: 300 V (PLTC, CMG), 150 V (ITC)
      • UL Temp Rating: 105°C
      • Operating Temp: -30°C to +105°C
      • Max. Pull Tension: 80 lbs (36 kg)
      • Bulk Cable Weight: 35 lbs/1000ft
      • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
      • Flammability / Fire Resistance: UL1685 Vertical Tray Flame Test, FT4, T-29-520, 1202
      • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC-ER, PLTC-ER
      • AWM Compliance: 2464
      • CEC / C(UL) Compliance: CMG
      • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

    • Item Includes:

      • 9410 Indoor/Outdoor UV Resistant PLT Cable 16AWG-Black-1000 Ft

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825240211
