Belden 9451 CMR/Riser Rated Single Pair Analog Audio Cable 22 AWG - TC - Shielded - Blue - 1000 Foot Roll/ReelTuff Box

ITEM #: BL-9451-Z1000BE MFG #: 9451 006Z1000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$514.80

Our Price:

$275.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


9451 006Z1000 - Overview

Audio Cable, 1 Pair 22 AWG stranded (7x30) tinned copper pair, polypropylene insulation, Beldfoilr shield, drain, Riser, PVC jacket.
Suitable Applications include: Automatic Stripping Equipment; Low Voltage analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, .); Line Level audio; Computer Communication; Panel Wiring.

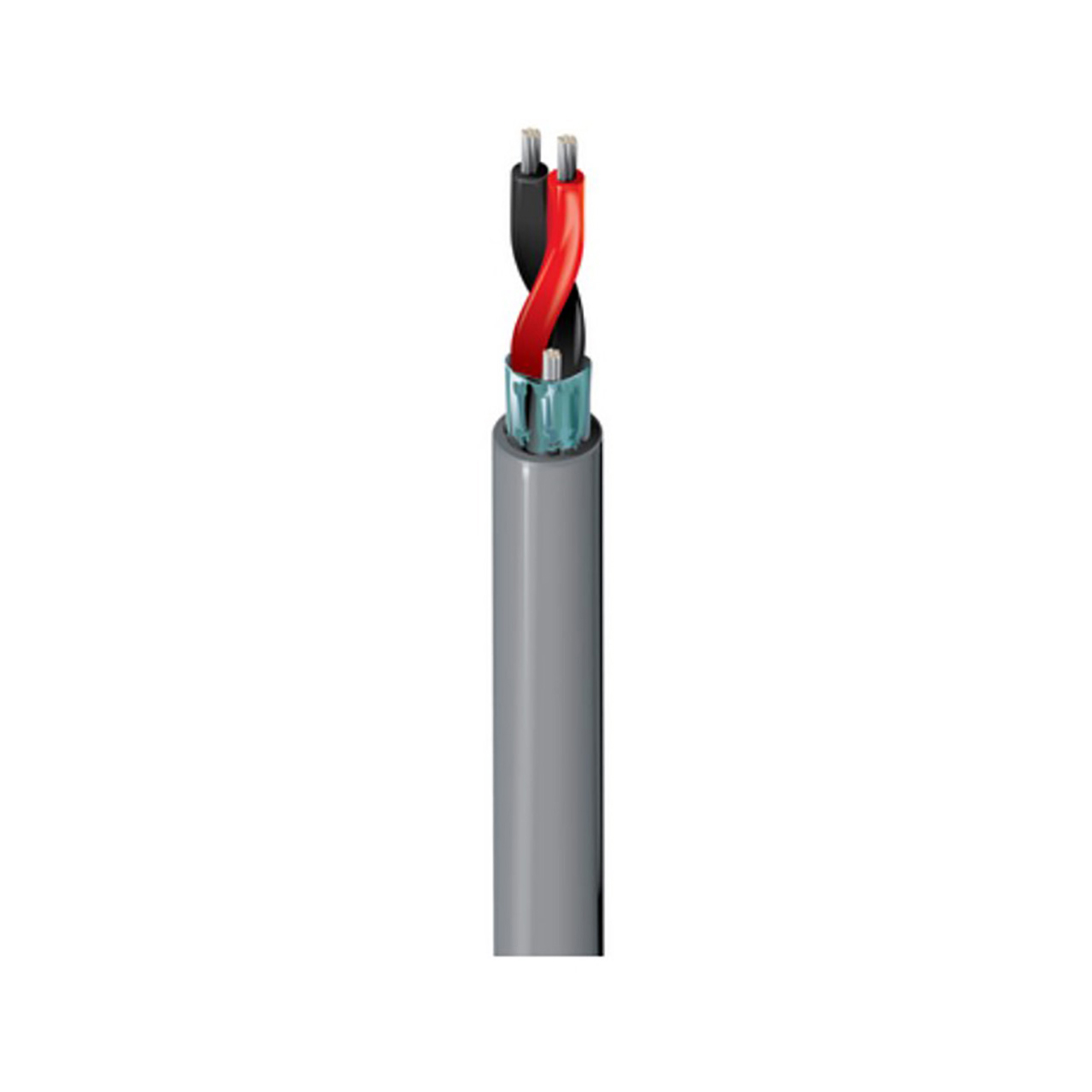

Please note: Image is for reference only! Color of cable jacket is Light Blue.

  • Features:

    • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
    • Rated for CMR/Riser and UL1666 Vertical Shaft, IEEE 1202 FT4, IEC 60332-1-2
    • Improved Performance: Shorting fold technique to maintain metal-to-metal contact

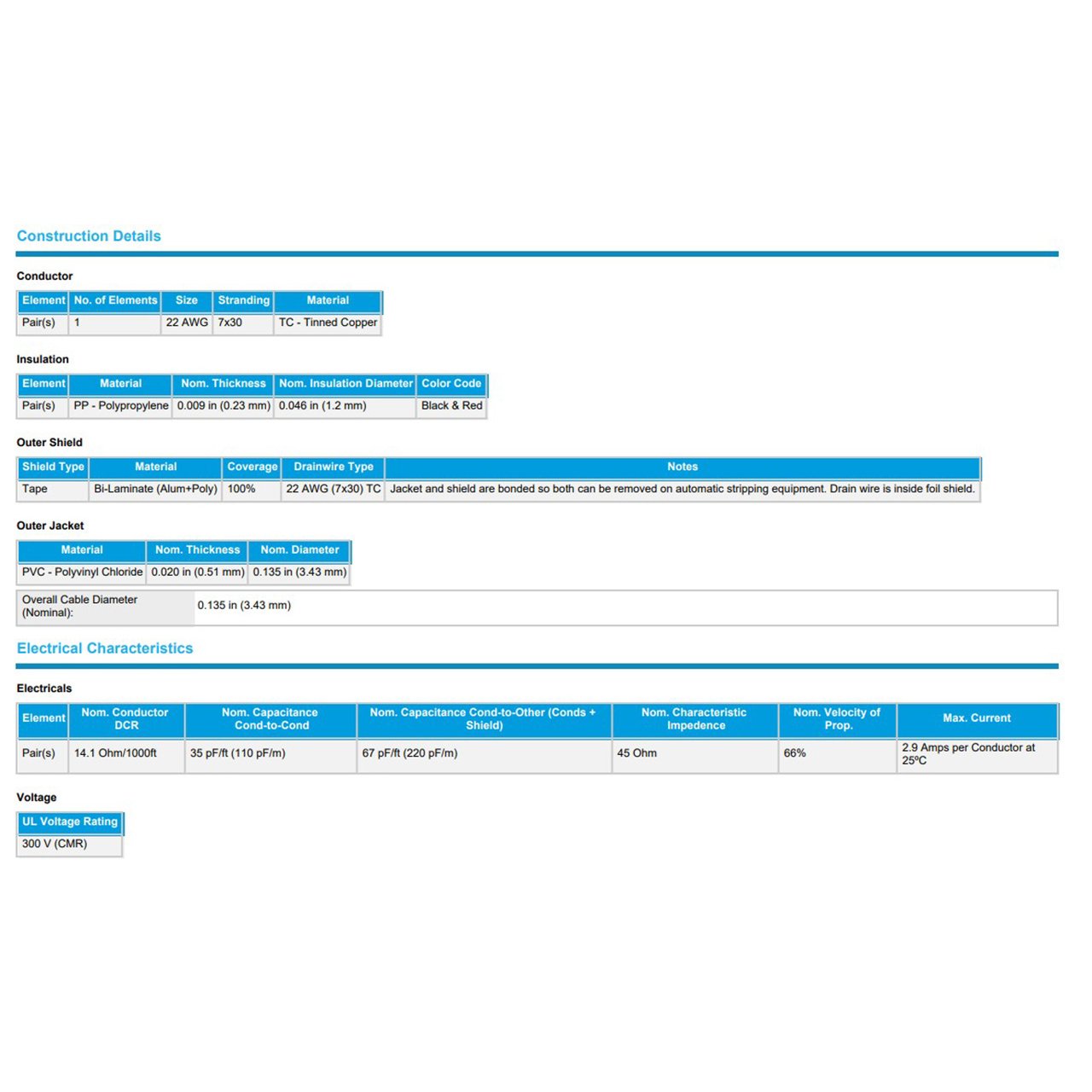

  • Specifications:

    • Number of Pairs: 1
    • Conductor Size: 22 AWG
    • Conductor Stranding: 7x30
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: PP - Polypropylene
    • Nom. Insulation Thickness: 0.009" (0.23mm)
    • Nom. Insulation Diameter: 0.046" (1.2mm)
    • Color Code: Black & Red
    • Outer Shield Type: Tape
    • Outer Shield Material: Bi-Laminate (Alum+Poly)
    • Outer Shield Trade Name: Beldfoil 100% Coverage
    • Drainwire Type: 22 AWG (7x30) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.020" (0.51mm)
    • Outer Jacket Nom. Diameter: 0.135" (3.43mm)
    • Overall Cable Diameter (Nominal): 0.135" (3.43mm)
    • UL Voltage Rating: 300V (CMR)
    • UL Temperature: 140°F (60°C)
    • Operating Temperature: -4°F - 167°F (-20°C - 75°C)
    • Bend Radius Stationary and Installation Min: 1.4" (36mm)
    • NEC/UL Compliance: Article 800, CMR
    • Flammability/Reaction to Fire: UL1666 Vertical Shaft, IEEE 1202 FT4, IEC 60332-1-2
    • Sustainability: CA Prop 65
    • Environmental Suitability: Indoor - Riser, Indoor, Aerial - When supported by messenger wire
    • Plenum (Y/N): N
    • Plenum Number: 9451P

  • GTIN:

    0612825252672
