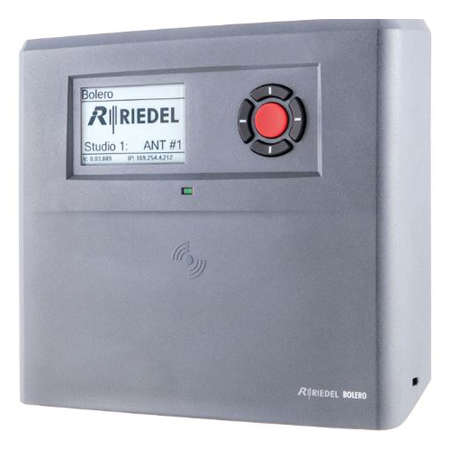

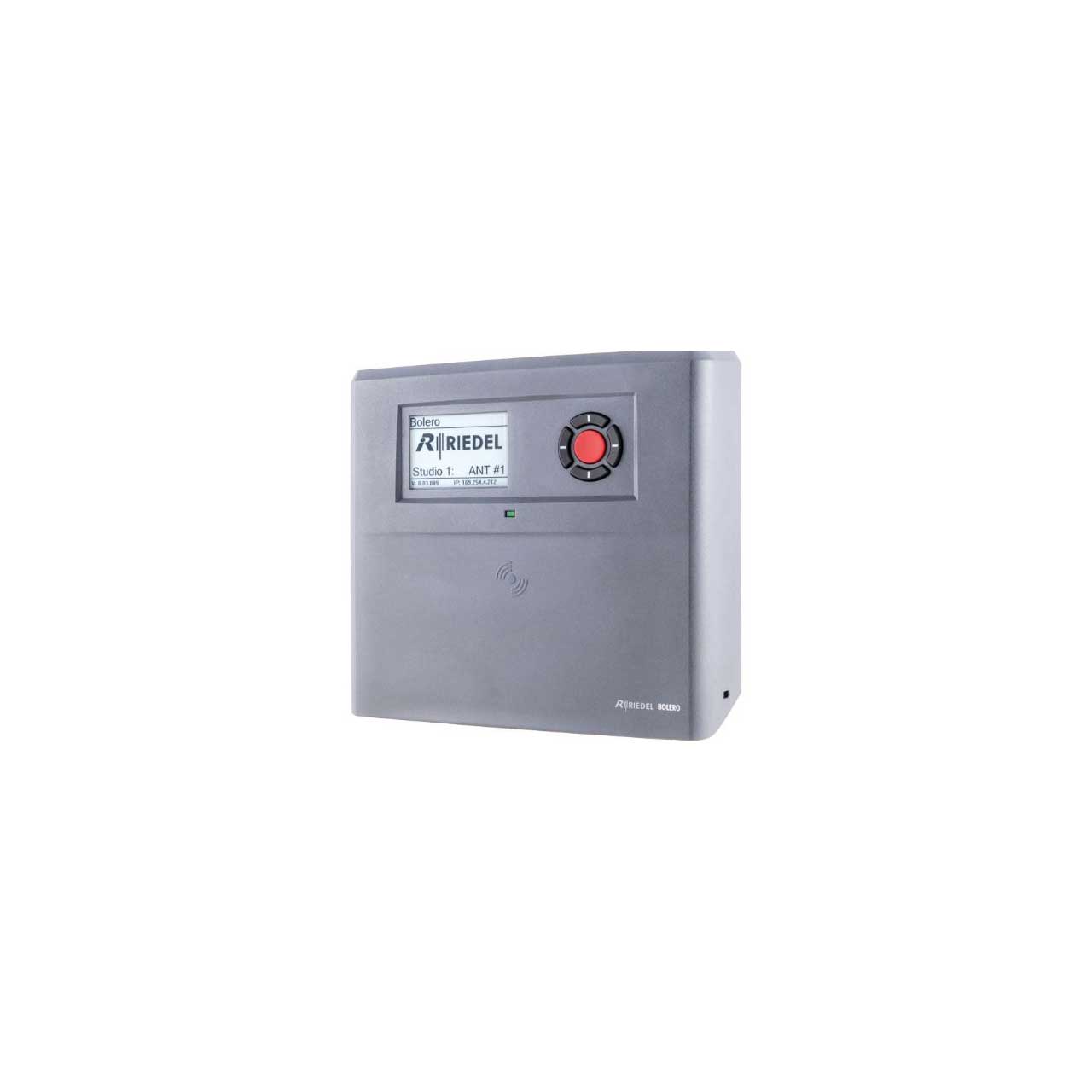

Riedel BL-ANT-1010-KIT Bolero Wireless Intercom Active Antenna with Integrated Entitlement Software

ITEM #: BL-ANT-1010-KIT MFG #: BL-ANT-1010-KIT

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-ANT-1010-KIT

BL-ANT-1010-KIT - Overview

The Riedel BL-ANT-1010-KIT contains the BL-ANT-1010-19G active antenna and the BL-ANT-APP-STANDALONE software required to enable antennas in a Bolero net to change to standalone mode for Bolero Standalone or Integrated antennas.

The North America version (Gray) antenna with E-Ink display for up to 10 BL-BPK-1006-19 beltpacks. DECT license free band (1920-1930 MHz); AES67 layer 3 IP network mode via Cat-5 cabling; optional Standalone daisy chain network mode via Cat-5 cabling; PoE+ (802.3at, type 2, class 4, 15-30W) power, local DC or PoC daisy chain remote power.

Includes Standalone entitlement for a Bolero antenna. (One license per net required). Beltpacks sold separately.

  • Features:

    • Up to 250 beltpacks and 100 antennas per Bolero Net
    • Intelligent use of bandwidth results in 10 beltpacks per antenna
    • Decentralized SMPTE 2110-30 (AES67) IP-networked antennas
    • Fully re-programmable FPGA to handle future networks


  • Specifications:

    • Number of Beltpacks Per Antenna: 10
    • Radio Frequency Range: 1.880 - 1.930GHz (region dependent)
    • Antenna Radio Coverage: (diameter) Indoor (structure dependent): max. ~200 m; outdoor (free line of sight): ~300-500m
    • Beltpack to Antenna Range: Indoor (structure dependent): max. ~200 m; outdoor (free line of sight): ~150-250m
    • Beltpack Registration: 1 touch NFC registration (beltpack to antenna, beltpack to beltpack), OTA registration (over the air with PIN)
    • Network Connection: SMPTE 2110 (AES67) IP or direct cable connection in standalone mode
    • Display Type: High contrast E-ink display
    • Programmable Transmission Power: Yes
    • Support of Layer 3 networks: Yes
    • TTL Settings: Adjustable multicast TTL (1 to 255 / default 16)
    • DECT Master Priority: Configurable in WebUI
    • Network Monitoring on Antenna Display: IP / daisy chain / closed ring
    • Power Supply: PoE+ (802.3at, type 2, class 4, 15 to 30 W) or 10 to 57 VDC, 3 A
    • Power Consumption: 15W
    • Mounting Points: Mic stand threaded socket 5/8" & 3/8" inside, spigot adapter with wing screw lock, Kensington lock hole, & screw hole for a safety wire mounting
    • Environmental: IP-53 protected against limited dust ingress and water falling as a spray at an angle of up to 60° from vertical
    • Operational Temperature: -10 to 45 °C
    • Humidity: 0-90%, non-condensing Ta=40 °C
    • Dimensions: 210mm (W) x 66mm (D) x 190mm (H); 8.3" (W) x 2.6" (D) x 7.5" (H)
    • Weight: 1320g


  • Item Includes:

    • 1x BL-ANT-1010-19G-US G2 Antenna with pre-loaded BL-ANT-APP-STANDALONE entitlement software.
