Belden AX105200-S1 FX Brilliance Universal LC Field-Term Connector Multimode 62.5um

Name: Belden AX105200-S1 FX Brilliance Universal LC Field-Term Connector Multimode 62.5um
Brand: Belden
SKU: BL-AX105200-S1
Price: 20.23 USD
Availability: PreSale

ITEM #: BL-AX105200-S1 MFG #: AX105200-S1

Belden

List Price:

$22.02

Our Price:

$20.23

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

AX105200-S1 - Overview

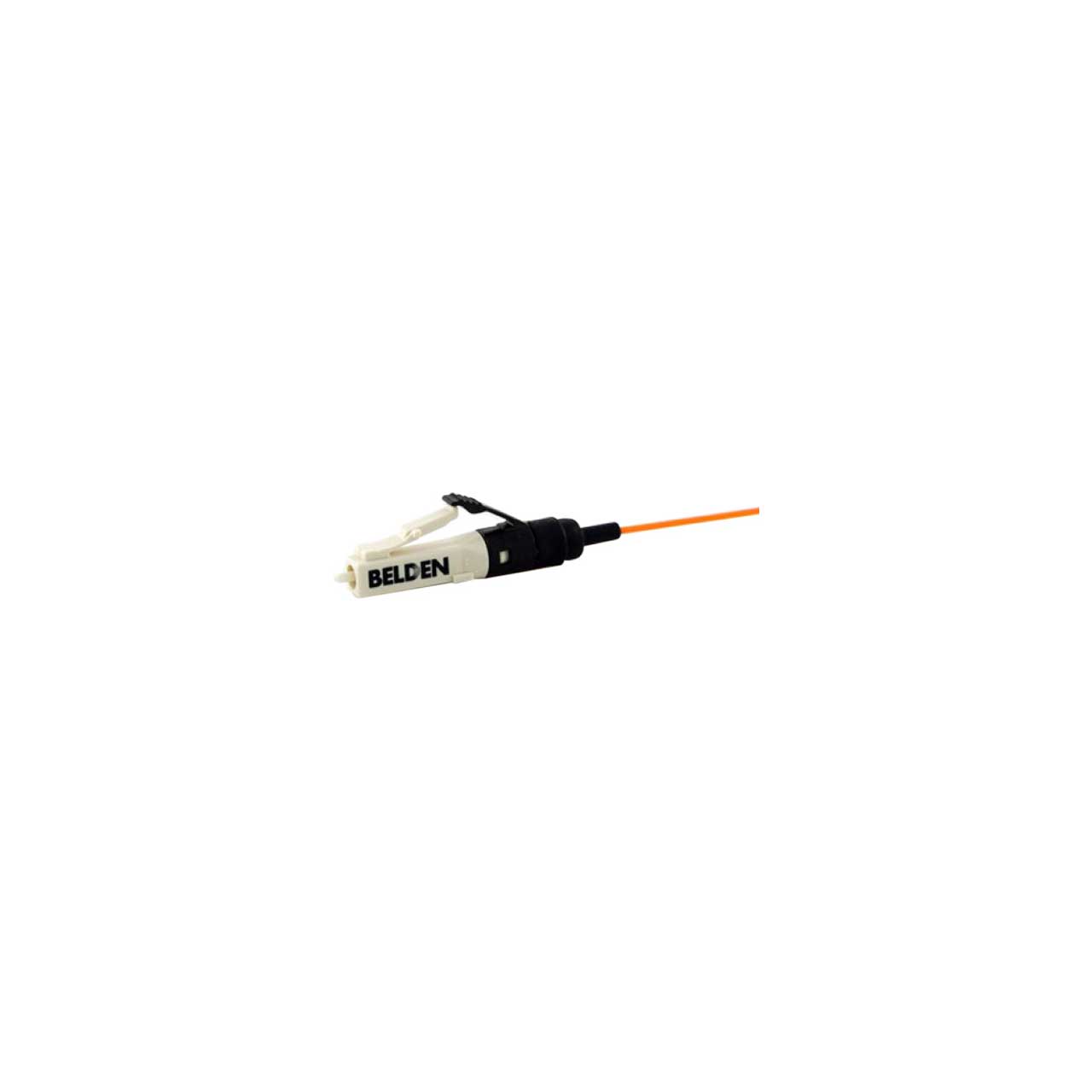

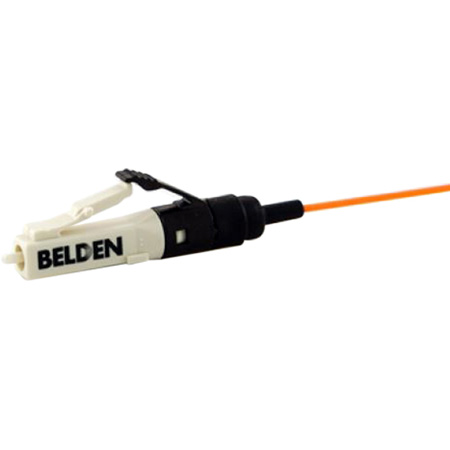

FX Brilliance Universal LC Field Installable Connector, Multimode, OM1, Beige Housing, 1/Pack, with support for 250 um (using Breakout kit), 900 um, 2 mm and 3 mm fiber (using jacketed boots). Includes 900 um boot, other accessories (Breakout Kit & jacketed boots) sold separately.

Suitable Applications: Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units).

Specifications:
- Interconnection Compatibility: TIA/EIA-604-10A (FOCIS 10)
- Field Assembly Time: 40 seconds including fiber preparation
- Durability (Multimode): 500 cycles, less than 0.2 dB change, FOTP-21
- Durability (Single-mode): 500 cycles, less than 0.3 dB change, FOTP-21
- Nominal Fiber OD: 125 m
- Storage Temperature: -40°F to +140°F (-40°C to +60°C)
- Operating Temperature: -40°F to +167°F (-40°C to +75°C)
- Tensile strength on 2 mm Jacketed fiber: 11.24 lb (5.1 Kg), less than 0.2 dB change, FOTP-6
- Tensile strength on 900 m tight buffered fiber: 1.12 lb (0.5 Kg), less than 0.2 dB change, FOTP-6
- Tensile strength on 250um fiber: 0.5lb (0.45Kg), less than 0.2 dB change, FOTP-6
- Ferrule Ceramic
Item Includes:
- 900 m boot
- Protective ferrule cap
GTIN:
0611589105156
