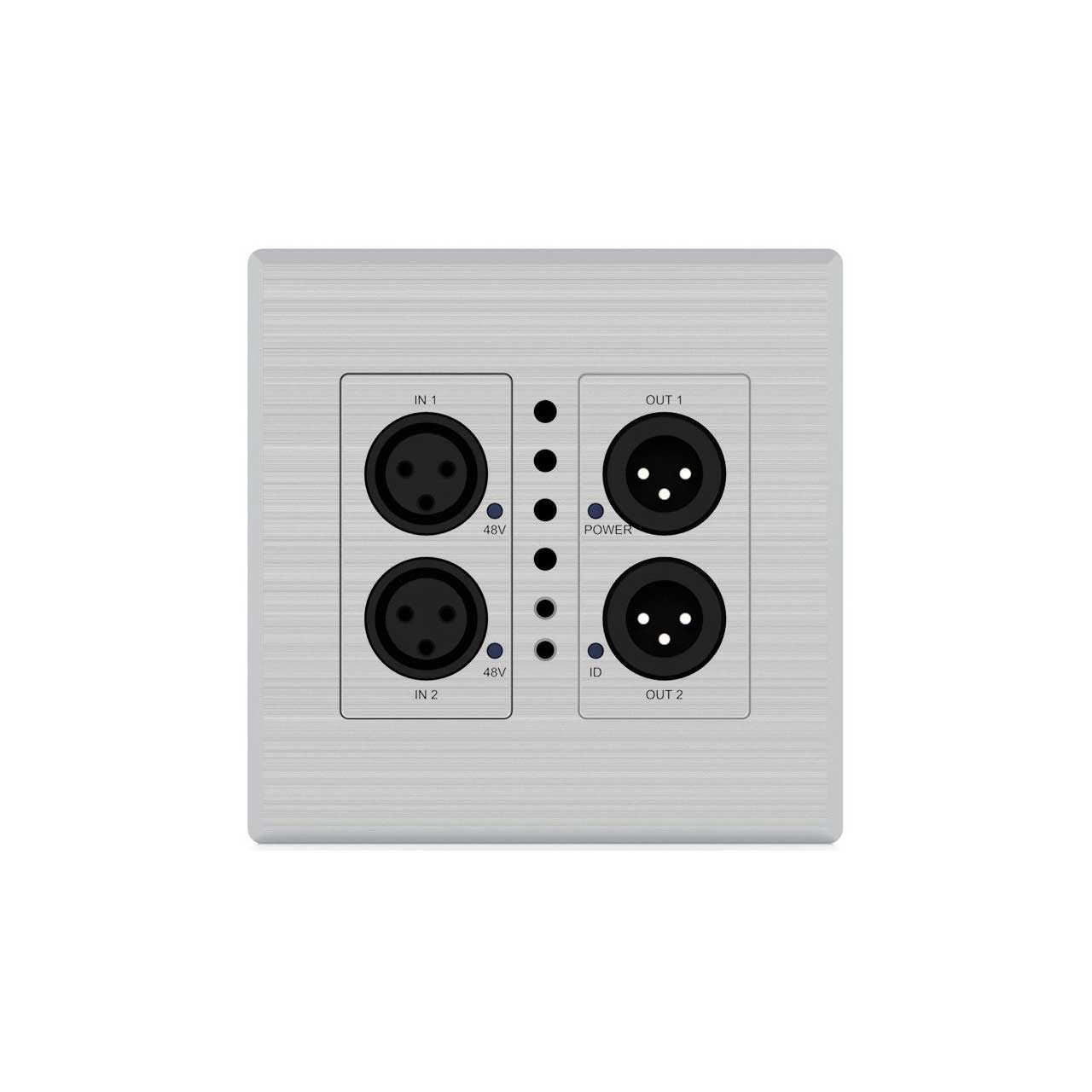

Blustream DA22XLR-WP-US Dante 2+2 XLR Dual Gang Wall Plate

DA22XLR-WP - Overview

• Features:

  • Dante network wall plate interface for 2 x audio inputs and 2 x audio outputs
  • Converts 2 x balanced / unbalanced / MIC audio sources to Dante audio channels
  • Converts 2 x Dante audio channels to balanced / unbalanced audio outputs
  • Switchable 48V Phantom power for each MIC XLR input
  • Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
  • Adjustable line gain from +18 dBu to -10 dBV for each XLR output
  • Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
  • Configurable Dante device latency (supports 1, 2 or 5ms configurable using Dante Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 12V DC adapter (not included) for when network switch does not support PoE
  • Magnetic faceplate surround and US Decora style backbox compatibility


• Specifications:

  • Audio Input Connectors: 2x Analog balanced/unbalanced 3-Pin XLR connector
  • Audio Output Connectors: 2x Analog balanced/unbalanced 3-Pin XLR connector
  • Network Connectors: 1x PoE Danter Ethernet Connection (RJ45)
  • Configuration Switches: 4x5 position rotary dials (Sensitivity / Gain), 2x Push button (48V Phantom power)
  • Firmware Upgrade: 1x Micro-USB UART port
  • Module Dimensions (LxWxH): 4.1 x 3.7 x 1.8 Inches(without faceplate)
  • Faceplate Dimensions (LxWxH): 4.5 x 4.5 x .2 Inches
  • Cut Out Dimensions (LxWxH): 3.5 x 2.8 x 1.6 Inches
  • Mounting Hole Spacing: US 83.5mm CTC
  • Backbox Requirements: US double gang junction box
  • Shipping Weight: 1.32 lbs
  • Operating Temperature: 32°F to 104°F
  • Storage Temperature: -4°F to 140°F
  • Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector


• Item Includes:

  • 1x DA22XLR-WP
  • 1x Magnetic Faceplate
  • 1x Quick Reference Guide


• Warranty:

  • 1 Year Warranty
