Blustream SW12USB USB 3.2 Gen 2 10Gbps 2x1 Switcher

SW12USB - Overview

• Features:

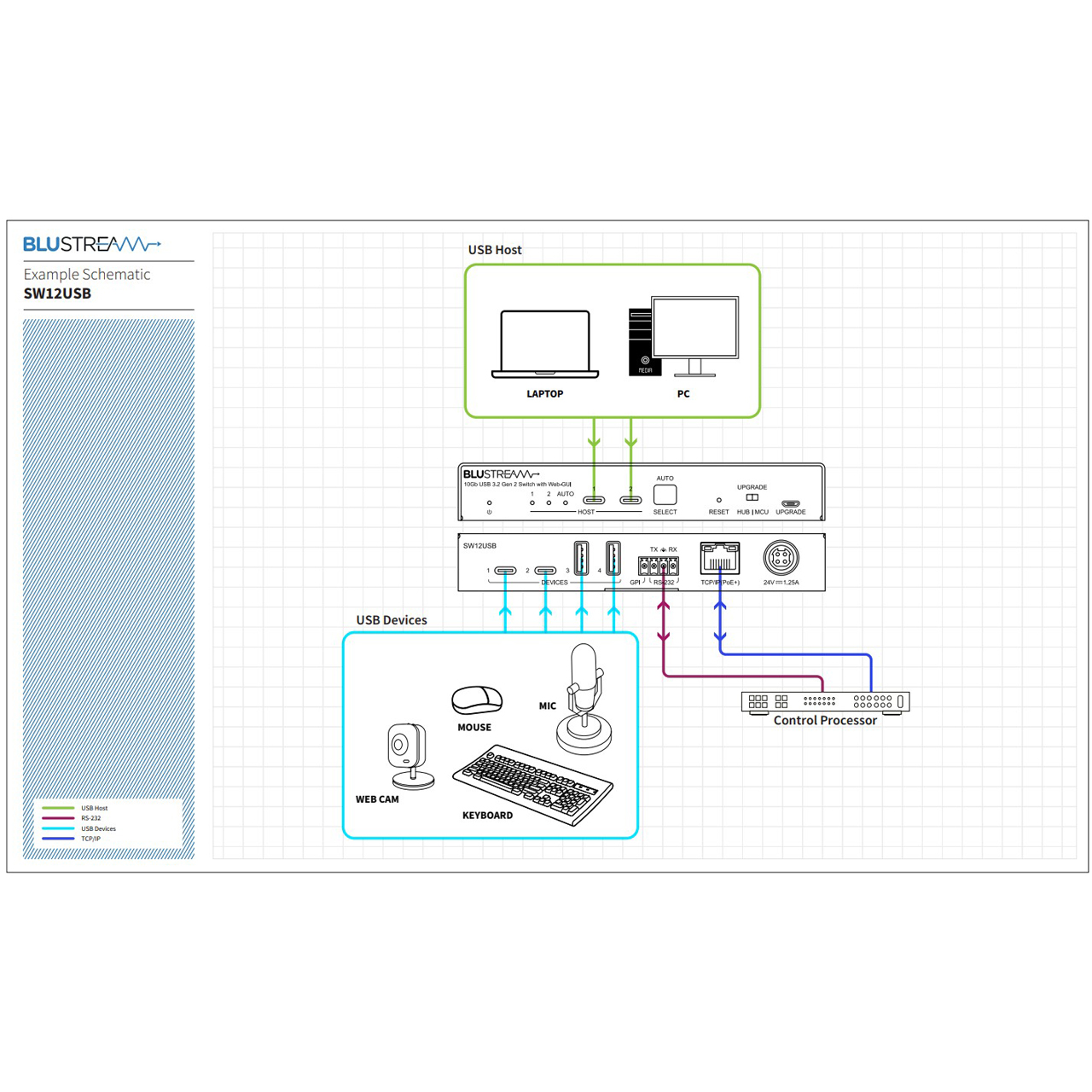

  • USB 3.2 Gen2 switch allowing up to four USB peripheral devices to connect to two USB hosts
  • Features two USB-C and two USB-A device inputs and two USB-C hosts
  • USB 3.2 Gen2 connectivity with data transfer rate up to 10Gbps
  • Backwards compatible with USB 2.0 and 1.1
  • Auto or manual switching
  • Plug-and-play with no drivers, downloads, or software required
  • Features one GPI port for integration with 3rd party products
  • Features 802.3at PoE+ for powering of product from PoE+ network
  • Local 24V power supply input for when network switch does not support PoE+
  • Web interface module for control and configuration of SW12USB
  • Control via front panel buttons, RS-232, or TCP/IP


• Specifications:

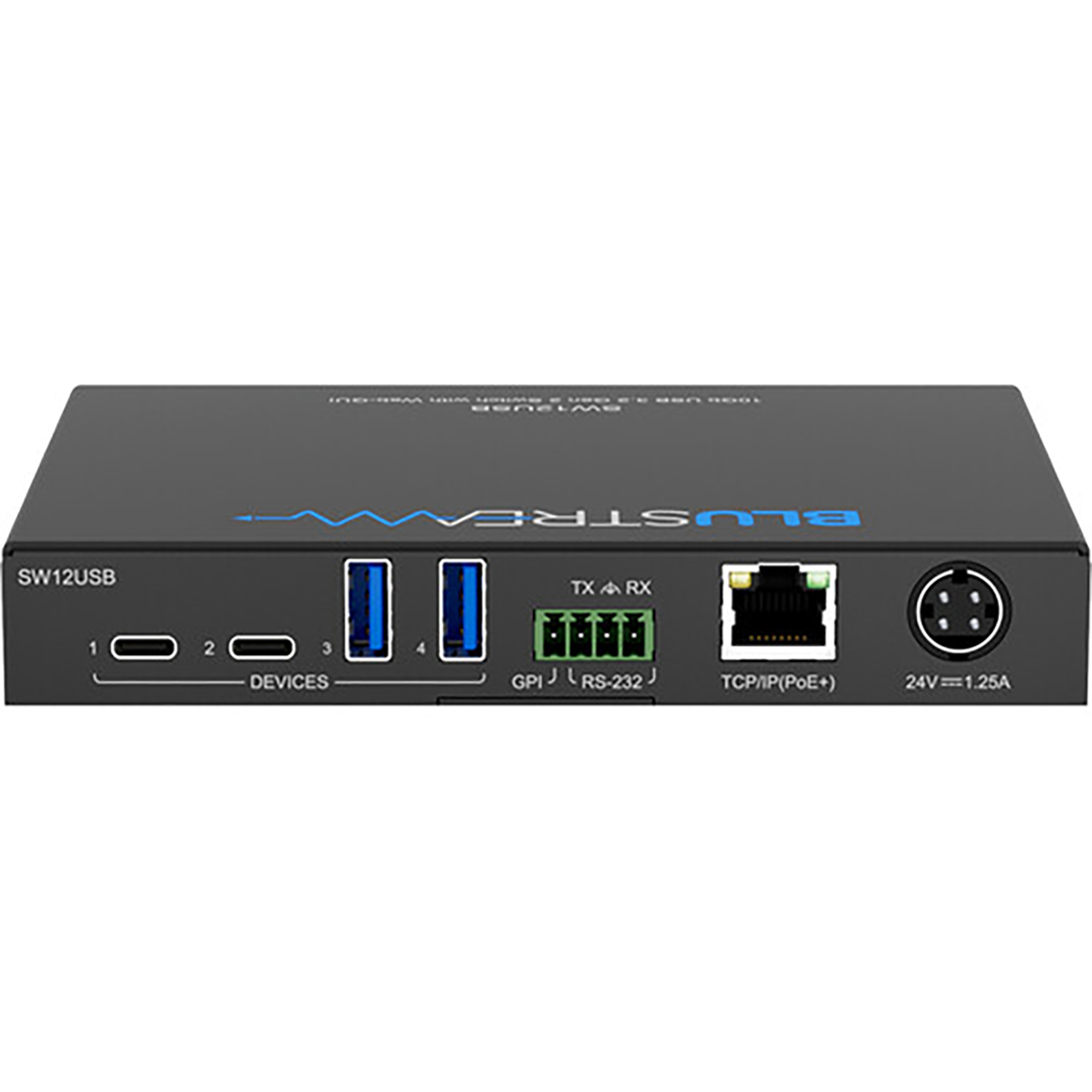

  • USB Device:
    - 2x USB Type A female
    - 2x USB Type C female
  • USB Host: 2x USB Type C female
  • GPI/RS-232 Serial Port: 1x 4-pin Phoenix connector
  • TCP/IP Control: 1x RJ45, female
  • Firmware Upgrade: 1x Micro-USB
  • Dimensions (WxDxH): 5.9" x 4.33" x (150mm x 110mm x 23mm)
  • Shipping Weight: 1.32lbs (0.6kg)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Power Supply: 24V/1.25A DC, 4-pin DIN connector


• Item Includes:

  • 1x Blustream SW12USB USB 3.2 Gen 2 10Gbps 2x1 Switcher
  • 1x 24V/1.25A DC power supply
  • 1x Mounting kit
  • 1x Quick Reference Guide
