    00-00471 - Overview

    The Icron USB 3-2-1 Raven™ 3204C is the next generation USB 3-2-1 extender allowing users to extend USB 3 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conferencing cameras and audio devices for boardrooms and conference rooms. The Raven extension series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Skype).

    This 4-port USB 3.0 extender supports data rates at up to 5Gbps and is plug and play - no software drivers required - for all major operating systems: Windowsr, macOS™, Linuxr and Chrome OS™.

    Additionally, this ExtremeUSB-C™ based USB 3-2-1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB-C or USB-A peripherals in addition to USB 3.1 conference cameras including: sound bars, touchscreens, hubs, DACs, and other USB 3, 2 and 1 devices.

    Applications:
    Conference rooms
    Security and monitoring
    Video matrix systems
    Remote storage

    • Features:

      • Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps (shared)
      • 100m though a single CAT 6a/7 cable

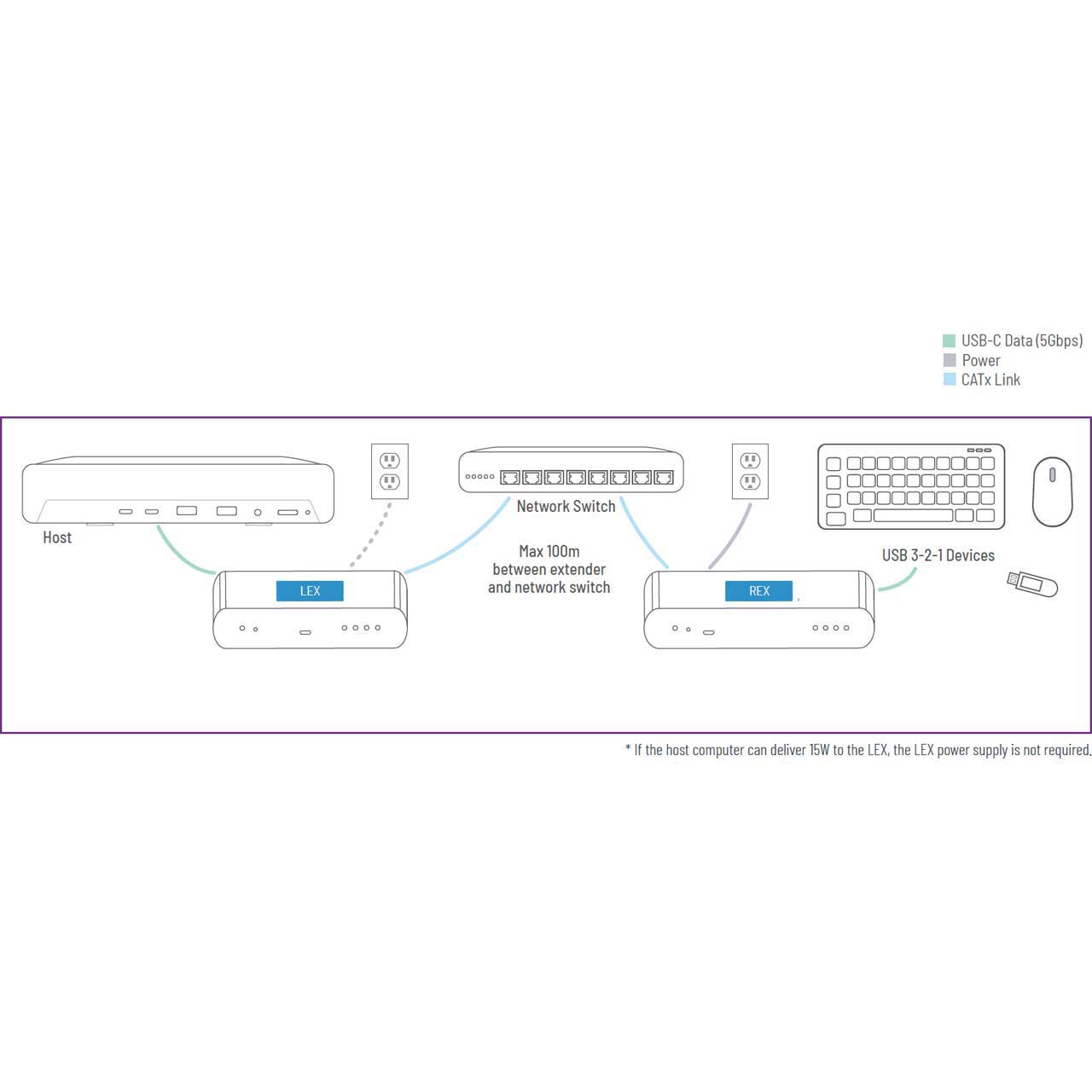

      • Power the LEX (Local Extender) using the USB-C connection to the host*
      • The REX (Remote Extender) includes 2 USB-C ports and 2 USB-A ports
      • Delivers 3A at each USB-C port and 1.2A at each USB-A port
      • Convenient 'Firmware Upgrade over Network; capability saves time and reduces maintenance costs
      • 1Gb Ethernet pass-through eliminates extra cable runs for simplified installations
      • Compatible with all major UC conferencing applications
      • Supports all USB transaction types (Control, Interrupt, Bulk, and Isochronous)
      • Includes the ExtremeUSB-C suite of features:
      • Transparent USB extension supporting USB 3, 2 and 1
      • True plug and play; no software drivers required
      • Works with all major operating systems; Windows, macOS, Linux and ChromeOS

    • Specifications:

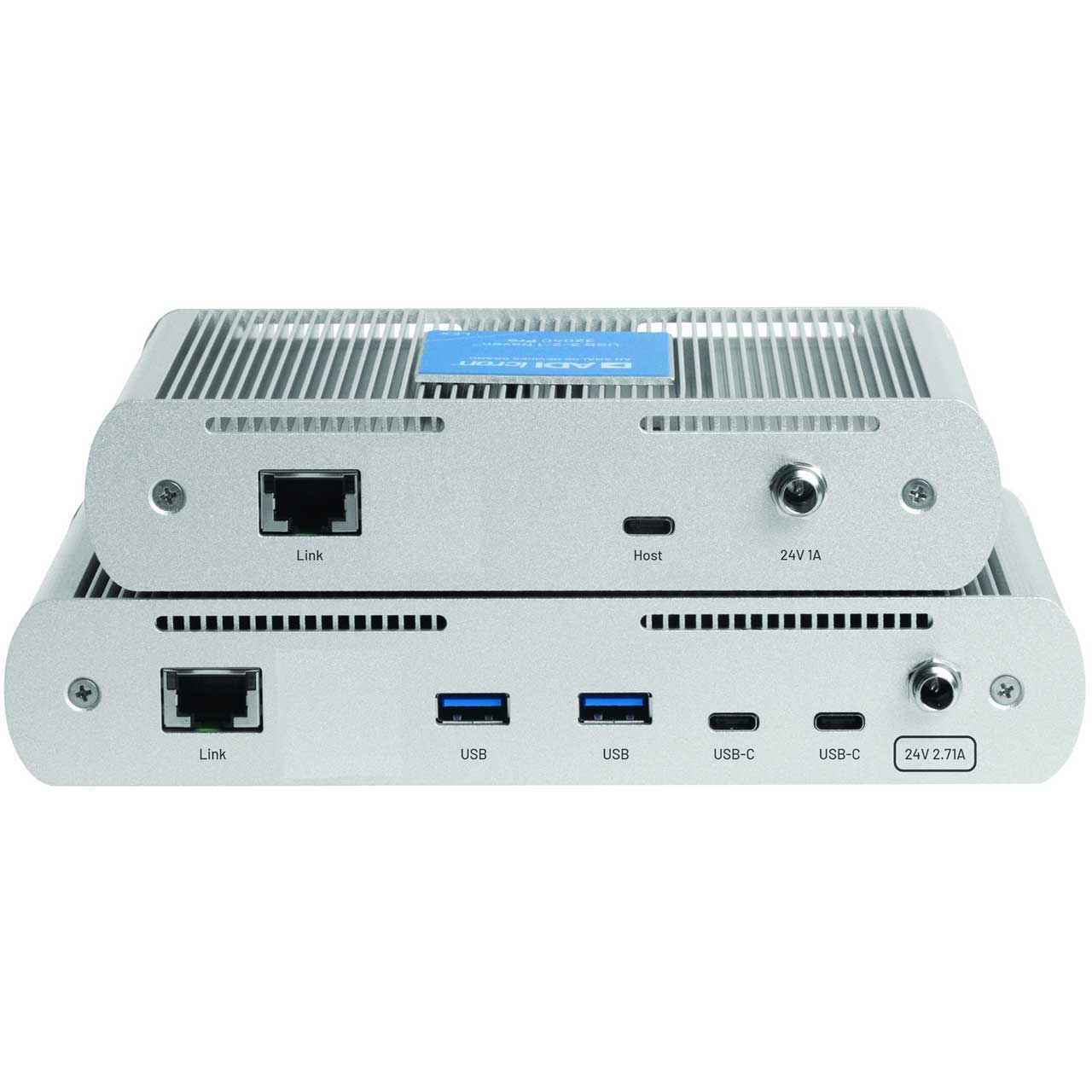

      • USB Connectors:
        1x USB-C Receptacle - LEX (LOCAL EXTENDER)
        2x USB-C Receptacles - REX (REMOTE EXTENDER)
        2x USB-A Receptacles - REX (REMOTE EXTENDER)
      • Link Connector: 1x RJ45 Ethernet Link Port
      • Power Input:
        24V 1A DC Locking Jack - LEX (LOCAL EXTENDER)
        24V 2.71A DC Locking Jack - REX (REMOTE EXTENDER)
      • Dimensions (W x D x H*):
        6.50" x 4.00" x 1.38" - LEX (LOCAL EXTENDER)
        7.75" x 4.00" x 1.38" - REX (REMOTE EXTENDER)
      • Weight:
        1.26lbs. - LEX (LOCAL EXTENDER)
        1.54lbs. - REX (REMOTE EXTENDER)
      • Enclosure Material: Silver Anodized Aluminum
      • Point-to-Point: Up to 100m (330 ft) over CAT 6a/7
      • USB Bandwidth: Up to 5Gbps
      • Device Compatibility: All Device Types and Classes (Control, Interrupt, Bulk, and Isochronous)
      • Host Compatibility: OHCI, UHCI, EHCI, xHCI
      • Available Current at REX: Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
      • Maximum Devices: Supports up to 30
      • Temperature: 32°F to 122°F / Operating: -4°F to 158°F Storage
      • Relative Humidity: 20% to 80% Operating / 10% to 90% Storage (Non-condensing)
      • Certifications: FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1

    • Item Includes:

      • 1x LEX (Local Extender)
      • 1x REX (Remote Extender)
      • 1x USB-C Cable
      • 2x International Locking AC Adapters
      • 2x Country Specific Power Cords
      • 1x Quick Start Guide

    • Warranty:

      • 2-year
