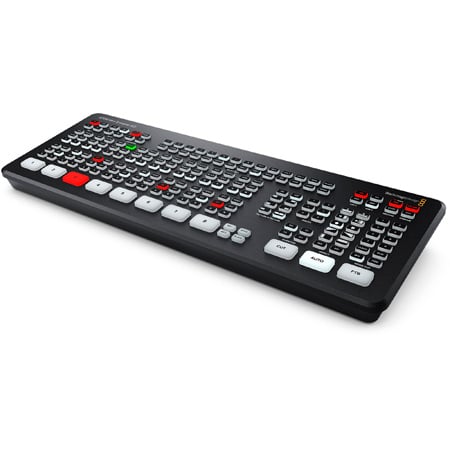

Blackmagic Design SWATEMMINICEXTISO ATEM Mini Extreme ISO HDMI Live Production Switcher - 8 Input/9x H.264 Video Streams

ITEM #: BMD-ATEMMINEXISO MFG #: SWATEMMINICEXTISO

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,295.00

Availability: In Stock
iAvailability Description Popup


    SWATEMMINICEXTISO - Overview

    Multi-Camera Live Production Switcher With Advanced Broadcast Features For The Beginner Videographer!

    With the Blackmagic ATEM Mini Extreme ISO you get the features of ATEM Mini Extreme plus 9 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.

    ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect the Blackmagic ATEM Mini Extreme ISO and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too!

    Edit Live Production with Separate ISO Recordings
    The Blackmagic ATEM Mini Extreme ISO allow you to edit your live event as they can record multiple video streams, including clean feeds of all inputs and program, all at the same time! Media pool images used are also saved with the video files. The video files include metadata tags such as synced timecode and camera numbers.

    Edit Live Production in DaVinci Resolve
    The ISO models also save a DaVinci Resolve project file, so with a single click you can open your live production as a video edit. All cuts, dissolves and media pool graphics will be loaded. This means you can fine tune edit points or even completely replace shots! The DaVinci Resolve Sync Bin lets you select new shots via a multiview so it's very easy to use. You can even relink to Blackmagic RAW!

    Self Contained Broadcast Quality Switcher
    ATEM Mini's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it's possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! On the ATEM Mini Pro and Extreme models you also get buttons for record and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview.

    • Features:

      • Easy to Use and Fast to Learn
      • Automatically Converts Any HDMI Input Format
      • Stream Live Interviews via Ethernet
      • Connect up to 8 Independent Cameras
      • Outputs to HDMI Video and USB Webcam
      • Connect 5G or 4G Phones for Mobile Data
      • Record Direct to USB Flash Disks
      • 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video
      • ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP)

    • Specifications:

      • Connections
      • Total Video Inputs: 8
      • Total Outputs: 2
      • Total Aux Outputs: 2
      • Total Audio Inputs: 2x 3.5mm stereo mini jack
      • Total Audio Outputs: 1x 3.5mm stereo mini jack
      • HDMI Video Inputs: 8x HDMI type A, 10-bit HD switchable. 2 channel embedded audio
      • Video Input Re-Sync: On all 8 HDMI inputs
      • Frame Rate and Format Converters: On all 8 HDMI inputs
      • HDMI Program Outputs: 2
      • Ethernet: Ethernet supports 10/100/1000 BaseT
      • Computer Interface: 2x USB Type-C 3.1 Gen 1

        Standards
      • HD Video Input Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
      • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • Video Sampling: 4:2:2 YUV
      • Color Precision: 10-bit
      • Color Space: Rec 709
      • HDMI Input Resolutions from Computers: 1280x 720p 50Hz, 59.94Hz and 60Hz , 1920x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920x 1080i 50, 59.94Hz and 60Hz
      • Colorspace Conversion: Hardware based real time

        Product Specifics
      • Upstream Keyers: 4
      • Downstream Keyers: 2
      • Advanced Chroma Keyers: Up to 4
      • Linear/Luma Keyers: Up to 4
      • Transition Keyer: DVE only
      • Total Number of Layers: 9
      • Pattern Generators: 5
      • Color Generators: 2
      • DVE With Borders and Drop Shadow: 2
      • Interface: Minimum monitor resolution of 1366x768

        Audio
      • Audio Mixer: 11 inputx 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering.
      • Analog Input: Unbal stereo
      • Analog Input Delay: Up to 8 frames
      • Input Impedance: 1.8k
      • Max Input Level: +6dBV
      • Mic Plug In Power: Available on both 3.5mm mini jack connections

        Recording
      • Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media
      • Video Recording: 1x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio
      • Media Format: Supports media formatted ExFAT or HFS + file system

        Direct Streaming
      • ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP)

        Multi View Monitoring
      • Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters
      • Multi View Video Standard: HD

      • Media Player
      • Media Players: 2
      • Channels: Fill and key for each Media Player
      • Media Pool Still Image Capacity: 20 with fill and key
      • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF

        Software/Operating Systems
      • Software Updates: Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
      • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis
      • Mac 10.15 Catalina, Mac 11.1 Big Sur or later
      • Windows 10, 64-bit

        Power Requirements
      • Power Supply: 1x External 12V power supply

        Physical
      • Dimensions: 14.56 x 5.37 x 1.56 inch
      • Operating Temperature: 41-104 F
      • Storage Temperature: 14 to140 F
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x ATEM Mini Extreme ISO
      • 1x External 12V DC power supply with international socket adapters

    • Warranty:

      • 12 Months Limited
