Blackmagic Design SWATEMMXEP ATEM SDI Portable Switcher with 4 3G-SDI Inputs

ITEM #: BMD-ATEM-SDI MFG #: SWATEMMXEP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$345.00

Availability: In Stock
iAvailability Description Popup


    SWATEMMXEP - Overview

    Introducing ultra portable live production with advanced broadcast features
    Blackmagic Design ATEM SDI is a family of live production switchers designed for broadcasters who need extreme portability! ATEM SDI switchers are very similar to ATEM Mini, however the video connections are 3G-SDI and each model has double the number of video outputs! You get 4 SDI inputs on the ATEM SDI Plus all SDI inputs feature standards converters and re-sync! You even get DVEs for picture in picture effects! The USB works as a webcam for connecting video to computers, while the Pro and Extreme models feature built in streaming. For audio the Fairlight mixer includes a compressor, limiter and 6 band parametric EQ on each input!

    Ultra Portable Live Production!
    ATEM SDI gives you the portable design of ATEM Mini, but its SDI connections means you can connect advanced broadcast quality cameras and recorders. This opens up a whole new world of ultra portable live production. The incredibly portable design means you can fit a whole broadcast quality live production system in a small bag or even a backpack! You can use multiple cameras on location and live stream direct to YouTube, or create a broadcast quality link back to a studio with ATEM Streaming Bridge. Unlike single camera remote shoots, ATEM SDI lets you connect multiple cameras so you can create interesting remote interviews with multiple camera angles.

    Self Contained Broadcast Quality Switcher

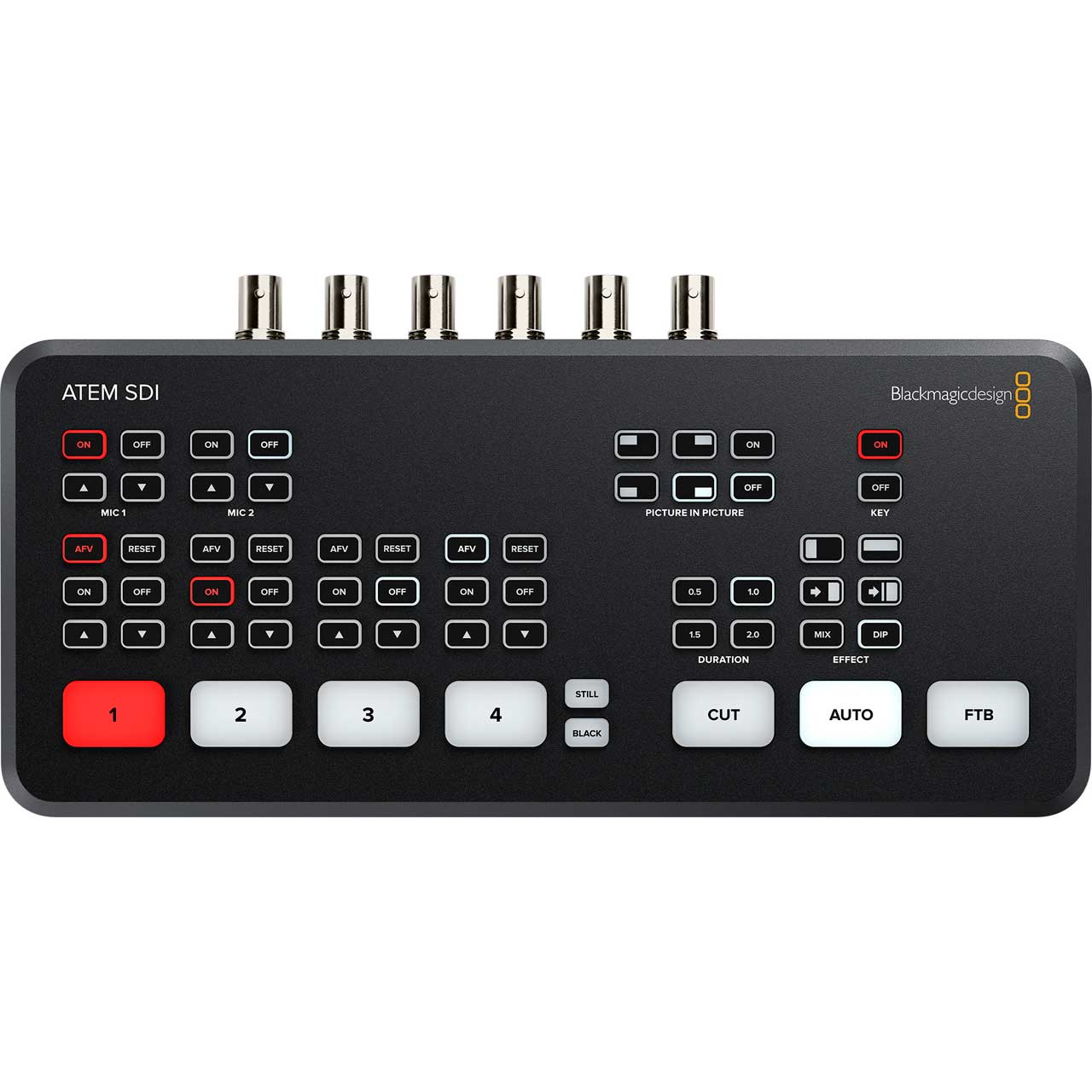

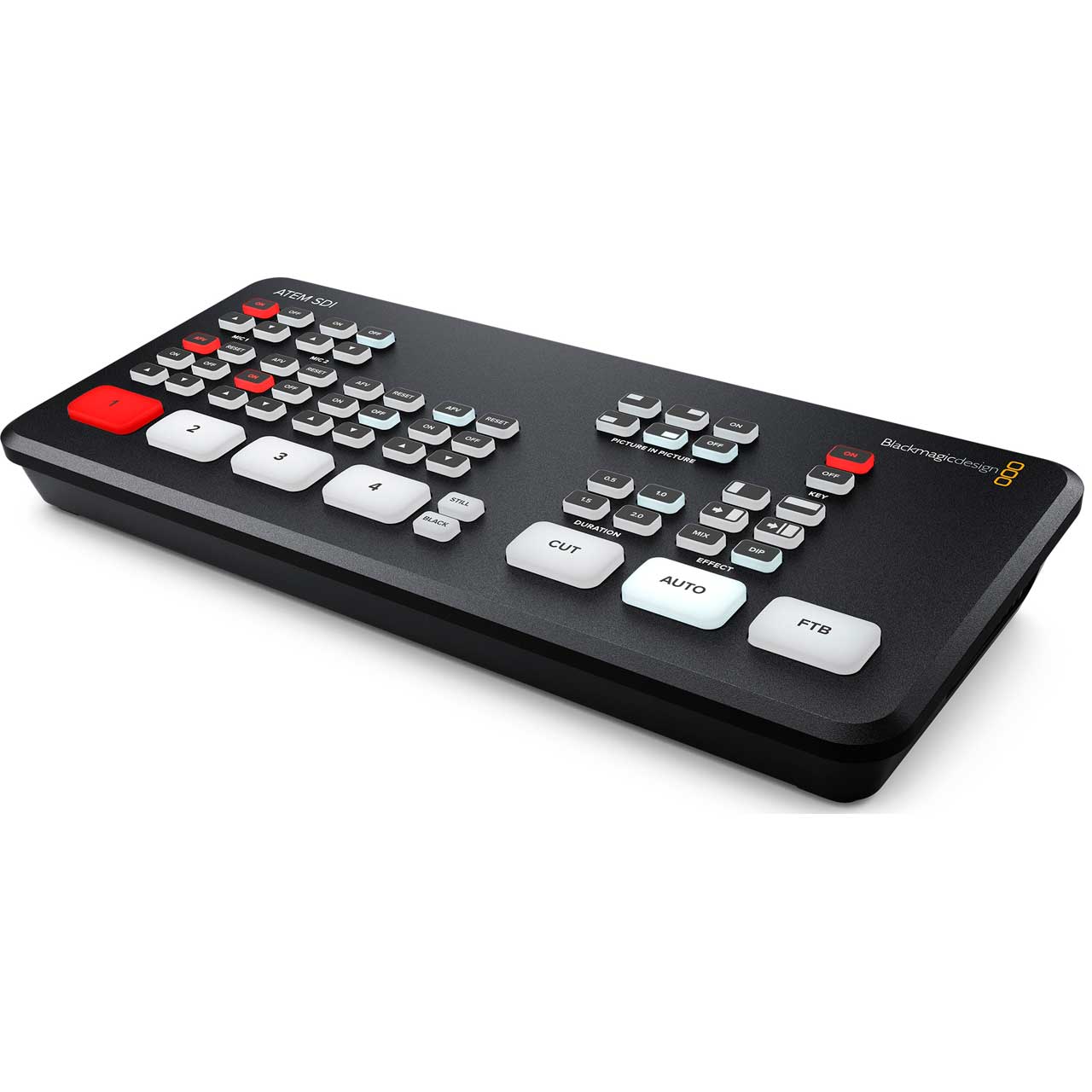

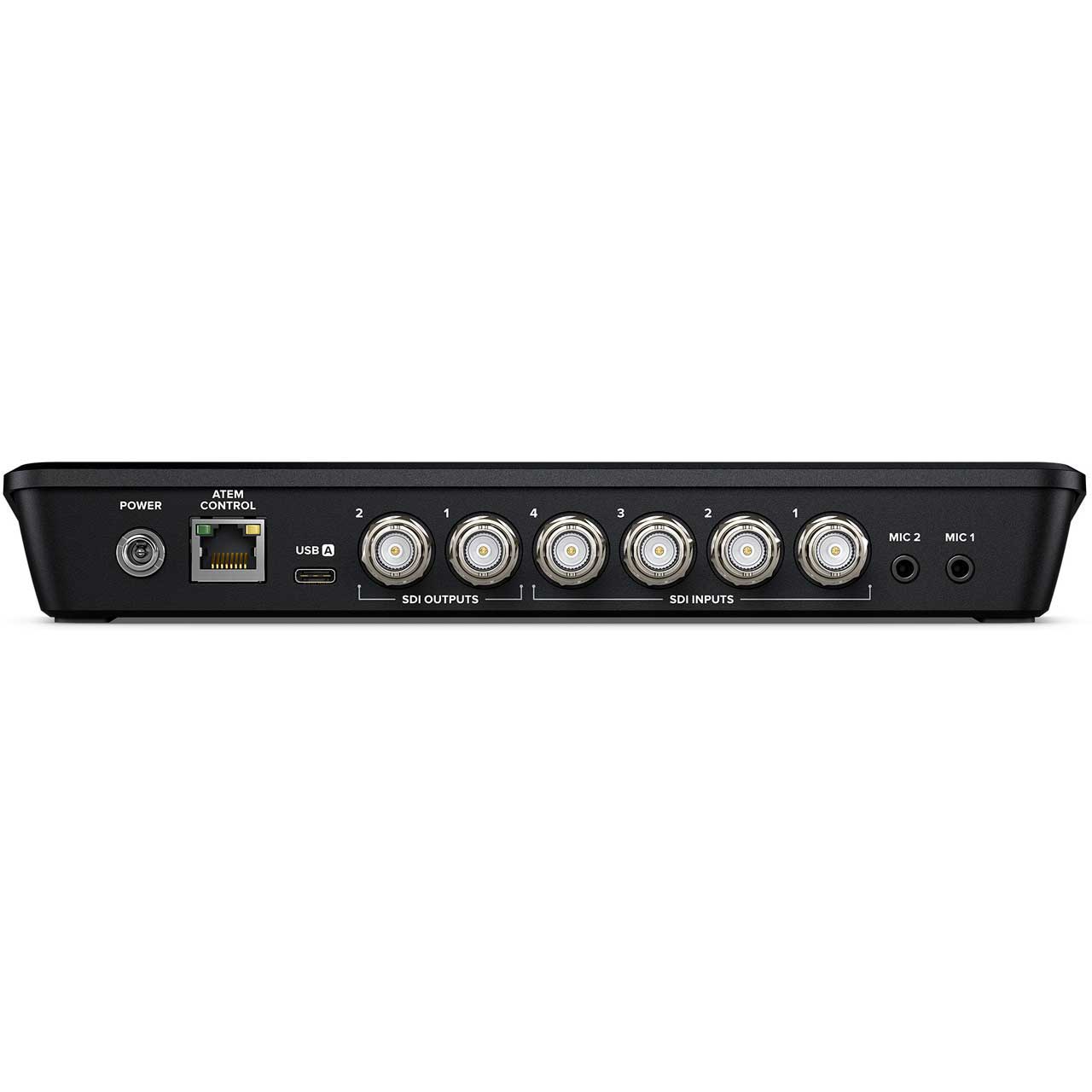

    ATEM SDI's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it's possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! The ATEM SDI Pro and Extreme models have buttons for recording and streaming control, as well as output selection buttons that let you change the video output between program, direct camera feeds and the multiview. On the rear panel there are SDI connections for cameras, extra microphone inputs, USB for webcam plus multiple SDI "aux" outputs for program video.

    • Specifications:

      • Connections
      • Total Video Inputs: 4
      • Total Outputs: 3
      • Total Aux Outputs: 2
      • Total Audio Inputs: 2 x 3.5mm stereo mini jack
      • Total Audio Outputs: None, embedded audio only
      • Timecode Connection: None
      • SDI Video Inputs: 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio
      • Video Input Re-Sync: On all 4 SDI inputs
      • Frame Rate and Format Converters: On all 4 SDI inputs
      • SDI Program Outputs: 2
      • Ethernet: Ethernet supports 10/100 BaseT for software control, software updates and direct or network panel connection
      • Computer Interface: 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection

        Standards
      • HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
      • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • Ultra HD Video Standards: None
      • Video Sampling: 4:2:2 YUV
      • Color Precision: 10-bit
      • Color Space: Rec 709
      • Colorspace Conversion: Hardware based real time

        Specifics
      • Upstream Keyers: 1
      • Downstream Keyers: 1
      • Advanced Chroma Keyers: 1
      • Linear/Luma Keyers: 2
      • Transition Keyer: DVE only.
      • Total Number of Layers: 5
      • Pattern Generators: 1
      • Color Generators: 2
      • DVE With Borders and Drop Shadow: 1
      • Interface: Minimum monitor resolution of 1366 x 768.

        Audio
      • Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control
      • Analog Input: Unbalanced stereo
      • Analog Input Delay: Up to 8 frames
      • Input Impedance: 1.8k
      • Max Input Level: +6dBV
      • Mic Plug In Power: Available on both 3.5mm mini jack connections

        Media Player
      • Media Players: 1
      • Channels: Fill and key for each Media Player
      • Media Pool Still Image Capacity: 20 with fill and key
      • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF

        Control
      • Control Panel: Built in control panel. Software control panel included. Supports optional hardware panel
      • Control Panel Connection: Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection
      • Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel
      • Control Panel Included: ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11

        Operating Systems
      • Mac 11.0 Big Sur
      • Mac 12.0 Monterey or later
      • Windows 10 and 11

        Power
      • Power Supply: 1 x External 12V power supply
      • Power Usage: 18W

        Environmental
      • Operating Temperature: 41° - 104° F
      • Storage Temperature: 14° to 140° F
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x ATEM SDI
      • 1x External 12V DC power supply with international socket adapters

    • Warranty:

      • 12 Months Limited

    • GTIN:

      9338716007930
