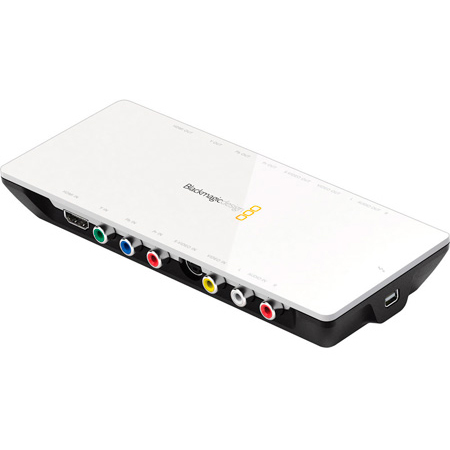

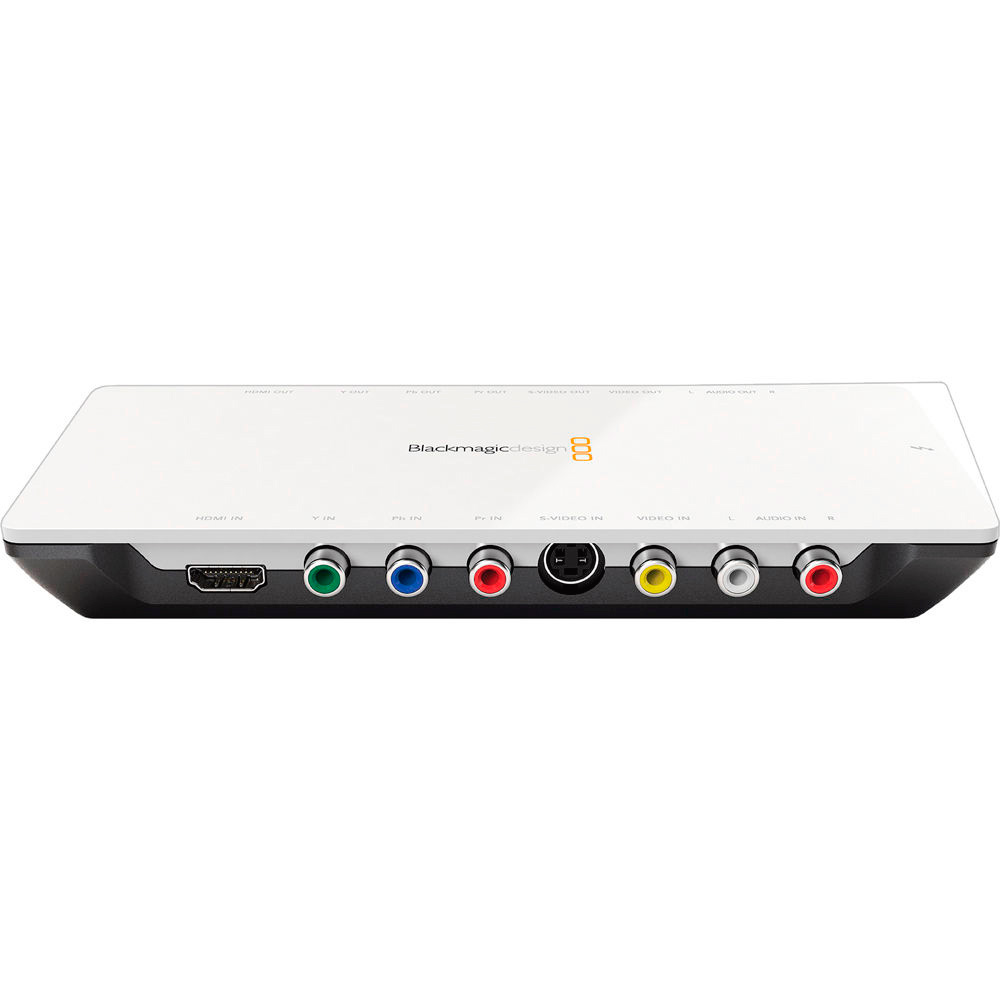

Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt
  • Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt
  • Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt
  • Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt
  • Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt
Questions? Ask a Markertek Expert:
800-522-2025 Email

Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt

Manufacturer: Blackmagic Design



List Price:$239.00
Our Price:$227.05

free ship
Availability: In Stock
Item is Available for immediate shipping from our warehouse.



    Required Accessories

    The Intensity Shuttle is now available with the incredibly fast Thunderbolt(MAC) technology. Capture and playback the highest quality SD and HD video in full 10-bit quality, with HDMI, analog component, composite and S-Video connections. Intensity Shuttle Thunderbolt's innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other!

    Intensity Shuttle Thunderbolt is powered over the Thunderbolt cable so you don't need cumbersome power supplies. Intensity Shuttle Thunderbolt uses the same high quality electronics as Blackmagic Design's high end capture and playback solutions.

    Highest Quality Video
    Most consumer video cameras compress HD video to fit longer recordings on to tape and discs. For video editing compressed media needs to be decoded to play back each frame of video and this puts additional strain on your computer's CPU and limits real time editing effects. Capturing directly with Intensity bypasses camera compression by recording directly from the camera's image sensor, so a low cost consumer camera can be used to capture full HD resolution video in broadcast quality!

    PCI Express, USB 3.0 or Thunderbolt
    It's easy to add the amazing quality of Intensity to your laptop, desktop or computer workstation! Intensity is available in different models that connect to computers with the fastest PCIe, USB 3.0 or ThunderboltT technology. Intensity uses the latest USB 3.0 and ThunderboltT technology with the fastest data transfer speeds. Now you can capture the highest uncompressed 1080HD video with portable devices that are powered from the computer connection! That's truly portable!

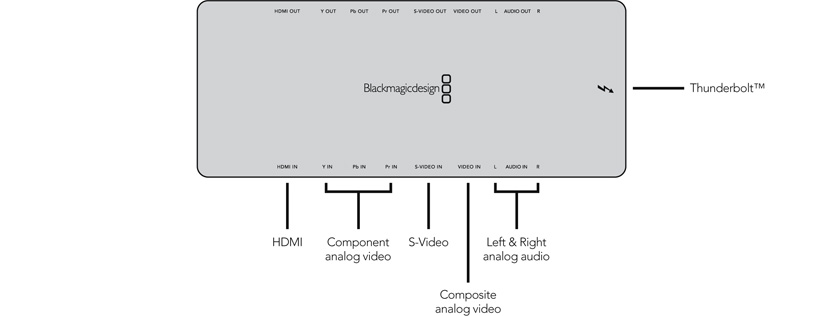

    • Specifications

      • Analog Video Input: Independent connections for component and composite and s-video.
      • Analog Video Output: Independent connections for component and composite and s-video.
      • HDMI Video Input: 1 x HDMI type A connector
      • HDMI Video Output: 1 x HDMI type A connector
      • Analog Audio Input: 2 Channel RCA HiFi audio in 24 bit.
      • Analog Audio Output: 2 Channel RCA HiFi audio in 24 bit.
      • HDMI Audio Input: 8 Channels.
      • HDMI Audio Output: 8 Channels.
      • Dual Rate support: HDMI and Analog Component switches between high definition and standard definition.
      • Device Control: None. FireWire may be used for controlling some cameras.
      • Supported HDMI Formats: 525 NTSC, 625 PAL, 720HD and 1080HD switchable.
      • Computer Interface: ThunderboltT
      • SD Format Support: 625i/50, 625p PAL and 525i/59.94, 525p NTSC, 480p.
      • HD Format Support: 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94 and 720p60.
      • HDMI Video Sampling: 4:02:02
      • HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
      • HDMI Color Space: YUV 4:2:2
      • HDMI Color Precision: 4:02:02
      • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
      • Colorspace Conversion: Hardware based real time.
      • HD Down Conversion: Software based down conversion during video playback.
      • HD Up Conversion: Real time standard definition to 1080HD and 720HD during video capture.
      • Real Time Effects: Apple Final Cut ProT internal effects. Adober Premiere Pror Mercury Playback Engine effects. Avid Media Composer 6T internal effects.
      • Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver.
      • Internal Software Upgrade: Firmware built into software driver. Loaded at system start, or via updater software.
      • Physical Installation: Requires a computer with ThunderboltT running Mac OS X 10.7 Lion or later, Mac OS X 10.8 Mountain Lion or later, Windows 7 or Windows 8 release preview.
      • Operating System Compatibility: Compatible with Apple Mac OS X and Microsoft Windows 7 or Windows 8 release preview.
      • Product Warranty: 12 Months Limited Warranty.


    by PowerReviews
    Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt

    (based on 1 review)

    Ratings Distribution

    • 5 Stars



    • 4 Stars



    • 3 Stars



    • 2 Stars



    • 1 Stars



    Reviewed by 1 customer

    Displaying review 1

    Back to top


    Understand the limitations

    By twdawg

    from Marietta, GA

    About Me Power User



      • Difficult To Use
      • Hard To Set Up

      Best Uses

        Comments about Blackmagic Design BINTSSHU/THBOLT Intensity Shuttle Thunderbolt:

        For almost 2 years I have been using the Hauppauge 1212 to capture video off of different DVR's, one from satellite and one from another TV provider. I have been waiting for a product that does HDMI capture, as the Hauppauge captures in component, S-video and other lesser abilities. The literature for the Black Magic Intensity Shuttle Thunderbolt (hereafter referred to as the BMIT) clearly states that HDMI signals that are from copyrighted devices will not work. Well, that knocks out the PS3 and any set top box. So to capture video from a PS3 or set top box, you have to use component video. Now the problem is with the audio - if you cannot capture your audio/video via HDMI, then the only other AUDIO option is the red and black analog audio. There is not an option to capture audio using digital optical, which can preserve the Dolby Digital 5.1 audio. And to say that the software and setup is not straightforward is an understatement. I am using the BMIT with last year's MacBook Air. You have to setup the video in 3 different places to even be able to see it in the included software. Even after a call to Tech Support, which was pretty good, I was finally able to capture a program, but the recording failed 1-4 minutes in - every time. And finally, the device runs VERY hot. So I am going to try to return this device and stick with my Hauppauge 1212.
