Magewell 11040 Pro Capture HDMI One-Channel PICe 2.0 Capture Card For HDMI/Composite/Component/S-Video w/ Audio

ITEM #: MGW-11040 MFG #: 11040

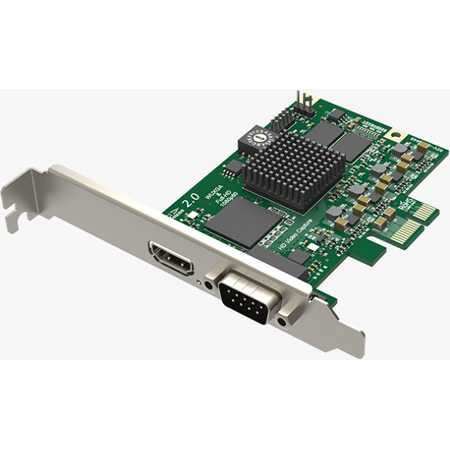

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


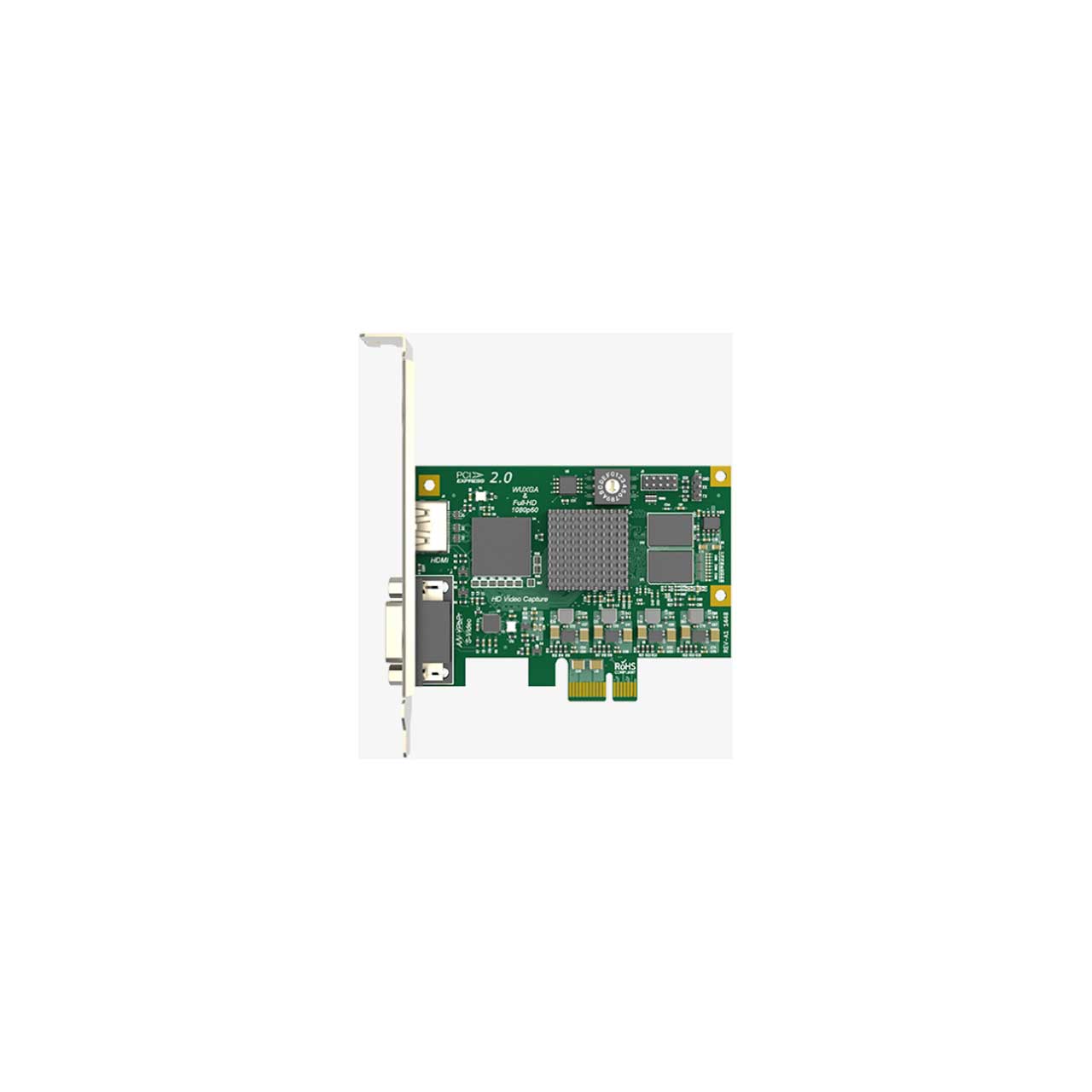

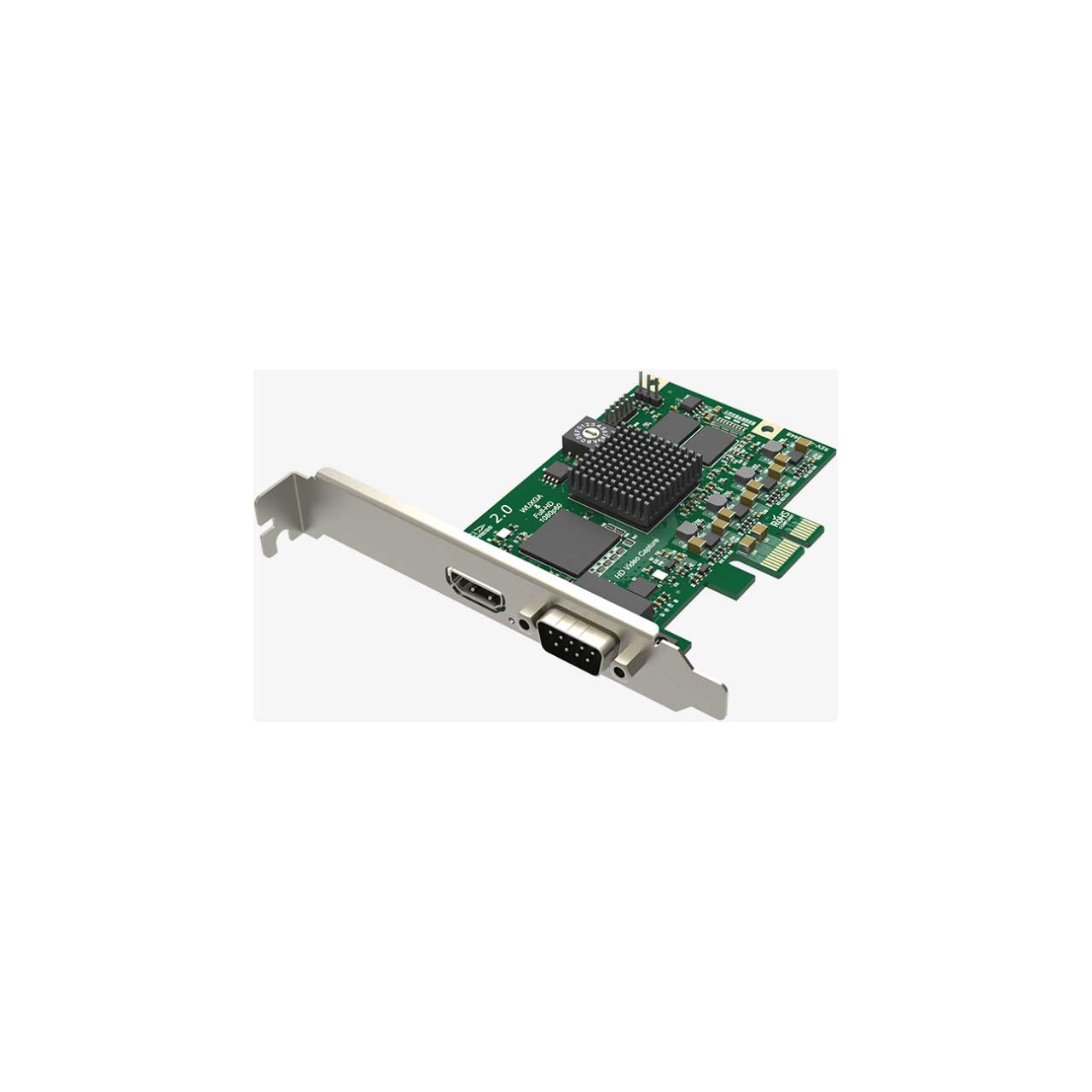

    11040 - Overview

    Magewell's 11040 Pro Capture HDMI One-Channel PICe 2.0 Capture Card is a capture card for HDMI, Composite, Component and S-video with audio. This card captures HDMI + Embedded Audio via the HDMI port and also the following video signals via the included breakout cable: Component + Audio, Composite + Audio and S-video + Audio. It has an adaptive HDMI equalizer support for cables lengths up to 98ft.

    This card is loaded with features such as ultra low latency, multiple capture streams and multiple cards per system. It allows for timestamp and A/V synchronization and full 10-bit video processing with features such as independent cropping, scaling, de-interlacing, OSD composition and aspect ratio, color format and frame rate conversion for each individual stream. It also supports capture image resolutions for up to 2048 x 2160 pixels and capture frame rates up to 144fps.With an on-board rotary switch, you can set the card number with 16 positions from 0 to F. The video and audio device names will be displayed in your software and will include the card number set by the rotary switch.

    It supports multiple Windows, Linux and Mac operating systems, Windows and Linux APIs and multiple software platforms such as vMix, Wirecast and Adobe Flash Media Encoder.

    • Features:

      • Component
      • 12-bit ADC
      • Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
      • Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT officially supported)
      • Auto detection of RGB & YCbCr color formats
      • Auto or manual sampling phase adjustment
      • Auto horizontal alignment

        HDMI
      • 225MHz HDMI receiver
      • Adaptive HDMI equalizer support for cables lengths up to 98ft
      • Full colorimetry support
      • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
      • Full colorimetry support
      • Support for 8/10/12-bit color depths
      • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
      • Support for up to 8-channel IEC60958/IEC61937 audio streams
      • Support for extraction of audio formation information & channel status data
      • Support for extraction of video timing information
      • Support for extraction of Sony/Canon DSLR time code

        YC & Composite
      • 12-bit ADC
      • Support for NTSC, PAL and SECAM standards
      • Auto detection of video input standard

      • Ultra Low Latency Mode
      • High-Speed Memory
      • LED Status Indicator
      • Rotary Switch
      • Auto or manual selection of input and capture aspect ratio
      • Auto or manual selection of input color format & quantization range
      • Auto or manual selection of capture color format, quantization range & saturation range
      • Support for input video resolutions up to 2048 x 2160 pixels
      • Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
      • Full 10-bit video processing
      • Multiple cards per system and multiple capture streams
      • Timestamp and A/V synchronization
      • Multiple cards in one system can have Firmware upgrades done simultaneously and without a system power shutdown

    • Specifications:

      • Supported OS
        Windows
      • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
        Linux (support x86, x64 & ARM architecture)
      • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
      • CentOS 6.5/7 (x86 & x64)
      • Fedora 25/26/27 (x86 & x64)
      • Red hat 6.5 and above (x86 & x64)
      • Other Linux OS with kernel version 2.6.35 and above
        Mac
      • OS X 10.9/10.10/10.11
      • macOS 10.12/10.13

        Supported APIs
        Windows
      • DirectShow
      • DirectKS
      • Wave API/DirectSound/WASAPI
        Linux
      • V4L2
      • ALSA

        Supported Software
      • VLC
      • VirtualDub
      • OBS
      • XSplit
      • vMix
      • VidBlaster
      • Wirecast
      • Microsoft Media Encoder
      • Adobe Flash Media Encoder
      • Any other DirectShow/V4L2 encoding/streaming software

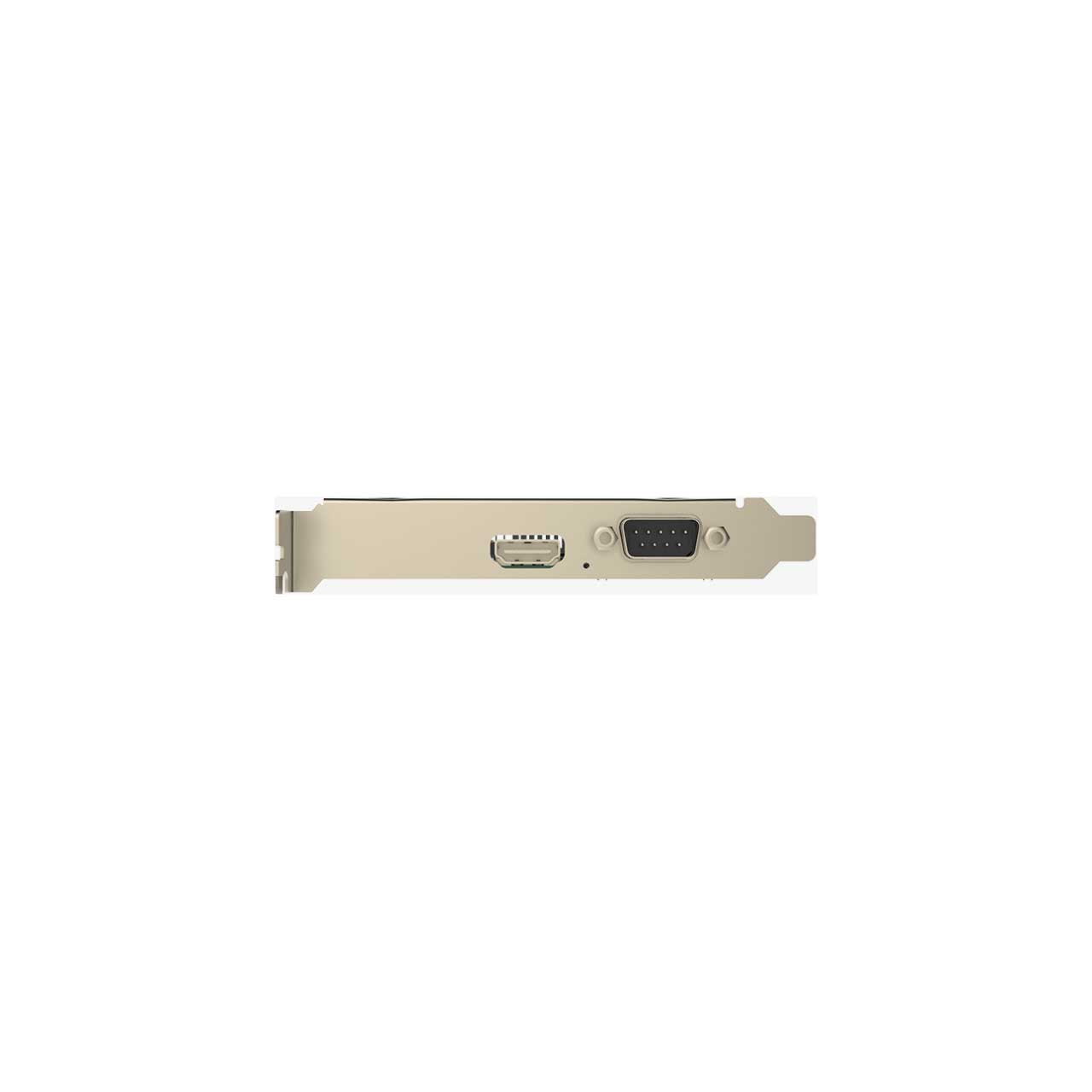

        Input Interfaces
      • HDMI type A: DVI 1.0, HDMI 1.4a
      • DB9: YC (S-Video), Composite video, Analog audio (L+R), Component video
      • Host Interface: PCIe Gen2 x1

        Video Engine
      • 10-bit video processing
      • Deinterlace
      • Cropping
      • Color Adjustment
      • Hardware Timestamp
      • Color Space Conversion
      • Up/down Conversion
      • Aspect Ratio Conversion
      • OSD
      • SG-DMA Transmission mode

        Video Capture Formats
      • Support for capture image resolutions up to 2048 x 2160 pixels
      • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280 x 1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920 x 1080 = ~80fps)
      • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
      • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
      • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
      • Support for 4:4:4 10-bit capture formats: V410, Y410
      • More capture formats are supported via Magewell Capture SDK for DirectKS

        Video Capture SG-DMA
      • ~400MB/s per channel DMA bandwidth in PCIe 2.0 system
      • ~200MB/s per channel DMA bandwidth in PCIe 1.0 system
      • Support for auto detection of Intel tiled GPU surface
      • Support for DirectGMA for AMD video adapter chipsets
      • Support for GPUDirect for Nvidia video adapter chipsets

        SDK
      • Magewell Capture SDK for DirectShow for easy integration (Windows)
      • Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)

        Physical & Power
      • Form Factor: Low profile PCIe x1 Add-on Card: 92.76mm x 68.88mm (without PCI bracket)
      • Max Current @ 12V: ~ 0.34A
      • Max Current @ 3.3V: ~ 0.16A
      • Max Power Consumption: ~ 4.59W
      • Operating Temperature: 32°F - 104°F
      • Storage Temperature: -4°F - 158°F
      • Relative Humidity: 5% - 90% non-condensing

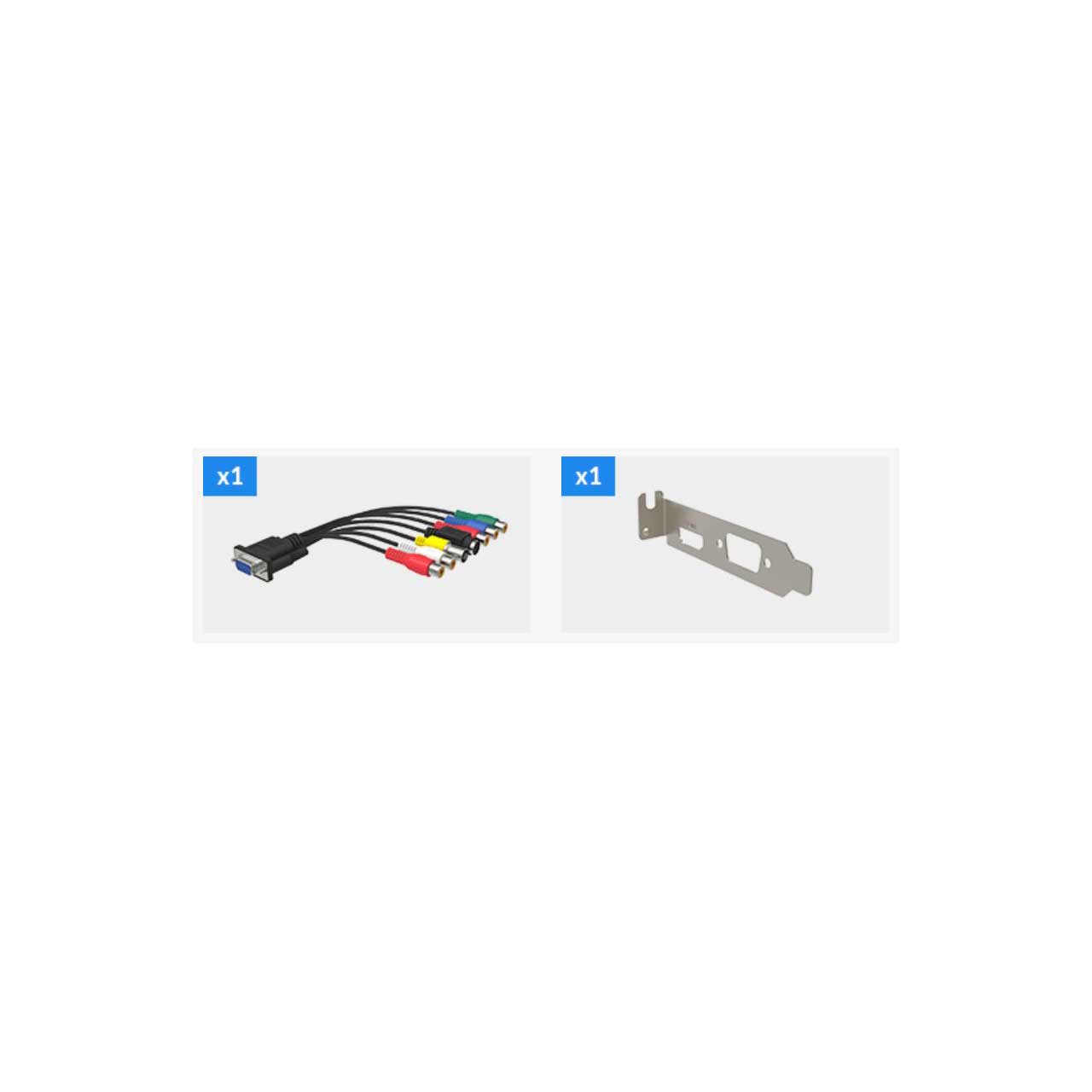

    • Item Includes:

      • Magewell Pro Capture HDMI One-Channel PICe 2.0 Capture Card
      • DB9 to YC + Composite + Analog Audio + Component breakout cable
      • Low profile bracket

    • Warranty:

      • 2 year

    • GTIN:

      8143950200310
