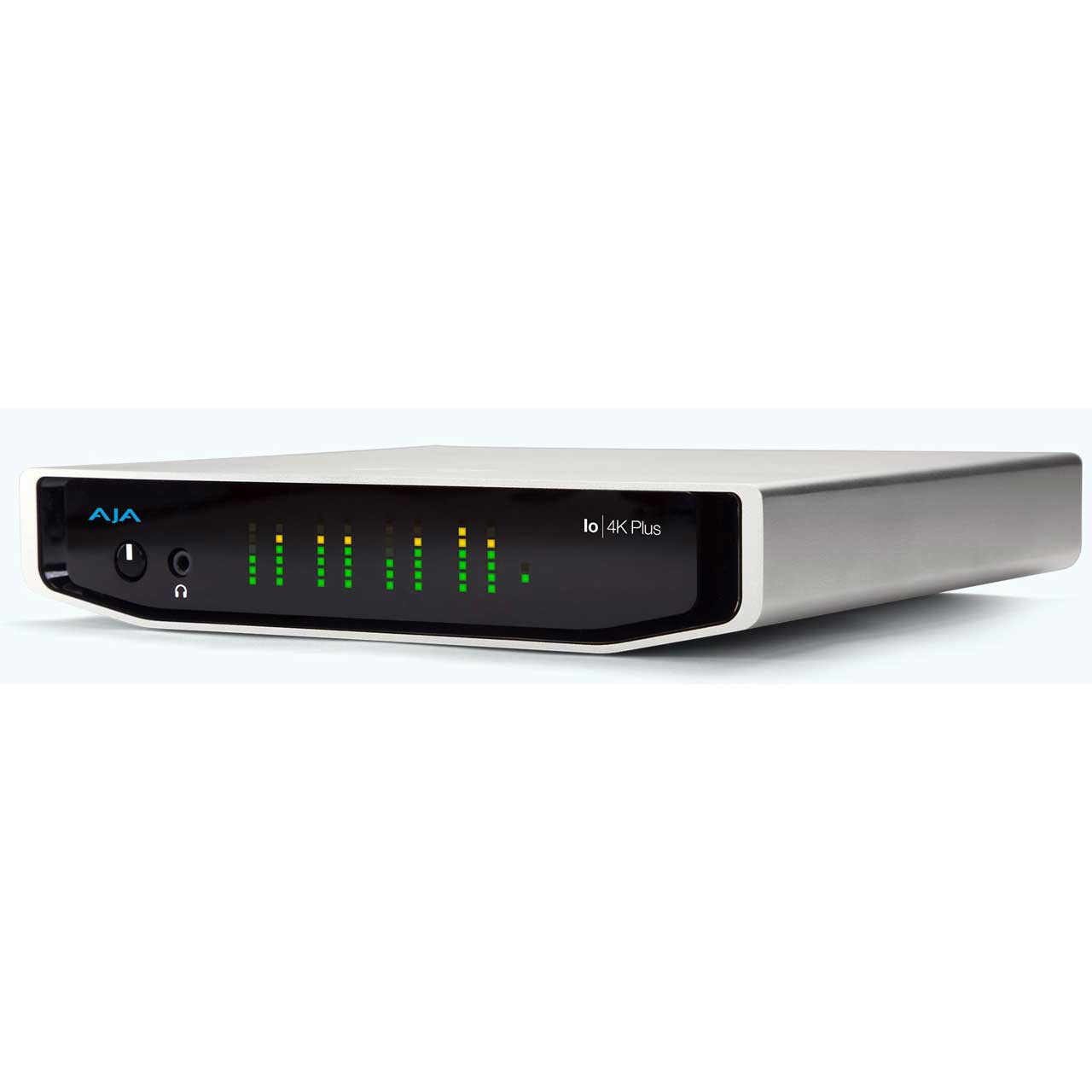

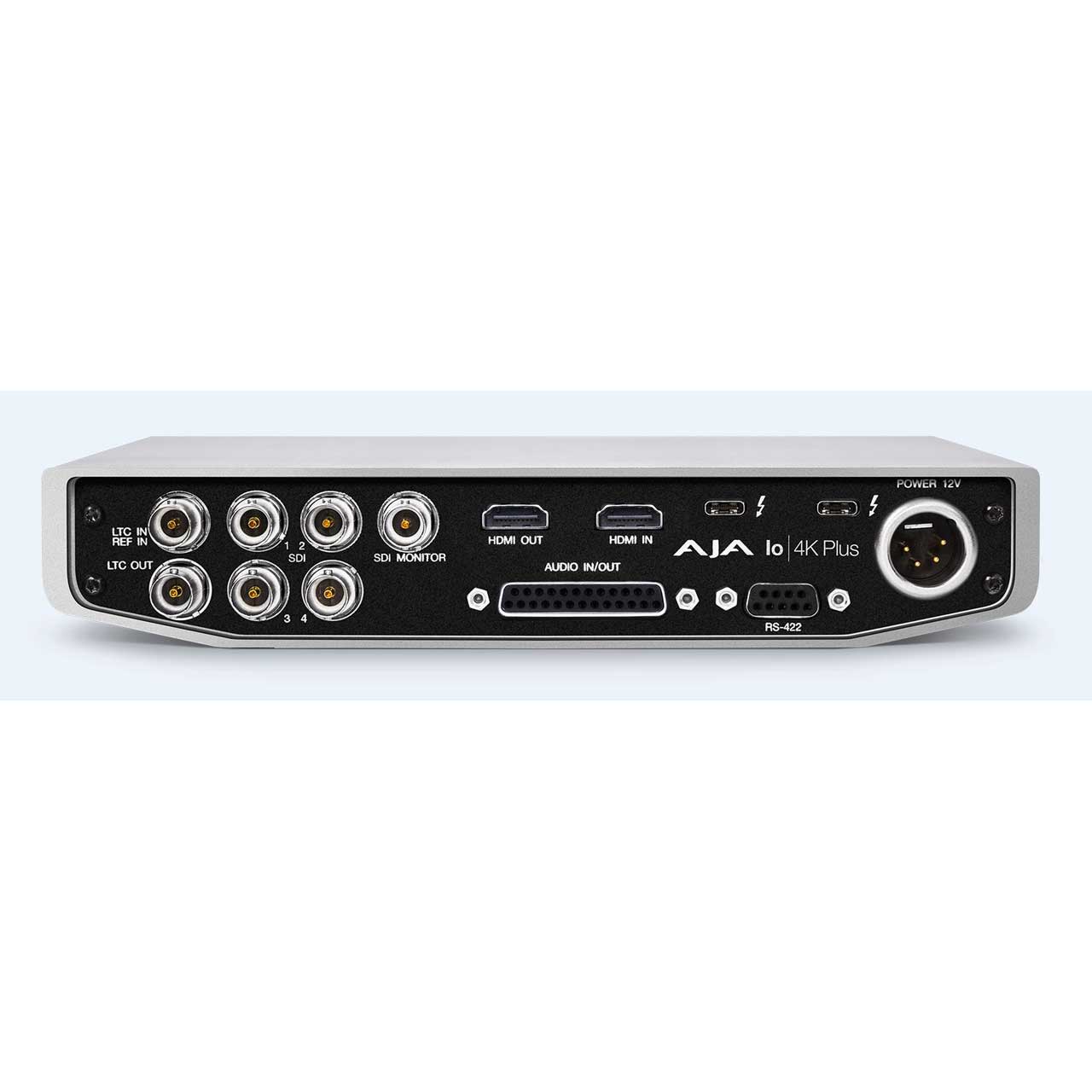

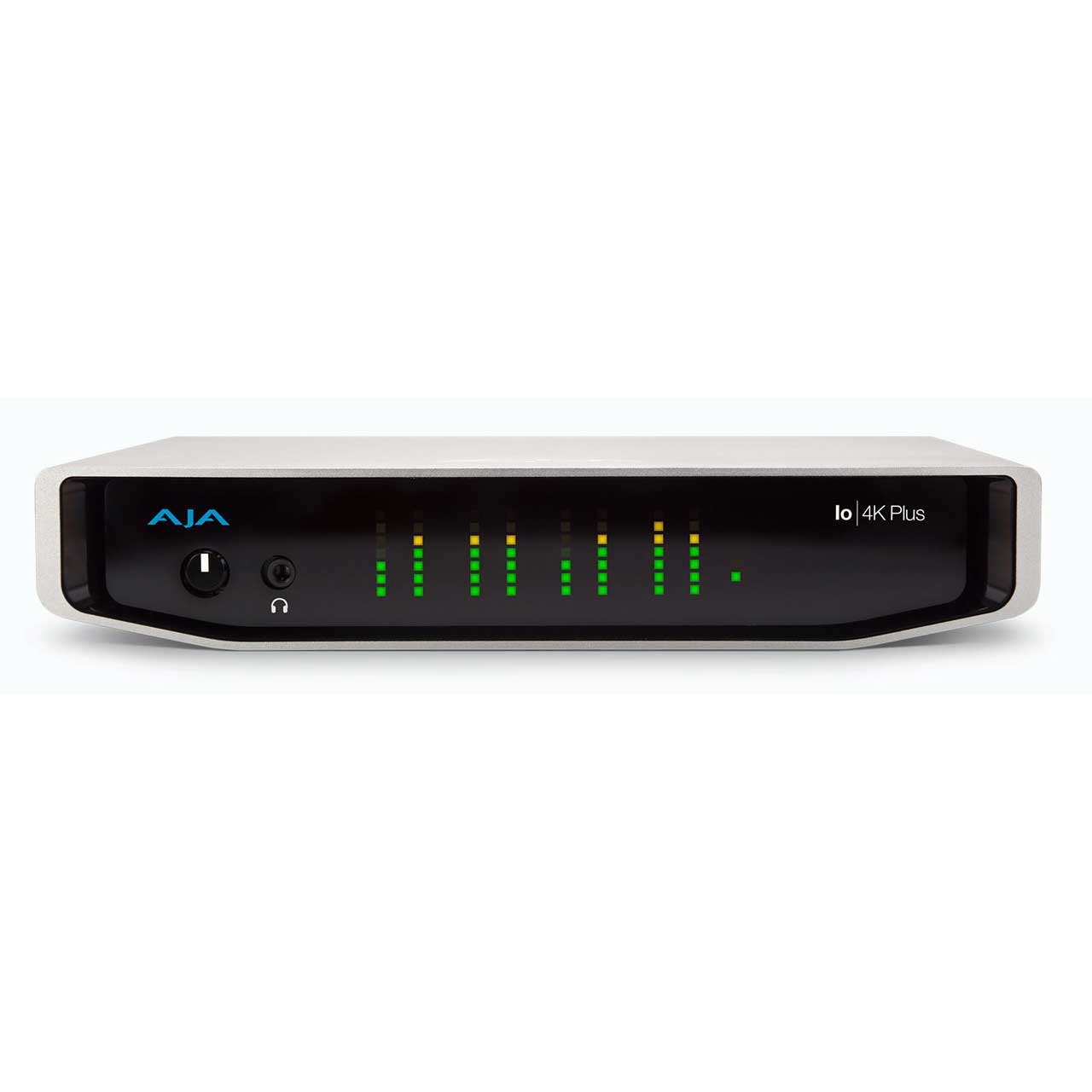

AJA Io 4K Plus 4K/UltraHD Audio/Video over Thunderbolt 3 12G-SDI and HDMI 2.0 I/O

ITEM #: AJA-IO4K-PLUS MFG #: IO 4K PLUS

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$3,299.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    IO 4K PLUS - Overview

    The AJA Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3, offering a full set of professional video and audio connectivity with support for the latest 4K/UltraHD devices. The Io 4K Plus supports High Frame Rate (HFR), High Dynamic Range (HDR) and deep color workflows. The power of Thunderbolt 3 enables Io 4K Plus to handle a wide range of formats from SD to HD, UltraHD and full 4K with frame rates up to 60p over both 12G-SDI and HDMI 2.0 with single cable simplicity, plus HDR 10 and HLG support over HDMI for emerging HDR workflows.

    Today's workflows demand speed, bandwidth and simplicity. Io 4K Plus supports 4K, UltraHD, 12G/6G/3G/1.5G-SDI, Dual Link, HD-SDI and SD-SDI as well as UltraHD and HD over HDMI 2.0 for both capture and output. The HDMI output is also able to accurately display HDR 10 and HLG to support emerging HDR workflows. 12G-SDI and HDMI 2.0 bring both power and simplicity to your projects, with the ability to use single cables for both input and output for the most demanding workflows. 12G-SDI is backwards compatible with SDI sources, covering all your bases through a single port. HDMI 2.0 allows high raster and frame rate capture and the ability to display the same to affordable and beautiful HDMI 2.0 displays.

    • Features:

      • 4K/UltraHD/2K/HD/SD 10-bit I/O up to 50/60p
      • 4x bidirectional 12G-SDI BNC with 16-channel embedded audio
      • 4K/UltraHD HDMI 2.0 I/O with 8-channel embedded audio
      • Two Thunderbolt 3 ports with loop through
      • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
      • 4K Closed Caption Support
      • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
      • PQ, HLG, HDR10 and Dolby Vision Support
      • HDR Metadata Capture and Auto Playback Detection
      • Analog Audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel out
      • XLR 12V power for battery or AC use
      • Headphone jack and level control for mobile environments
      • RS-422 VTR control, Reference, LTC Input

    • Specifications:

      • Video Formats
      • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
      • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
      • (2K) 2048 x 1080PsF 23.98, 24, 25
      • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1080i 50, 59.94, 60
      • (HD) 720p 50, 59.94, 60
      • (SD) 625i 50
      • (SD) 525i 59.94
      • Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.

        Video Input Digital
      • 12G-SDI*, SMPTE-2082, 12-bit**, 10-bit
      • 6G-SDI*, SMPTE-2081, 10-bit
      • 3G-SDI, SMPTE 425
      • RGB 4:4:4 12-bit**, YCbCr 4:2:2 10-bit
      • 1.5G-SDI, SMPTE 292M
      • Single Link HD-SDI YCbCr 4:2:2 10-bit
      • Dual Link RGB 4:4:4 12-bit**, Dual Link YCbCr 4:2:2 10-bit
      • 270 Mbps SDI, SMPTE 259M-C
      • YCbCr 4:2:2 10-bit, 8-bit
      • HDMI v2.0
      • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
      • 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
      • *SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous. For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured inputs support UltraHD / 4K only.
      • **Bit depth support is application dependent. Check with your software manufacturer for compatibility.

        Video Output Digital
      • 12G-SDI*, SMPTE-2082, 12-bit**, 10-bit
      • 6G-SDI*, SMPTE-2081, 10-bit
      • 3G-SDI, SMPTE 425
      • RGB 4:4:4 12-bit**, YCbCr 4:2:2 10-bit
      • 1.5G-SDI, SMPTE 292M
      • Single Link HD-SDI YCbCr 4:2:2 10-bit
      • Dual Link RGB 4:4:4 12-bit**, Dual Link YCbCr 4:2:2 10-bit
      • 270 Mbps SDI, SMPTE 259M-C
      • YCbCr 4:2:2 10-bit, 8-bit
      • HDMI v2.0
      • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
      • 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
      • *SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous. For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured outputs support UltraHD / 4K only.
      • **Bit depth support is application dependent. Check with your software manufacturer for compatibility.

        HDR
      • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
      • HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
      • HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G
      • Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

        Audio Inputs Digital
      • 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 24 and 16-bit HDMI embedded audio, 48 kHz sample rate, synchronous

        Audio Inputs Analog
      • 8-channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
      • +24 dBu full scale digital (0 dBFS)
      • +/- 0.2 dB 20 to 20 kHz frequency response
      • Input supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen

        Audio Outputs Digital
      • 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

        Audio Outputs Analog
      • 8-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
      • +24 dBu full scale digital (0 dBFS)
      • +/- 0.2 dB 20 to 20 kHz frequency response
      • Output supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen

    • Warranty:

      • 3 Year

    • GTIN:

      0892448000809
