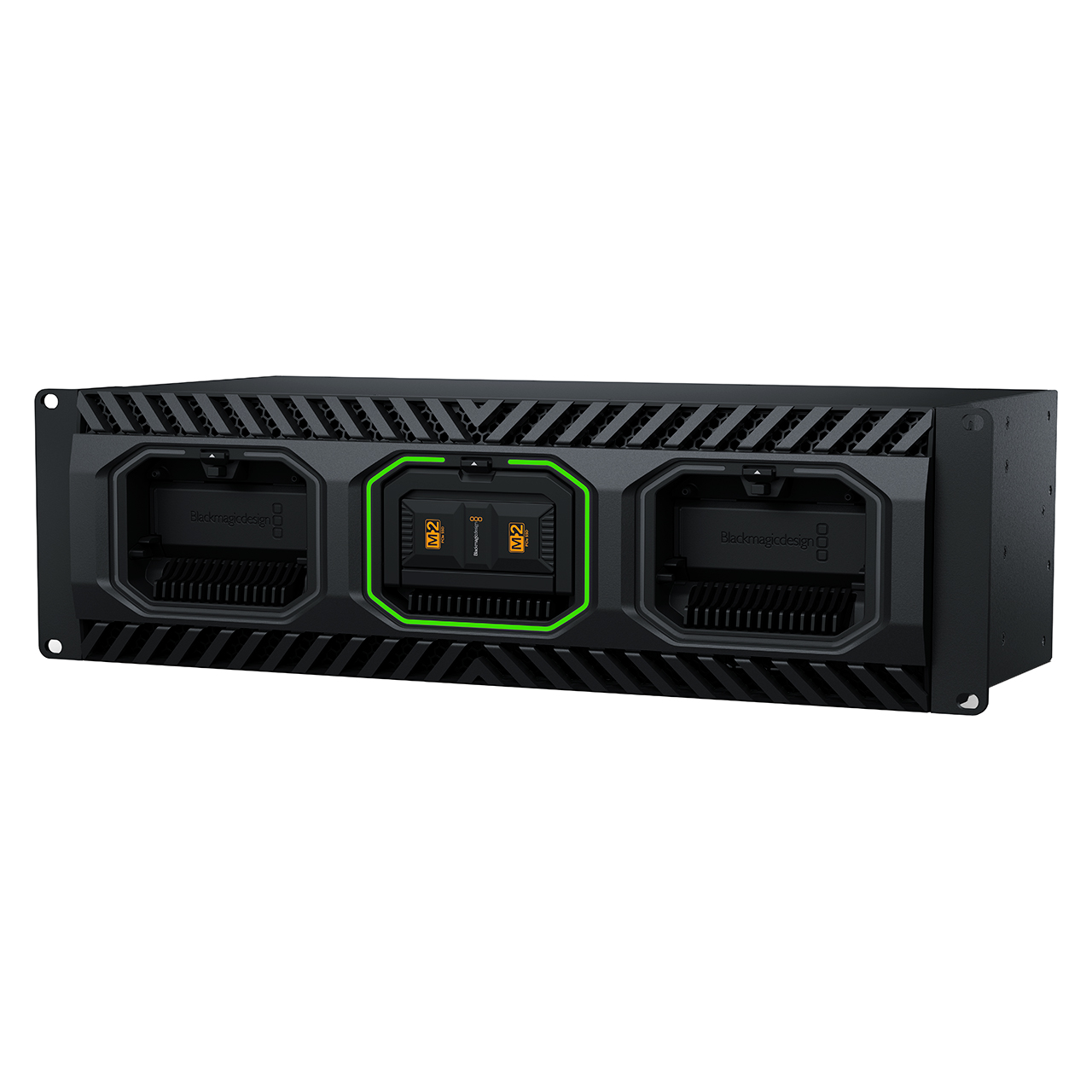

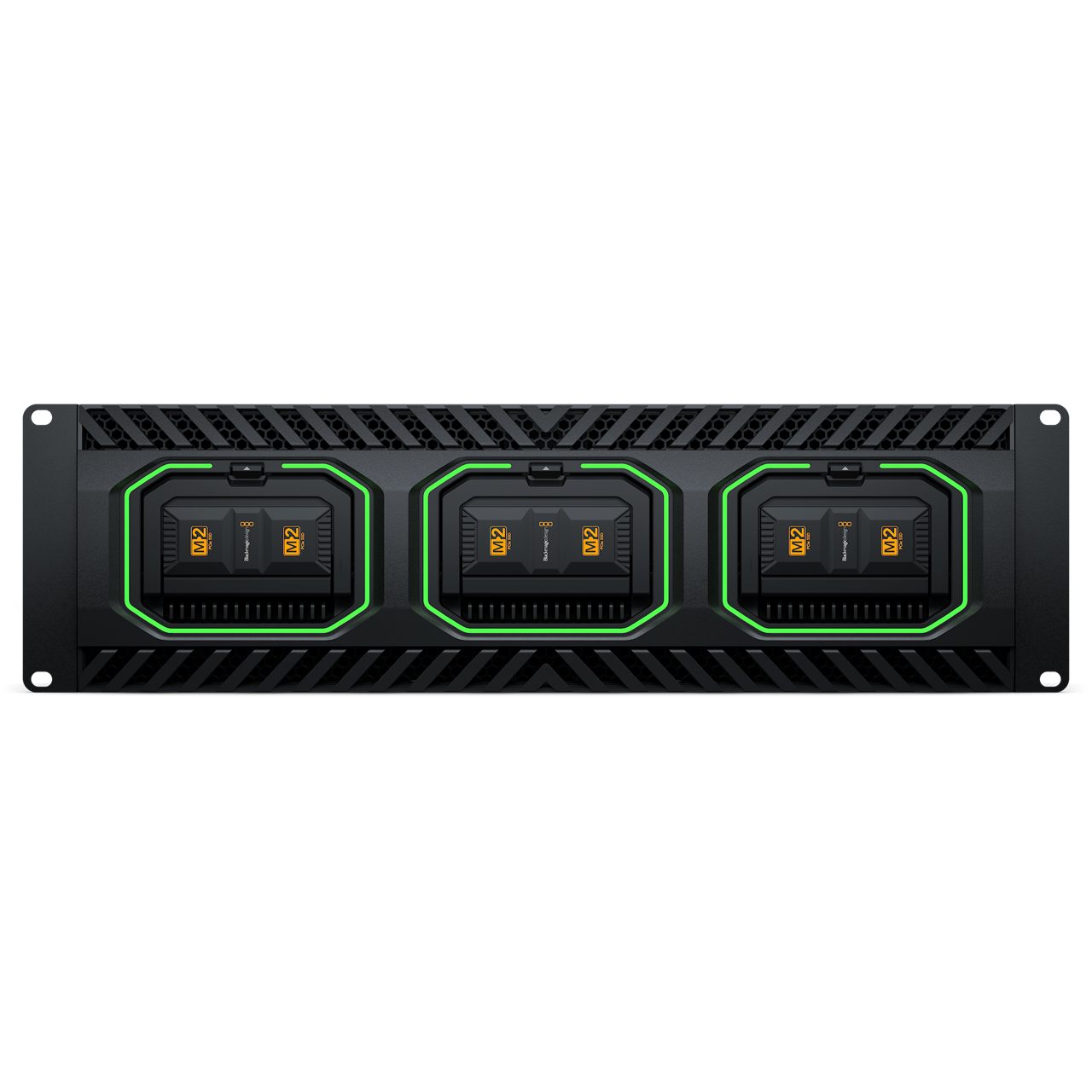

Blackmagic Design Media Dock Ultra 3-Bay 3RU Rackmount Dock for Blackmagic Media Modules - 2x 100G Ports - SDI & HDMI

ITEM #: BMD-MEDIADOCKULT MFG #: DWCLDC/DOCNMDU03

Primary Image
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$3,295.00

Add to Wish ListLeasing Options
Availability: Preorder - Expected Availability Jul 2026.
iAvailability Description Popup
  • Shipped to USA (50 states) only.
Report Lower PriceLarge Quantity Quote

DWCLDC/DOCNMDU03 - Overview

A more powerful design with faster network speeds, front-to-back cooling and multiple fans for redundancy and quiet operation!

Get High Performance Network Storage with Removable Modules!
Introducing the world's fastest network storage with removable media modules! The Blackmagic Media Dock models use the same high speed media modules as Blackmagic URSA Cine cameras, so you get high performance storage that can be instantly removed. That's perfect for editing media from URSA Cine cameras directly from the modules without copying files. It's also a perfect solution for recording from the HyperDeck ISO Recorder 100G, as you can instantly unplug and take the media module with you as soon as a live production ends! There are two powerful models, one with four 10G Ethernet connections and another with two separate 100G Ethernet connections. They even sync to Blackmagic Cloud!

Blackmagic Design Media Dock Ultra accelerates your post production workflow by enabling incredibly high speed network sharing and upload from up to three Blackmagic Media Modules from Blackmagic URSA Cine cameras. Two 100G Ethernet ports allow multiple edit stations to connect and edit directly. Blackmagic Media Dock Ultra also has dual AC power inputs for redundancy and two SDI and an HDMI output for live monitoring of media in real time on a TV or monitor.

Designed for Film and Television
Blackmagic Media Dock is great for both post and live production. It lets Blackmagic Media Modules from URSA Cine be shared on the network for multiple editors and colorists. Install it into a DIT cart for on-set color grading, then move the media module to post production after the shoot. It also constantly syncs to Blackmagic Cloud for a global post production workflow! The modules easily handle high resolution 12K and 17K digital film files! Blackmagic Media Dock Ultra is perfect for live production with HyperDeck ISO Recorder 100G because you can simply unplug the media module when the show ends. Even if you are recording, DaVinci Resolve can still edit the growing files live!

Please Note: 100G 2110 systems, such as Blackmagic Design's 100G products, use QSFP28 optical fiber Ethernet cables to carry 8+ channels of Ultra HD video over single-mode fiber. These systems feature redundant 100G Ethernet for SMPTE-2022-7 compliance, providing ultra-high speed connectivity.

  • Features:

    • Extremely high performance rack mount dock for Blackmagic Media Modules
    • Two independent 100G Ethernet ports for simultaneous recording and editing
    • Blackmagic Cloud sync for global media collaboration
    • Includes SDI and HDMI monitoring output with live storage status
    • Front-to-back cooling with multiple fans for quiet operation
    • Dual redundant AC power supplies for broadcast reliability
    • Localized for 13 popular languages allowing international use


  • Specifications:

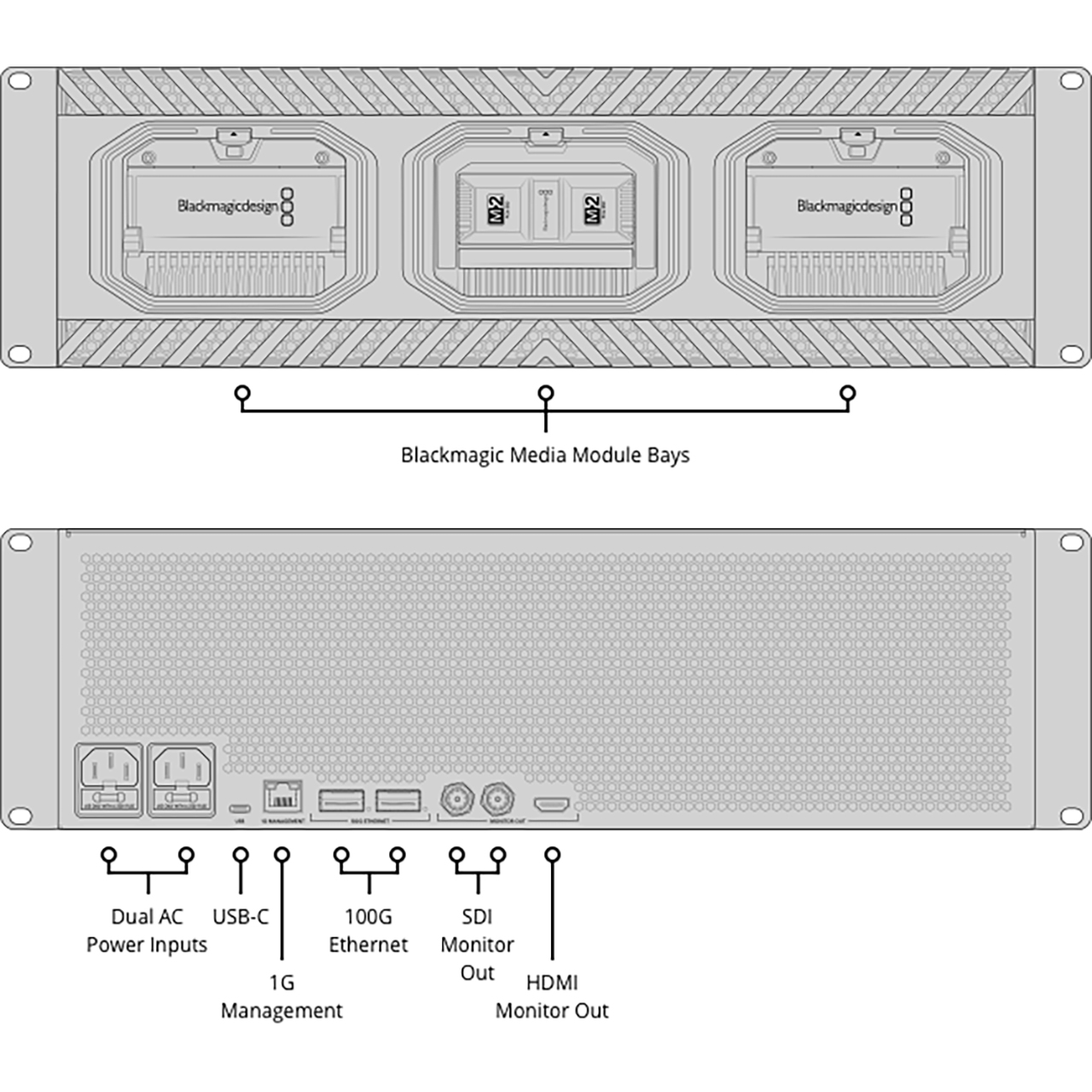

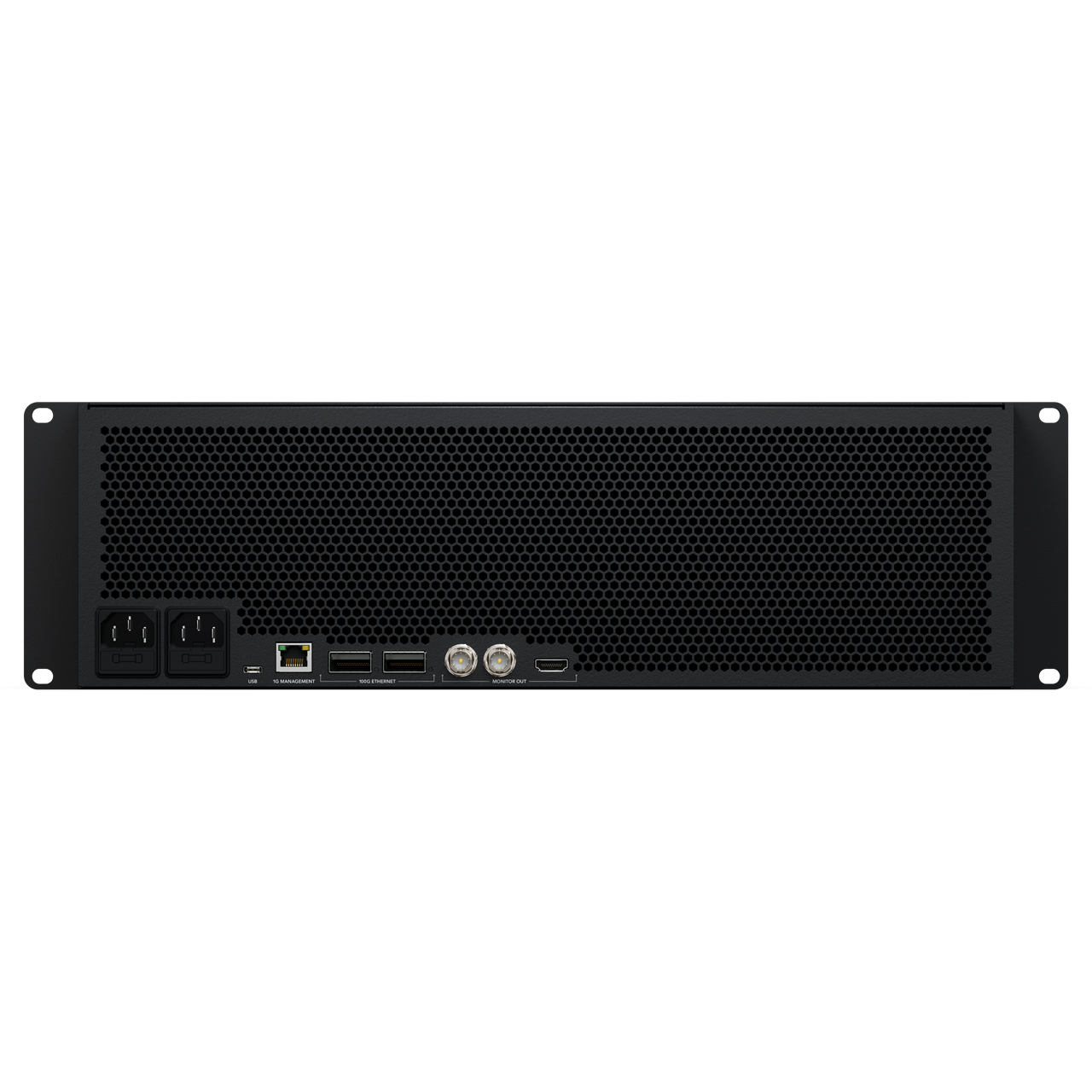

      Connections
    • 100G Ethernet:
      - 2x 100G QSFP28 connections
      - Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch
    • 1G Management: 1x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates
    • SDI Monitor Outputs: 2
    • HDMI Monitor Outputs: 1
    • SDI Rates: 1.5G, 3G
    • Computer Interface: 1x USB-C for Cloud Store Setup utility and software updates
    • Power: 2x IEC C14 power inputs

      File Sharing Protocol
    • Protocol:
      - NFS (HFS+ formatted disks only)
      - SMB
      - Computer Connections: 50 max.

      Cloud Synchronization
    • Blackmagic Cloud
    • Amazon Web Services S3 sync

      Storage
    • Storage Type: Up to 3 Blackmagic Media Modules
    • External Storage Format: Blackmagic (formatted in camera)

      Displays
    • Status Indicator: LED bezel indicator lights around media module bays.
    • Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph
    • SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
    • HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60

      Device Control
    • External Control: USB-C or Ethernet for configuration and software updates

      Software
    • Software Included:
      - Blackmagic Cloud Setup Utility
      - Blackmagic Proxy Generator Lite
    • Internal software upgrade via Blackmagic Cloud Setup using USB-C port

      Operating Systems
    • Mac 15.0 Sequoia,
    • Mac 26.0 Tahoe or later
    • Windows 10, 64-bit
    • Windows 11

      Power Requirements
    • Power Supply: 2x 100V - 240V AC 50/60Hz internal power supplies
    • Power Inputs: 2x IEC C14 sockets
    • Power Usage: TBC

      Physical
    • Physical Installation: 3RU
    • Weight: TBC
    • Dimensions: 19.00" x 22.00" x 6.00"
    • Operating Temperature: 32° to 104° F
    • Storage Temperature: -4° to 140° F
    • Relative Humidity: 0% to 90% non-condensing


  • Item Includes:

    • 1x Blackmagic Media Dock Ultra
    • 1x Welcome wallet with QR code for software download
      **Storage modules sold separately


  • Warranty:

    • 1 Year Limited Warranty
