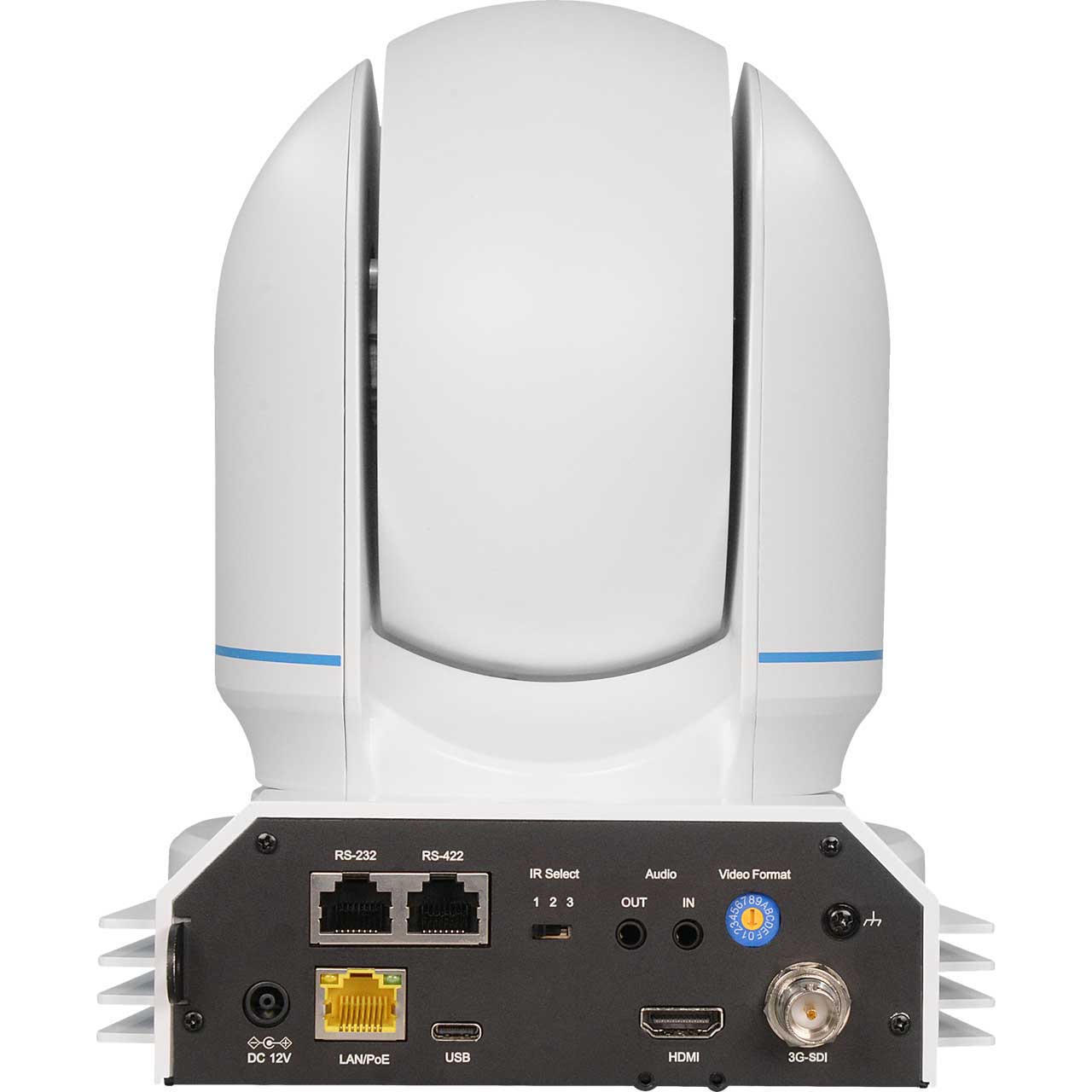

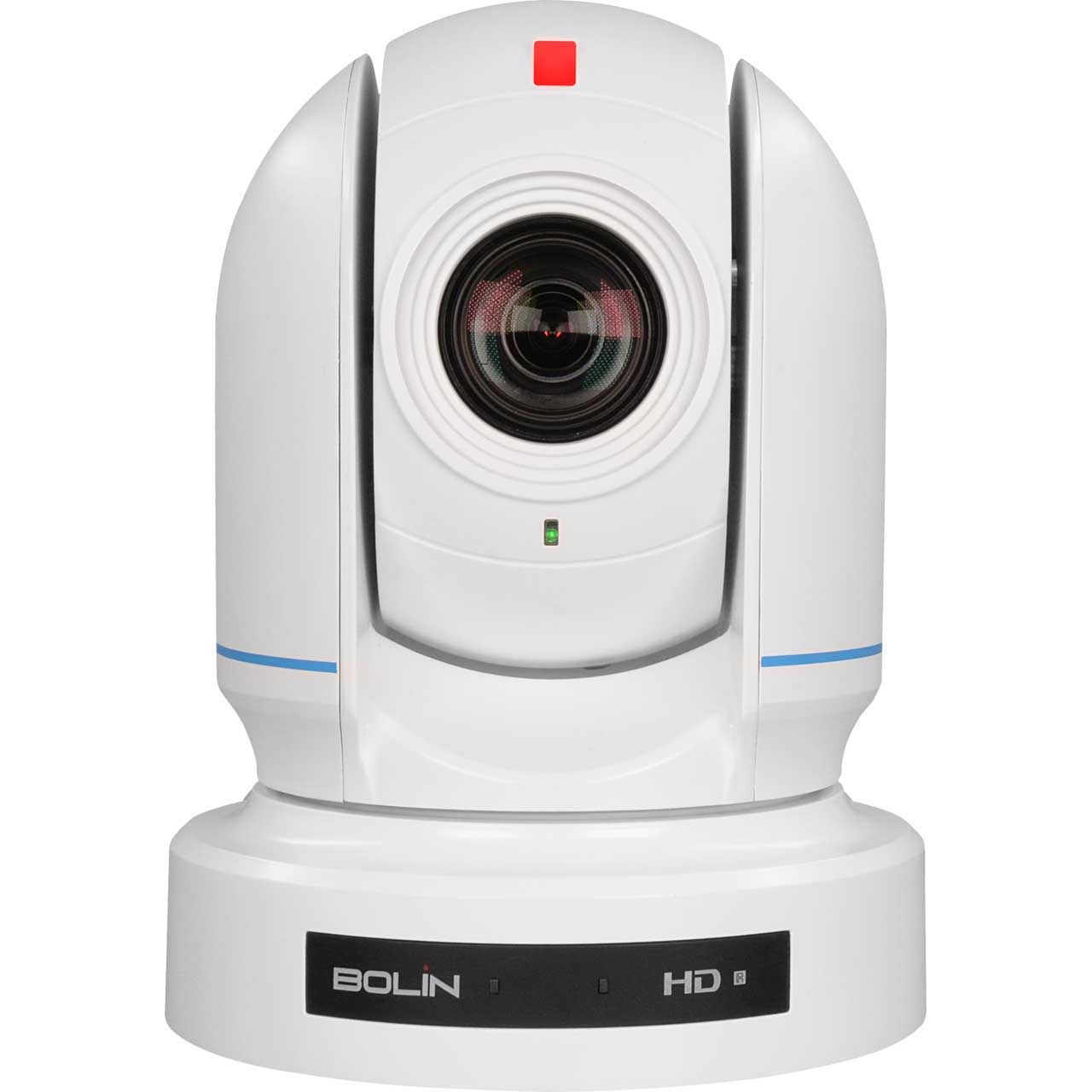

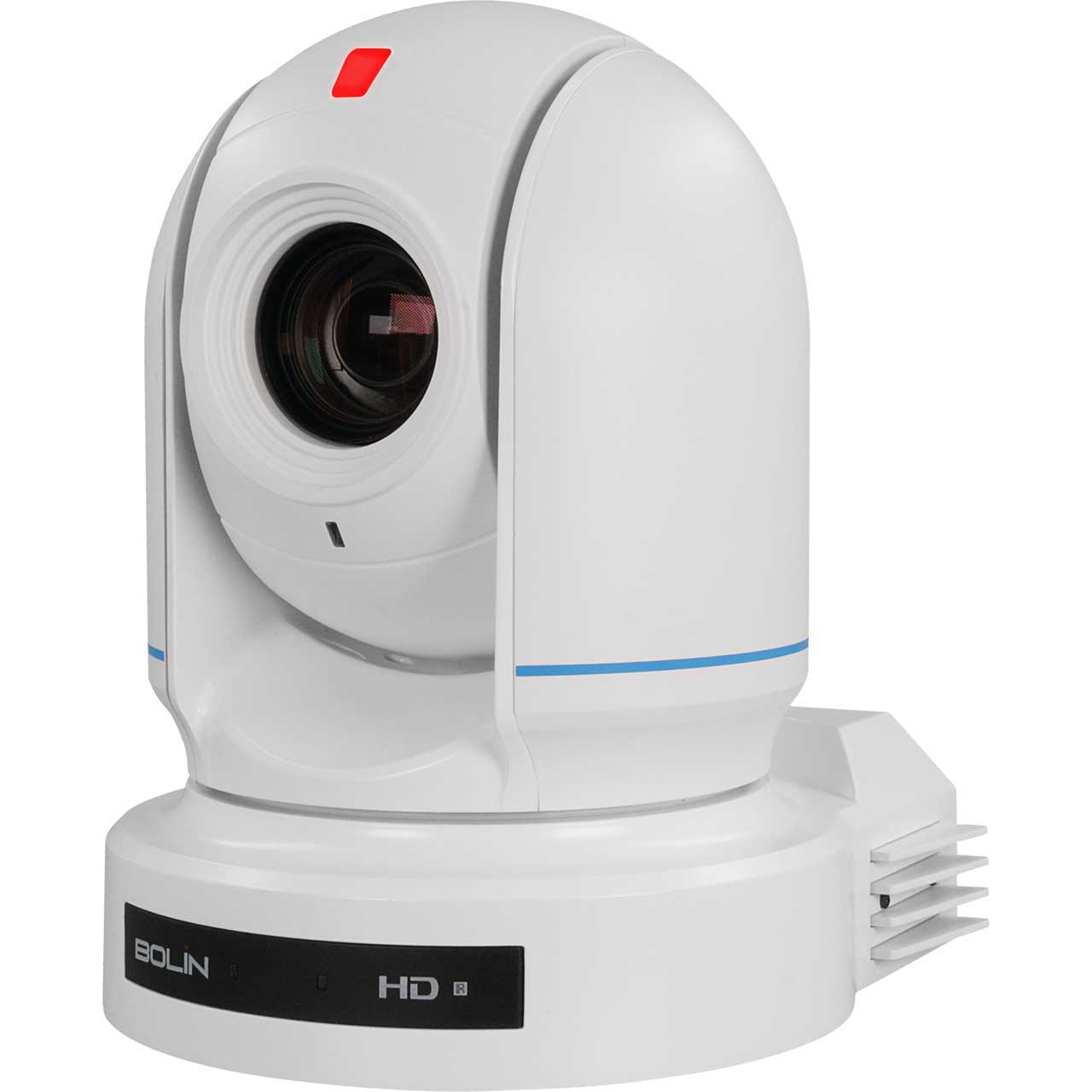

Bolin B7-220 Blue-Line Full HD IP and USB HDMI/3G-SDI/4K60 PTZ Camera with 20x Optical Zoom - White

ITEM #: BOL-B7-220W MFG #: B7-220W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,295.00

Our Price:

$1,215.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B7-220W - Overview

    Bolin's newly created Blue-Line PTZ cameras, now offer gold-standard features at an affordable price. Part of Bolin's PTZ camera manufacturing principle is to never compromise on image quality, industrial video standards, and end user experience on PTZ control operation. Bolin Blue-Line PTZ camera focuses on delivering essential pro features to clients looking to outfit a lightweight AV system. High quality video from Full HD to 4K 60p resolution and standard control protocols essential in ProAV, UC, and light broadcast applications. Bolin Blue-Line PTZ camera provides simultaneous HDMI/SDI video with no latency and remote IP streaming and USB video for Unified Communication conferencing applications. Ideal for gaming activity, video-conferencing, studio, house of worship, broadcast, educational, environment, corporate training, distance learning applications.

    Bridge the Gap Between Value and Cost
    Bolin's Blue-Line PTZ cameras keep gold-standard features at an affordable price. Never compromise on image quality, industrial video standards, and end user experience on PTZ control operation. It is just the beginning, and Bolin will keep bringing more pro-AV products to the market to bridge the gap between value and cost.

    SRT Ready
    Delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over unstable networks.

    IP Streaming - IP Remote Control and View
    - Remotely view smooth and stable video streaming (up to 2160p60) plus audio over an IP network via web browser.
    - Supports RTSP, RTMP for online video and live streaming.
    - Cross Browser Compatibility - HTML5 support for Edge, Chrome, Firefox, and Safari browsers without plugin.
    - Full function PTZ camera IP control via Visca Over IP protocol.
    - Integration with popular VMS - ONVIF for IP video control, record and management.

    • Features:

      • Zoom: Optical 20X
      • Video Output: HDMI, (SDI), IP, USB C
      • Video Resolution up to Full HD/4K60
      • UVC/UAC supported for video conference use
      • IP resolution up to 1080P60/4K60.
      • RTSP, RTMP, SRT IP streaming
      • Control: RS232, RS422/485, IP/Onvif/Visca Over IP
      • AI Exposure, AI Focus
      • Power: 12VDC, PoE
      • High Quality Full HD Imaging
      • Extremely quiet and smooth operation for Pan/Tilt movements
      • Easy Installation
      • AI Featured smart focus and exposure
      • Firmware updates via USB/IP interface

    • Specifications:

      • Camera
      • Image Sensor: Sony Progressive scan CMOS image sensor 1/2.8 type
      • Number of effective pixels: 1920X1080, 2.13 MP
      • Zoom: Optical Zoom 20X, Digital Zoom 16X
      • Focal Length: f= 3.55 mm (Wide) to 65.38 mm (Tele)
      • Aperture: F1.8 (Wide) to F3.58 (Tele)
      • Horizontal Angle of View: 78.59° (W)~4.92° (T)
      • Min. object distance: 10mm (Wide)
      • Min. Illumination: 0.5 lux(color),0.1 lux(black)
      • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
      • Focus: Auto, Manual, One Push
      • White Balance: Auto, Indoor, Outdoor,OPW,ATW, Manual
      • Exposure: Auto, Manual, Shutter /Iris /Brightness priority
      • Image Adjustment: Brightness, Color(Saturation), Contrast, Sharpness, HUE
      • Contrast: Yes
      • Color Gain: Yes
      • Color Hue: Yes
      • High Sensitivity: Yes
      • Scene: Default, Clear, Bright, Soft
      • Focus Zone: Face Priority, All Area, Upper Area, Central Area, Lower Area
      • AI Face Detection Focus: Yes
      • AI Face Auto Exposure: Yes
      • Noise Reduction: 2D/3D, 1-255
      • S/N Ratio: ≥50db

        Mechanical
      • Pan Movement: Horizontal: ±170 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°?100°/S )
      • Tilt Movement: Vertical: +90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°?50°/S)
      • PTZ Trace Memory: Yes, 4 (Supported via IP interface)
      • Cruise: Yes,4
      • Adaptive PT: Zoom range adaptive Pan/Tilt speed
      • Pan/Tilt Direction: Normal, Invert
      • Quietness: NC35 or less
      • Home Position: Support
      • Environmental: Indoor
      • Speed Proportional: Pan/Tilt Speed proportional to zoom range

        General
      • Body: Partial Magnesium Alloy
      • Mount: Ceiling mount, Wall mount, Tripod
      • Size of Tripod Screw Hole: 1/4"-20UNC with safety joint
      • Operating Temperature: -10 to +50 (°C), 32 to 130 (°F)
      • Operating Humidity: ≤80% Suitable for Use
      • Power Input: DC ±12V, PoE+(Compatibable with IEEE802.3at)
      • Power Consumption: Min:15W(Static state with no movement); Max: 19W(Fully loaded operation)
      • Dimension: 178.75x159x211 (LxWxH) (7 x 6.26 x 8.3 In)
      • Weight: 2kg (Net weight) (4.41 lbs)
      • Body Color: White

    • Item Includes:

      • 1x 12VDC 4A, Universal various power core
      • 1x Full Function IR Controller
      • 1x RS232/RS422 Adapter Cable

    • Warranty:

      • 2 Year Warranty
