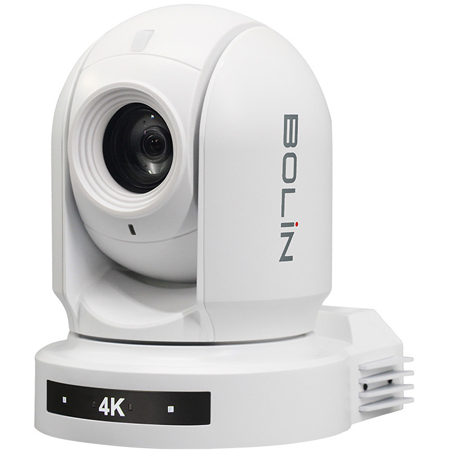

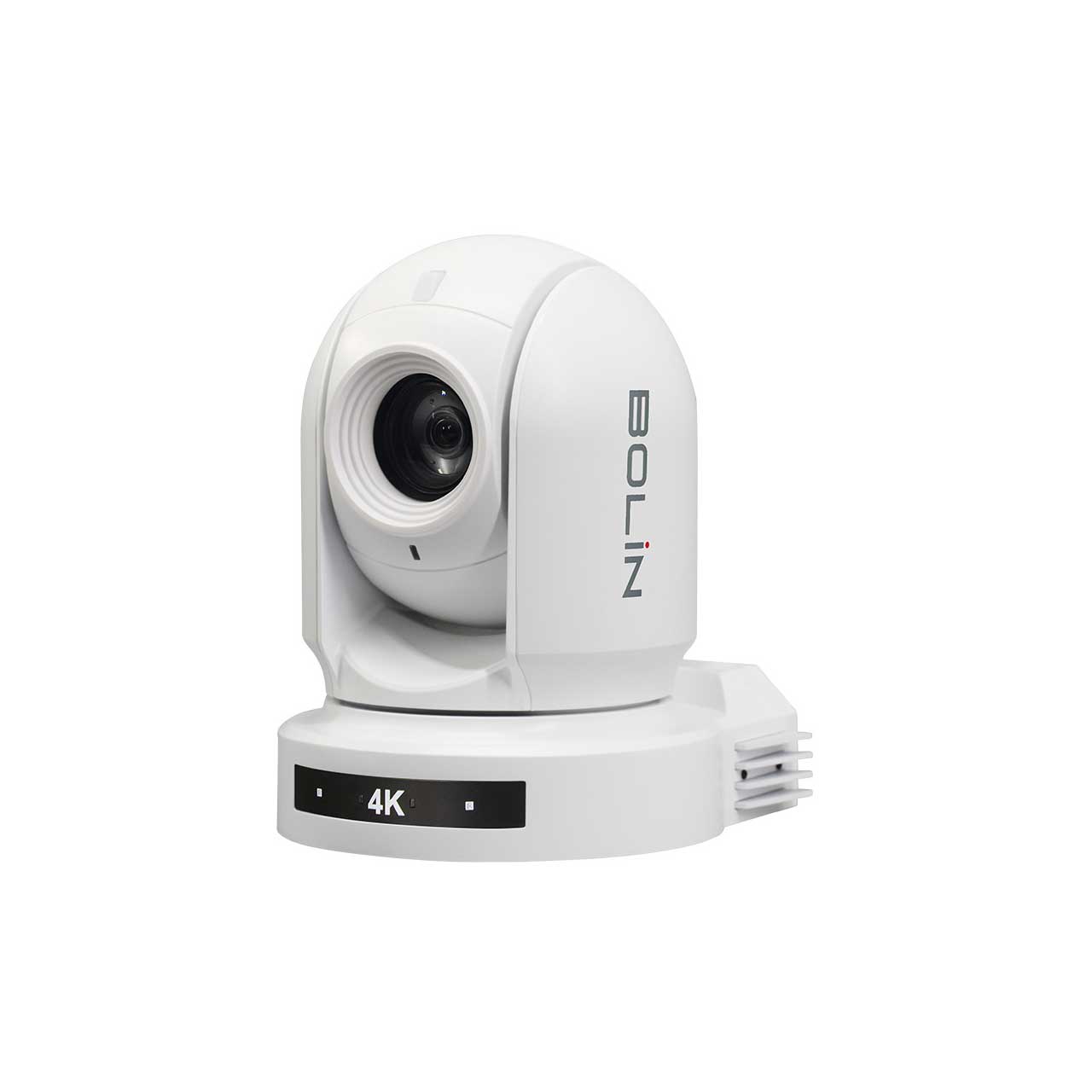

Bolin BC-7 Series 4K UHD PTZ HDBaseT Camera with Simultaneous 6G-SDI/4K IP/HDMI Out - White

BC-7-4K20S-S6MNB/W - Overview

Supports simultaneous outputs via 6G-SDI, HDMI and 4K IP streaming with built-in HDBaseT output!

• Features:

  • Sony 1/2.5" CMOS 8.5 Megapixels
  • Optical Zoom 20X, Up to 30X in 4K and 40X in Full HD with
  • SRZ(Super Resolution Zoom) feature
  • Video Resolution: Up to 4K 2160p29.97, 1080i59.94, 1080p60
  • IP Video Resolution: Up to 2160p30, 1080p60
  • Video Output: Simultaneous 6G-SDI/3G-SDI, 4K HDMI, 4K IP, HDBaseT

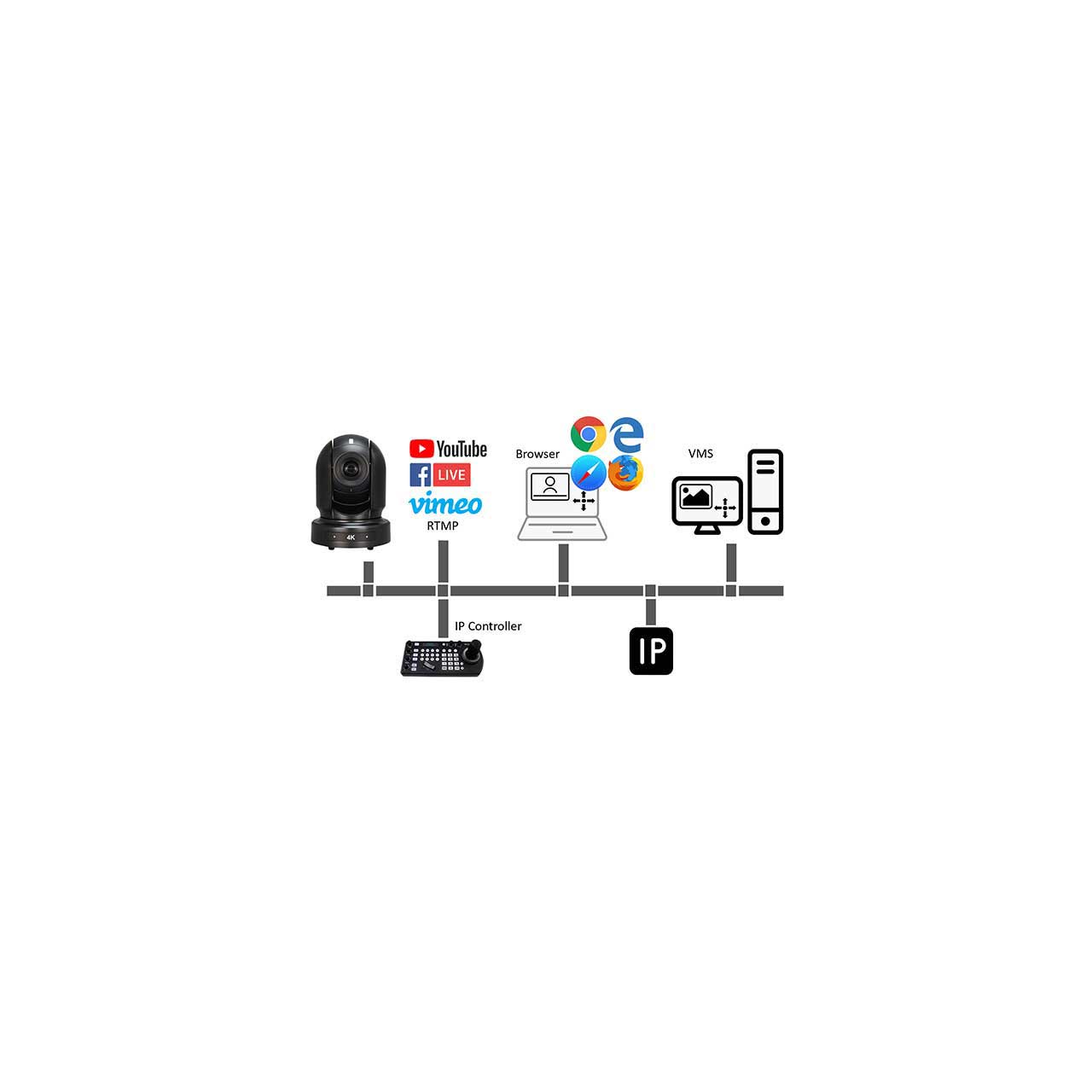

  • H.264/265 IP video stream, RTMP live streaming.
  • Black Level, Color Matrix, Image Stabilizer, Ture WDR
  • HTML5 Cross Browser compatibility
  • Power: DC 12V, PoE++, HDBaseT POH
  • RTMP, SRT supported
  • Extremely Smooth and Quiet
  • Built in Image Stabilizer
  • Easily Downloadable Firmware Updates


• Specifications:

  • Image Sensor: 1/2.5" CMOS
  • Number of Effective Pixels: 8.5 Megapixels
  • Picture Elements: 3840 x 2160
  • Lens: Optical Zoom 20X,Up to 30X in 4K and 40X in Full HD with SRZ(Super Resolution Zoom) feature
  • Tele Convert Mode: When turn on, gain 2X-40X zoom range with 1080p resolution, up to 80X with SRZ
  • Digital Zoom: Digital Zoom 12X
  • Horizontal Angle of View: 70.2°(W)~4.1°(T)
  • Focal Length: 4.4mm(Wide)-88.4mm(Tele)
  • Min Object Distance: 80mm (Wide), 1000mm (Tele)
  • Aperture: F2.0(W)~F3.8(T)
  • Min Illumination:
    - 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off)
    - 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On), 0.21lux(1/4s(1/3s),50%, High Sensitivity mode Off)
  • Shutter Speed: 1/1~1/10000s (22 steps)
  • Focus: Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit,
  • White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor, Lamp(Fix/Auto/Outdoor Auto)
  • Exposure: Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright
  • Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
  • WDR: YES(130dB)
  • Image Stabilizer: Yes
  • Color Gain: Yes (15 Step)
  • Color Hue: Yes (15 Step)
  • Gamma: Standard/Straight/Pattern
  • Gamma Level: Yes (15 Step)
  • Black Level: Yes (97 Step)
  • Black Gamma: Yes (15 Step)
  • Color Matrix: Off/Standard/High Saturation/FL light
  • Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
  • S/N Ratio: ≥50db

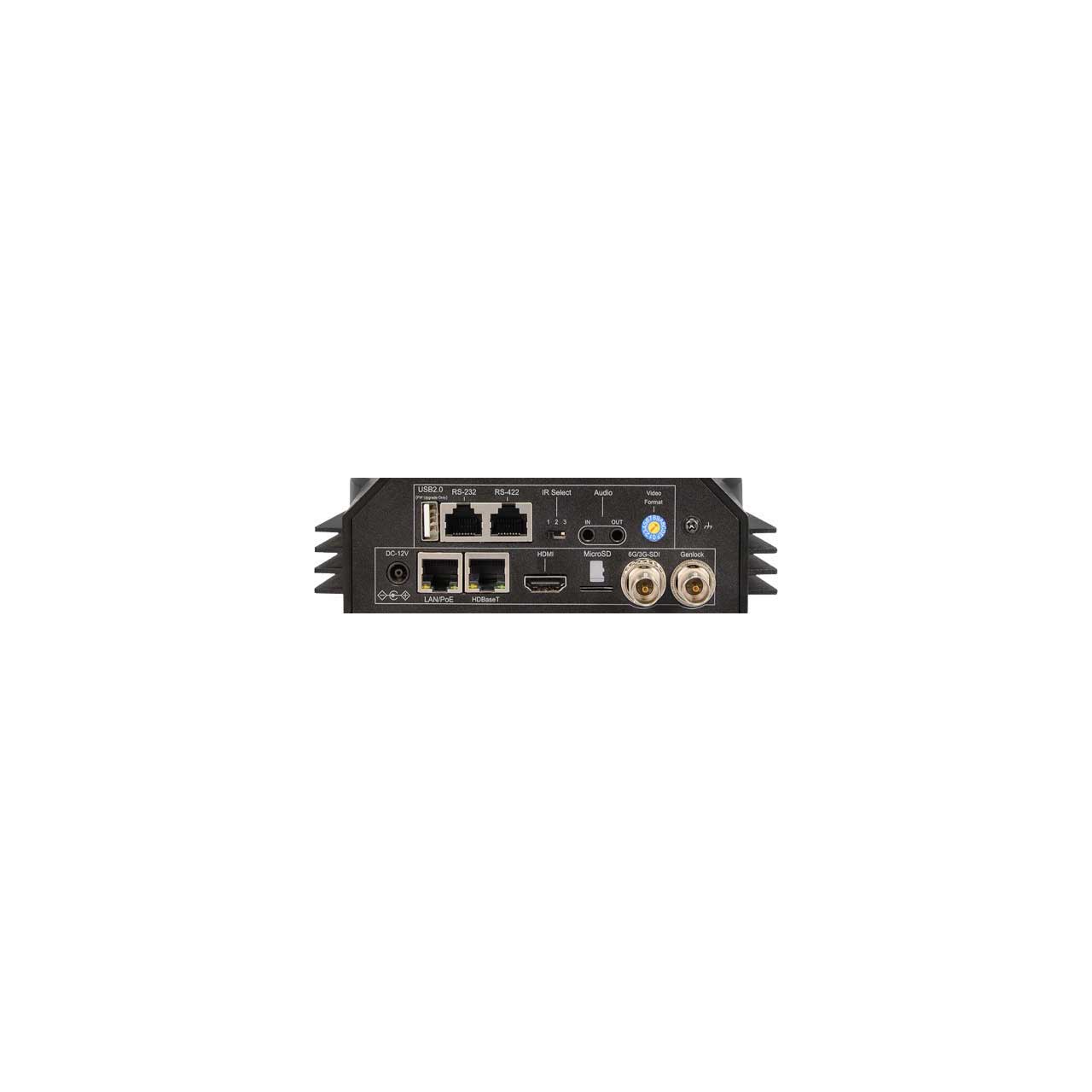

    Interface
  • Video Output: 6G-SDIX1(3G-SDI supported), HDMI(1.4)X, IP, HDBaseT
  • 4K Video Output:
    - Main 4K HDMI 1.4a Type-A X1
    - 6G-SDIX1
    - 4K IP H.265/26
  • HD Video Output:
    - HD HDMIX1
    - 3G-SDIX1
  • Audio I/O: Audio input x1, Audio output x1, 3.5mm audio jack
  • Audio Output: Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo


• Item Includes:

  • 1x White PTZ Camera
  • 1x IR Remote Controller
  • 1x Camera Power Adapter Cord
  • 1x Bag of Mounting screws
  • 1x RJ45 to RS232 Extension Cable
  • 1x RJ45 to RS422 Extension Cable
  • 1x Welcome Card


• Warranty:

  • 2 Year Warranty


• Applications:

  • Video conferencing
  • Broadcast
  • House of Worship
  • Live Sports/Events
  • Courtrooms
  • Telemedicine
  • Education
  • Auditoriums
  • Corporate Training
