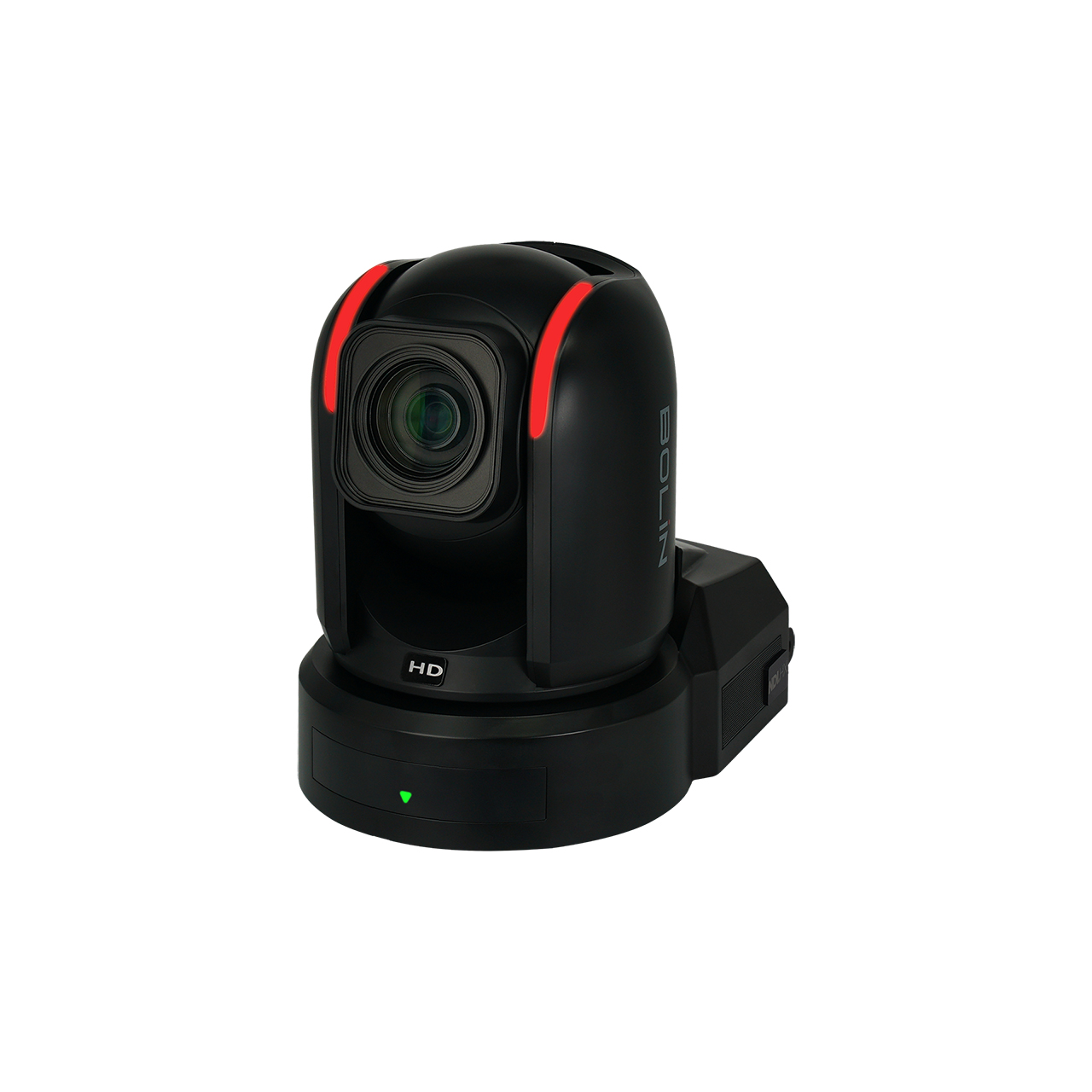

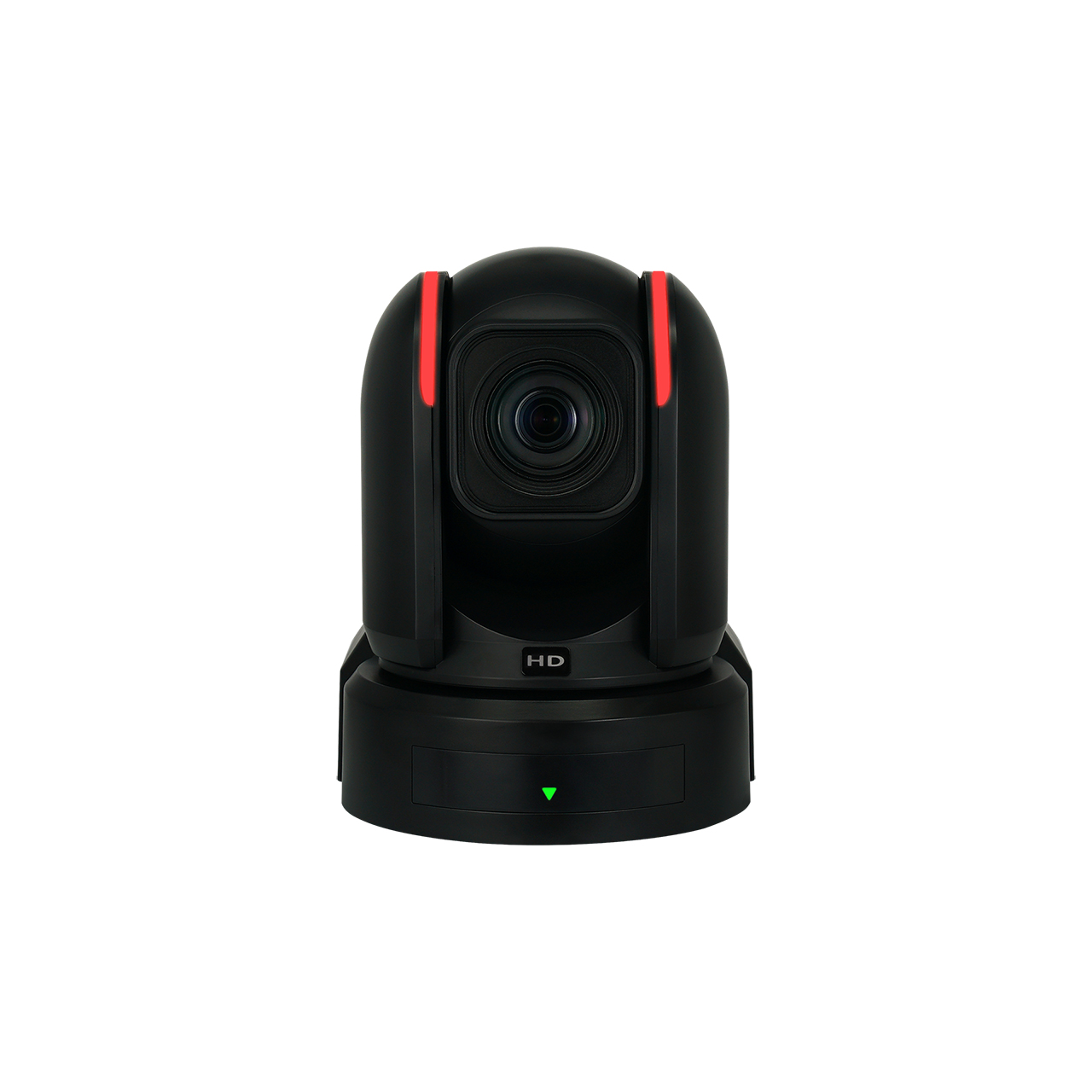

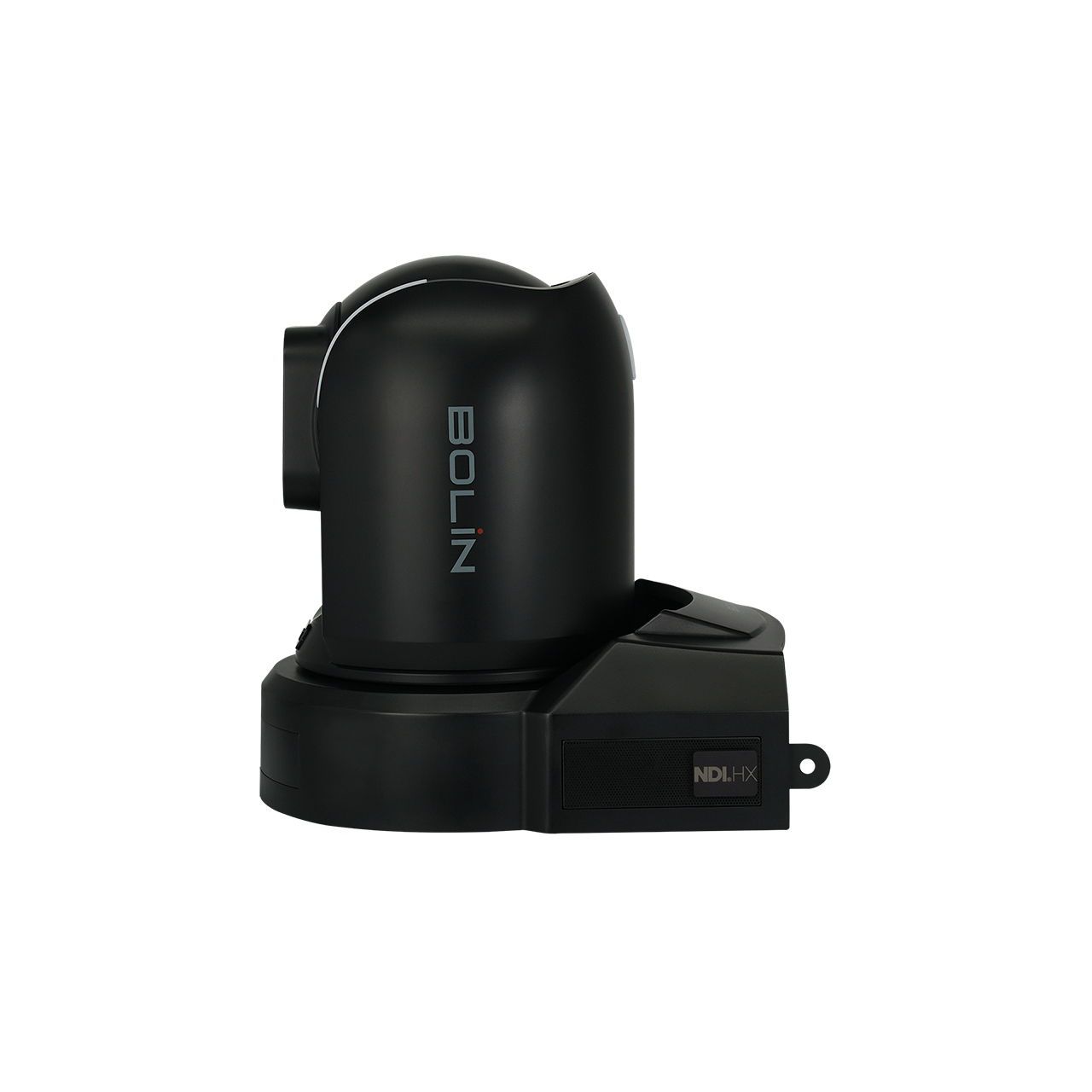

Bolin R9-230NX NDI HX3 FHD PTZ Camera with 30X Zoom - Dual 3G-SDI / HDMI / Optical SDI / IP Streams

ITEM #: BOL-R9-230NX MFG #: R9-230NX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    R9-230NX - Overview

    The Bolin R9-230NX NDI HX3 PTZ camera is equipped with Sony image block with 30x zoom range UHD lens to provide Full HD(1080P60) cristal extreme high-quality color image in tough low light environment and stable image with super iamge stabilizer to output HDMI, 3G-SDI, Optical SDI, and NDI HX3 video streaming for NDI and are fully compatible with NDI-enabled hardware and software.

    Super Image Stabilizer
    The latest Sony new color camera block that achieves higher visibility by adopting the 8M ultra high resolution lens, 4M image sensor (1 / 1.8 type), and ISP from Sony. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.(Data and Picture Quoted From Sony)

    FreeD Protocol Integrated for VR/AR Video Production
    FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

    FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin's FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

    • Features:

      • 1/1.8 inch STARVIS II sensor
      • Enhanced High Resolution image quality
      • 30X 8M High Resolution optical zoom lens
      • Advanced AF performance, Spot Focus · Spot AE · Spot AWB
      • Wide Dynamic Range (Wide-D)
      • Visibility Enhancer (VE)
      • Super low light in color performance
      • Super image stabilizer
    • Specifications:

      • Camera
      • Image Maker: Sony
      • Image Sensor: CMOS image sensor 1/1.8 type STARVIS 2 sensor
      • Number of effective pixels: 2712x1538, 4.17M
      • Picture elements: 2688x1520, 4.09M
      • Lens: Enhanced optical zoom 30X
      • Digital Zoom: 12X
      • Horizontal Angle of View: 58.1° (Wide) - 2.3°(Tele)
      • Vertical Angle of View: 34.9° (Wide) - 1.7°(Tele)
      • Focal Length: f= 6.5 mm (WIDE) to 162.5 mm(Tele)
      • Min. object distance: 100mm (Wide), 1200mm(Tele)
      • Aperture: F1.6 (Wide) to F4.8(Tele), 16 steps
      • Min. Illumination: ICR-Off, 0.009 lx; ICR-On, 0.00008 lx
      • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
      • Focus: Spot Focus, Auto/Manual/One Push Trigger /Full Scan one push trigger/Near Limit/Spot Light Avoidance
      • White Balance: Auto/ATW/Indoor/Outdoor/One Push WB/Manual/One push Triger/Outdoor Auto/Sodium Vapor Lamp Auto/Sodium Vapor Lamp/Sodium Vapor Lamp Outdoor Auto
      • Exposure: Full Auto/Gain Limit Setting/Shutter Priority/Iris Priority/Manual/EV compensation
      • Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night

      • Codec: HEVC
      • Video Compression (Codec): NDI HX3, MJPEG,H.264/H.265 by SoC
      • IP Resolution/Frame Rate: 1920x1080p60/50/30/25, 1280x720p60/50
      • True Dule Output: IP, HDMI, and SDI signal can be set with different format
      • Application Protocols: RTMP(S)'RTSP' RTSP Encryption'SRT'MP2TS over UDP
      • Multi-stream: 3 stream

      • HDMI Video Format: 1920x1080/59.94p/60p 1920x1080/59.94i/60i 1920x1080/50p 1920x1080/50i 1920x1080/29.97p/30p 1920x1080/25p 1920x1080/23.98p/24p 1280x720/59.94p/60p 1280x720/50p
      • Color Precision: 12bit(HDMI), YUV4:2:2, YUV4:2:0
      • Color Space: YUV'RGB
      • OSD Menu Display: Yes, with image insert

      • SDI Video Format: 1920x1080/59.94p/60p 1920x1080/59.94i/60i 1920x1080/50p 1920x1080/50i 1920x1080/29.97p/30p 1920x1080/25p 1920x1080/23.98p/24p 1280x720/59.94p/60p 1280x720/50p
      • Color Precision: 10bit(SDI), YUV 4:2:2
      • Color Space: YUV
      • Standard: SMPTE 292M , SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s), SMPTE 2081(6Gb/s), SMPTE 2082-1(12Gb/s) standard/75 Ω (BNCx1), With SMPTE352 SDI Metadata Supported
      • True Dule Output: HDMI and SDI signal can be output with different format

      • Pan Movement: 340°; Fully proportional 0.05° to 100°/s
      • Tilt Movement: 120°; Fully proportional 0.05° to 75°/s
      • Speed Proportional: Pan/Tilt Speed proportional to zoom range
      • Preset Position: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.1°

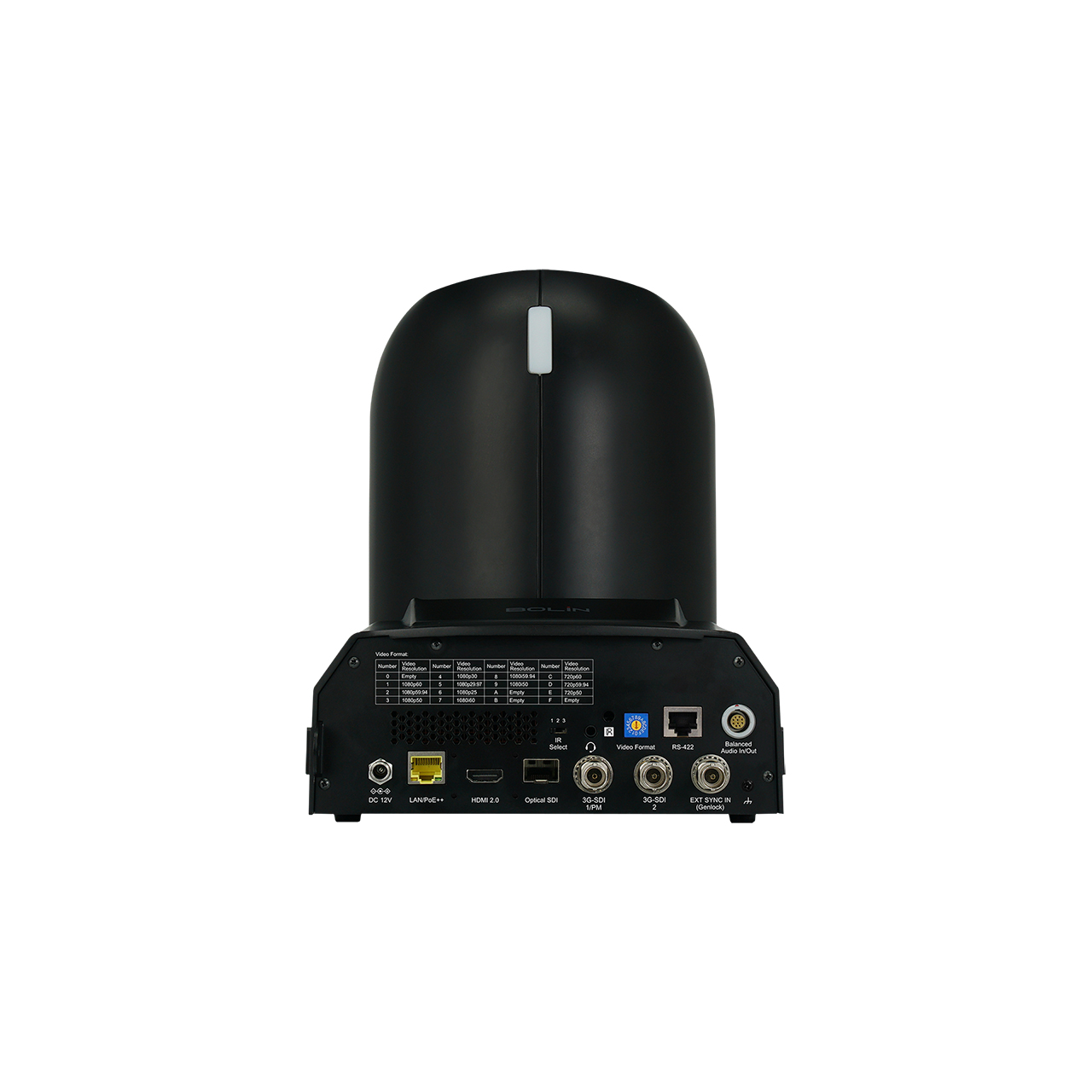

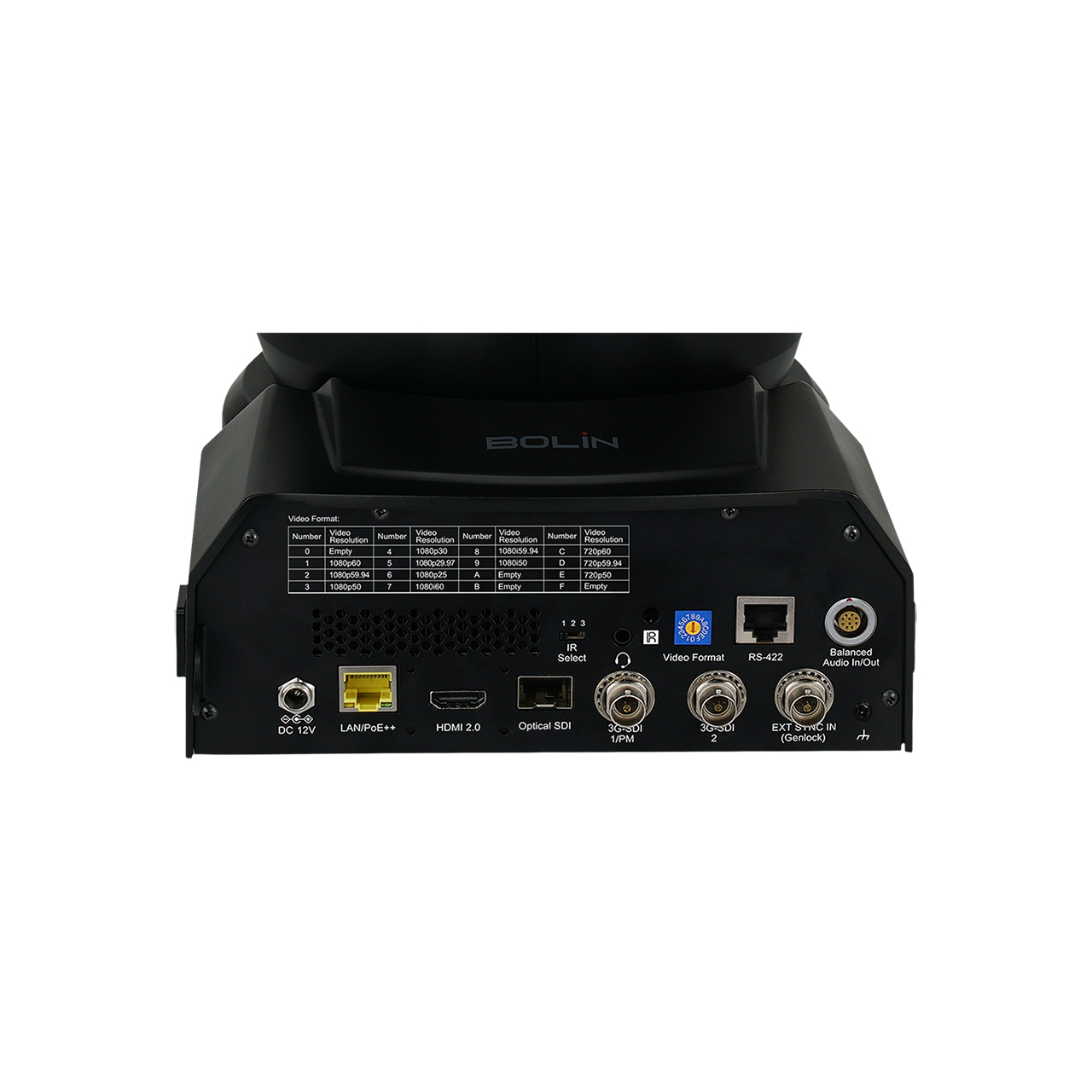

      • HDMI Video Output: HDMI 2.0 Type A
      • SDI Video Output: 3G-SDI, SMPTE424M /SMPTE292M /SMPTE 296M standards, 75Ω BNCx2, SDI/PM for output to has OSD display
      • SDI Optical Fiber Output: A: Optical 12G-SDI. Detachable slot, Connector: Duplex LC
      • B: Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
      • Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade

      • Operating Temperature: 14°F to 122°F
      • Operating Humidity: ≤80% Suitable for Use
      • Power Input: DC12V, PoE++
      • Power Consumption: Min: 29W (Static state with no movement) Max: 40W
      • Installation Method: Stand-alone (Upright) or suspended (Pendent) or Tripod
      • Mount: Ceiling mount, Wall mount, Tripod
      • Handle: Built-in for portable use application
      • Size of Tripod Screw Hole: 1x1/4" safety bond point
      • Body Color: Black, White
      • Dimension-Camera: 201*253*249mm(W*D*H), 201*253*256(with feet mats)
      • Net Weight: 3.8kg (8.36lb)
    • Item Includes:

      • 1x R9 Series PTZ Camera
      • 1x IR Remote Controller
      • 1x 12V, 4A Locking Power Supply with International Plugs
      • 1x RS422 RJ45 Adaptor
      • 1x Lens Cap
      • 1x Dust Cover
      • 1x Mounting Screw Set
      • 1x Safety Cable
    • Warranty:

      • 2-Year Limited Warranty
    • GTIN:
