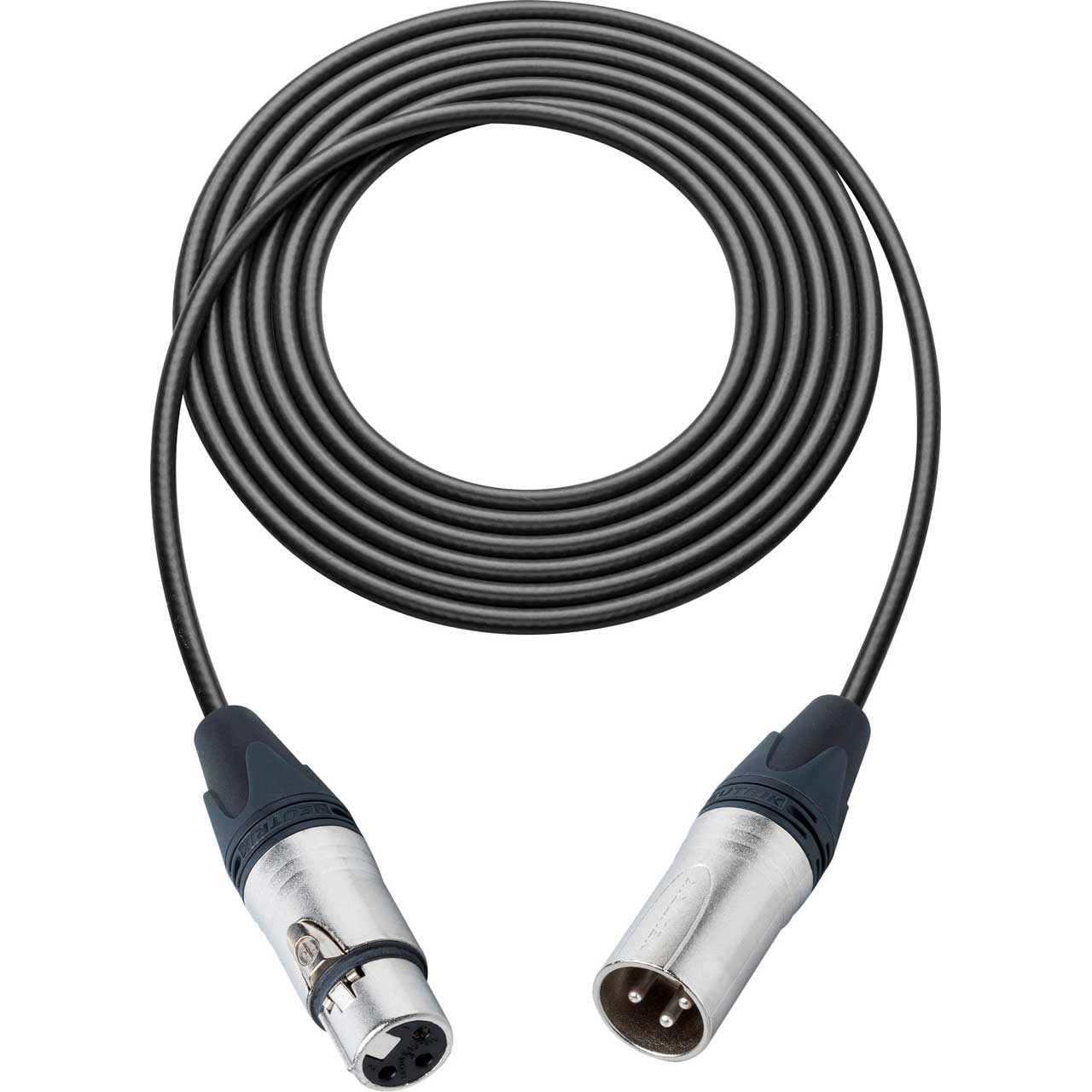

Sescom BSC25XXJ Mic Cable Belden Star Quad 3-Pin XLR Male to 3-Pin XLR Female Black - 25 Foot


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

BSC25XXJ - Overview

World's Finest XLR Male to XLR Female Star-Quad Microphone Audio Cables hand crafted by Sescom featuring Belden 1192A Low-Noise Cable. Cables are built with the highest quality connectors from Neutrik, Connectronics & Switchcraft.

Belden microphone cable is used for connecting low level microphones or musical instruments. Key properties of microphone (MIC) cable are ruggedness, flexibility, flex life and interference immunity.
Cable construction utilizes a 4 conductor configuration. Quad MIC cables are connected by attaching the two white conductors to one pin and two blue conductors to the other pin in a balanced-line XLR type connector. Besides the common-mode rejection of a standard balanced line, this gives common-mode rejection at each pin, greatly reducing noise and interference.

All Belden microphone cables utilize only HIGH CONDUCTIVITY copper produced by a process called ELECTROLYTIC TOUGH PITCH. This refining process produces a copper conductor that is 99.95% pure copper resulting in HIGH CONDUCTIVITY per ASTM B115. The high purity obtained from ETP copper results in microphone cable performance that is comparable to that of oxygen free copper cables.

  • Features:

    • StarQuad (4 conductor)
    • Improved noise & hum rejection
    • 6 colors
    • Low-Impedance Cable
    • Ultimate performance
    • Efficient technology
    • Optimal transmission
  • Specifications:

    • Conductors: 4
    • Conductor AWG: 24
    • Conductor Stranding: 42x40
    • Conductor Material: SBC - Soft Bare Copper
    • Conductor Dia. (in.): 0.024
    • Insulation Material: PE - Polyethylene
    • Insulation Material Wall Thickness (in.): 0.016
    • Insulation Material Dia. (in.): 0.056
    • Outer Shield Type: Braid
    • Outer Shield Material: TC - Tinned Copper
    • Outer Shield Coverage (%): 95
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Wall Thickness (in.): 0.045
    • Max. Recommended Pulling Tension: 21 lbs.
    • Min. Bend Radius (Install)/Minor Axis: 2.450 in.
    • Nom. Characteristic Impedance (Ohm): 40
    • Nom. Inductance (µH/ft): 0.21
    • Nom. Capacitance Conductor to Conductor (pF/ft): 39.2
    • Nom. Cap. Between Cond. in a Quad Config. (pF/ft): 57.4
    • Nominal Velocity of Propagation (%): 66
    • Nom. Conductor DC Resistance:
    • Max. Operating Voltage - UL: 100 V RMS
  • Warranty:

    • 1 Year
