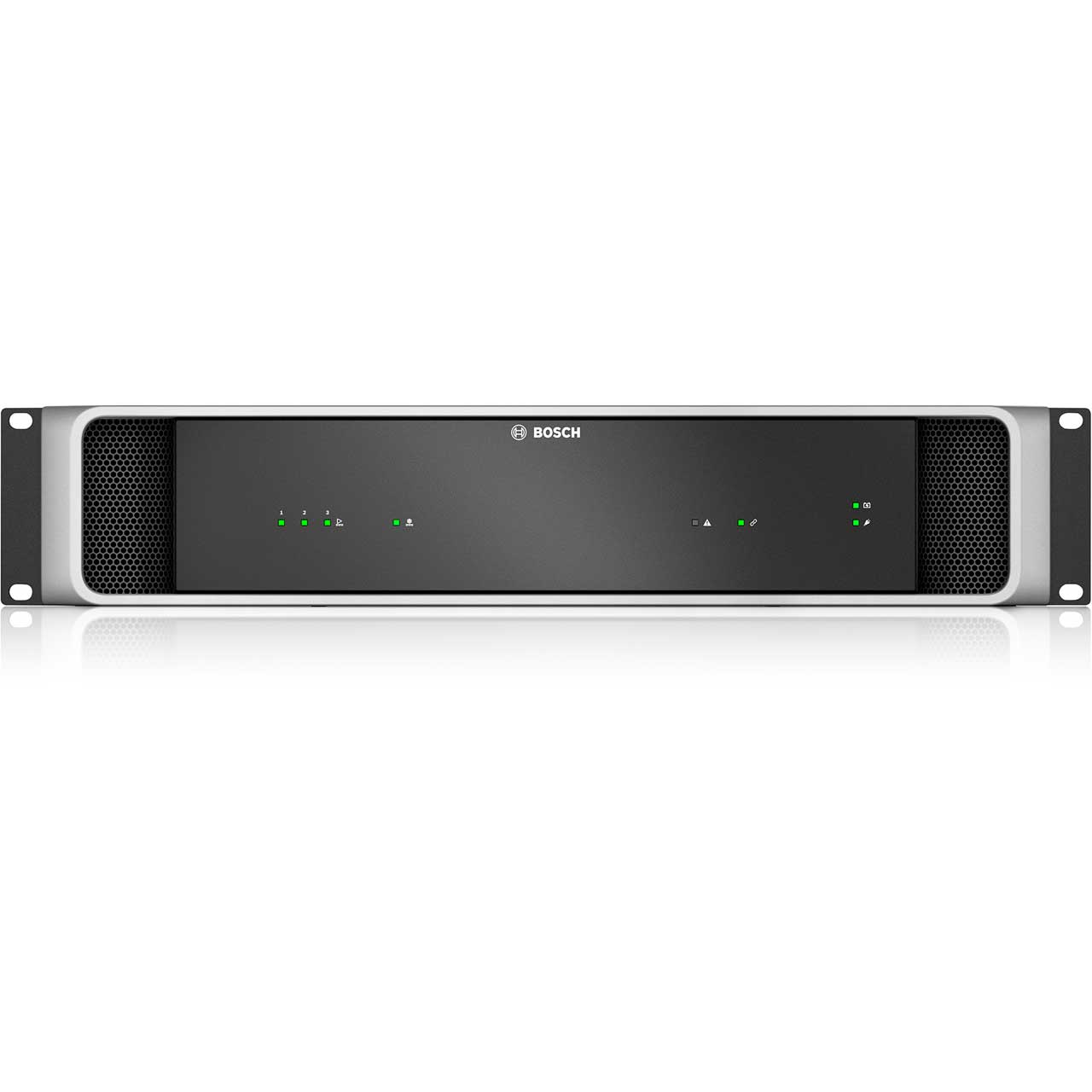

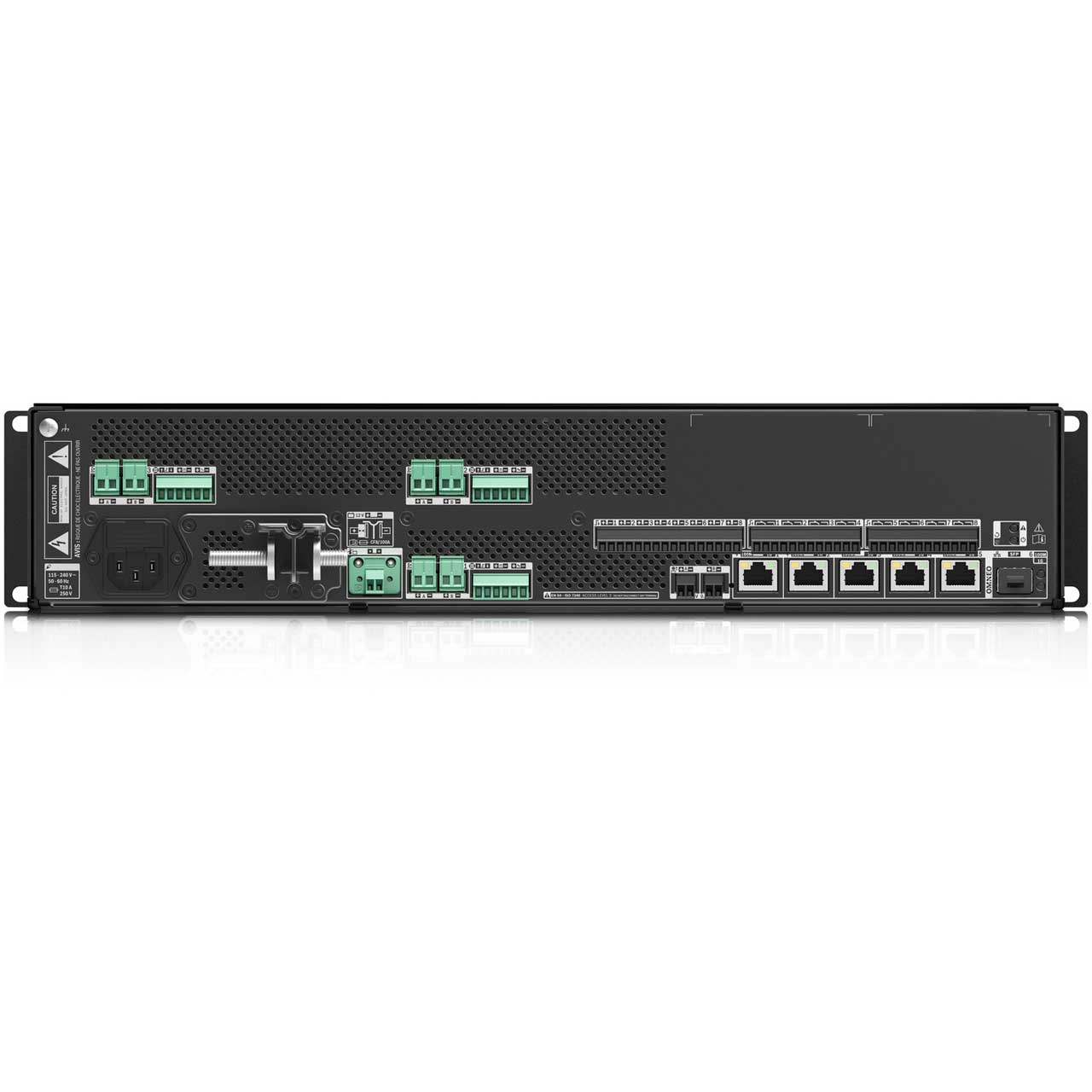

Bosch PRAESENSA Large Multifunction Power Supply for PRAESENSA System Devices

ITEM #: BSH-PRA-MPS3 MFG #: PRA-MPS3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$5,522.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PRA-MPS3 - Overview

    The Bosch PRA-MPS3 combines multiple support functions to power and serve other PRAESENSA system devices. It can be used in a centralized system, but it is an enabler for decentralized system topologies with several smaller racks or cabinets located across the premises, to reduce loudspeaker cabling costs significantly. It provides DC-power supply to connected amplifiers and peripherals from the mains, with a standards compliant charger for a single 12 V backup battery, saving on installation and battery maintenance costs. The integrated 6-port Ethernet switch, with glass fiber support, facilitates easy interconnection of decentralized clusters of devices. Configurable, supervised control inputs and voltage-free control outputs are available as interface to external equipment. Its OMNEO interface for control and fault reporting also provides an analog audio backup lifeline for the connected amplifiers.

    • Features:

      • Fully supervised DC-power supply with integrated fail-safe redundancy
      • Unique single 12 V battery backup solution
      • Integrated 6-port Ethernet switch on RJ45 and SFP
      • General purpose control inputs and outputs
      • Backup lifeline for connected amplifiers

    • Specifications:

      • Mains Power Supply Input:
        - Input voltage range: 115 to 240 VRMS
        - Input voltage tolerance: 102 to 264 VRMS
        - Frequency range: 50 to 60 Hz
        - Inrush current: < 20 A
        - Power factor (PF): 0.9 to 1.0
        - Leakage current to safety ground< 0.75 mA (120 V), < 1.5 mA (240 V)
      • Battery Power Supply Input:
        - Nominal DC input voltage: 12.6 V
        - DC input voltage tolerance: 9 to 15 V
        - Maximum current: 90 A
        - Under-voltage protection: < 9 V
      • Battery Charger:
        - Nominal charging current: 8.5 A
        - Nominal float voltage: 13.5 V
        - Float voltage control: -21.9 mV/°C
        - Temperature sensor NTC: 10 kohm / β = 3984 K
        - Charging temperature range: -15 to 50 °C
      • 48 VDC outputs (1-3):
        - Nominal DC output voltage: 48V
        - Maximum continuous current: 5.5A
        - Maximum peak current: 7.0A
      • 24 VDC output:
        - Nominal DC output voltage: 24V
        - Maximum continuous current: .7A
        - Maximum peak current: .9A
      • Lifeline DC outputs (1-3):
        - Nominal DC output voltage: 18V
        - Maximum continuous current: .7A
        - Maximum peak current: 1A
      • Power over Ethernet (PoE 1-2):
        - Nominal DC output voltage: 48V
        - Standard: IEE 802.3af (mode B)
        - Maximum PD load: 12.95W
      • Power Consumption:
        - Active Mode, all outputs loaded, mains powered: < 1000W
        - Unloaded, battery powered: 5.2W
        - Active Mode, all outputs loaded, battery powered: < 1000W
        - Per Active Port, Battery Powered: .4 W
        - Per Active SFP Port, Battery Powered: .7 W
      • Lifeline/Power save interface:
        - Audio level (100 V / 70 V mode): 0 dBV / -6 dBV
        - Frequency response (+0 / -3 dB): 200 Hz to 15 kHz
        - Signal to Noise Ratio (SNR): 90 dBA
      • Operating Temperature: 23 to 122 °F
      • Storage and Transport Temperature: -22 to 158 °:F
      • Humidity (Non-condensing): 5 to 95%
      • Dimensions (WxHxD): 19 x 3.5 x 15.7 In
      • Weight: 26 lb
      • Case Material: Steel
      • Case Color: RAL9017
      • Frame Material: Zamak
      • Frame Color: RAL9022HR

    • Item Includes:

      • 1x Multifunction power supply
      • 1x Set of 19"-rack mounting brackets (pre-mounted)
      • 1x Set of screw connectors
      • 1x Battery connection set (wiring, fuse, temperature sensor)
      • 1x Mains power cord
      • 1x Quick Installation Guide
      • 1x Safety information

    • GTIN:

      0800549825948
