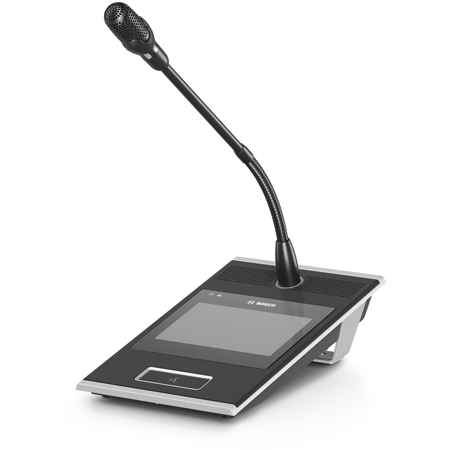

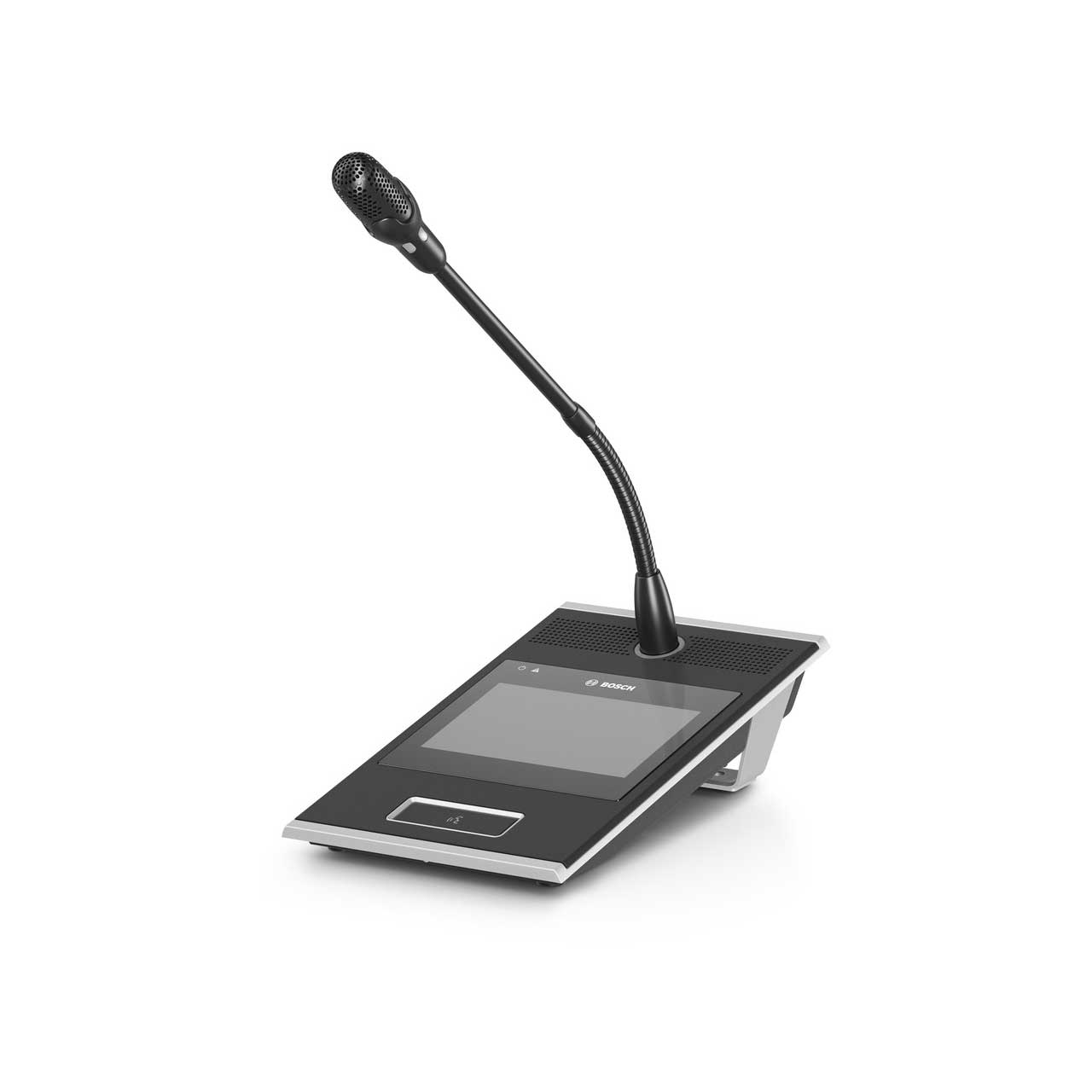

Bosch PRAESENSA Desktop LCD Call Station with Gooseneck Microphone

ITEM #: BSH-PRA-CSLD MFG #: PRA-CSLD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PRA-CSLD - Overview

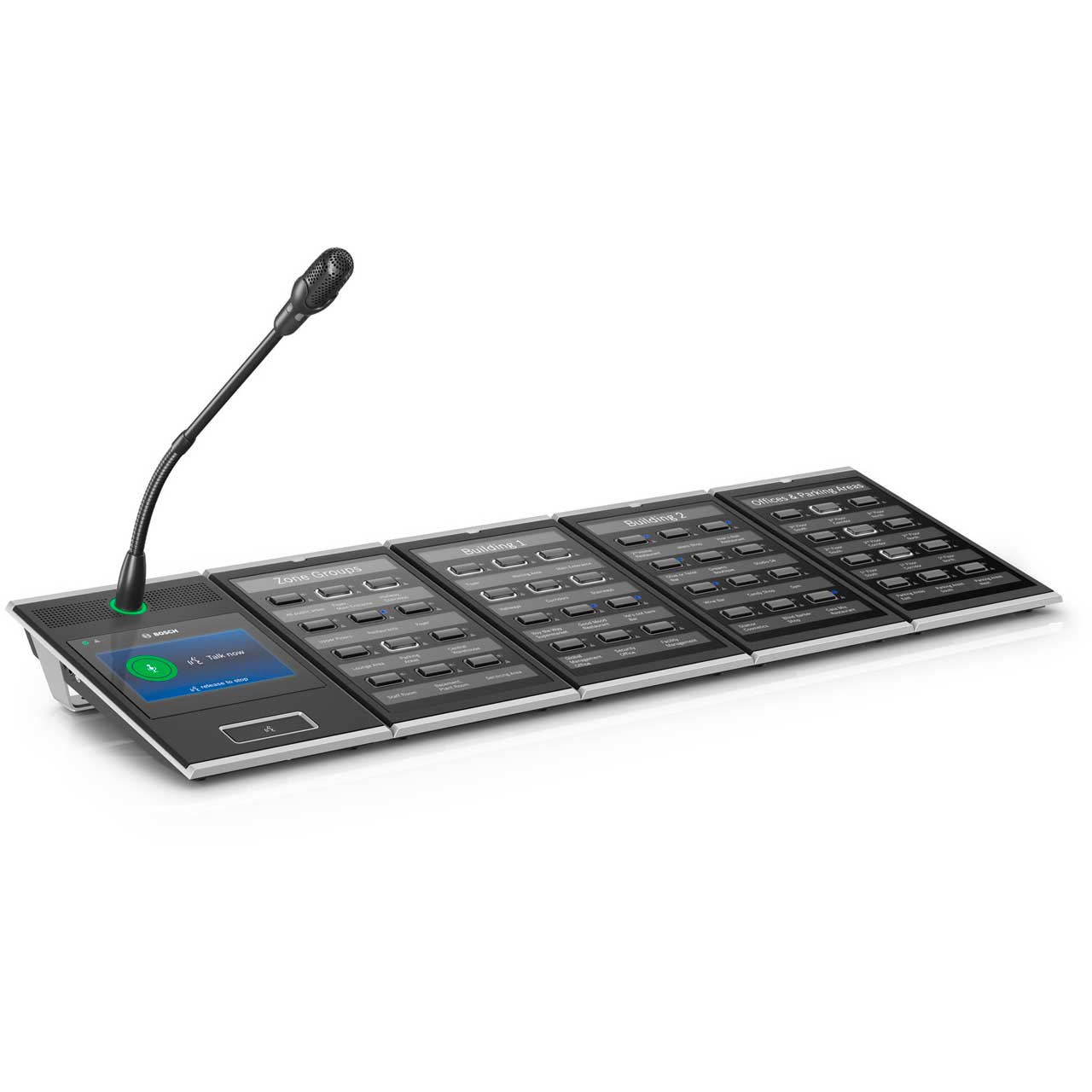

    The Bosch PRA-CLD call station for use in PRAESENSA Public Address and Voice Alarm systems is easy to install and intuitive to operate because of its touch screen LCD, providing clear user feedback about setting up a call and monitoring its progress, or controlling back ground music. The call station allows for positioning without much effort, because it only requires a connection to an OMNEO IP-network with Power over Ethernet (PoE) for communication and power supply combined. It can be configured for use as business call station, but also as emergency call station. The stylish design incorporates a supervised microphone, an internal monitor loudspeaker and a socket to insert a local audio source for background music. The 4.3" high-resolution full-color capacitive touch screen gives the operator optimum control and feedback at all times. Every call station must have at least one PRA-CSE call station extension for zone selection, with a maximum of four extensions.

    • Features:

      • Desktop housing with gooseneck microphone
      • Housing fits surface-mounting or flush-mounting
      • 4.3" full-color capacitive touch screen
      • Graphical user interface for optimum user guidance and feedback
      • Status and fault indicators for voice alarm purposes
      • Direct connection to the IP-network. One shielded CAT5e cable is sufficient for Power over Ethernet, audio and control.
      • Press-to-talk button gives tactile feedback and is recessed to prevent accidental use.
      • Full color 4.3" capacitive touch screen with intuitive function menu navigation provides guidance and feedback during the process of live announcements, pre-recorded messages and music control. Successful broadcast of announcements/messages and changes to the background music settings are clearly indicated.

    • Specifications:

      • Electrical
      • Microphone (PRA-CSLD):
        - Nominal acoustic input level (configurable): 80 to 100 dBSPL
        - Maximum acoustic input level: 120 dBSPL
        - Signal to Noise Ratio (SNR): > 70 dBA
        - Directivity: Unidirectional
        - Frequency response (+3 / -6 dB): 100 Hz to 14 kHz
      • Display:
        - Size: 4.3"
        - Touch screen: Capacitive
        - Color depth: 24-bit
        - Resolution: 480 x 272 px
        - Brightness: 300 cd/m2
      • Monitor loudspeaker:
        - Maximum sound pressure level, at 1 m: 75 dBSPL
        - Volume control: Mute, -40 dB to 0 dB
        - Frequency range (-10 dB): 400 Hz to 10 kHz
      • Line input:
        - Signal to Noise Ratio (SNR): > 96 dBA
        - Total Harmonic Distortion + Noise (THD+N): < 0.1 %
      • Power transfer
      • Power over Ethernet (PoE 1-2):
        - Nominal DC input voltage: 48 V
        - Standard: IEEE 802.3af (mode B)
      • Power consumption:
        - Call station (general use): 4.2 W
        - Call station (alarm use): 5.4 W
        - Per call station extension (indicators off/on): 0.1 W / 1.0 W
      • Input voltage tolerance: 37 to 57 VDC
      • Supervision (PRA-CSLD):
        - Microphone: Current
        - Audio path: Pilot tone
        - Controller continuity: Watchdog
        - PoE (1-2): Voltage

      • Network Interface
      • Ethernet: 100Base-TX, 100BASE-T
      • Protocol: TCP/IP
      • Redundancy: RSTP
      • Audio/Control Protocol: OMNEO
      • Network Audio Latency: 10 ms
      • Audio Data Encryption: AES128
      • Control Data Security: TLS
      • Ports: 2

        Environmental
      • Climatic Conditions:
        - Operating Temperature: 23 to 122 °F
        - Storage and Transport Temperature: -22 to 158 °F
      • Humidity(Non-Condensing): 5 to 95%
      • Dimensions: 5.12 x 2.44 x 7.44 In (WxHxD)
      • Base Material: Zamak
      • Base Color: RAL9017
      • Panel Material: Plastic
      • Panel Colors: RAL9017/RAL9022HR
      • Weight: 1.98 lb

    • Item Includes:

      • 1x Desktop LCD call station
      • 1x Bracket (attached to bottom)
      • 1x Connector cover (attached to bottom)
      • 1x Quick Installation Guide
      • 1x Safety information

    • GTIN:

      0800549825962
