    BSSEC8BV-BLK-M - Overview

    Controls Soundweb London and other HiQnet devices like Crown DriveCore Install Series

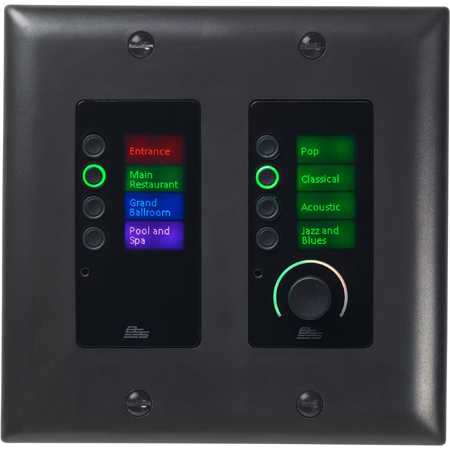

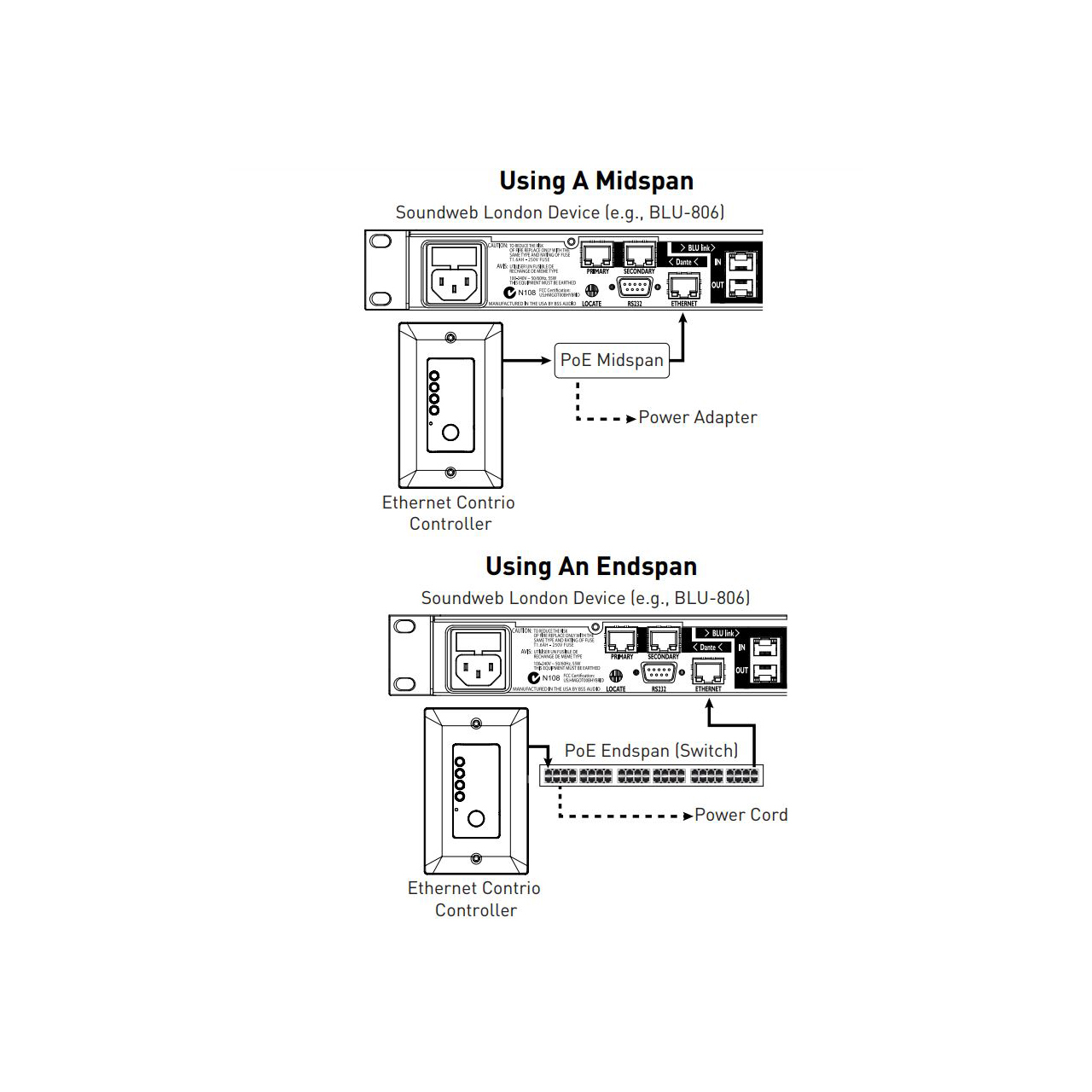

    The BSS Soundweb Contrio EC-8BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-8BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers. The EC-8BV is available in dual-gang US Decora. The EC-8BV contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-8BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.

    The EC-8BV contains one push/rotary encoder, one encoder ring, eight buttons, and two LCD screens. The buttons, encoder ring, and LCD screens are multi-color backlit, capable of eight different colors with adjustable intensity.

    The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.

    The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).

    The eight buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection.

    The two LCD screens each have a screen resolution of 64x128 pixels, and can each display custom text.

    The EC-8BV supports `sleep' functionality. After a specified amount of time with no user input, the EC-8BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will `wake up' the controller.

    The EC-8BV can be remotely locked and unlocked via other control systems. The EC-8BV can be locally unlocked via a four-digit PIN entry on the buttons.

    The EC-8BV supports multiple modes of operation. This allows the push/rotary encoder, encoder ring, and certain buttons to be reassigned dynamically to different parameters based on which buttons are selected.

    • Features:

      • Ethernet Wall Controller
      • Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
      • Available in Black or White
      • Available in US Decora or EU Version
      • Dual-Gang Size
      • PoE (Power Over Ethernet)
      • Configured within Audio Architect via Drag-and-Drop
      • 1 Programmable Push/Rotary Encoder
      • 1 Programmable Encoder Ring (Multicolored)
      • 8 Programmable Buttons (Multicolored)
      • 2 Programmable 64x128 Pixel LCDs (Multicolored)
      • Sleep Function
      • Security: Remote Lock/Unlock and Local Unlock via PIN Entry
      • Multiple Modes of Operation
    • Specifications:

      • Maximum Network Cable Length: 328 feet (100 meters)
      • Power Consumption: 300mA max at 48VDC
      • Recommended Ethernet Cable Wiring: VW-1 Rated, 48VDC, 13W
    • Item Includes:

      • 1x BSS Audio EC8BV-BLK-M Soundweb Contrio Ethernet Audio Controller with 8 Buttons and Volume - Black - US
    • Warranty:

      • 1 Year Warranty
