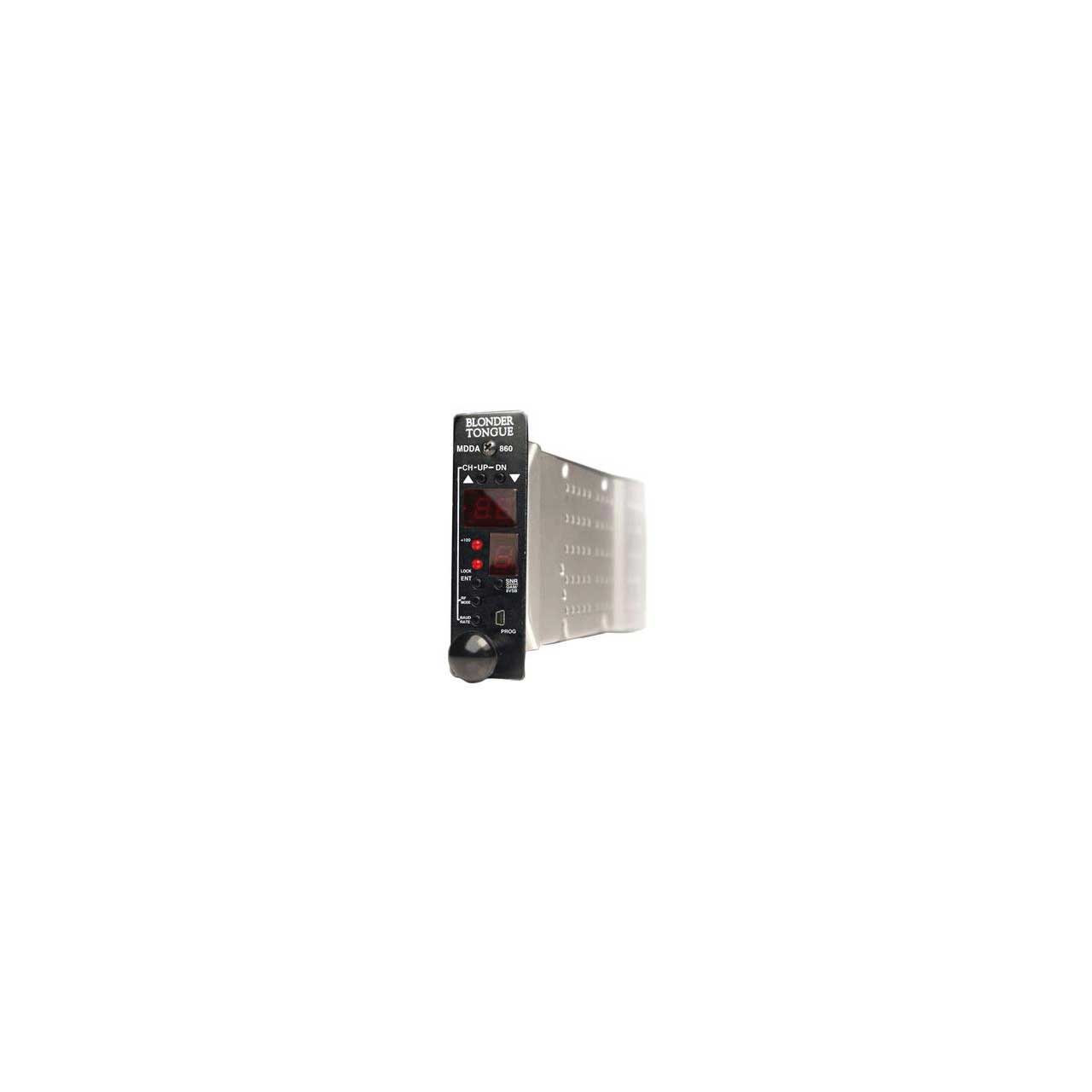

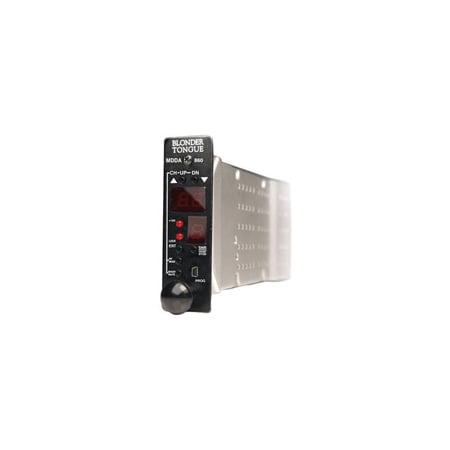

Blonder Tongue MDDA-860 Micro ATSC-QAM Transcoder

ITEM #: BT-6277 MFG #: MDDA-860

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$707.00

Our Price:

$537.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


MDDA-860 - Overview

The MDDA-860 is a digital demodulator and transcoder that receives one input in ATSC 8VSB (digital off-air) or "clear" QAM (digital cable) format and delivers one output in ASI format.

  • Features:

    • Input standards supported are digital off-air (8VSB) and digital cable (ITU-B QAM 64 and 256)
    • Die-cast Chassis Offers Superior Protection against Ingress or Egress
    • Demodulates & transcodes HDTV/SDTV digital signals to ASI
    • Compact design allows for deployment of 12 units in 2RU
    • On-site firmware updates available through front-panel

  • Specifications:

    • Input
    • Connector: "F" Female

      Standards
    • 8VSB: ATSC Digital Television Standard A/53E
    • QAM: ITU-T J.83 (64 and 256 QAM)

      8VSB Mode
    • Tuning Range: UHF (NTSC Ch. 14-78), VHF (NTSC Ch. 2-13)
    • Symbol Rate: 10.762 Msymbols/sec
    • Bandwidth: 6 MHz

      QAM Mode
    • Tuning Range: CATV (NTSC Ch. 2-135)
    • Symbol Rate: 5.3606 Msymbols/sec (QAM 256); 5.057 Msymbols/sec (QAM 64) - Auto Detect
    • Bandwidth: 6 MHz
    • Single Channel Power Level: -32 to +45 dBmV
    • 8VSB Power Level: -20 to +30 dBmV
    • QAM Power Level: -20 to +20 dBmV
    • Return Loss: 12dB
    • Impedance: 75 Ohms

      Ouputs
    • Connectors: ASI: 1 x F (equipped with F-to-BNC adapter)

      ASI
    • Standard: DVB-ASI; 50083-9
    • Data Bit Rate: 270 Mbps
