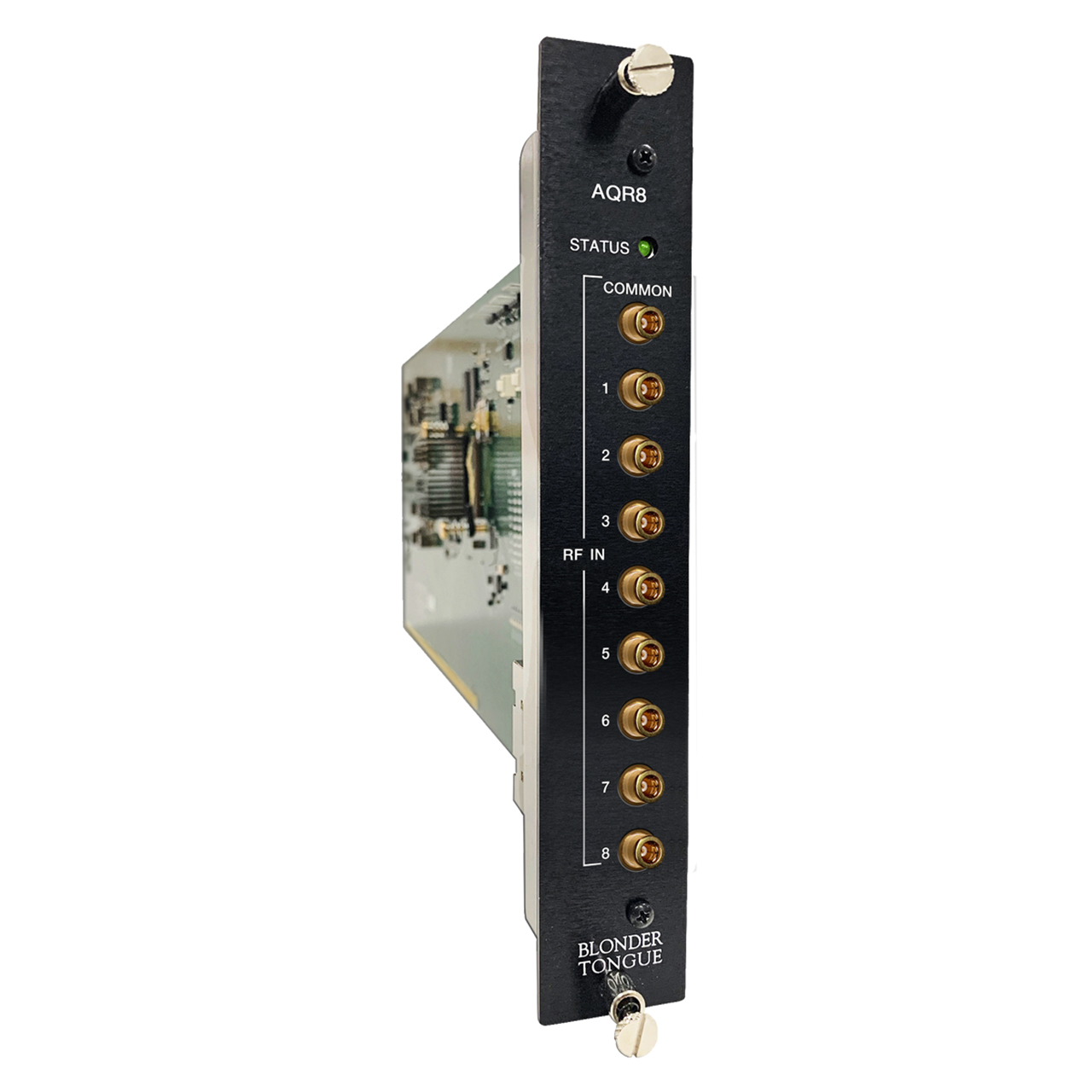

Blonder Tongue NXG-AQR8 Single-Slot 8-Source ATSC / QAM Receiver / Input Module for the NXG Video Delivery System

ITEM #: BT-NXG-AQR8 MFG #: NXG-AQR8

Primary Image
Blonder Tongue
Free Shipping with $49 Minimum Order

List Price:

$2,667.00

Our Price:

$2,395.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

NXG-AQR8 - Overview

A receiver/input module that allows the user to ingest from Off-Air and/or QAM input sources!

Pulling in Off-Air or QAM sources usually means dedicating separate hardware to each. The Blonder Tongue NXG-AQR8 ATSC/QAM Input Module ingests both from a single NXG slot - up to eight VSB or QAM sources at once, outputs as SPTS straight to your NXG backplane.

The NXG-AQR8 can accept encrypted QAM sources, and output the encrypted IP transport streams programs to the NXG backplane.

The module supports up to eight QAM-256 outputs that are agile from 54MHz to 1002MHz as long as all eight outputs are kept within a 768MHz span.

Whether you're consolidating Off-Air Reception or building out a Remote PHY architecture, the NXG-AQR8 gives you eight independent input paths without eating eight slots of rack space.

  • Features:

    • Receive OTA ATSC 1.0 RF signals, and simultaneously demodulate to IP for retransmission
    • Up to Eight OTA 8VSB or QAM-B tuners
    • All programs within the tuned channels are made available to the NXG backplane for additional processing
    • PSIP and Closed-caption support
    • Intuitive, straightforward web interface
    • Full control, status, and alarm monitoring
    • Includes breakout Coaxial Cable F-Type to SMB Female


  • Specifications:

      Input
    • Connectors:
      - 8x 8VSB/QAM "SMB" Female
      - 1x Common "SMB" Female (with Internal Active Splitter)
    • 8VSB Mode:
      - Standard: ATSC Digital Television A/53E
      - Tuning Range: UHF (Ch. 14-83), VHF (Ch. 2-13)
      - Data Rate: 19.392Mbps
      - Bandwidth: 6MHz
      - Power Level: -20dBmV - +20dBmV
      - Impedance: 75Ω
    • QAM Mode:
      - Standard: ITU-T J.83 - Annex B (64 & 256 QAM)
      - Tuning Range: CATV Ch. 2-158 (STD, HRC, IRC)
    • Data Rate:
      - 38.8Mbps (QAM 256)
      - 26.97Mbps (QAM 64) - Auto Detect
    • Bandwidth: 6MHz
    • Power Level:
      - -15dBmV - 20dBmV (@ QAM 256)
      - -20dBmV - 20dBmV (@ QAM 64)
    • Impedance: 75Ω

      Output
    • IP:
      - UDP SPTS to NXG Mainframe Backplane
      - TS Format ISO 13818-1 SPTS on UDP/IP
      - Address Assignment 64x IPv4 SPTS address & port numbers

      Alarms & Monitoring
    • Front Panel: 1x Status LED (Bicolor)

      General
    • Dimensions (WxHxD): 1.15" x 7.00" x 15.5" (29mm x 178mm x 394mm)
    • Weight: 2.0lbs (0.9kg)
    • Power: DC via NXG Mainframe Backplane
    • Power Consumption: 20W
    • Operating Temp.: 32°F - 122°F (0°C - 50°C)
    • Storage Temp.: -13°F - 158°F (-25°C - 70°C)
    • Operating Humidity: 0% - 95% RH @ 95°F (35°C) max, non-condensing


  • Item Includes:

    • 1x Blonder Tongue NXG-AQR8 Single-Slot 8-Source ATSC/QAM Receiver/Input Module for the NXG Video Delivery System
    • 1x Breakout Coaxial Cable F-Type to SMB Female
