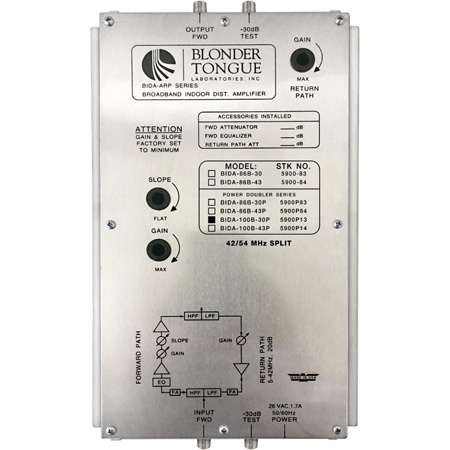

Primary Image
Blonder Tongue
Free Shipping with $49 Minimum Order

List Price:

$928.00

Our Price:

$705.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    BIDA 100B-43P - Overview

    Broadband Indoor Distribution Amplifier
    The Blonder Tongue BIDA 100B-43P BIDA 5900 Series is a professional quality, two-way broadband indoor distribution amplifiers. These amplifiers are ideal for multi-channel RF distribution systems the input source is a "cable drop" or the output of a MATV/SMATV/CATV headend.

    The BIDA 5900 Series features models having RF bandwidths of 860 and 1000 MHz. Push-pull and power doubling hybrid amplifier technologies are available on this series.

    The units are factory equipped for 2-way operation and have a 42/54 MHz split. The series leave the factory set for passive return path operation. Active return path operation can easily be accomplished by re-configuring a few internal jumpers.

    The BIDA 5900 Series utilizes an external power transformer providing 26 VAC to the amplifier. This enables the amplifiers to be remotely powered via low voltage AC wiring should a 120 VAC electrical outlet not be in close proximity to the desired amplifier location.

    • Features:

      • Provides Two-Way Capability with an Passive or Active Return Path Set by Field-Changeable Jumpers
      • Easily Adjustable Front Panel Gain and Slope Controls
      • Hybrid IC Circuitry for High Output with Low Distortion
      • Optional Plug-in Fixed Equalizer and Attenuator Capability for Input Signal Conditioning
      • Integrated Return Path Configurable for either Passive or Active Operation
      • Push-pull and Powering-doubling Hybrid Models Available
      • Input and Output Test Ports
      • Large Heat Sinks for Exceptional Heat Dissipation


    • Specifications:

      • Frequency Range: 54-1000 MHz
      • Gain: 43 dB
      • Flatness: ±0.75 dB
      • Gain Control Range: 10 dB
      • Slope Control Range: 8 dB
      • Input Return Loss: 16 dB
      • Output Return Loss: 16 dB
      • Noise Figure: 8.5 dB
      • Output Level: 32/40 dBmV
      • Impedance: 75 Ω
      • Hum Modulation: 70 dB
      • Input/Output Test Port Level: -30 dB; ±2 dB
      • Input/Output Test Port Return Loss: 20 dB
      • Operating Temperature Range: -20 to +60 °C
      • Power Requirements: Wall Power Transformer 105-130 VAC, 60 Hz 0.38 AMP Max
      • Dimensions (LxWxH): 10.5" x 7.25" x 3.25" (26.4 cm x 18.42 cm x 8.26 cm)
      • Shipping Weight: 6 lbs (2.7kg
