Cabletronix CTHDA-1P Multimedia Drop Amplifier

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

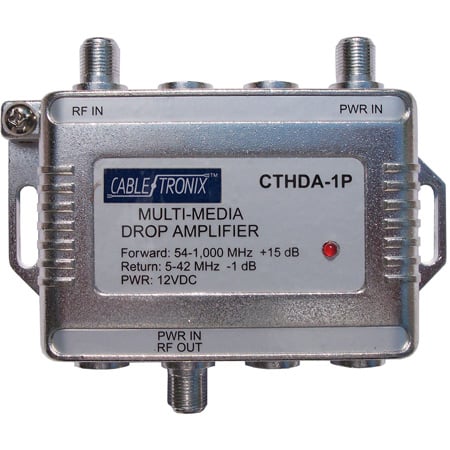

    Cabletronix CTHDA-1P Multimedia Drop Amplifier

    Manufacturer: Cabletronix

    Item #: CT-CTHDA-1P   •   MFG #: CTHDA-1P



    List Price:$39.95
    Our Price:$35.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The Cabletronix CTHDA-1P is a wall mounted 1GHz multi-media drop amplifier for use in CATV systems that require two way multi-media networking. These are low noise amplifiers with high isolation between ports, 6KV surge protection on all ports, electrostatic discharge protection, and zinc die cast housing to prevent RFI. The CTHDA amplifiers can be remotely powered over coax, line powered through an RF port, or externally powered through a "POWER-IN" port.


      • Features

        • For use in CATV systems that require two way multimedia networking
        • Low noise
        • High isolation between ports
        • ESD Protection and zinc die cast housing prevent RFI
        • 6KV Surge protection on all ports
        • Perfect for digital cable applications
        • Remotely powered over coax
        • Line powered through RF port or externally powered through power in port
        • CT-BDA24 Model has an adjustable gain control & a switcheable FM trap

      • Specifications

        • Number of input ports: 1
        • Number of output ports: 2
        • Forward path: 54-1,000MHz
        • Reverse path: 5-42Mhz
        • Foward gain: 13.5dB
        • Reverse gain(loss): -1.6dB
        • Noise figure: 3dB typical, 4dB max
        • Return loss (in/out): 18dB typical
        • Power supply voltage: 12-16V, 200mA
        • Surge protection (all ports): 6KV
        • connections: F type female
        • Impedance: 75 Ohms
        • Operating temperature: -40° C to +60°C
