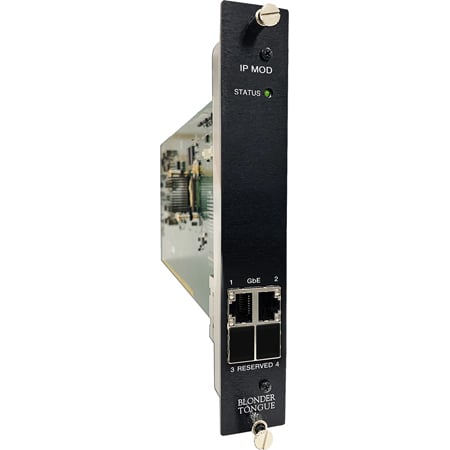

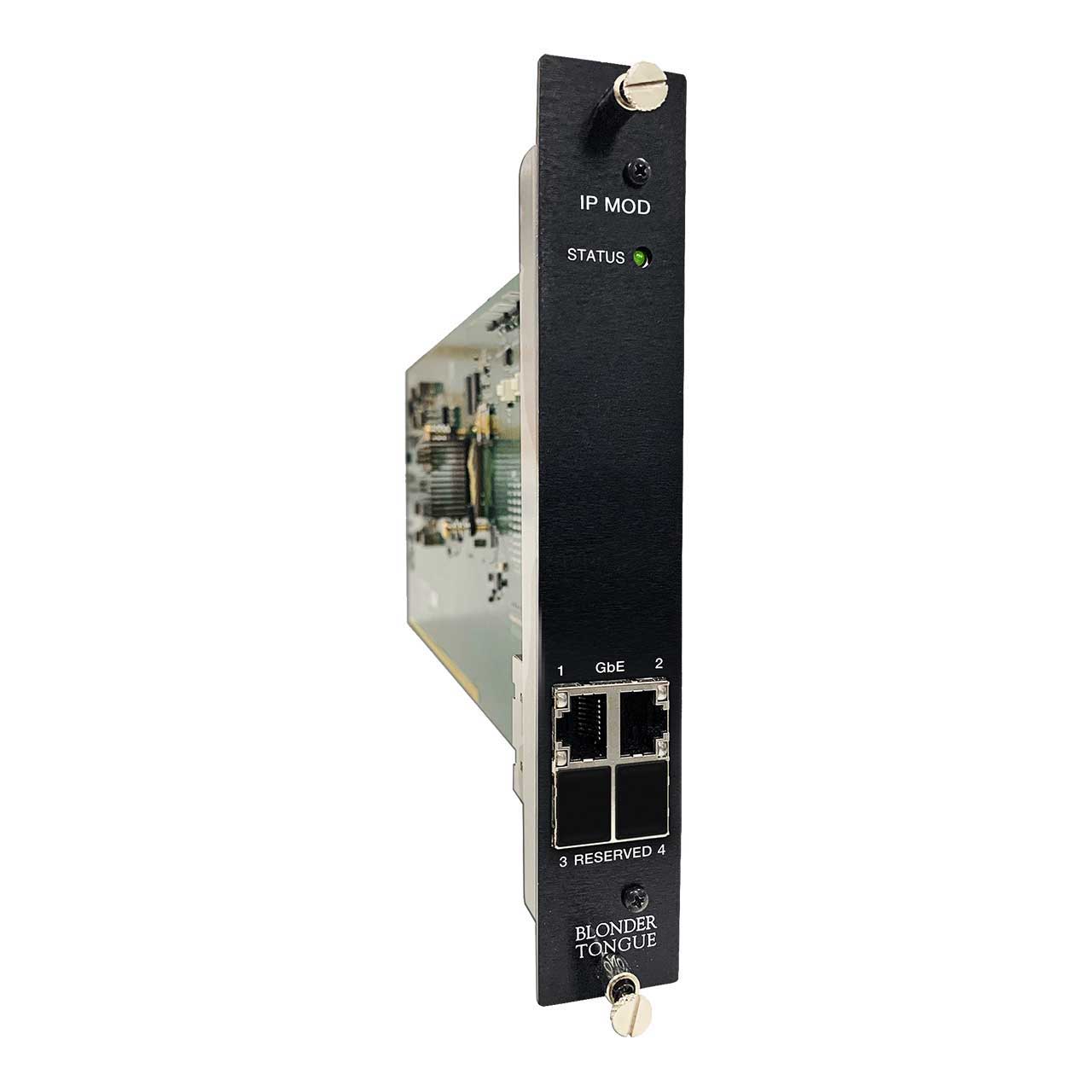

Blonder Tongue NXG-IP-MPTS Input Module - 16 Programs per MPTS - GbE Connectors x4 - MPTS or SPTS / MPEG-2 or H.264

NXG-IP-MPTS - Overview

• Features:

  • Each RJ45 GbE port supports up to 32 MPTS
  • Supports up to 128 MPTS per module
  • Supports up to 16 programs per MPTS
  • Supports both MPEG-2 and H.264/AVC content
  • VBR or CBR
  • IGMPv2 and IGMPv3 (primary and secondary source IP addresses)


• Specifications:

  • Input
  • IP: 2.2 Gb via RJ45 Connectors
  • Video Codecs: MPEG-2; H.264 (AVC)
  • Addressing: Multicast or Unicast
  • MPEG TS: MPTS
  • Management: IGMPv2 & IGMPv3

    Output
  • IP: 2.2 Gb to Mainframe backplane; SPTS available for all other modules

    ALARMS & MONITORING
  • Front Panel: 1x Status LED (Bicolor)

    General
  • Dimensions (W x H x D): 1.15 x 7.0 x 15.5 in (29 x 178 x 394 mm)
  • Weight: 2.0 lbs (0.9 kg)
  • Power: DC via NXG Mainframe Backplane
  • Power Consumption: 11 W
  • Operating Temp.: 32 to 122 °F (0 to 50 °C)
  • Storage Temp.: -13 to 158 °F (-25 to 70 °C)
  • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing


• Item Includes:

  • 1x NXG-IP-MPTS Input Module


• Warranty:

  • 1-Year Limited Warranty
