Burst Pixie-FS Frame Store TBC Time Base Corrector

Name: Burst Pixie-FS Frame Store TBC Time Base Corrector
Brand: Burst Electronics
SKU: BURST-PXFS
Price: 1155.00 USD
Availability: InStock

ITEM #: BURST-PXFS MFG #: BURST-PXFS

Burst Electronics

List Price:

$1,361.25

Our Price:

$1,155.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Reviews

Attachments

Required Accessories

Recommended Accessories

BURST-PXFS - Overview

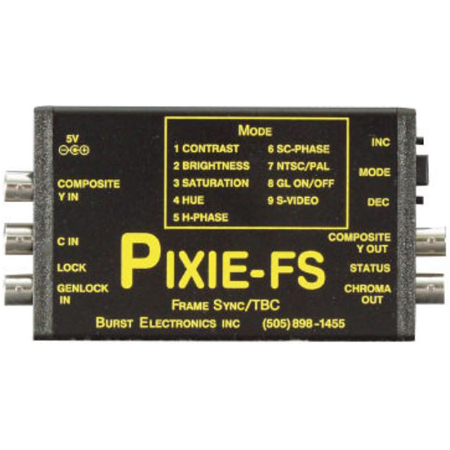

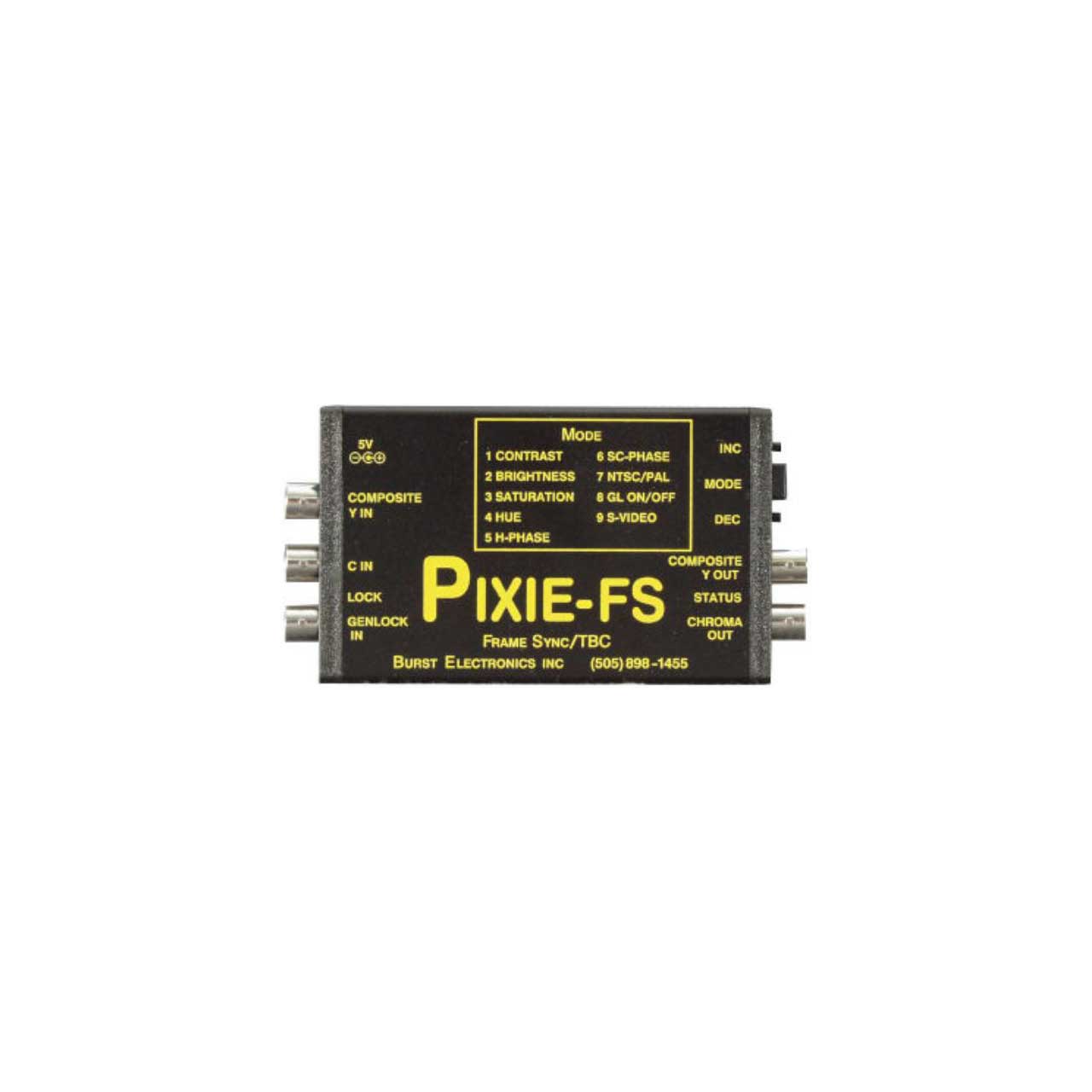

The Burst Pixie-FS is a Frame Store/TBC unit that is the size of a deck of cards. The Pixie-FS is a full feature 8-bit frame store including proc amp control. Adjustments for gain, color and timing. The Pixie-FS is dual standard, operating in either NTSC or PAL.

Features:
- Full Frame Time Base Corrector (TBC)
- Adaptive Comb Filter Decoding
- Input Anti-aliasing Filters
- Multi-standard NTSC/PAL
- Genlock
- Y/C-to-CVS or CVS-to-Y/C Transcoding
- Extremely Compact
Specifications:
- Inputs
- Composite or S-Video (75 Ohms)
- Genlock (High-Z or 75 Ohms)
- AGC - Sync Priority
- Input Level ±6dB
- 4:2:2 CCIR656 Processing
- 9-bit A/D Quantization
- 27 MHz Sampling
- 4-line Adaptive Comb Filter

  Outputs
- Composite or S-Video (Y/C)
- Level 1vpp

  Performance
- Frequency Response ±1.0dB to 5.5MHz
- Differential Gain < 2%
- Differential Phase < 2°
- SNR > 62dB
- K Factor M < 1%
- Infinite Frame Sync

  Adjustments
- Luminance
- Chrominance
- Hue
- Brightness
- Genlock H-Phase ±2æs
- Genlock Subcarrier Phase 0-360°
- Genlock on/off
- Standards NTSC or PAL
- Input Selection CVS / S-Video

  Environmental
- Operating Temperature Range 0° to 50°C
- Storage -20° to +85°C
- Humidity to 98% non-condensing

  Physical
- Dimensions: 2.8W x 0.8H x 4.5D (inches)
- DC Powered: 5 Vdc (see chart for current requirements)
- Wall module (included): 100-240 Vac, 50/60 Hz, UL Listed
- Warranty: Two Years Parts and Labor

BURST-PXFS - Reviews

BURST-PXFS - Attachments

See BurstPIXIE-FS Manual/Specs (PDF)
