FS-HDR - Overview

Real Time HDR/WCG Conversion!

The AJA FS-HDR 1RU, rack-mount, universal converter/frame synchronizer is designed specifically to meet the HDR (High Dynamic Range) and WCG (Wide Color Gamut) needs of broadcast, OTT, post and live event AV environments. That's where real time, low-latency processing and color fidelity will be needed for 4K/UltraHD and 2K/HD workflows. Developed in partnership with Colorfront, the FS-HDR's HDR/WCG functionality is powered by Colorfront Engine proprietary video processing algorithms.

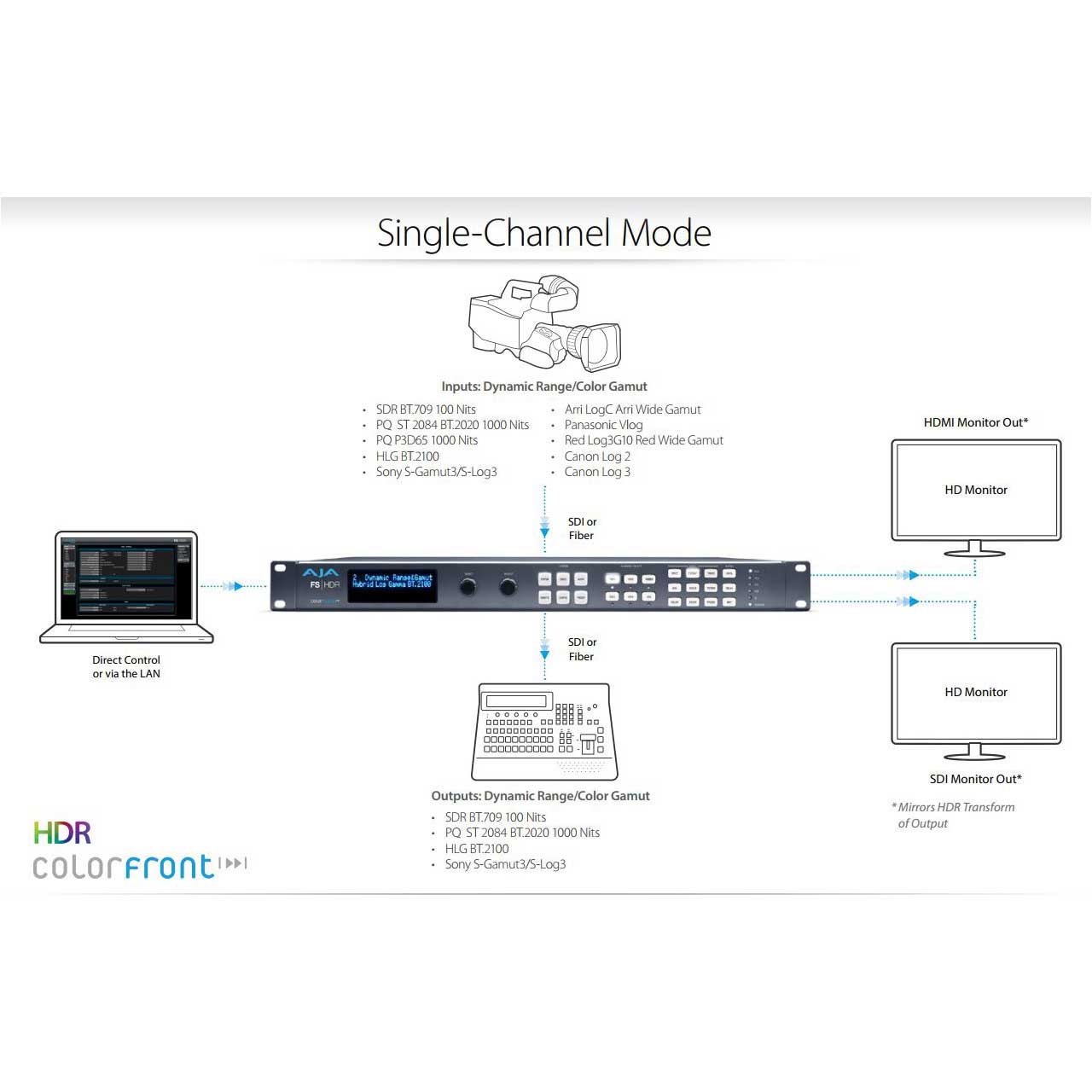

In Single Channel Mode the FS-HDR also serves as a full, 1-Channel up, down, cross-converter for 4K/UltraHD/2K/HD HDR transformation. In 4-Channel Mode, FS-HDR offers 4 independent channels of 2K/HD HDR/WCG transformations as well as up, down, and cross conversions.

TV Mode is a new operational mode that provides a simple to use transform selection interface with the minimal controls required for live television production. It addresses color correction and camera correction while adding two new controls essential for HDR/SDR transforms. These new controls are for Knee Point and Knee Slope and they help to manage highlights and roll-off in HDR to SDR and HDR to SDR conversions. They also improve the quality of the SDR output by using more of the information available in the HDR program. Shouldn't your SDR deliverable benefit from all the effort put into your HDR production?

Deliver more immersive content to audiences with the power and flexibility of AJA FS-HDR. See how FS-HDR and the Colorfront Engine can simplify real time HDR/WCG transformations and makes it easy to maintain the look you've worked to achieve across SDR to HDR, HDR to HDR, and HDR to SDR for both 4K and HD needs.
