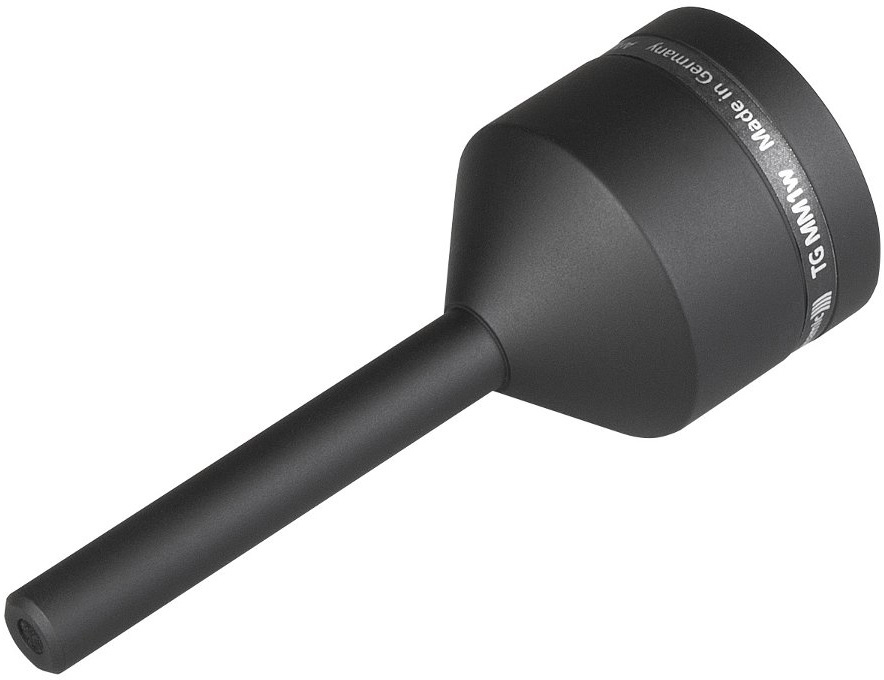

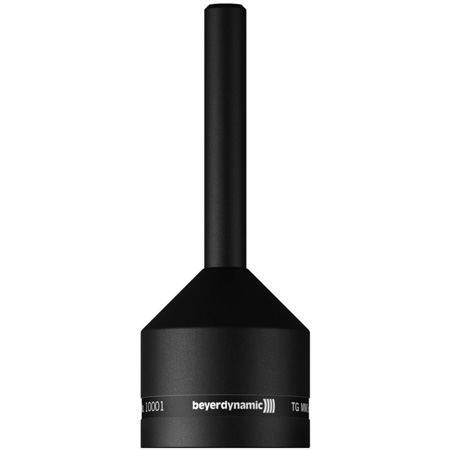

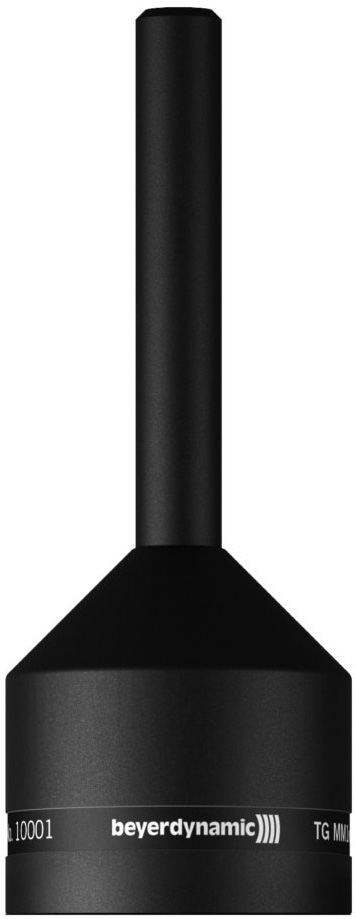

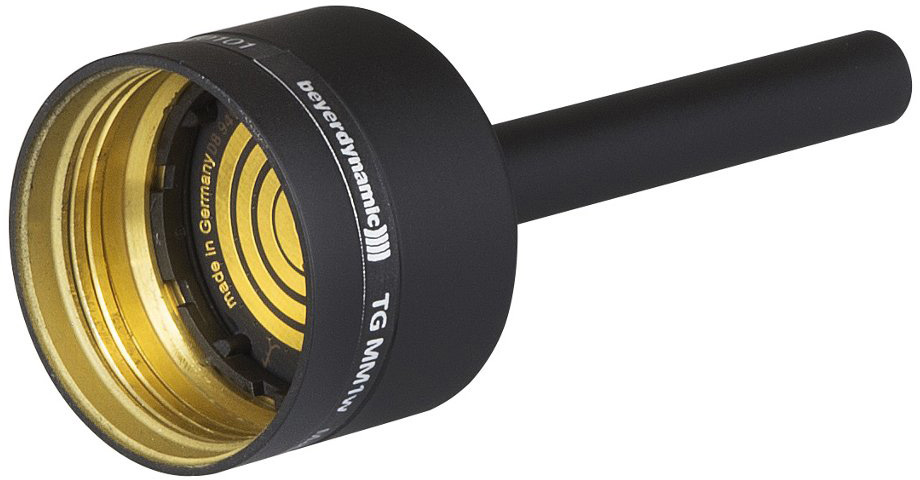

Beyerdynamic TGMM1W TG 1000 Measurement Microphone Capsule

ITEM #: BYD-TGMM1W MFG #: TGMM1W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BYD-TGMM1W

TGMM1W - Overview

In combination with the TG 1000 handheld transmitter the Beyerdynamic TG MM1w interchangeable capsule is used for wireless measuring of sound reinforcement systems. In addition to level measurements it can be used for determining frequency responses by using appropriate analyzers. The remote narrow tubular microphone capsule makes sure that the influence on the sound field can be neglected so that an increase in sound pressure is avoided with high frequencies.

  • Features:

    • Diffuse field equalized frequency response
    • Omnidirectional polar pattern
    • Calibrated open circuit voltage
    • Narrow tubular metal construction
    • Supplied with individual frequency response curve (also available as download or as file on request)


  • Specifications:

    • Transducer Type: Condenser (back electret)
    • Operating Principle: Pressure
    • Frequency Response: 30 - 20,000 Hz
    • Polar Pattern: Omnidirectional, diffuse field equalized
    • Open Circuit Voltage @ f = 1 kHz: 15 mV/Pa (= -36.5 dBV) ± 1 dB*
    • Sound Pressure Level: 120 dB*
    • S/N Ratio rel. to 1 Pa: 56 dB*
    • A-Weighted Equivalent SPL: 27 dB
    • Dimensions Head Diameter: 0.35" (9mm)
    • Shaft Diameter: 1.42" (36mm)
    • Length: 3.70" (94mm)
    • Weight: 0.21LBs (96g)
    • Note: *measured with the capsule only, but without radio link


  • Warranty:

    • 2 Years


  • GTIN:

    4010118711435
