Beyerdynamic WA-ZAPD1 Passive 2-way Combiner for Wireless

ITEM #: BYD-WA-ZAPD1 MFG #: WA-ZAPD1

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BYD-WA-ZAPD1

WA-ZAPD1 - Overview

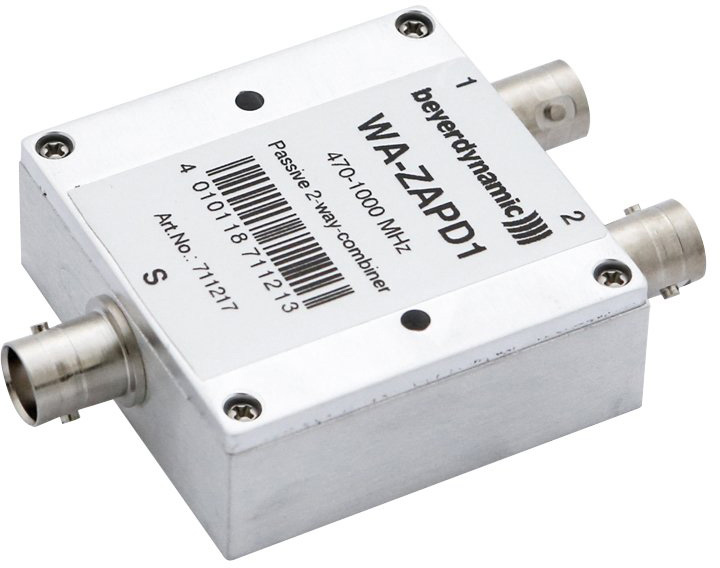

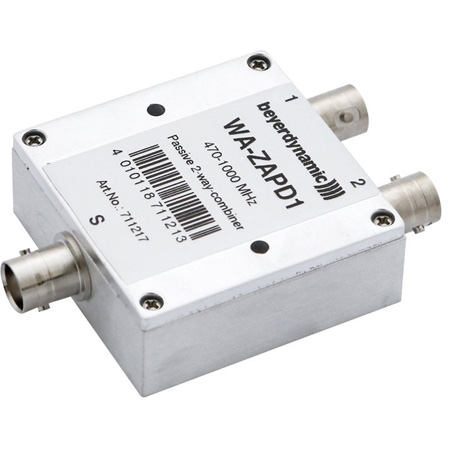

The Beyerdynamic passive WA-ZAPD1 two-way combiner is used for multi-antenna systems in conjunction with wireless systems such as the beyerdynamic TG 1000. It can directly be connected to the TG 1000 receiver. In order to avoid unwanted dropouts inside the combiner, it is necessary to make sure that both antenna signals have the same field strength.

As the antenna phantom powering of 8-9 V is routed from the TG 1000 receiver through the WA-ZAPD1 combiner, the WA-ATDA antenna or the WA-AMP antenna amplifier can be operated with the combiner. The antenna or antenna amplifier is connected via BNC sockets.

  • Features:

    • Wideband, 470 to 1,000 MHz
    • Low insertion loss, 0.25 dB typ.
    • Good isolation, 25 dB typ.
    • Up to 10 W power input as splitter
    • Excellent amplitude unbalance, 0.1 dB typ.
    • Excellent phase unbalance, 0.2 deg. typ.
    • Excellent VSWR, 1.1:1 typ.
    • Rugged, shielded case


  • Specifications:

    • Operating/Storage Temperature: -67° to 212°F (-55° to 100°C)
    • Power Input (as Splitter): 10 W max.
    • Internal Dissipation: 0.125 W max.
    • Note: Permanent damage may occur if any of these limits are exceeded.
    • Weight: 0.26Lbs (120g)
    • Coaxial Connections:
      SUM Port: S
      Port 1: 1
      Port 2: 2


  • Warranty:

    • 2 Years


  • GTIN:

    4010118711213
