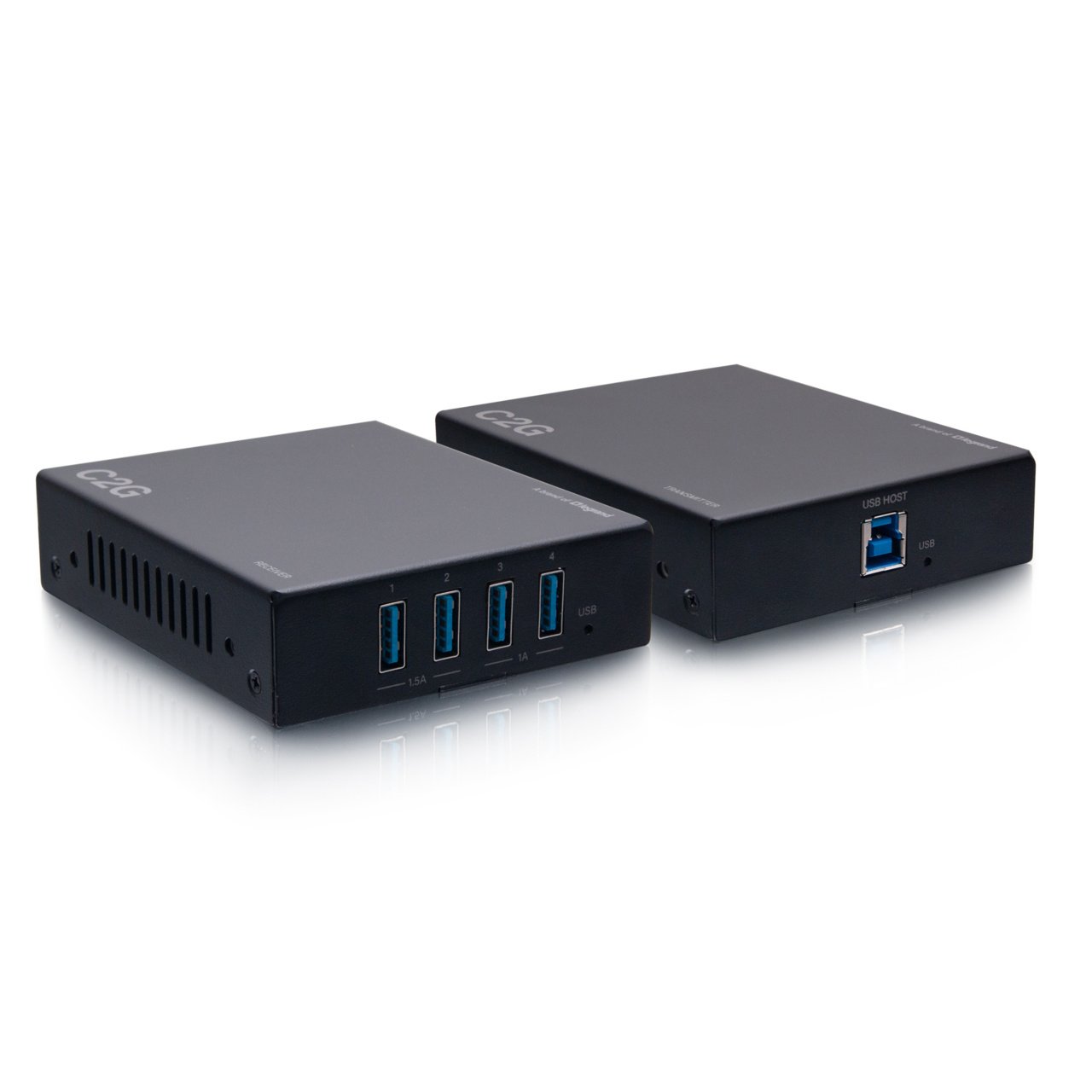

C2G 54265 Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 5Gbps - 328 Feet (100m)

ITEM #: C2G-54265 MFG #: 54265

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$737.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


54265 - Overview

The C2G Superbooster 4-Port USB over Cat6a Extender Kit was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.

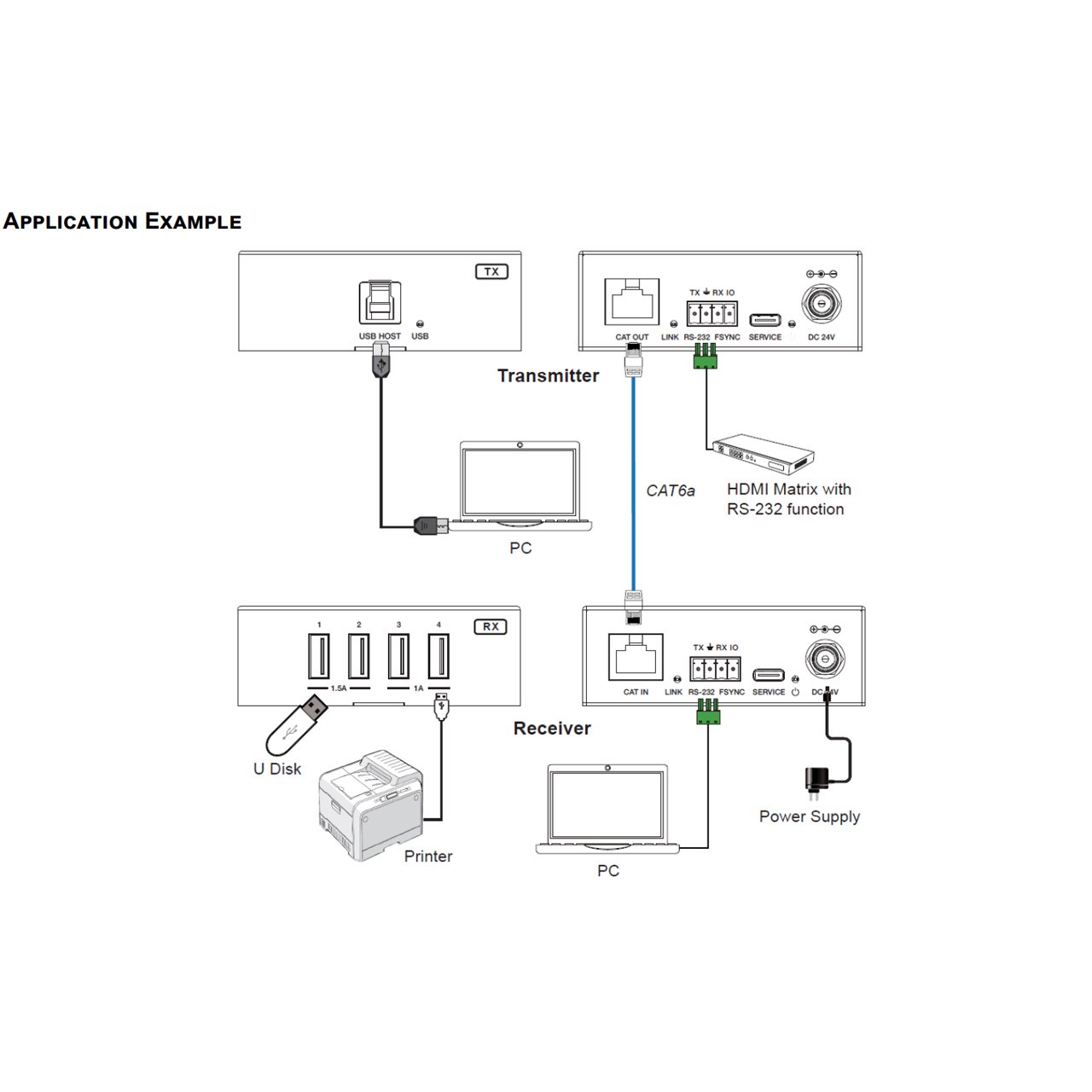

No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.

C2G's Superbooster® USB Extender provides reliable USB data extension from a computer to a USB device over a Cat6a F/FTP network cable - making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.

This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.

Tested and Proven
This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives - ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.

This USB extender supports data transmission only - no DisplayPort Alt Mode video support.

  • Features:

    • Extension of USB 3.0 up to 328ft/100m over CAT6a cable
    • USB 3.0 connectivity with data transfer rate up to 5Gbps
    • Backwards compatible with USB 2.0 and 1.1
    • Hardware acceleration for isochronous and bulk transfer
    • USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
    • Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
    • Support bi-directional 24V PoC
    • Simple plug and play, no driver and setting installation required

  • Specifications:

    • Application:
      - Commercial
      - Residential
    • Cable Type: Extender
    • Color: Black
    • Connector 1:
      - 1x RJ-45 Female
      - 1x USB-B Female
    • Connector 2:
      - 1x RJ-45 Female
      - 1x USB-A Female
    • Product Type: Active Device
    • Extender: Kit
    • Signal Type: USB 3.2 Gen 1
    • Data Transfer Rate: 5 GBPS
    • Special Features: Data Transfer Protocol: Isochronous, Control, Interrupt, and Bulk
    • Number of Tiers Occupied: 2
    • Technology Specifications:
      - USB 1.1
      - USB 2.0
      - USB 3.2
    • Amps: 1A
    • Cable Length: 3.35" (8.5cm)
    • Height:
      - Transmitter: 1" (2.54cm)
      - Receiver: 1" (2.54cm)
    • Length:
      - Receiver: 3.35" (8.5cm)
      - Transmitter: 3.35" (8.5cm)
    • Max Distance Support: 328ft (100m)
    • Operating Humidity: 20% - 90% RH (Non-Condensing)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Shipping Weight: 2.34lbs (1.1kg)
    • Storage Humidity: 20% - 90% RH (Non-Condensing)
    • Storage Temperature: -31°F - 140°F (-35°C - 60°C)
    • Width:
      - Transmitter: 3.94" (10cm)
      - Receiver: 3.94" (10cm)
    • Certifications:
      - CE
      - FCC
      - NDAA 889
      - Prop 65
      - REACH
      - RoHS
      - TSCA

  • Item Includes:

    • 1x USB 3.0 Extender (Transmitter)
    • 1x USB 3.0 Extender (Receiver)
    • 1x 24V/2A Power Supply with US/EU/UK/AU Plugs
    • 2x 4pin-3.5mm Phoenix Connector (male)
    • 4x Mounting Ear
    • 8x Machine Screw (KM3*4)

  • GTIN:

    0757120542650
