CAD Audio WX1000BP UHF BodyPack Mic System - 510 to 570MHz - WX1000 Bodypack/RX1000 Receiver/Headworn Mic/Lav Mic

ITEM #: CAD-WX1000BP MFG #: WX1000BP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$139.99

Our Price:

$99.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    WX1000BP - Overview

    Enjoy the easy and exciting performance that the CAD Audio WX1000BP provides for your next performance. CAD Audio has been creating valued product since 1931 and prides itself on developing and supporting the live performer. The concept was straightforward - develop a high value wireless microphone system that can cope with today's challenging RF environment that is both easy to operate and exciting to use.

    The WX1000BP is a Frequency Agile UHF Wireless Body Pack System which operates in the 510-570MHz frequency band and features 100 channels for optimum clarity of signal. Auto-scan and IR sync functions make set up and channel-changing a breeze. Enjoy up to 12 hours of run time using two AA batteries, with a battery level indicator on both the transmitter and receiver, so you'll know when you need to replace them. All metal construction and included rack mounting hardware help ensure your equipment will stand up to even the toughest conditions. System includes head-worn mic, lavalier mic, and guitar/instrument cable.

    • Features:

      • Frequency Agile Design (100 switchable frequencies)
      • Use up to 20 systems at the same time
      • Up to 295' (90m) range between transmitter and receiver
      • Rugged, all metal construction
      • Auto scan finds the optimal frequency setting
      • IR sync wirelessly matches transmitter and receiver frequencies
      • Transmitter features battery life indicator
      • Transmitter utilizes 2 AA Batteries with >12 Hrs of operation
      • Rack mounting hardware and antennal relocation kit included
      • Head-worn and lavalier microphones and guitar/instrument cable included

    • Specifications:

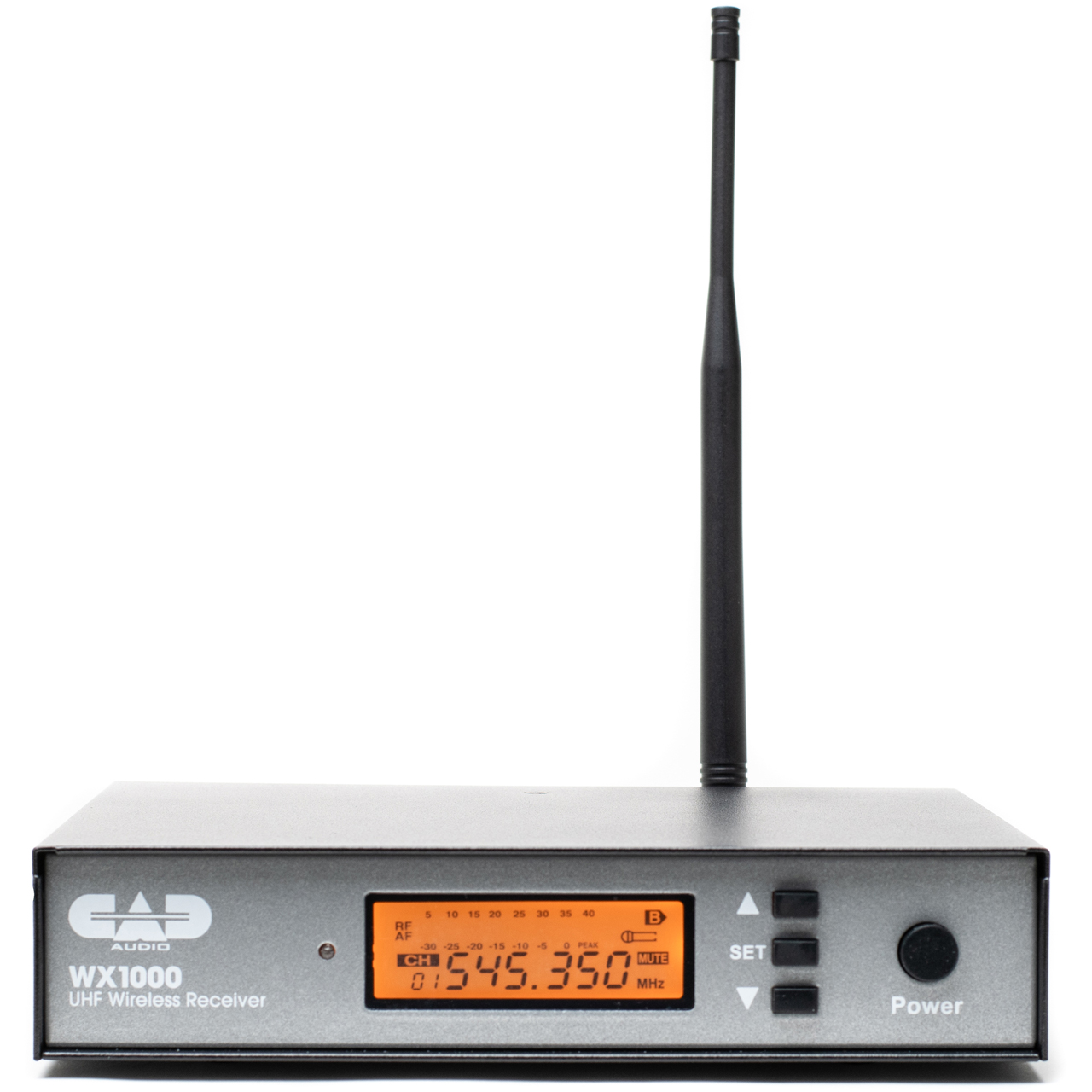

      • WX1000 Receiver Specifications
      • Frequency Response: 30Hz - 18KHz
      • Frequency Range: 510MHz - 570MHz
      • Frequency Mode: FM
      • Channels: 100
      • Receiver Sensitivity: <108dBm
      • Signal-to-Noise Ratio: >85dB
      • Harmonic Distortion: <0.5%
      • Dynamic Range: >100dB
      • Delay: <3ms
      • Operating Range: 278' (85m) in open area, 196' (60m) indoors

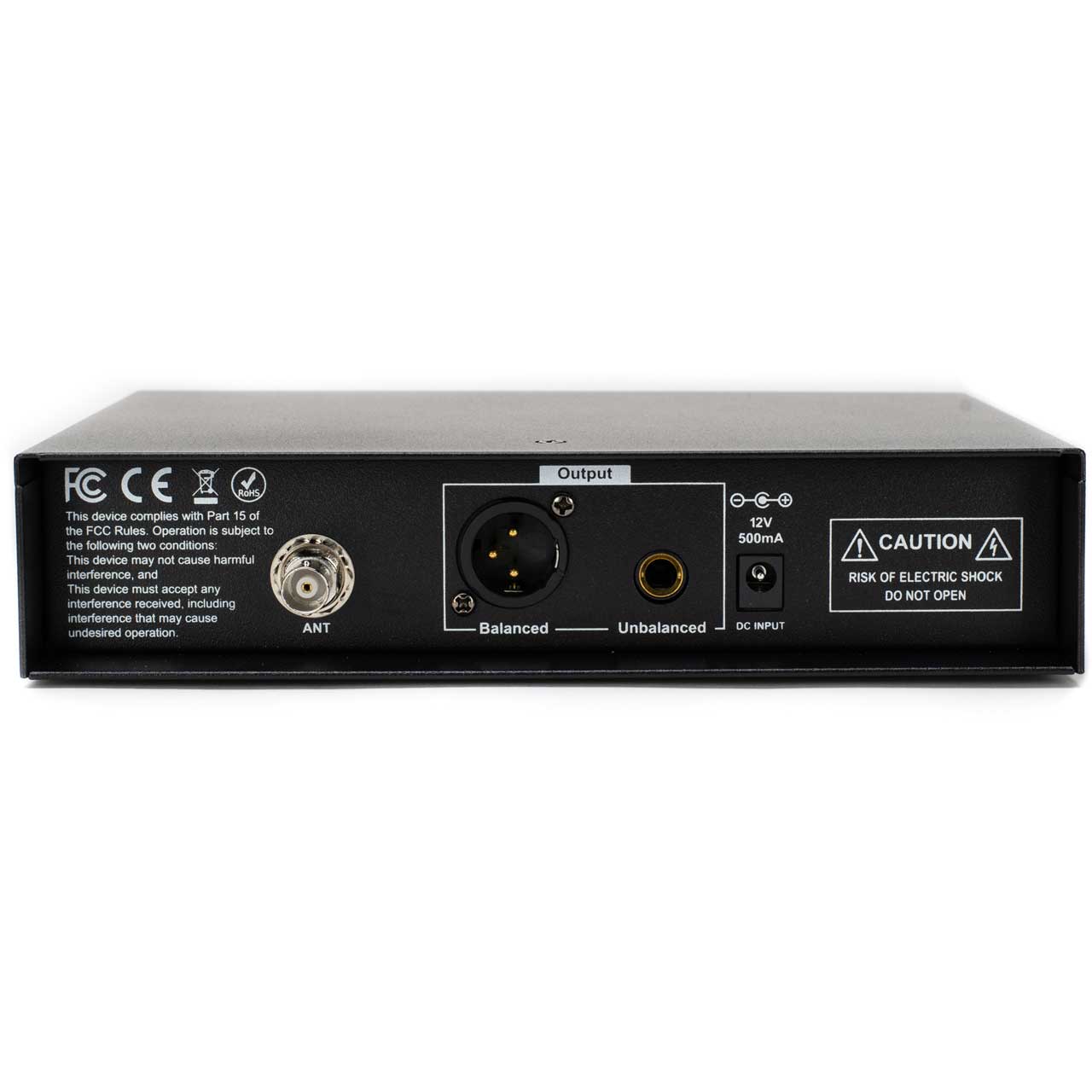

      • Audio Output: 1x XLR balanced output, 1x 1/4" (6.3mm) unbalanced jack
      • Antenna Plug: 1x TNC, 50ohms
      • Power Requirements: DC 12V, 1A
      • Dimensions: 16" x 12.1" x 2.8" (40.5cm x 30.7cm x 7cm)
      • Weight: 3.3lbs (1.5kg)

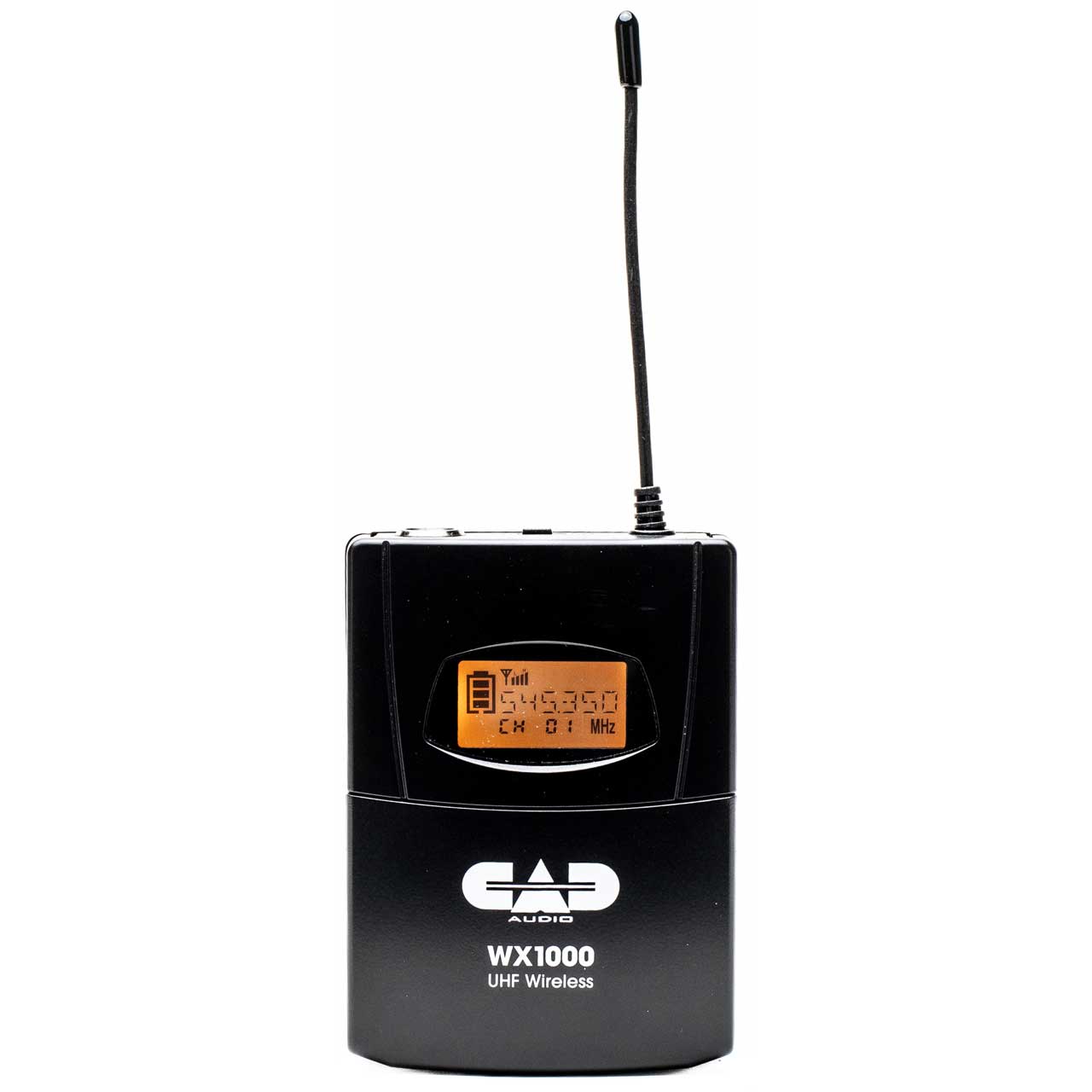

        TX1000 Bodypack Transmitter Specifications:
      • Frequency Response: 30 - 18KHz
      • Frequency Range: 510MHz - 570MHz
      • Transmit Mode: Micro power wireless
      • Channels: 100
      • Input Power: <10mW
      • Signal-to-Noise Ratio: >85dB
      • Harmonic Distortion: <0.5%
      • Frequency Error: <15ppm
      • Modulation Mode: FM
      • Working Current: 100 - 120mA
      • Antenna: Sheltered antenna
      • Power Requirements: 2x AA batteries 1.5V

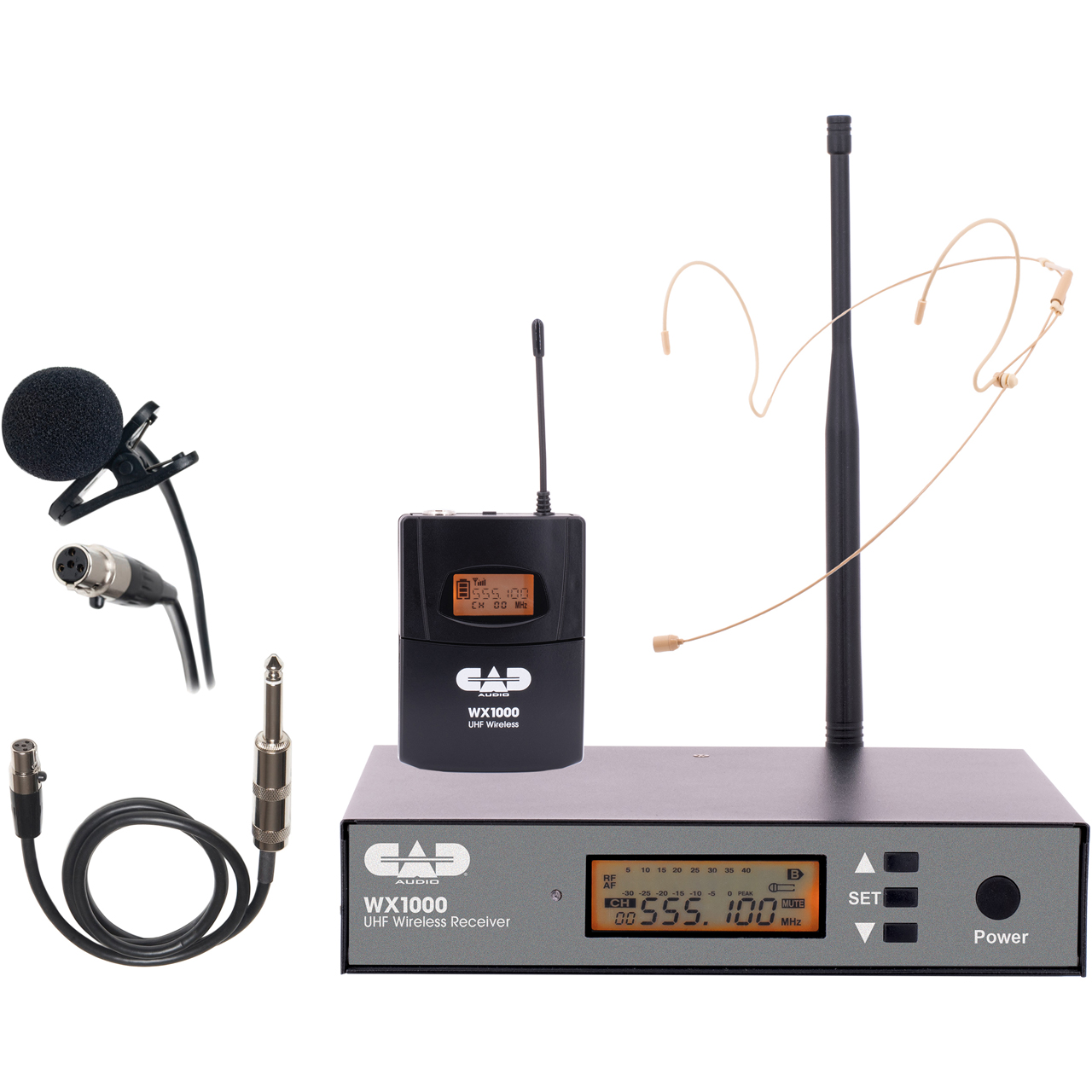

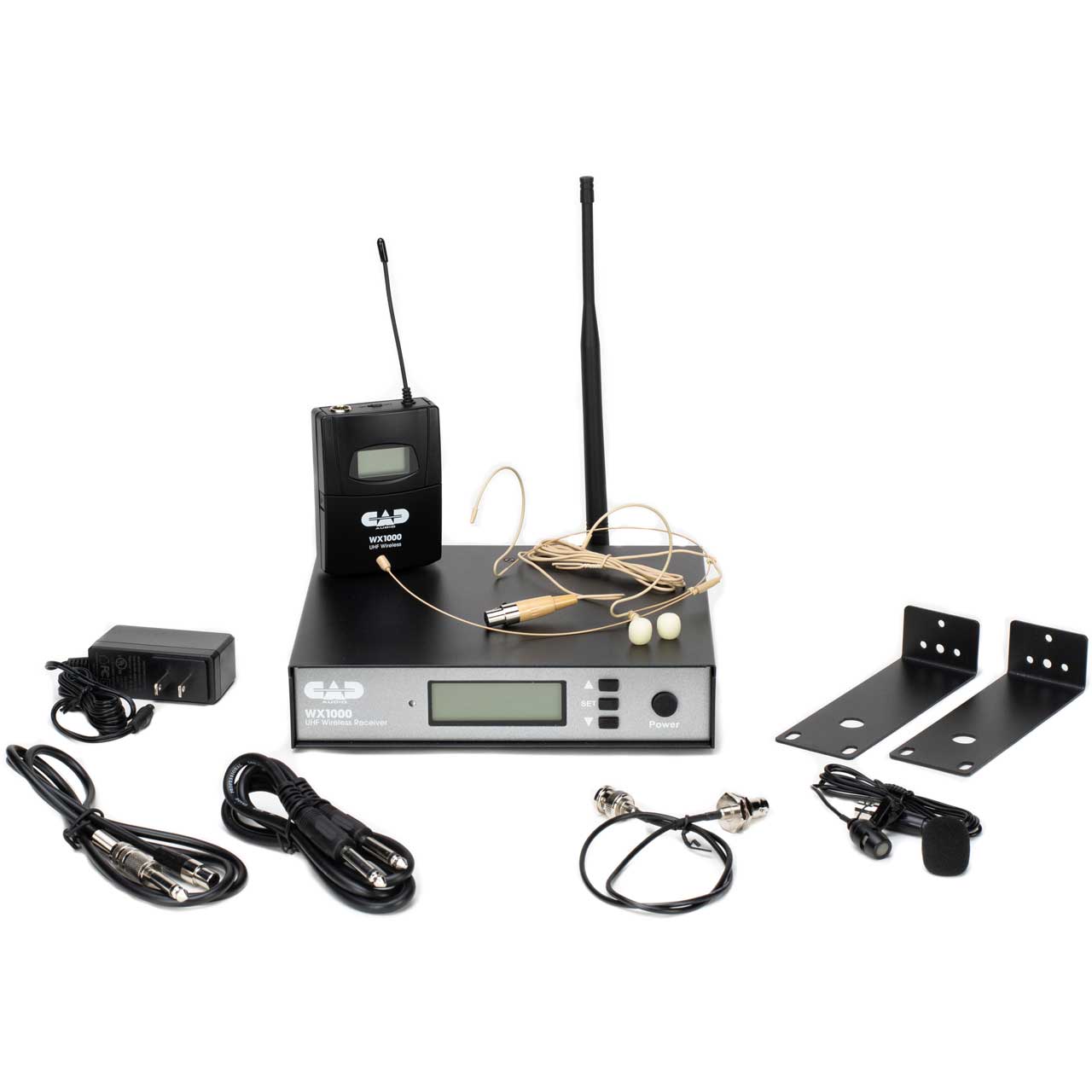

    • Item Includes:

      • 1x TX1000 Body Pack Transmitter
      • 1x WX1000 Receiver
      • 1x Mounting Hardware
      • 1x Antennal Relocation Kit
      • 1x Head-worn Microphone
      • 1x Lavalier Microphone
      • 1x Guitar/Instrument Cable

    • Warranty:

      • 2-Year Warranty
