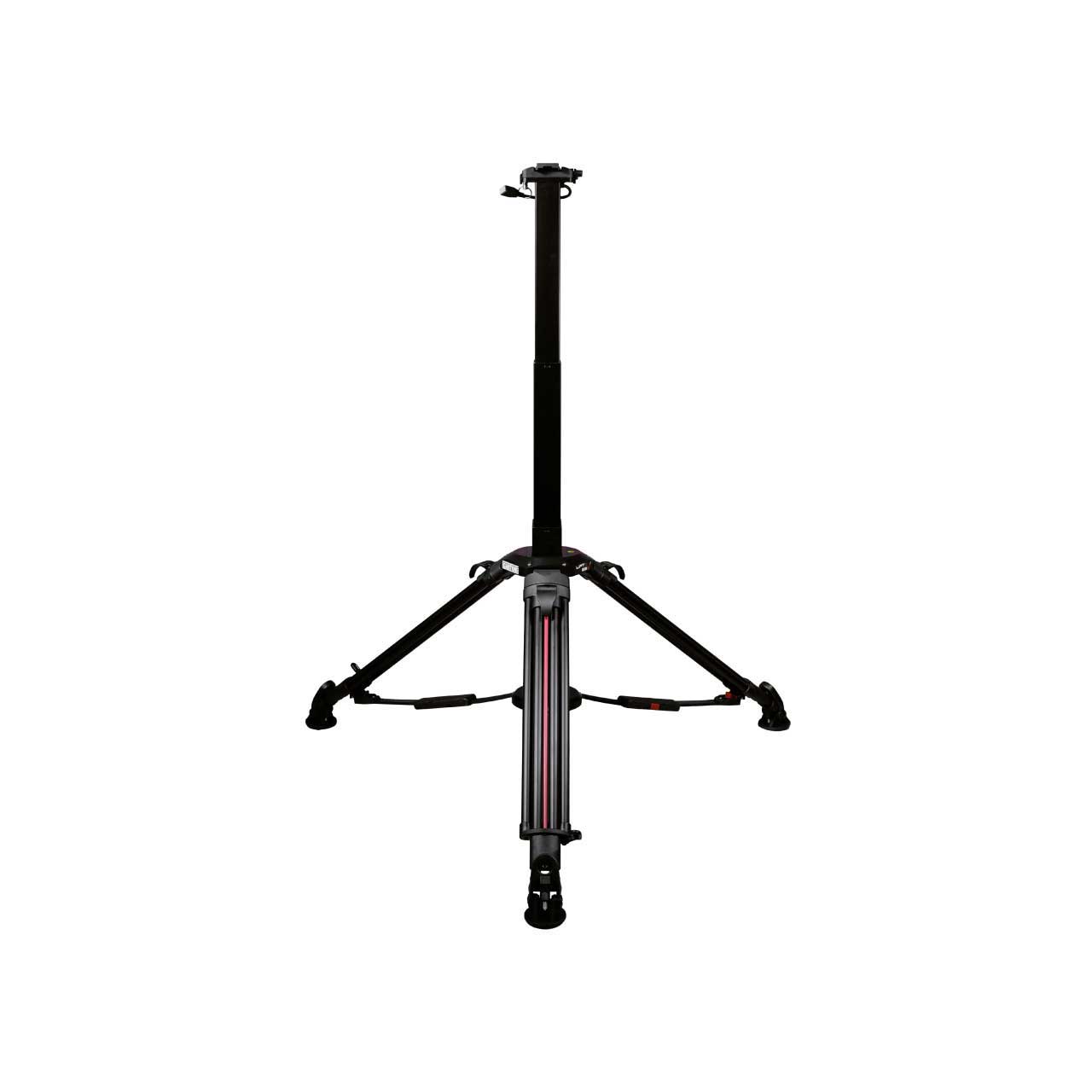

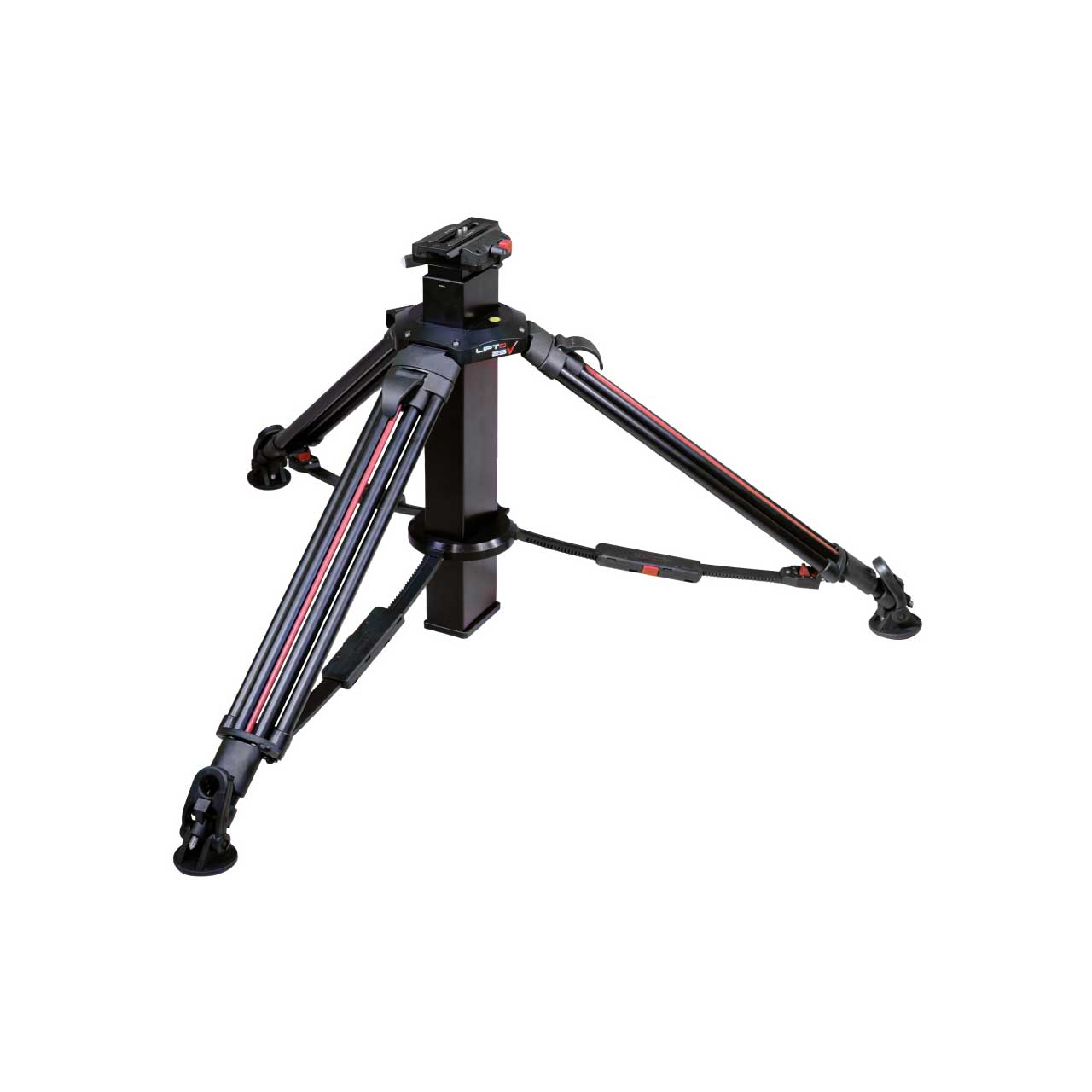

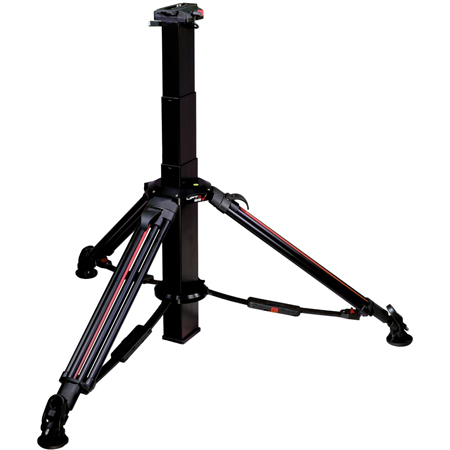

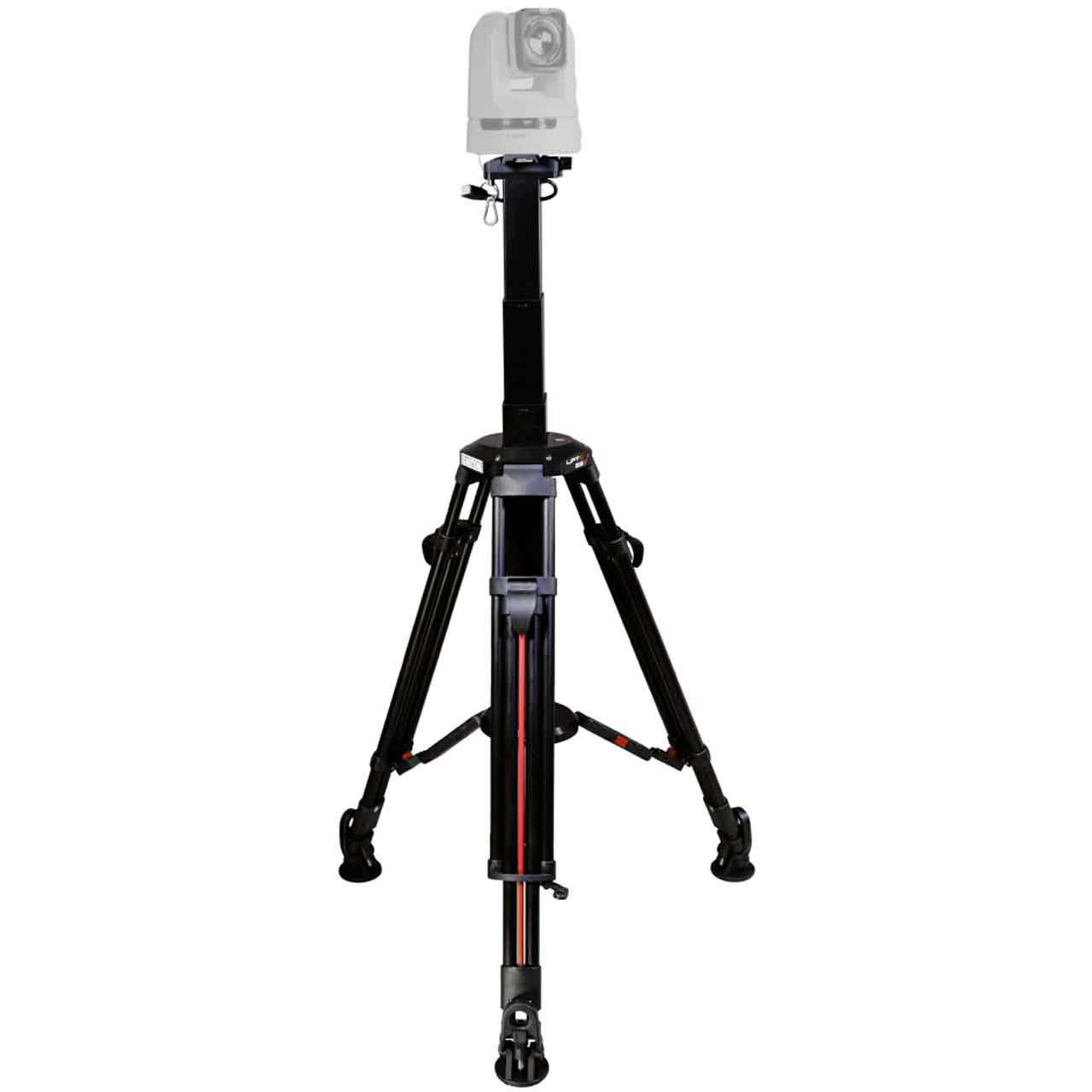

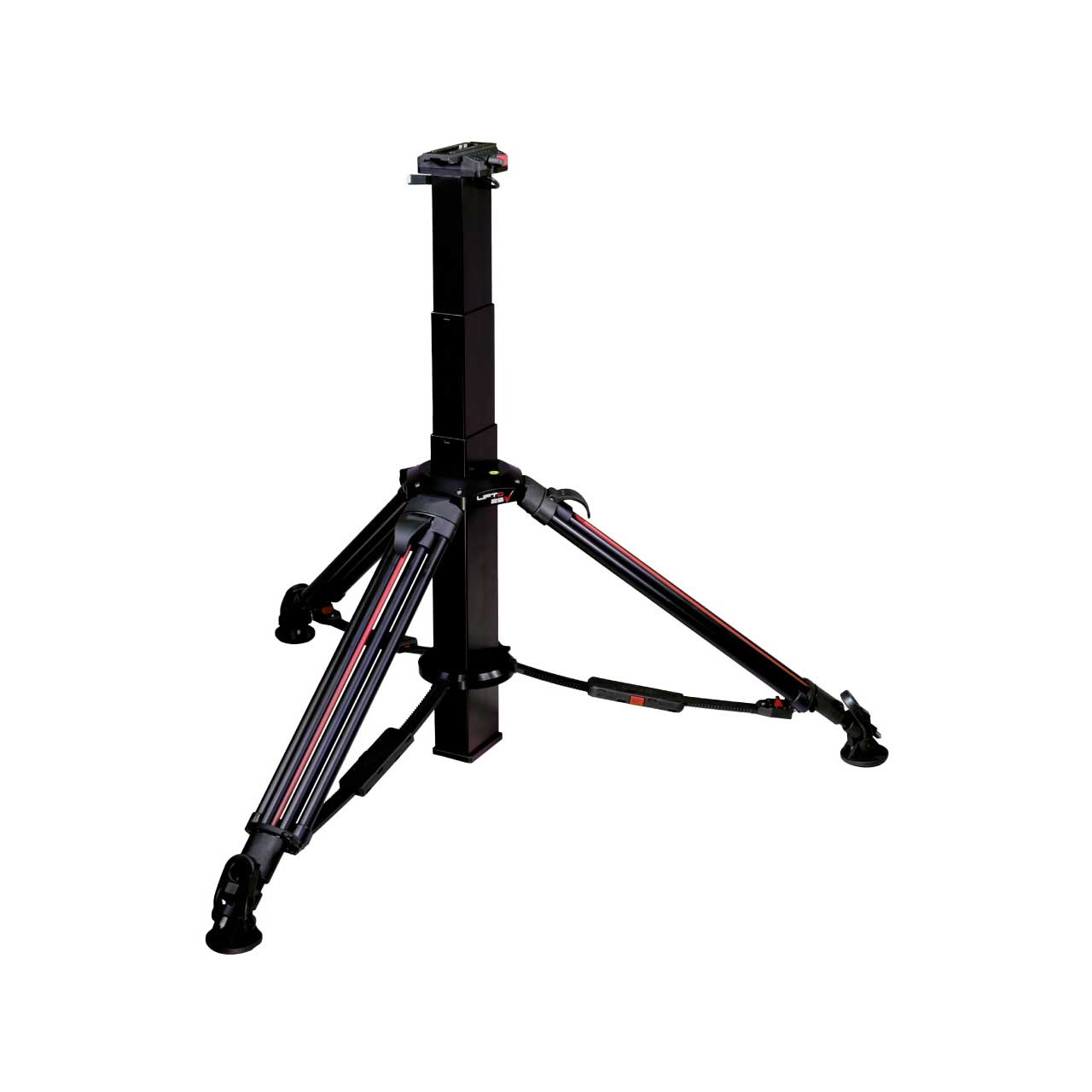

Cartoni Lifto 25 Motorized PTZ Elevation Column with Remote Control Unit/SDS Tripod/Smart Lock Spreader & Rubber Feet

ITEM #: CAR-KPTZ0201 MFG #: KPTZ0201

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,995.00

Our Price:

$3,728.67

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    KPTZ0201 - Overview

    The Cartoni KPTZ0201 is specifically designed for PTZ cameras, adds extremely smooth on-air quality vertical moves and creativity to enhance productions. This solution adds to the Pan & Tilt, and zoom control, additional height movement as a natural feature.

    Lifto 25 Motorized Elevation Column offers broadcast quality performance and height range at a competitive price.

    The increasing need for robotics in small studios, newsrooms, talk shows, educational and houses of worship, make the Lifto 25 a must have in studio or eventing.

    The easy and reliable control unit is connected via wire or optional Bluetooth. The manual control has 3 position pre-settings for fast routine repositioning.

    Lifto 25 Motorized Elevation Column performs great versatility in height range, from 22.5" minimum to 93.7" maximum, on stock rubber feet. The motorized column offers a two stage, 26" stroke at 55 lbs capacity.

    • Features:

      • Motorized elevation column optimized for use with PTZ cameras
      • Extremely silent elevation motor
      • Height range 22.5" to 98.4" - measured on dolly (ordered separately)
      • Maximum payload 55 lbs
      • Smart deployment tripod for great torsional rigidity and fast set-up
      • Bluetooth & wired remote control unit
      • 3 position pre-settings for fast routine repositioning
      • Built-in spreader and rubber feet
      • Quick release camera attachment for PTZ cameras with camera safety ring

    • Specifications:

      • Recommended for:
      • Sony FR7
      • PTZOptics 30X-SDI Gen 2
      • Canon CR-N700 4K
      • Canon CR-N300 4K (white)
      • Canon CR-N500 Professional 4K
      • BirdDog P4K 4K Full NDI (white)
      • BirdDog P4K 4K Full NDI (black)
      • Panasonic AW-UE160 UHD 4K (white)
      • Panasonic AW-UE160 UHD 4K (black)

      • Weight: 26 lbs
      • Capacity: 55 lbs
      • Minimum Height: 22"
      • Maximum height: 94"
      • Maximum height (dolly): 98"
      • Material: Aluminum
      • Dimensions: Φ 9.9 x 33 in
      • Speed: 38 mm/s
      • Column interface fixing method: Quick release camera plate
      • Stroke: 26"
      • Footprint diameter (minimum height): 51"
      • Input voltage: 24 V
      • Dual voltage power supply: 100/240V 50/60Hz
      • Maximum current consumption: 9 A
      • Operational temperature: -14°F/104°F

    • Item Includes:

      • 1x LIFTO 25 motorized column
      • 1x SDS 2 stage LIFTO 25 tripod

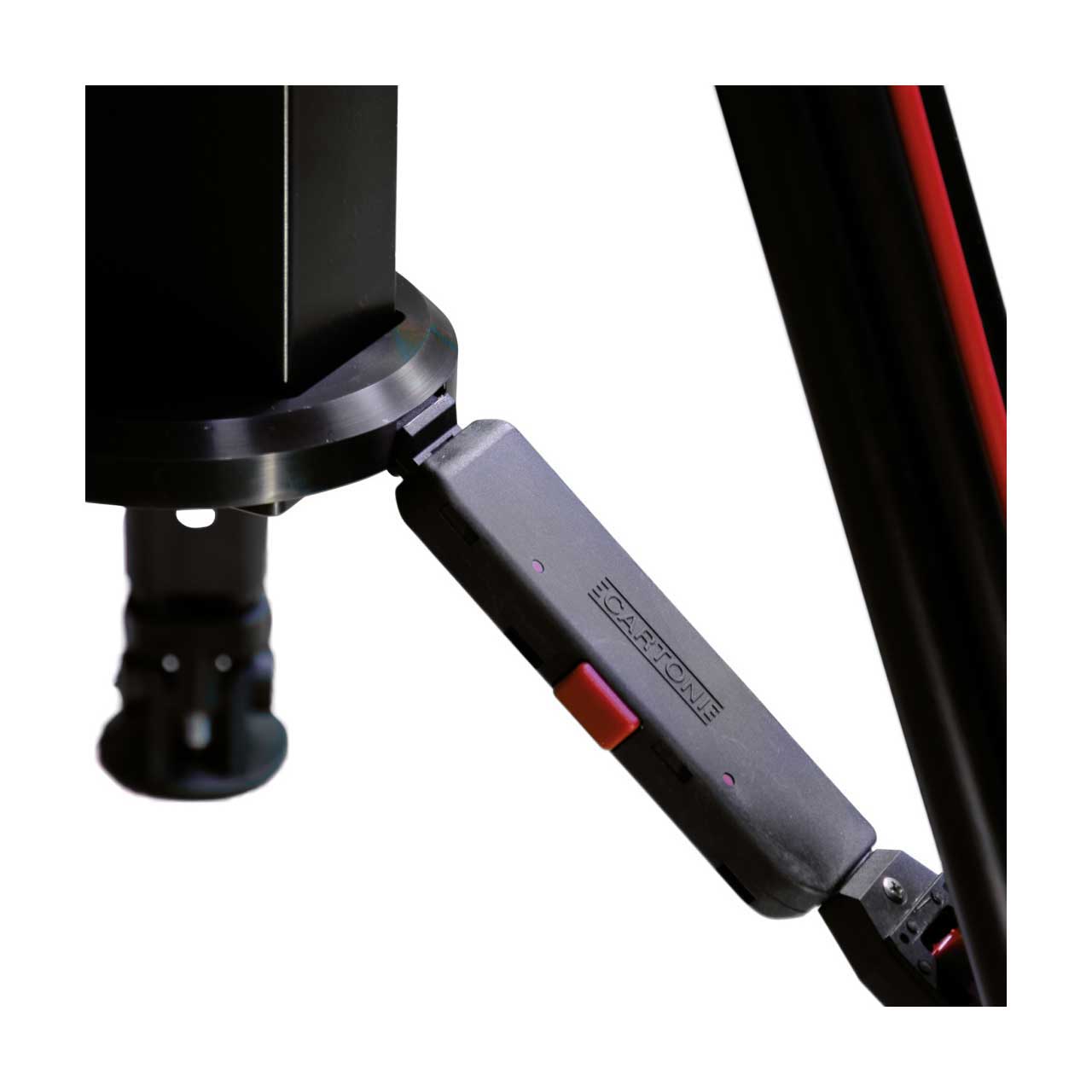

      • 1x LIFTO 25 multi-level smart lock spreader
      • 1x Rubber feet (AT877)
      • 1x Quick release camera plate (AH943)
      • 1x Power supply dual voltage
      • 1x Control device
      • 1x Motor cable 2.5 m [8.2 ft]
      • 1x Motor cable extension 2 m [6.6 ft]
      • 1x RJ 45 coupler
      • 1x EU power plug
      • 1x Self-winding cables protective sock
      • 1x Cable bag
      • 1x Safety ring (wiring strain relief + PTZ safety leash) (ato0040)

    • Warranty:

      • 2 year

    • GTIN:

      4270625673798
