SCP Cat6 Plenum-Enhanced 500 MHz - 23 AWG - Ethernet Cable - Black - 1000 Foot Reel-In-Box

ITEM #: CAT6-P-1000 MFG #: CAT6-P-1000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Structured Cable Products
Free Shipping with $49 Minimum Order

Our Price:

$468.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    CAT6-P-1000 - Overview

    SCP Cat6 UTP Plenum cables comply with NFPA-262 and are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke. Only plenum rated cables are allowed for USA installation in spaces such as raised flooring systems and air handling ducts.

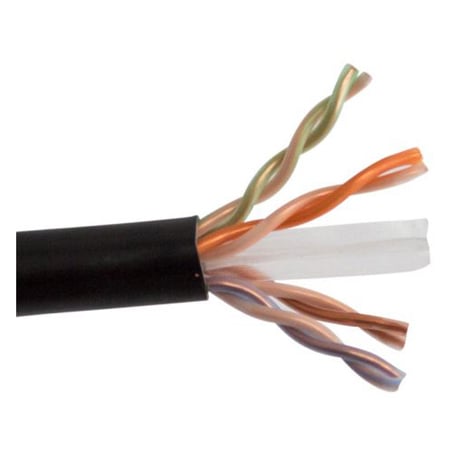

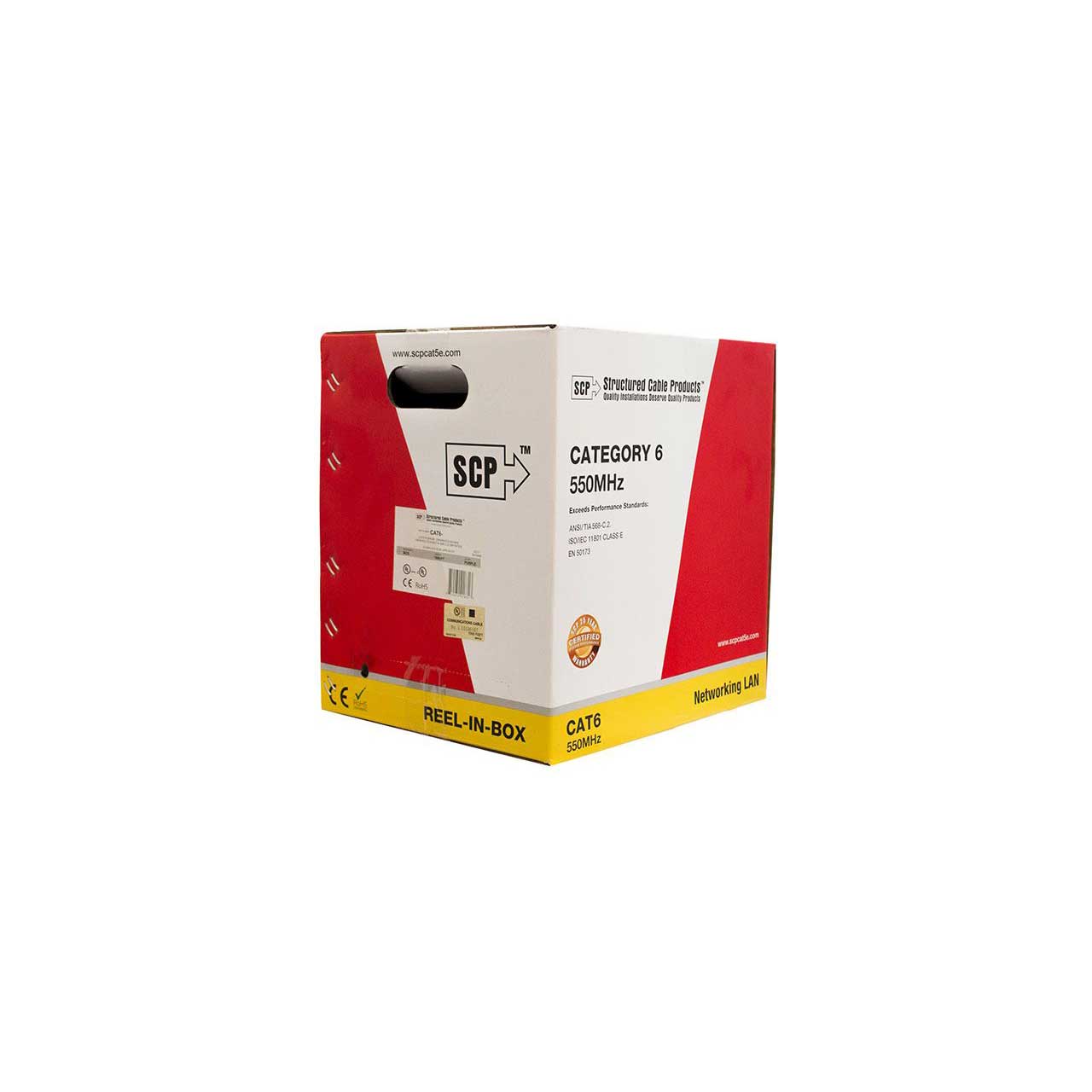

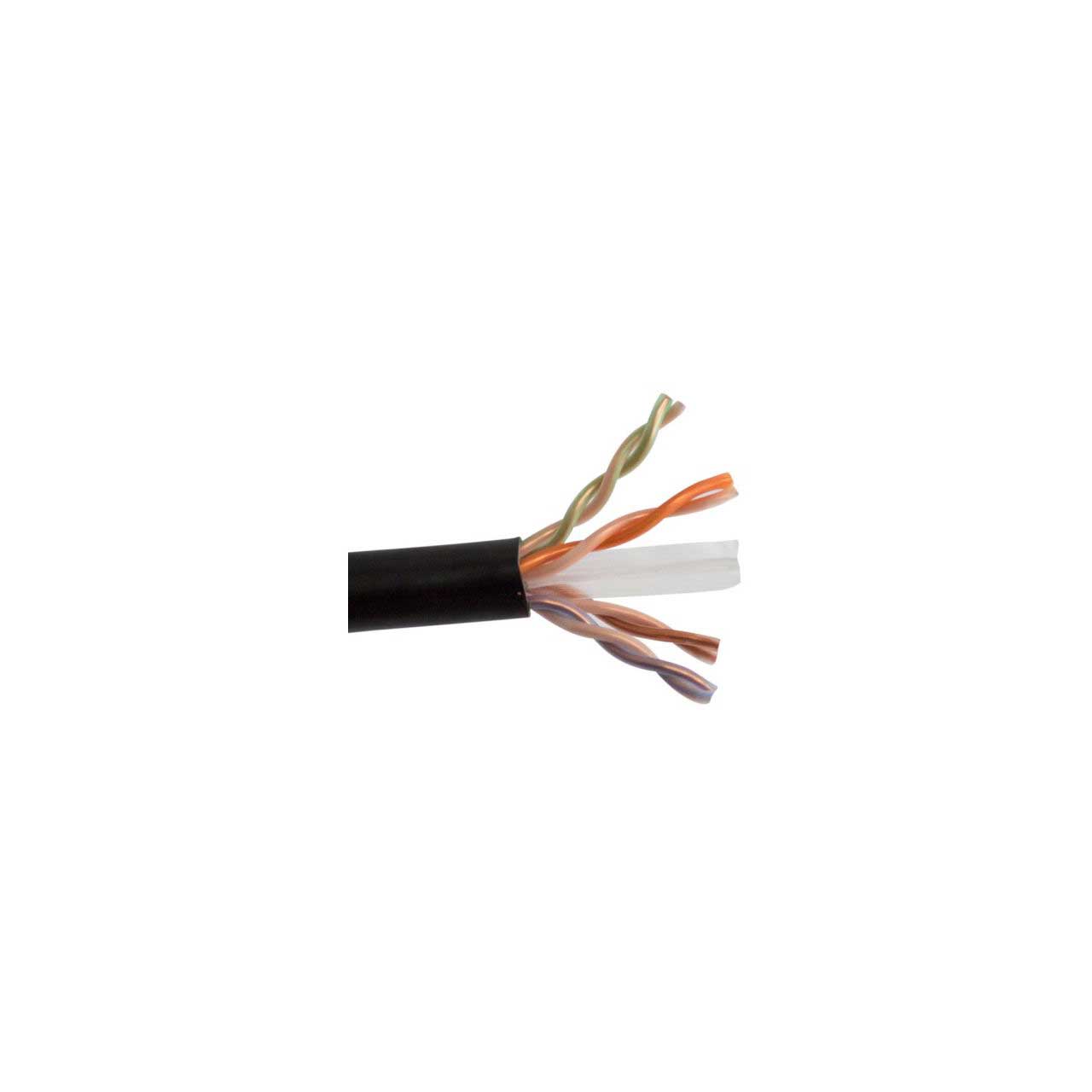

    SCP Cat6 Plenum cables meet TIA/EIA 568-C.2 Category 6 standards. Each cable is 550 MHz 23 AWG insulated solid bare copper conductors with a center spline separating the pairs. This creates a round and flexible cable for easy pulling and stripping of the cable jacket. This cable is UL and CMP rated and it is packaged on a Reel-In-Box (RIB).

    CAT6-P-1000 is comparable to:
    Belden - 7882A, 1874A
    Honeywell - 5102
    Coleman - 977964

    • Features:

      • High performance of transmission.
      • High quality of safety property.
      • Sweep frequency up to 550 MHz.
      • Reelex - carton and easy to pull out.
      • Carton with one layer corrugated design providing sufficient strength and saving packaging space.


    • Specifications:

      • Conductor Material: 23AWG solid bare copper
      • Insulation Material: Fluorinated Ethylene Propylene (FEP)
      • Color code & diameter:
        Blue & white/blue Stripe - 0.95 ± 0.02 mm
        Orange & white/orange stripe - 0.92 ± 0.02 mm
        Green & white/green stripe - 0.94 ± 0.02 mm
        Brown & white/brown stripe - 0.92 ± 0.02 mm
      • Twisted Description: Left hand direction
      • Filler Material: Polyolefin (PO)
      • Assembly Description: Left hand direction
      • Rip cord Material: Polyester multi-yarn
      • Temperature rating: 75°C
      • Spark test: 2.5 KV DC
      • AC leakage current through overall jacket: ≥ 10mA (1.5KV AC)
      • Cable cold bend: -20°C for 4 hr
      • Conductor DC resistance: = 9.38 Ω /100m
      • Resistance unbalance: = 5%
      • Dielectric strength: 1.5 KV ac for 2 s
      • Insulation resistance: ≤ 5000 MΩ km
      • Mutual capacitance: ≥ 5.6 nF/100m
      • Capacitance unbalance: pair-to-ground = 330 pF/100m
