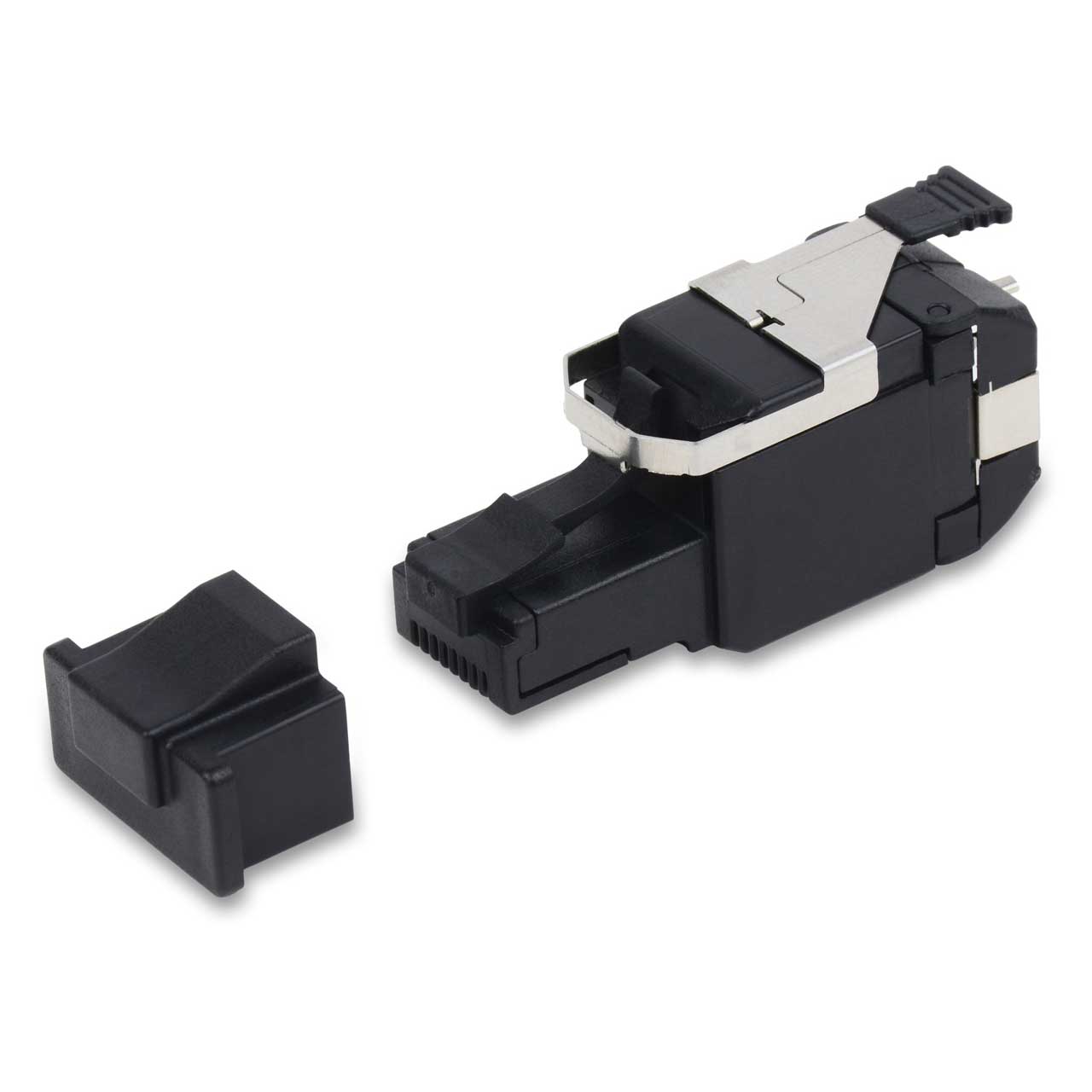

Belden RVAFPUBK-B24 REVConnect 10GX UTP T568 A/B Field Mount Modular RJ45 Connector - Plug - Black - 24-Pack


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    RVAFPUBK-B24 - Overview

    The Belden RVAFPUBK-B24 REVConnect 10GX UTP T568 A/B Field Mount Modular Connector in a bulk pack of 24. The Field Mountable REVConnect Plug is the answer to your IoT and AV needs. One reliable, easy, versatile termination process is all that’s required for your building security systems, LED lighting and sensors, wireless access points, HVAC, digital signage, audio mixing consoles, and more.

    Installers no longer have to choose between a complicated, lengthy termination that takes too much time and a simple, fast termination that needs to be redone a few times to get right. Relying on a single termination method, the REVConnect® Connectivity System uses a universal termination core for all shielded and unshielded Category 5e, 6 and 6A RJ45 connections. Designed based on feedback from installers, integratorsand consultants, REVConnect can cut termination time by up to 60%.

    Saves Money
    Eliminates the jack, box, and patch cord assembly needed to plug into devices.

    Saves Time
    Single termination process for every application.

    Peace of Mind
    Strong, Belden warranted performance for Networking and HDBaseT.

    PoE Ready
    Supports devices requiring up to 100W power.

    Strongest IL Performance
    Direct use of horizontal cable eliminates patch cord derating

    • Features:

      • Terminates a jack or a plug onto a single core interface compatible with eight RJ45 modules
      • Highly reliable termination for a secure, gas-tight connection
      • Allows switching from jacks to plugs (or vice versa) without re-terminating
      • Universal wiring manager supports all Category 5e, 6 and 6A cables
      • Single tool covers all steps of the termination process, including cable preparation
      • Plenum rated for safe connectivity in air-handling spaces
      • Core cap protects connector during construction
    • Specifications:

      • Footprint/Type: KeyConnect
      • Plug / Jack Compatibility: RJ45
      • Cable/Connector Retention: 15 lbs.
      • Connector/Hardware Retention: 20 lbs.
      • Plug/Connector Retention: 11.250 lbs.
      • Storage Temperature Range: -40°C To +70°C
      • Installation Temperature Range: -10°C To +60°C
      • Operating Temperature Range: -10°C To +60°C
      • UL Rating: UL94V-0
      • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
      • EU Directive 2002/95/EC (RoHS): Yes
      • EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006
      • MII Order #39 (China RoHS): EUP 50
      • Telecommunications Standards: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
      • Safety Listing: c(UL)us Listed
      • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
      • UL Flame Test: UL2043 Air Handling Spaces
      • Suitability - Indoor: Yes - Indoor
    • Item Includes:

      • RVAFPUBK-B24 REVConnect Field Mount Modular RJ45 Connector - Plug - Black - 24-Pack
