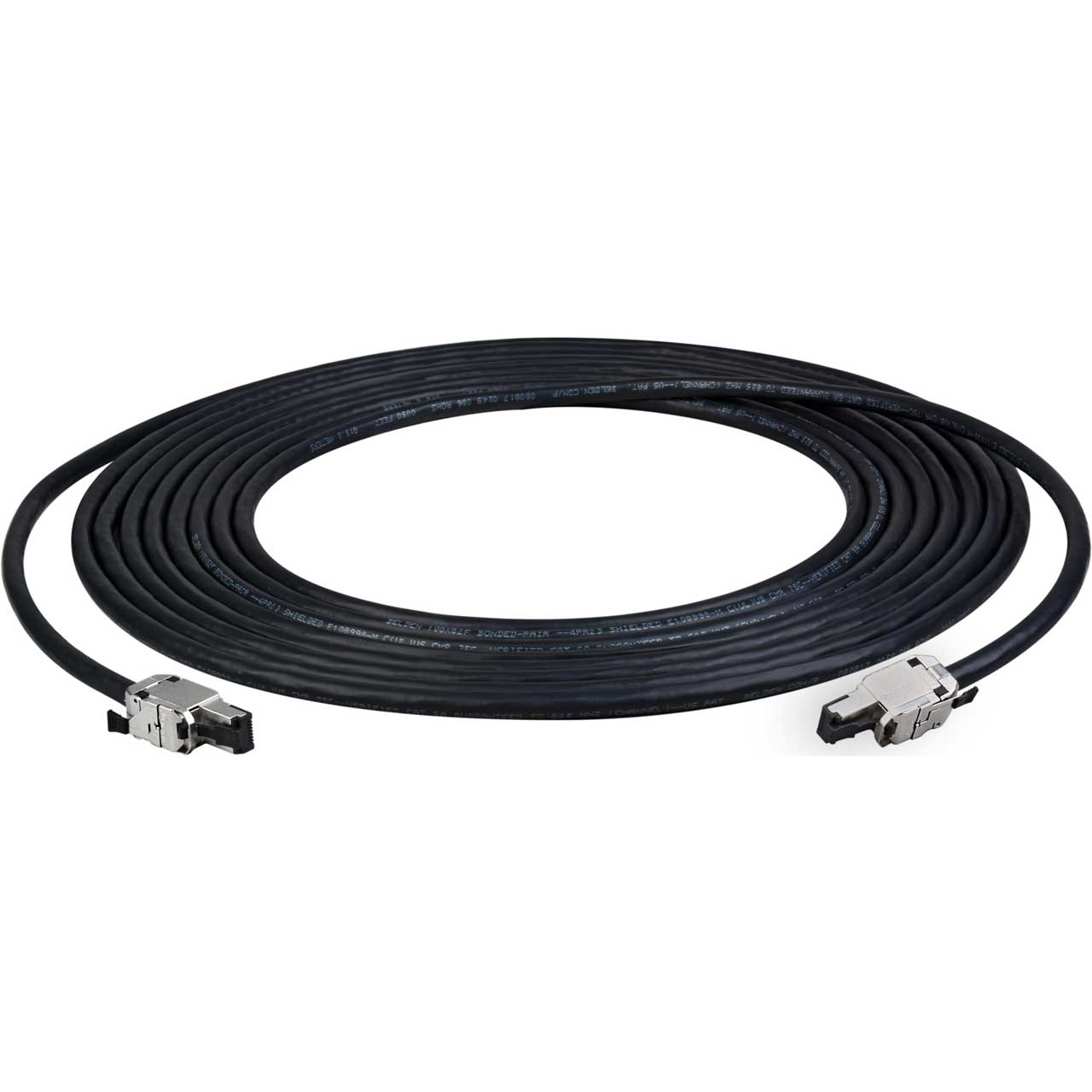

Laird CAT6A-REVMM Belden CAT6A & REVConnect RJ45 Male to Male PoE Cable Assembly - 6 Foot

ITEM #: CAT6A-REVMM-006 MFG #: CAT6A-REVMM-006

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$85.95

Our Price:

$77.95

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CAT6A-REVMM-006 - Overview

    Laird, the leader in rugged 10G Ethernet RJ45 cables for 4K UHD transmission, introduces the CAT6A-REV series featuring the interchangeable Belden REVConnect system and bonded riser rated Belden cable. The Belden REVConnect plug adapts to today's needs for high performance and emerging applications. REVConnect cable ends can be easily changed in the field when this cable needs to be modified to a male-to-female extension. REVConnect is terminated on Belden's 10GX62F cable delivers a unified 10G Power Over Ethernet (PoE) solution in video over IP, digital signage, remote POV camera transmission and DANTE audio applications. This is sure to become the cable of choice in premise horizontal wiring, 10 Gigabit Ethernet distribution, video and AES67 digital audio uses. The cable's 4-Bonded-Pair and F/UTP-foil shielded construction ensure the highest performance in noisy environments.

    • Features:

      • Supports all RJ45 (CAT 5e, CAT 6, CAT 6A) Shielded and Unshielded Connections
      • Durable & Lightweight Belden Bonded Pair Cat6A Cable
      • Riser Rated & PoE Ready for Devices Requiring up to 100W Small Bend Radius for Tight Spaces
      • Low Insertion Loss
      • Superior Crosstalk Isolation & EMI Suppression
      • Heavy Duty RevConnect Connectors Assure Strong, Secure Gas-Tight Connections
      • Modular Connectors can be Replaced with other REVConnect Series Products

    • Specifications:

      • Belden 10GX62F Bonded-Pair 23 AWG Cables
      • F/UTP Foil Shielded with PVC Jacket
      • Insertion Loss: ≤ 43.9dB
      • Return Loss: ≥15.2dB
      • Min Bend Radius: 1.2 in
      • Min Bend Installation: 3 in
      • Applications: Premise Horizontal Cable, 10 Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, PoE, PoE+

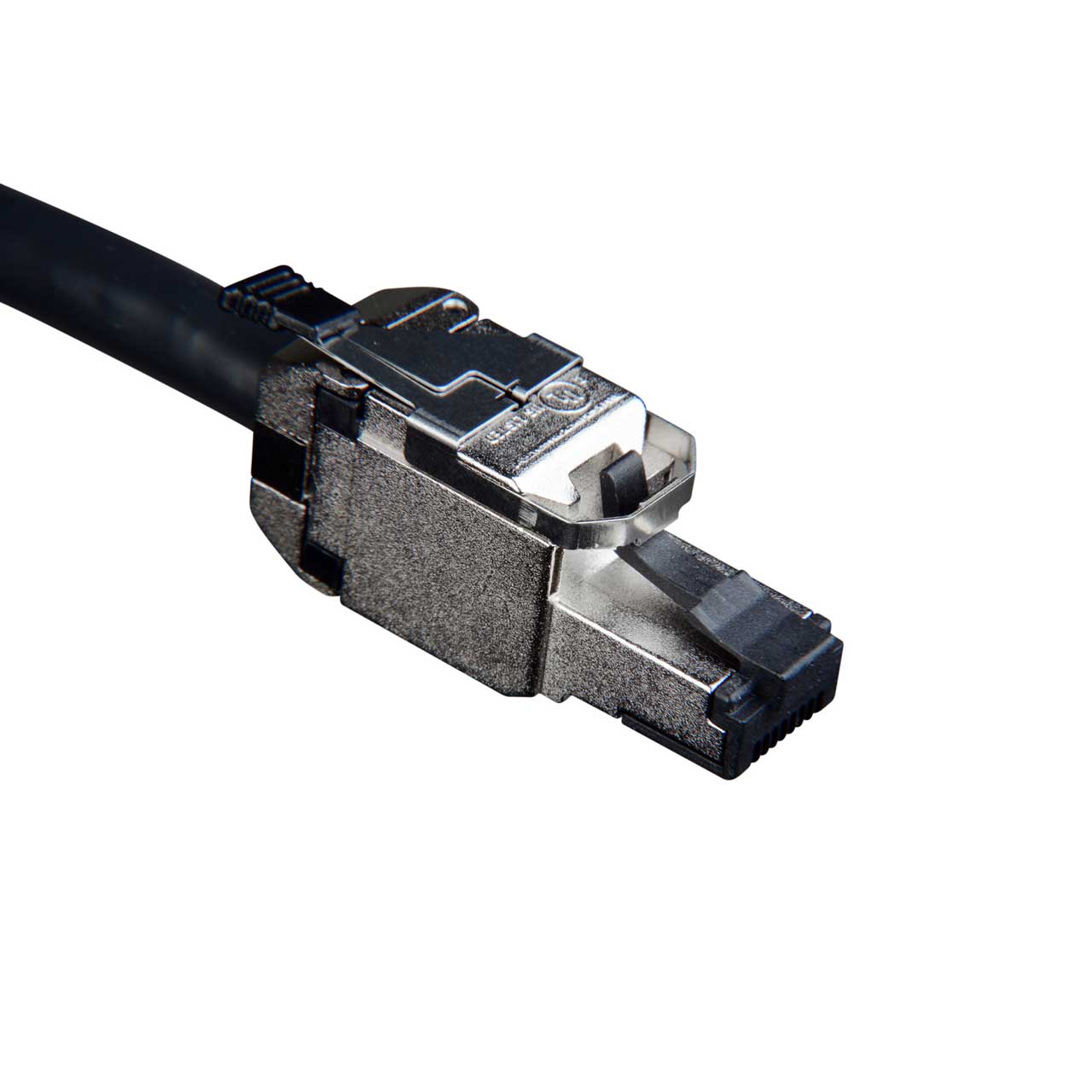

        Belden REVConnect 10GX Connector
      • RJ45 Front Connection Cable/Connector Retention: 15 lb
      • Connector/Hardware Retention: 20 lb
      • Plug/Connector Retention: 11.25 lb
      • Termination Resistance: 2.5 m-Ohm

    • Warranty:

      • 1 Year
