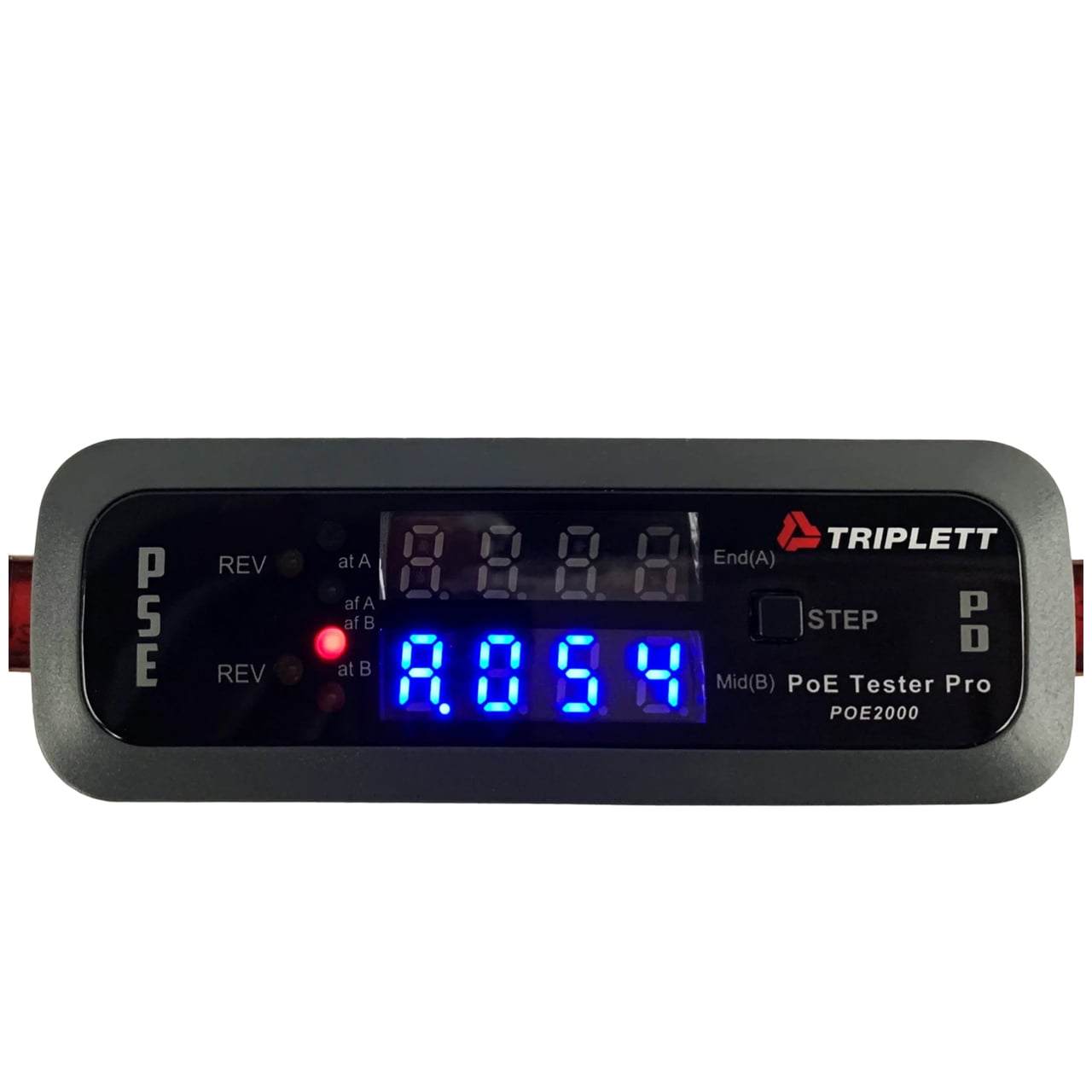

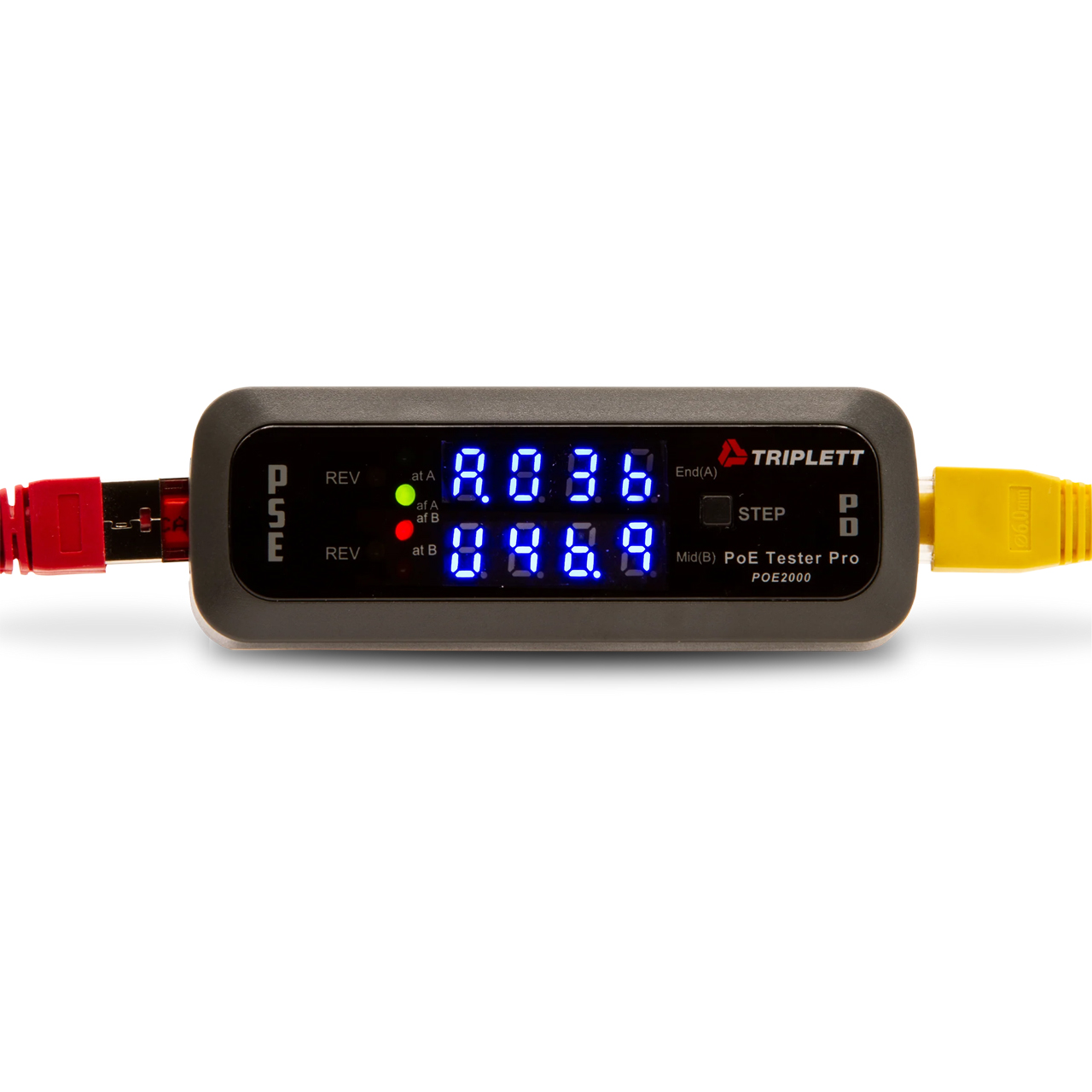

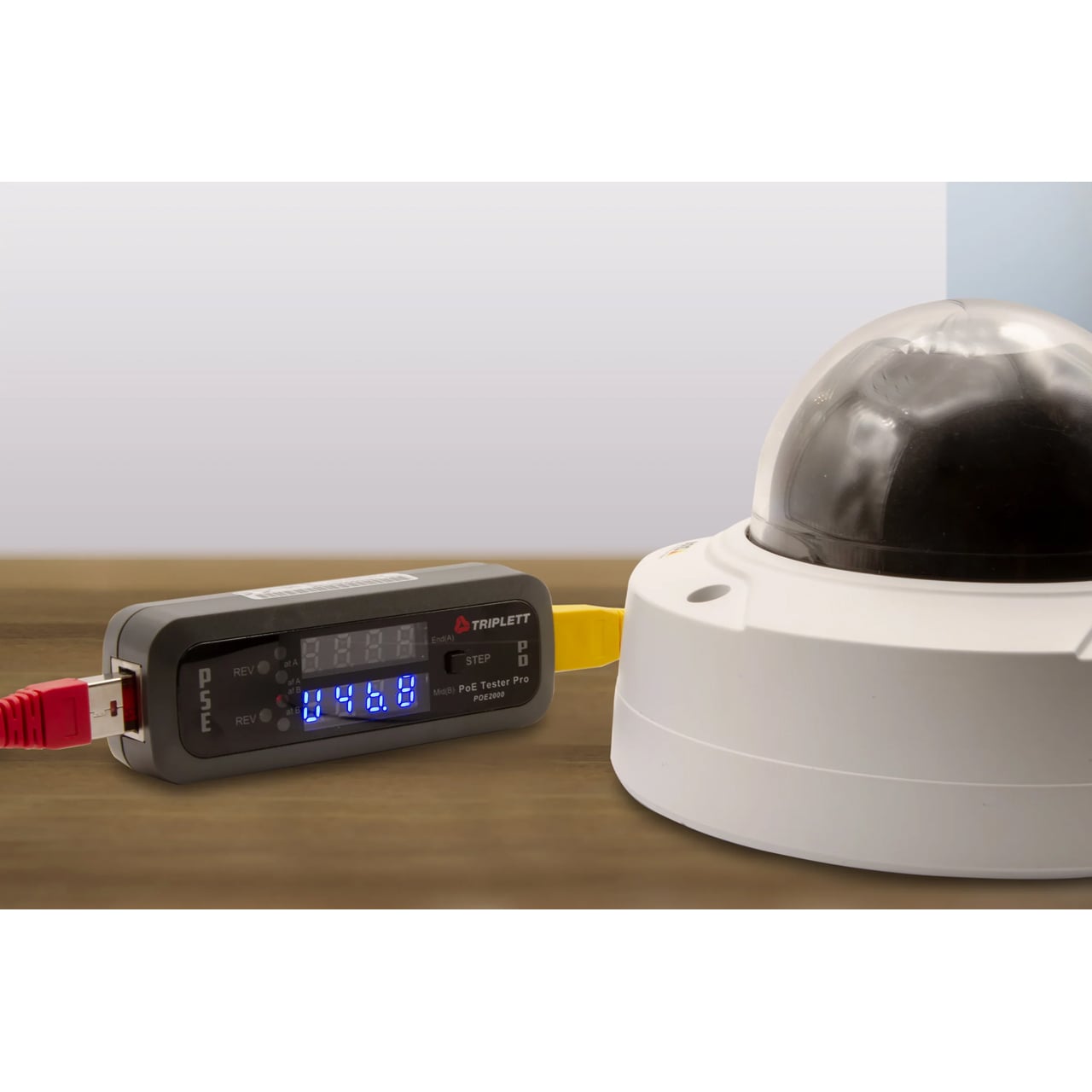

Triplett POE2000 Inline Power Over Ethernet Detector - Detects PSE-Type/Class and Power Source

POE2000 - Overview

• Features:

  • Four LEDs indicate IEEE802.3af or 802.3at/bt standard
  • Dual 7-digit LEDs indicate power source either end (A) Span (1/2, 3/6) or Mid (B) span (4/5, 7/8) or both for bt
  • Two Yellow LEDs indicate reversed polarity for power type
  • Display alternates between Voltage, Current and Power with a step button for selecting specific data to display


• Specifications:

  • Connector Interface: 2x RJ45 (PSE & PD Test Jacks)
  • Voltage Range:
    - Standard PoE: 36V - 60V
    - Non-Standard: 11V - 60V
  • Max Current (based on 50V): 990mA/50W per mode; Total 2A/100W
  • Function Selection Mode:
    - T Mode: for detecting PSE status
    - N Mode: for determining non-standard PoE + inline testing
    - I Mode: for testing & monitoring real-time power status
  • Display:
    - 4x LEDs indicate IEEE802.3af or 802.3at/bt standard
    - Dual 7-digit LEDs indicate power source either end (A) Span (1/2, 3/6) or Mid (B) span (4/5, 7/8) or both for bt
    - 2x Yellow LEDs indicate reversed polarity for power type
    - Display alternates between Voltage, Current and Power
  • Step Button: For selecting specific data to display
  • Power: Uses system power when connected to a device
  • Dimensions (WxDxH): 3.9" x 1.4" x 1" (99mm x 36mm x 26mm)
  • Weight: 0.1lbs (45.4g)


• Item Includes:

  • 1x POE2000


• Warranty:

  • 1 Year Limited Warranty
