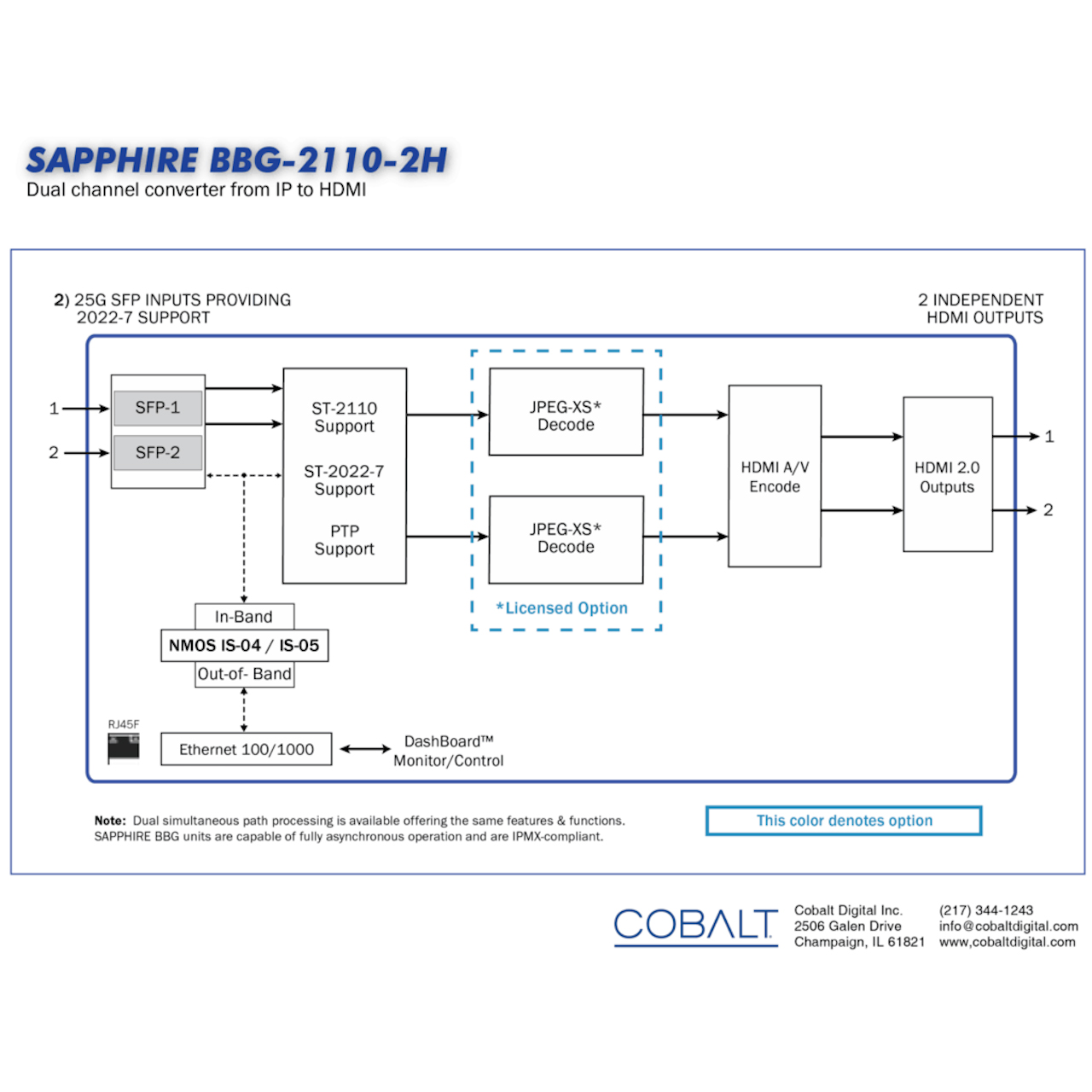

COBALT ST 2110 Mini-Converter with HDMI Outputs with Passive Cooling Options

SAPPHIRE BBG-2110-2H (P) - Overview

• Features:

  • Converts ST 2110-20 or -22 JPEG-XS (license required) streams with associated -30 audio and -40 ancillary data essences to HDMI.
  • SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX compliant.
  • Supports 4K-UHDX
  • Supports NMOS IS-04/IS-05 control, both in-band and out-of-band.
  • Supports all popular formats: 720p, 1080i, 1080p, and 2160p (2160p is available on the first path only).
  • Supports SMPTE ST 2022-7 Seamless Redundancy up to Class C for WAN operation.
  • Available with an active cooling fan (smaller package) or a passive fan-less version for quiet operation.
  • Can be mounted behind the monitor with optional brackets.
  • Web interface and DashBoardT control.
  • Two 12V DC inputs (for redundant power supply)


• Specifications:

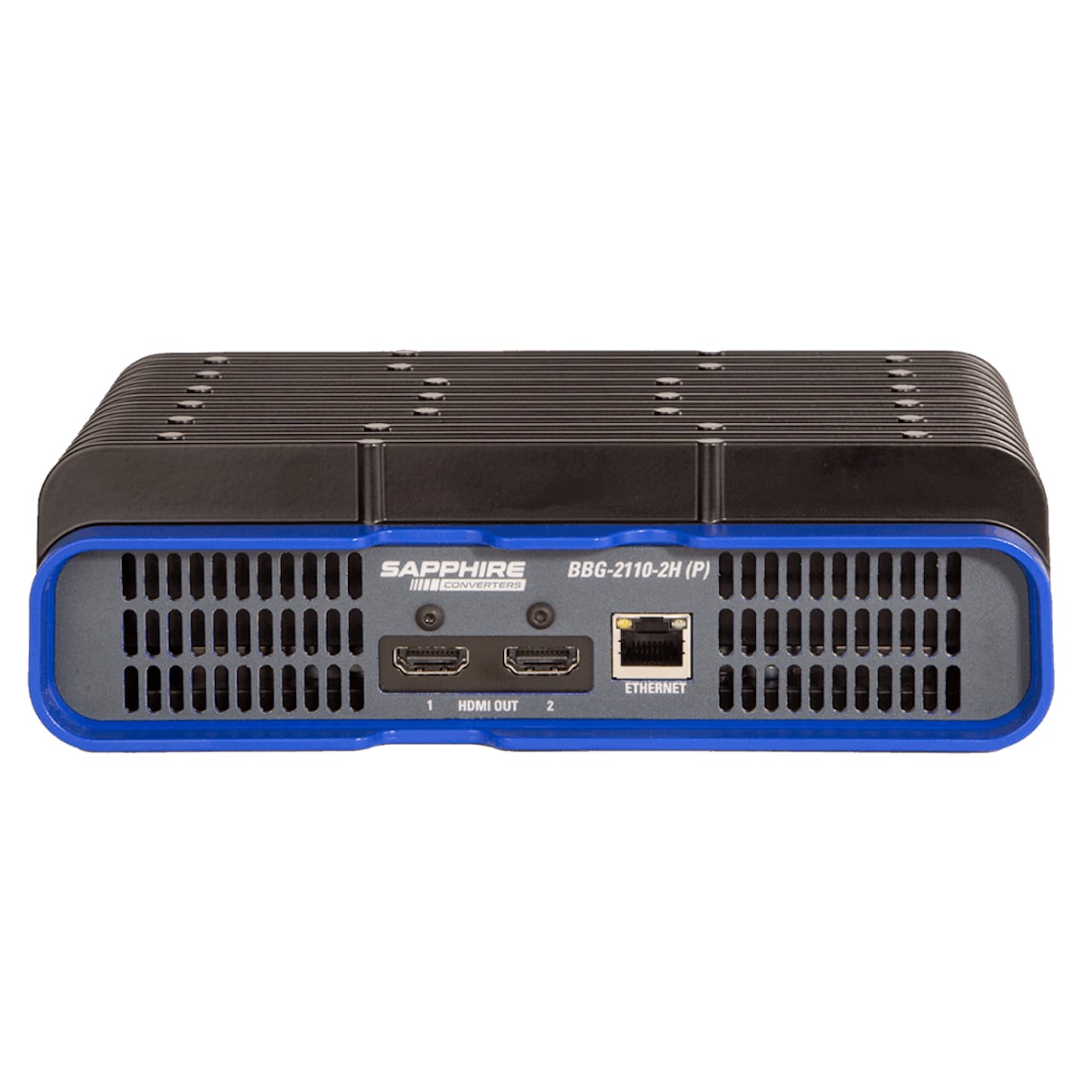

  • Outputs: 2x HDMI outputs

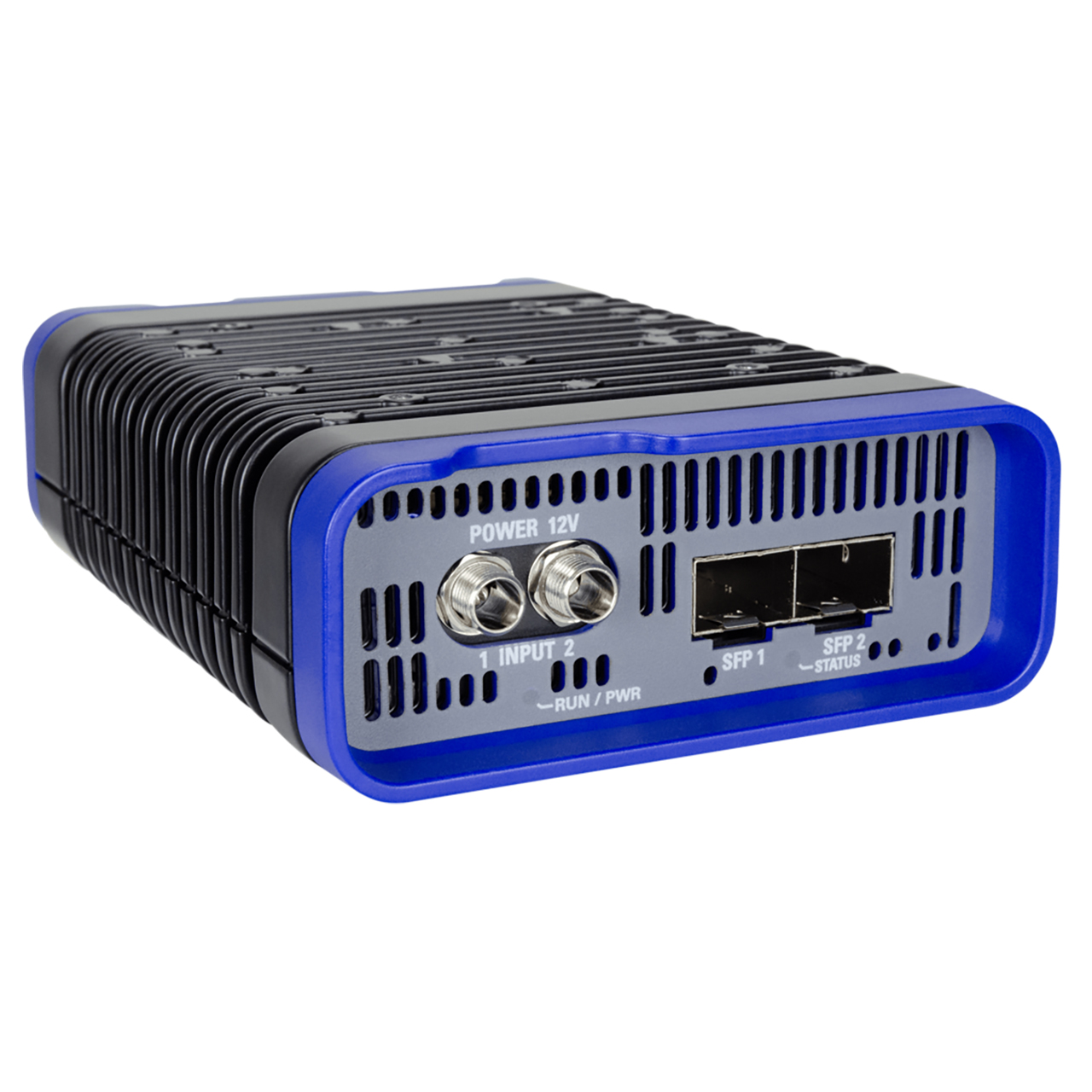

  • Stream Interfaces: 2x 10G/25G SFP 28 cages
  • Management Port: 100/1000 Mbps Ethernet with Auto-MDIX

    Standards Support
  • Uncompressed ST 2110-20 Video
  • JPEG-XS ST 2110-22 (Option license)
  • VSF TR-08 Support for ST 2110-30 audio
  • ST 2110-40 ancillary data essences
  • SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.

    Physical
  • Dimensions: 8" x 5.5" x 2.37"
  • Weight:
    - 3.5lbs
    - 4.5lbs with power supply and power cord

    Power
  • 12 VDC, 20W

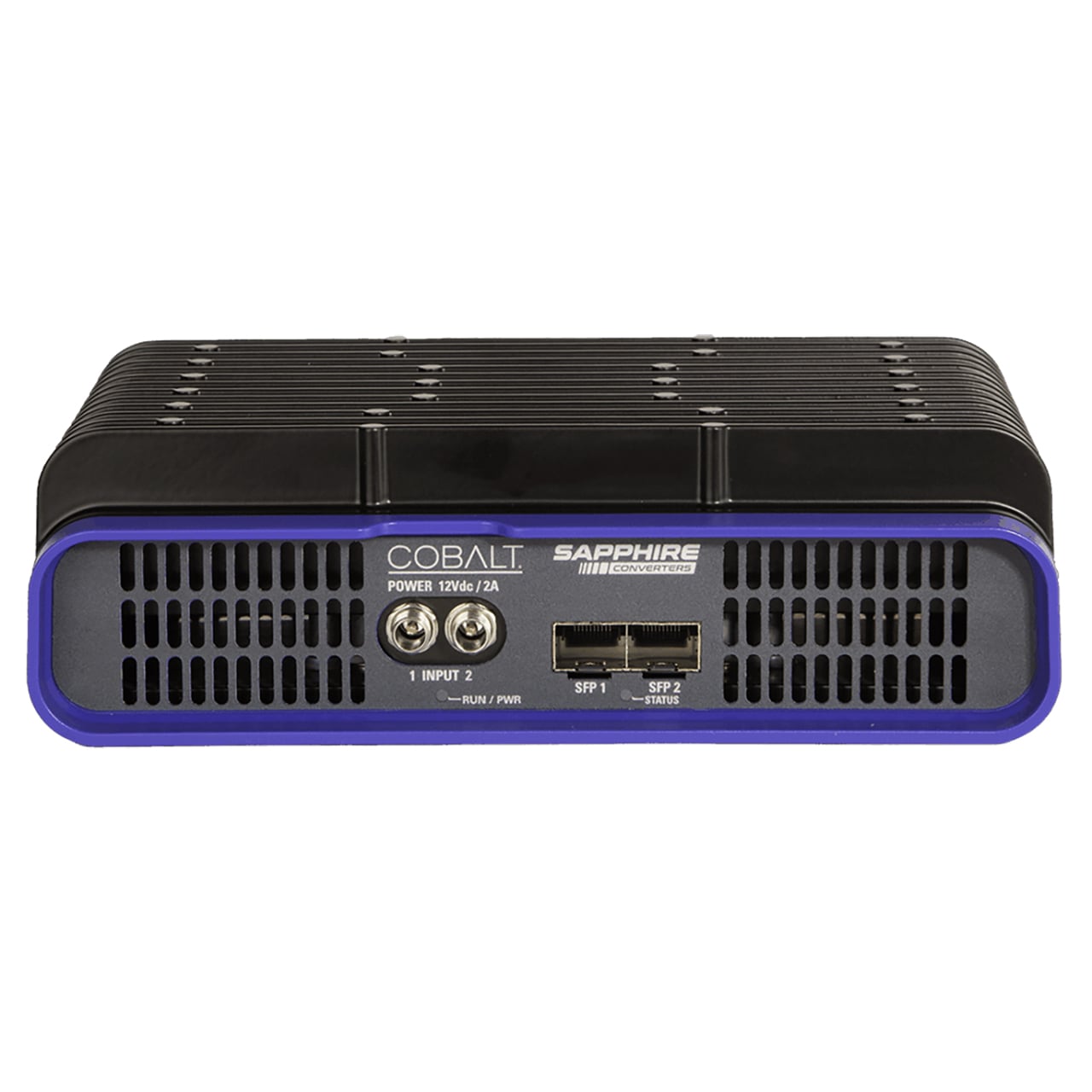

  • 2x DC Power Connectors (for redundant power supply)


• Warranty:

  • 5 Year Limited Warranty
