Cobalt RM20-9903-E 20-Slot Frame Rear I/O Module - Standard Width - 1x 3G/HD/SD-SDI Input BNC - 1x AES In BNC

ITEM #: CB-RM20-9903-E MFG #: RM20-9903-E

free ship

List Price:

$148.00

Our Price:

$143.19

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    RM20-9903-E - Overview

    The Cobalt RM20-9903-E is a 20-Slot Frame Rear I/O Module (Standard Width) with (2) 3G/HD/SD-SDI Inputs, (1) CVBS Input, (8) AES Inputs, (2) Balanced Analog Audio Inputs, (2) 3G/HD/SD-SDI Outputs, (1) CVBS Processed Output, (8) AES Outputs, and (2) Balanced Analog Audio Outputs (All coaxial connectors HD-BNC. to be used with the 9903-UDX-ADDA 3G/HD/SD-SDI Universal Format Converter with CVBS/YPbPr Video I/O, Up/Down/Cross Conversion, Frame Sync, AES and Analog Audio Embedding / De-Embedding provides a high-density card-based solution that offers unprecedented multi-input support, flexibility, and ease of use and
    integration for SDI and analog video and discrete audio.

    Frame sync provides glitch-free audio upon framesync events, with video/audio offsets user configurable. Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.

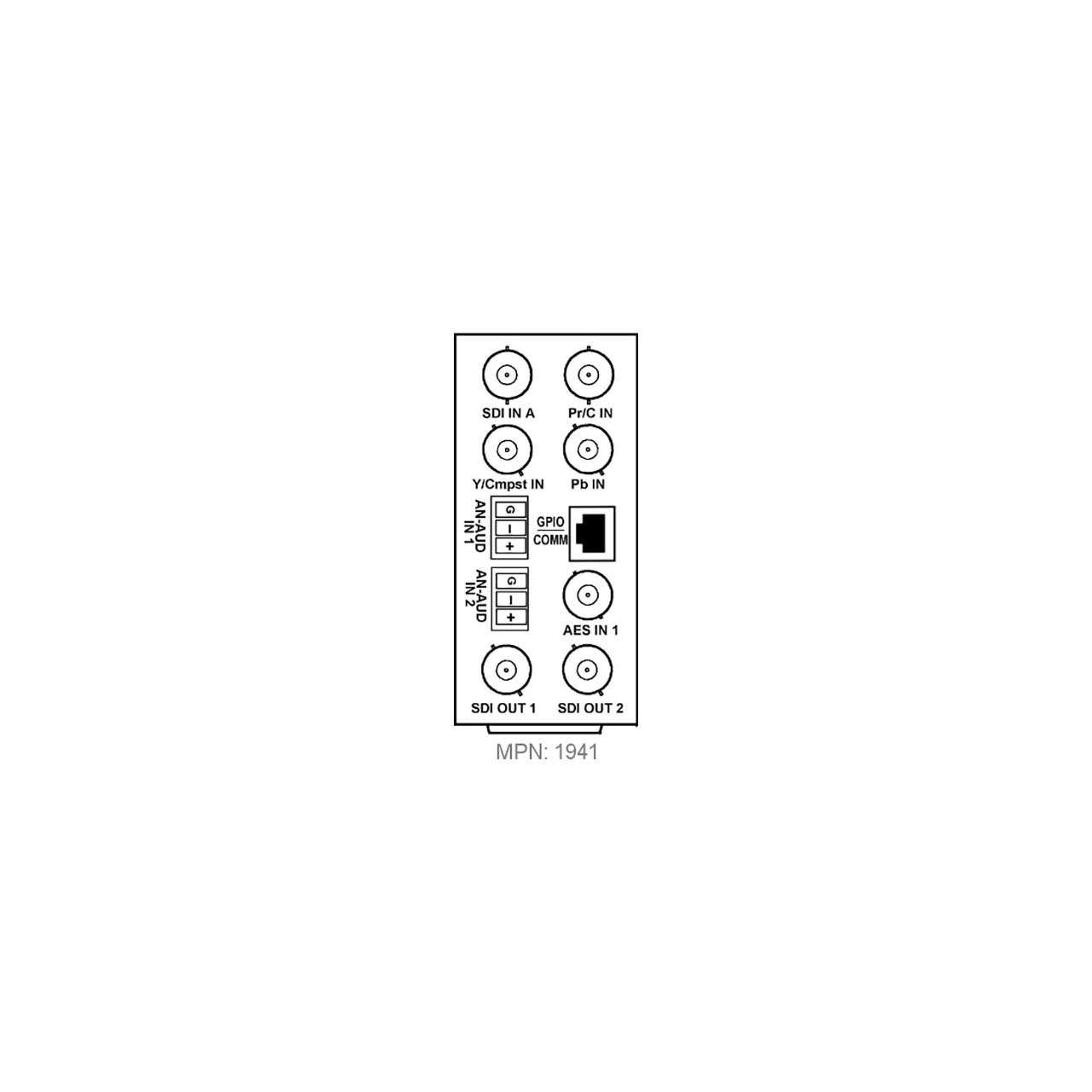

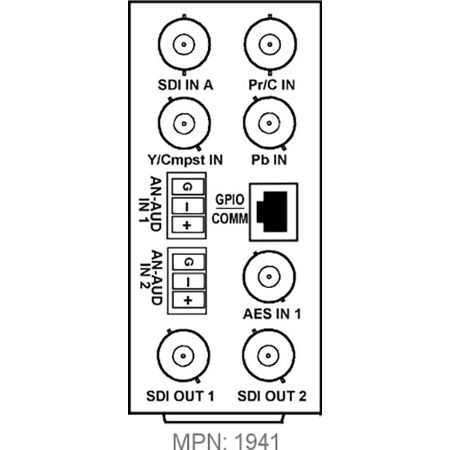

    • Specifications:

      • 1 x SDI In
      • 1 x CVBS/Component Analog Video In
      • 2 x Balanced Analog Audio In
      • 1 x AES In
      • 2 x SDI Out
      • 1 x GPIO/COMM (Combined RJ-45 connector)(All coaxial connectors BNC)

    • Item Includes:

      • 1x Cobalt RM20-9903-E 20-Slot Frame Rear I/O Module - Standard Width - 1x 3G/HD/SD-SDI Input BNC - 1x AES In BNC
