    RM20-9933EMDE-B-HDBNC - Overview

    The Cobalt Digital RM20-9933EMDE-B-HDBNC is a rear module option for the Cobalt Digital 9933-EMDE-ADDA 3G/HD/SD-SDI 16 Channel Un-Balanced AES and Balanced Analog Audio Embedder/De-Embedder openGear card.The 9933-EMDE-ADDA provides full 16-channel embed / de-embed between AES, 8-channel analog audio, and all four groups of embedded audio. Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Analog embed/de-embed conforms with professional balanced audio at 0 dBFS to pro 24 dBu levels using full 24-bit conversion.

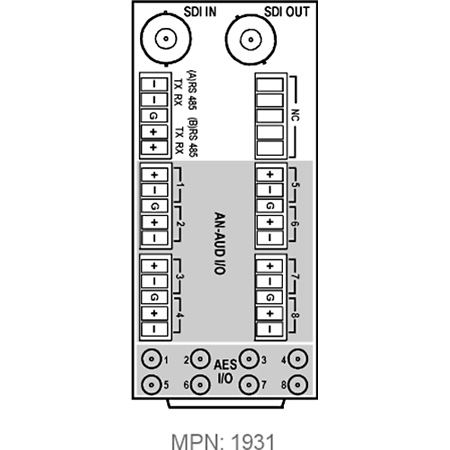

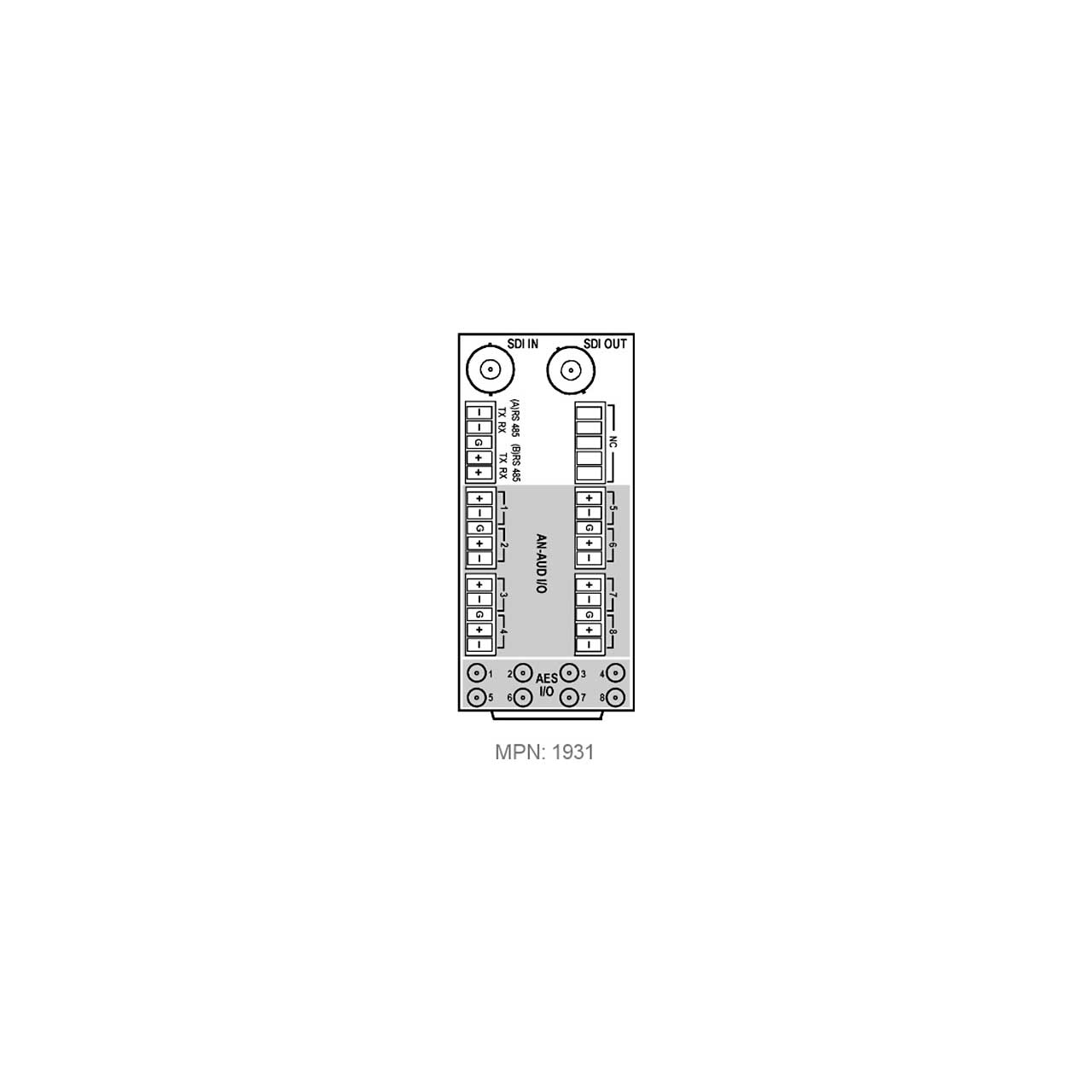

    Rear Module Features:
    SDI In BNC
    (8) Balanced Analog Audio I/O
    (8) Unbalanced AES I/O
    (2) COMM I/O (functional only w/ option +DT)
    SDI Out BNC
    (All AES coaxial connectors DIN1.0/2.3 or HD-BNC)

    RM20-9933EMDE-B-HDBNC - Recommended Accessories
